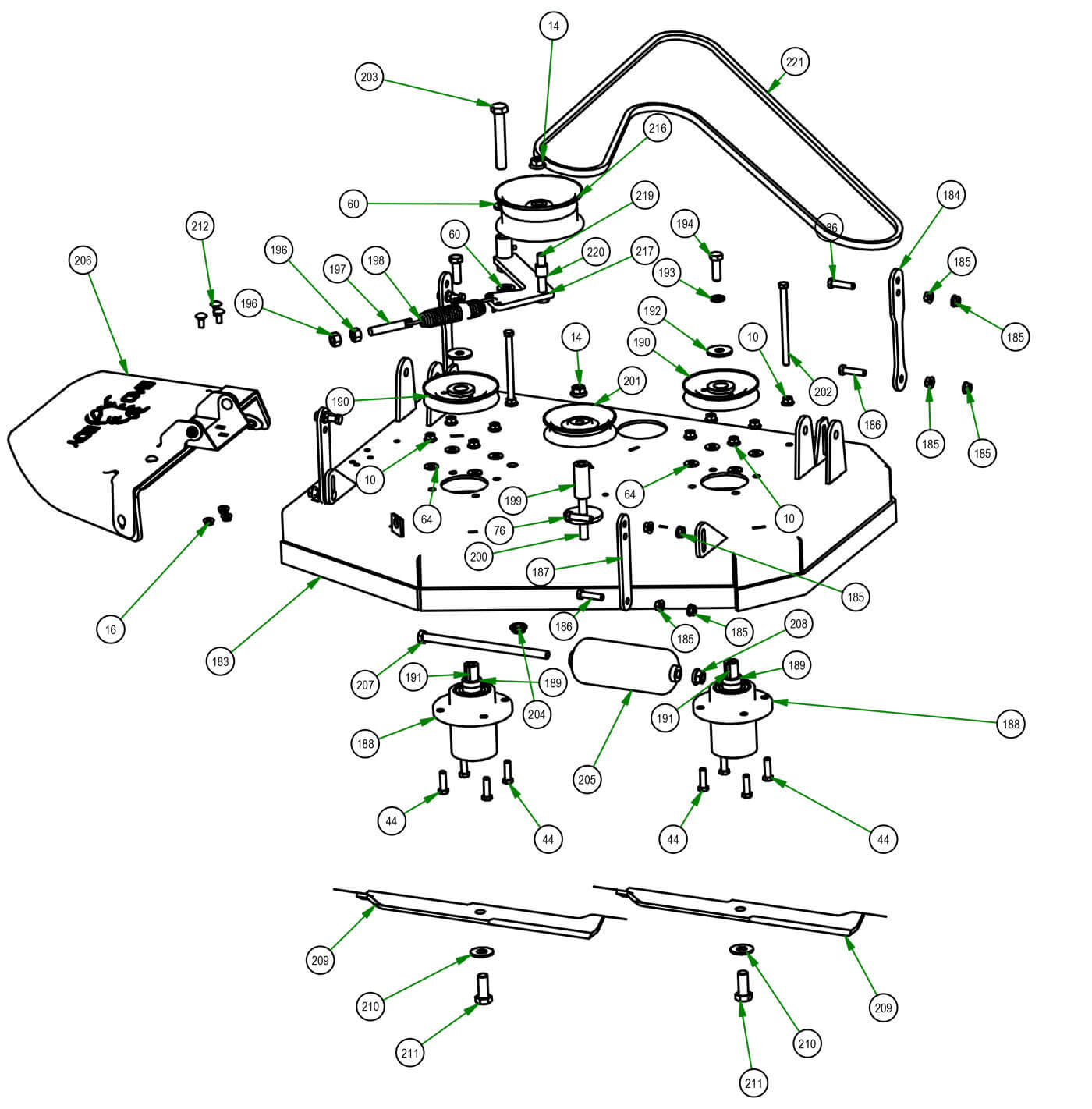

34" Deck Assembly
Parts Index
- 10 3/8 Nylock Flange Nut (Qty 12)
- 14 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 16 5/16-18 Hex Flange Nuts Zinc w (Qty 3)
- 44 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 60 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 64 5/16 USS Flat Washer Zinc (Qty 8)
- 76 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 184 2019 Stand On Deck Hanger Rear--Black (Qty 2)
- 185 3/8-16 Hex Flange Nuts Zinc w/ (Qty 16)
- 186 3/8 x 1 1/2 Bolt (Qty 8)
- 187 2019 Stand On Deck Hanger Front--Black (Qty 2)
- 188 Revolt 36" Spindle (Qty 2)
- 189 36" Stand On Deck Spacer (Qty 4)
- 190 Deck Pulley - 48" Magnum/MZ (Qty 2)
- 191 3/16 X 1 Square Machine Key (Qty 2)
- 192 1/2 Belleville Washer #K2000-G (Qty 2)
- 193 1/2 Lockwasher Zinc (Qty 2)
- 194 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 2)
- 196 1/2-13 Hex Nuts Zinc (Qty 2)
- 197 All Thread (Qty 1)
- 198 2009 Deck/Pump Idler Spring (Qty 1)
- 199 2019 Stand On Stationary Idler Spacer (Qty 1)
- 200 1/2-13 X 4-1/2 GR 5 Hex Bolts (Qty 1)
- 201 5 V Idler Pulley w/1/2" Bore- (Qty 1)
- 202 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 2)
- 203 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 204 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 205 Deck Roller Belly Mower (Qty 1)
- 206 MZ Discharge Chute Assembly (Qty 1)
- 207 1/2-13 X 9 GR 5 Hex Bolts Zinc (Qty 1)
- 208 1/2-13 Mechanical Lock Nut Grade F (Qty 1)
- 209 Revolt 34" Deck Blades (Qty 2)
- 210 5/8 Flat Washer (Qty 2)
- 211 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 2)
- 212 5/16-18 X 3/4 Carriage ASTM B307 (~Gr 5) (Qty 3)
- 216 Double Bearing Flat Idler (Qty 1)
- 217 2020 SD/36" Deck Idler Weldment--Plated (Qty 1)
- 218 1/4-28 Threaded Grease Fitting (Qty 1)
- 219 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 220 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 221 34" Revolt SD Deck Belt (Qty 1)
-
10#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 12Regular price $1.49 USDRegular priceUnit price per
-
14#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
16#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
44#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
60#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
64#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
76#025-0025-00
ZT/CZT Deck Round Spacer Idler--Plated
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
184#039-2128-00
2019 Stand On Deck Hanger Rear--Black
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
185#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 16Regular price $1.49 USDRegular priceUnit price per
-
186#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
187#039-2129-00
2019 Stand On Deck Hanger Front--Black
Qty Used: 2Regular price $14.99 USDRegular priceUnit price per
-
188#037-2002-00
Revolt 36" Spindle
Qty Used: 2Regular price $212.29 USDRegular priceUnit price per
-
189#025-0060-00
36" Stand On Deck Spacer
Qty Used: 4Regular price $5.99 USDRegular priceUnit price per
-
190#033-4820-00
Deck Pulley - 48\" Magnum/MZ
Qty Used: 2Regular price $29.18 USDRegular priceUnit price per
-
191#042-0010-00
3/16 X 1 Square Machine Key
Qty Used: 2Regular price $4.37 USDRegular priceUnit price per
-
192#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 2Regular price $4.69 USDRegular priceUnit price per
-
193#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
194#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
196#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
197#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
198#034-2009-00
2009 Deck/Pump Idler Spring
Qty Used: 1Regular price $16.99 USDRegular priceUnit price per
-
199#025-0032-00
2019 Stand On Stationary Idler Spacer
Qty Used: 1Regular price $7.69 USDRegular priceUnit price per
-
200#018-7050-00
1/2-13 X 4-1/2 GR 5 Hex Bolts
Qty Used: 1Regular price $2.39 USDRegular priceUnit price per
-
201#033-7026-00
5 V Idler Pulley w/1/2\" Bore-
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
202#018-7060-00
3/8-16 x 5 1/2 Hex Bolt - Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
203#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
204#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
205#822-2055-00
Deck Roller Belly Mower
Qty Used: 1Regular price $23.99 USDRegular priceUnit price per
-
206#210-6015-98
MZ Discharge Chute Assembly
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
207#018-7010-00
1/2-13 X 9 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $5.29 USDRegular priceUnit price per
-
208#013-0010-00
1/2-13 Mechanical Lock Nut Grade F
Qty Used: 1Regular price $1.00 USDRegular priceUnit price per
-
209#038-0036-00
Revolt 34" Deck Blades
Qty Used: 2Regular price $21.16 USDRegular priceUnit price per
-
210#019-5038-00
5/8 Flat Washer
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
211#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
212#018-8062-00
5/16-18 X 3/4 Carriage ASTM B307 (~Gr 5)
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
216#033-5000-00
Double Bearing Flat Idler
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
217#039-6952-00
2020 SD/36" Deck Idler Weldment--Plated
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
218#024-0001-00
1/4-28 Threaded Grease Fitting
Qty Used: 1Regular price $0.50 USDRegular priceUnit price per
-
219#018-7016-00
1/2-13 X 3 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
220#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
221#041-4024-00
34" Revolt SD Deck Belt
Qty Used: 1Regular price $67.99 USDRegular priceUnit price per
