Podium

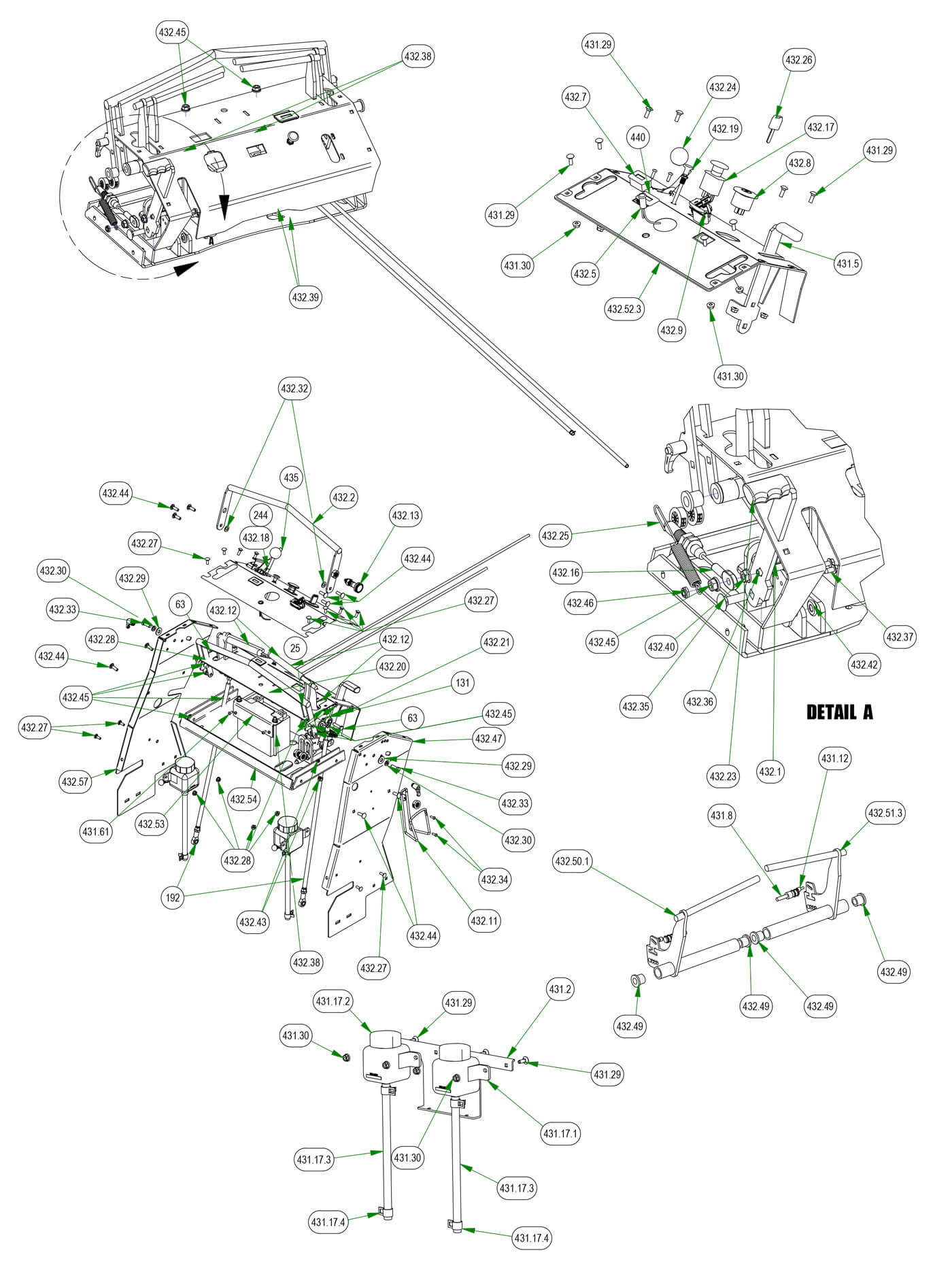

Parts Index
- 25 5/16-18 Nylock Jam Nut (Qty 2)
- 63 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 131 ACS Spacer 3/4x3/8x1/4 (Qty 2)
- 192 2019 Stand On Push Rod Assembly (Qty 2)
- 192.1 5/16 LH Nut (Qty 1)
- 192.2 3/8-24 Hex Nut Zinc (Qty 2)
- 192.3 2019 Stand On Drive Arm (Qty 1)
- 192.4 2019 Outlaw Gen2 Horizontal Push Rod Adjuster (Qty 1)
- 192.5 Spherical Rod End (Qty 1)
- 192.6 Spherical Rod End - LH Thead - Rebel,Rogue,Renegad (Qty 1)
- 244 Rebel Rogue Renegade Throttle Cable ONLY (Qty 1)
- 378 2023 Revolt Platform adjustable handles (Qty 2)
- 431.5 2019 Stand On Brake Handle--Black (Qty 1)
- 431.8 Safety Switch Harness (Qty 2)
- 431.12 Magnet-Steering Arm-Stand ON (Qty 2)
- 431.17.1 71328-Expansion Tank CZT/ZT (Qty 1)
- 431.17.2 ZT Hydraulic Tank Cap (Qty 1)
- 431.17.3 2017 ZT/ Maverick Hydro Tank Hose (Qty 1)
- 431.17.4 3/8 Hose Clamp - CTB-16-STFS (Qty 1)
- 431.29 1/4 x 3/4 Carriage Bolt (Qty 14)
- 431.30 1/4-20 Nylon Insert Flange Nut (Qty 12)
- 431.61 10-24x1/2 Button Head SCS 18-8 (Qty 2)
- 432.1 2019 Stand On Brake Handle--Black (Qty 1)
- 432.2 Revolt Front Control Arm Stop Weldment--Black (Qty 1)
- 432.5 Oil Light (Qty 1)
- 432.7 Tachometer-N310-0100-1018 (Qty 1)
- 432.8 Ignition Switch (Qty 1)
- 432.9 USB Port (Qty 1)
- 432.11 2019 Stand-On Cup Holder (Qty 1)
- 432.12 2019 Revolt Cushioned hand Grip (Qty 2)
- 432.13 Plunger 5/8-11 All Stainless Steel (Qty 1)
- 432.16 Brake Cable Walk Behind/Revolt (Qty 1)
- 432.17 PTO Engager-Switch for Blades (Qty 1)
- 432.18 Universal Throttle Head - 2012 (Qty 1)
- 432.19 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 432.20 2019 Stand On Drive Pivot Bar (Qty 1)
- 432.21 8-32 Hex M/S Nut (Qty 2)
- 432.23 Rubber Brake Grip-cZT/ZT 2013 (Qty 1)
- 432.24 Throttle / Brake Head Ball (Qty 1)
- 432.25 Brake Spring (Qty 1)
- 432.26 Ignition Key (Qty 1)
- 432.27 1/4 x 3/4 Carriage Bolt (Qty 14)
- 432.28 1/4-20 Nylon Insert Flange Nut (Qty 12)
- 432.29 3/8 USS Flat Washer Zinc (Qty 2)
- 432.30 3/8 Lockwasher Zinc (Qty 2)
- 432.32 .390x.750x.062 Nylon Washer (Qty 2)
- 432.33 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 432.34 10-24 X 5/8 BS C/S 18-8 SS (Qty 4)
- 432.35 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 432.36 5/16-18 X 1-1/2 Carriage Bolt (Qty 1)
- 432.37 12-24 x 1/2 HWH Bolt (Qty 2)
- 432.38 5/16x6 Carriage Bolt-Grade 5 (Qty 2)
- 432.39 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 432.40 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 432.42 3/8 Nylock Flange Nut (Qty 1)
- 432.43 10-24 Nylon Insert Locknut Zin (Qty 6)
- 432.44 5/16-18 X 1 Carriage Bolt Zinc (Qty 10)
- 432.45 5/16-18 Nylon Flange Nut (Qty 13)
- 432.46 5/16-18 Nylock Jam Nut (Qty 1)
- 432.47 2023 Podium Panel Right--Orange (Qty 1)
- 432.49 2023 Revolt Drive Arm Bushings (Qty 4)
- 432.501 Drive Handle Bar (Qty 1)
- 432.513 2023 Stand On Drive Arm Plate (Qty 1)
- 432.54 2023 Stand On Drive Arm Plate (Qty 1)
- 432.57 2023 Podium Panel Left--Orange (Qty 1)
- 435 Kawasaki \ Kohler Drive by Wire Throttle (Qty 1)
- 440 Tach For FX1000 EFI & EVO 781 & 820 (Qty 1)
-
25432.46#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
63#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
131#025-2001-00
ACS Spacer 3/4x3/8x1/4
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
192#035-0006-19
2019 Stand On Push Rod Assembly
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
192.1#013-6050-00
5/16 LH Nut
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
192.2#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
192.3#031-0092-00
2019 Stand On Drive Arm
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
192.4#035-0006-00
2019 Outlaw Gen2 Horizontal Push Rod Adjuster
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
192.5#048-3000-00
Spherical Rod End-Outlaw Only
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
192.6#048-3002-00
Spherical Rod End - LH Thead - Rebel,Rogue,Renegad
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
244#055-8021-75
Rebel Rogue Renegade Throttle Cable ONLY
Qty Used: 1Regular price $26.99 USDRegular priceUnit price per
-
378#045-0001-00
2023 Revolt Platform adjustable handles
Qty Used: 2Regular price $14.99 USDRegular priceUnit price per
-
431.5432.1#069-2013-00
2019 Stand On Brake Handle--Black
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
431.8#086-0015-00
Safety Switch Harness
Qty Used: 2Regular price $65.67 USDRegular priceUnit price per
-
431.12#077-1000-00
Magnet-Steering Arm-Stand ON
Qty Used: 2Regular price $13.85 USDRegular priceUnit price per
-
431.17.1#067-8090-00
71328-Expansion Tank CZT/ZT
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
431.17.2#066-5050-00
ZT Hydraulic Tank Cap
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
431.17.3#051-0016-00
2017 ZT/ Maverick Hydro Tank Hose
Qty Used: 1Regular price $8.74 USDRegular priceUnit price per
-
431.17.4#072-8065-00
3/8 Hose Clamp - CTB-16-STFS
Qty Used: 1Regular price $0.88 USDRegular priceUnit price per
-
431.29432.27#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 14Regular price $1.49 USDRegular priceUnit price per
-
431.30432.28#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 12Regular price $1.39 USDRegular priceUnit price per
-
431.61#018-8056-00
10-24x1/2 Button Head SCS 18-8
Qty Used: 2Regular price $0.50 USDRegular priceUnit price per
-
432.2#031-0026-00
Revolt Front Control Arm Stop Weldment--Black
Qty Used: 1Regular price $57.09 USDRegular priceUnit price per
-
-
432.7#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
432.8#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
-
432.11#071-6005-00
2019 Stand-On Cup Holder
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
432.12#069-2014-00
2019 Revolt Cushioned hand Grip
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
432.13#069-0002-00
Plunger 5/8-11 All Stainless Steel
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
432.16#064-3000-00
Brake Cable Walk Behind/Revolt
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
432.17#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
432.18#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
432.19#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
432.20#031-0091-00
2019 Stand On Drive Pivot Bar
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
432.21#013-0001-00
8-32 Hex M/S Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
432.23#069-7000-00
Rubber Brake Grip-cZT/ZT 2013
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
432.24#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
432.25#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
432.26#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
432.29#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
432.30#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
432.32#019-2003-00
.390x.750x.062 Nylon Washer
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
432.33#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
432.34#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
432.35#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
432.36#018-5020-00
5/16-18 X 1-1/2 Carriage Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
432.37#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
432.38#018-0056-00
5/16x6 Carriage Bolt-Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
432.39#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
432.40#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
432.42#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
432.43#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
432.44#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
432.45#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 13Regular price $0.79 USDRegular priceUnit price per
-
432.47#026-0270-00
2023 Podium Panel Right--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
432.49#032-0005-00
2023 Revolt Drive Arm Bushings
Qty Used: 4Regular price $1.89 USDRegular priceUnit price per
-
432.57#026-0280-00
2023 Podium Panel Left--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
435#055-3001-00
Kawasaki \ Kohler Drive by Wire Throttle
Qty Used: 1Regular price $79.99 USDRegular priceUnit price per
-

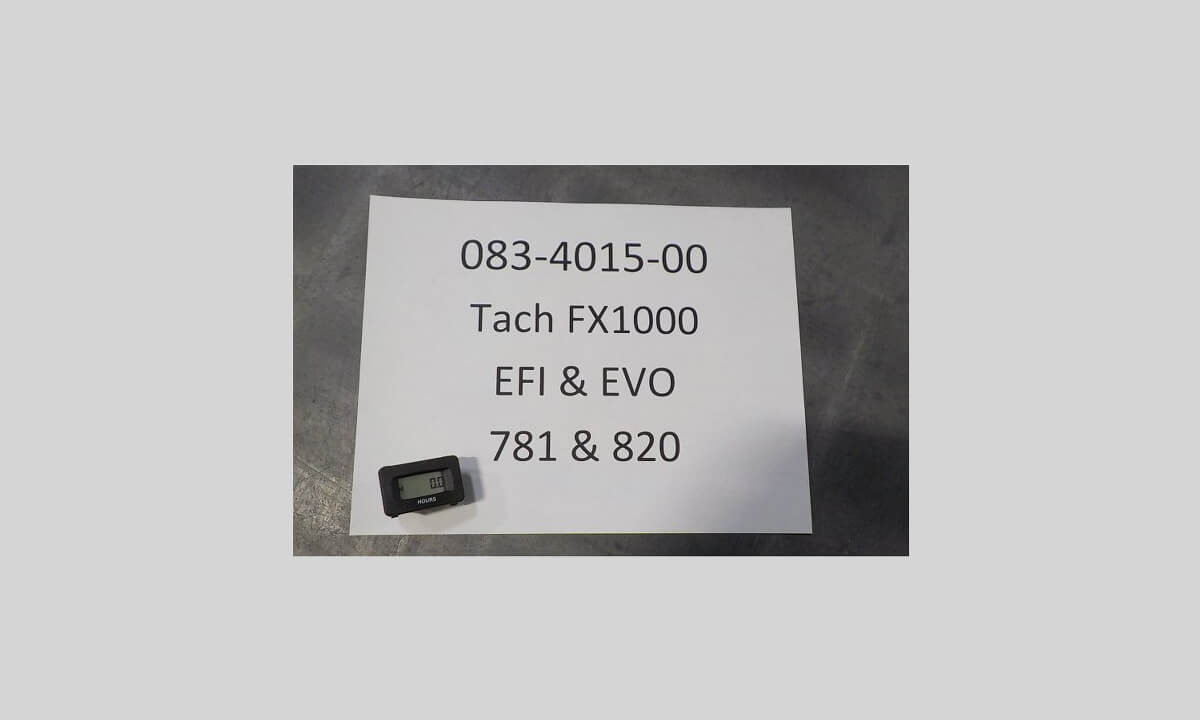

440#083-4015-00
Tach For FX1000 EFI & EVO 781 & 820
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
