Kawasaki FX-730

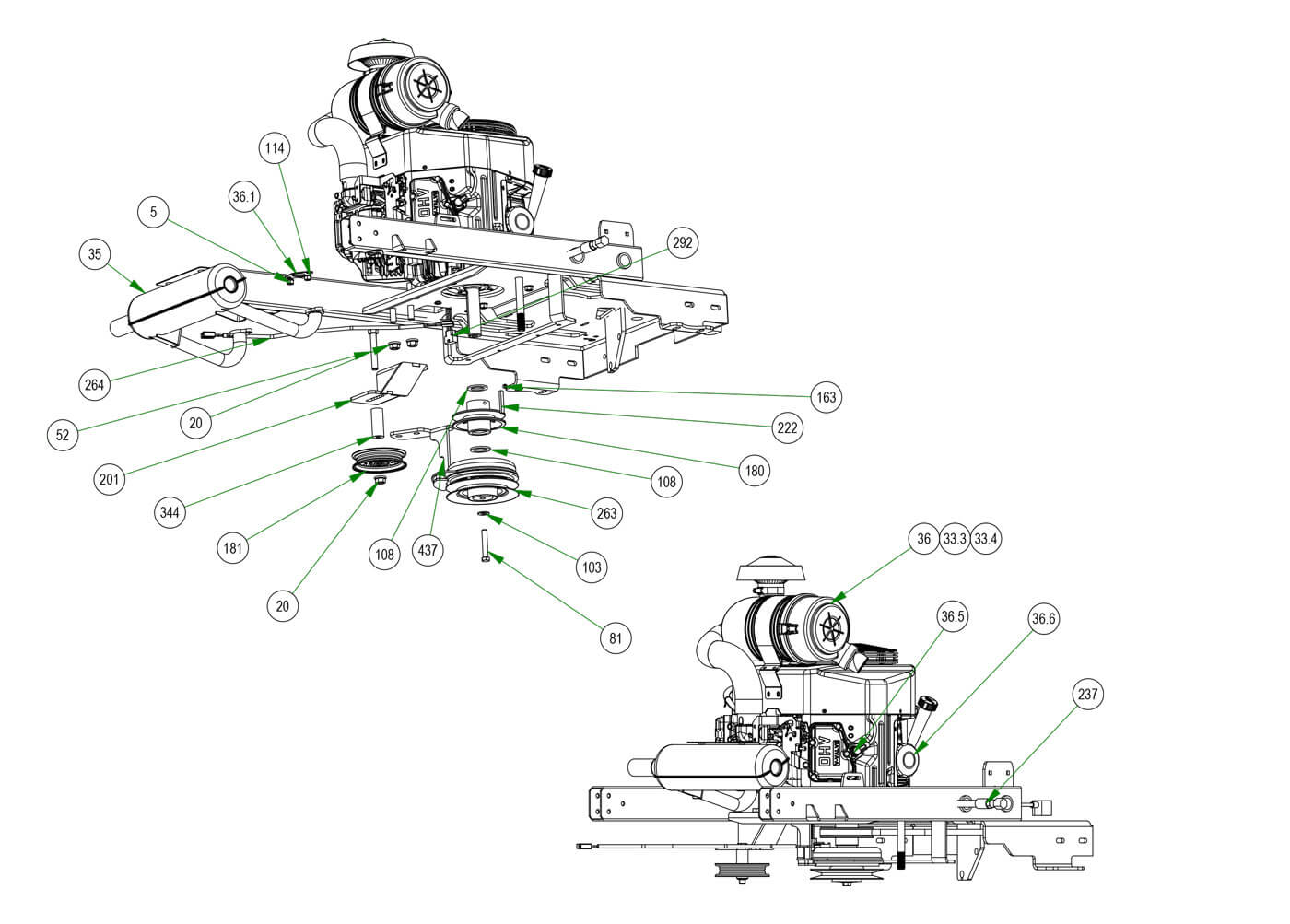

Parts Index
- 5 M8 - 1.25 Stainless Steel Nut (Qty 5)
- 20 1/2-13 Nylon Insert Flange Nut (Qty 3)
- 25 5/16-18 Nylock Jam Nut (Qty 1)
- 35 Exhaust-Stand On-FX691V Kawasaki (Qty 1)
- 36 FX730 Kawasaki (Qty 1)
- 36.1 Exhaust Gasket for 015-0077-00 (Qty 1)
- 36.2 Universal Inline Fuel Filter (Qty 1)
- 36.3 Canister Air Fil Outer2010&Old (Qty 1)
- 36.4 Canister Air Filter - Inner (Qty 1)
- 36.5 Spark plug-Kawasaki NGKBPR2ES (Qty 1)
- 36.6 Kawasaki Oil Filter (Qty 1)
- 39 Muffler Gasket for 015-0781-00 / 015-0820-00 (Qty 1)
- 52 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 1)
- 60 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 74 1/2-13 X 1-1/2 GR 5 Hex Bolt (Qty 2)
- 81 7/16-20x2.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 83 M8 x 1.25 x 20MM Hex Head Bolt (Qty 1)
- 103 3/8 USS Flat Washer Zinc (Qty 1)
- 108 1.140x1.750x .132 Flat Washer (Qty 2)
- 114 5/16 Lock washer Zinc (Qty 6)
- 163 5/16-24 x 1/4 Set Screw (Qty 1)
- 180 4 3/4 Motor Pulley (Qty 1)
- 181 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 201 Idler Pulley Bracket Weldment--Orange (Qty 1)
- 219 2019 & up Stand On Drive Belt (Qty 1)
- 222 1/4 X 2 Square Key Stock (Qty 1)
- 237 12" Kawasaki Oil Drain (Qty 1)
- 251 24 inch Black Cable - MZ/ZT (Qty 1)
- 263 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 264 Clutch Pigtail (Qty 1)
- 265 2019 Stand On Frame--Orange (Qty 1)
- 292 2019 Harness Adaptor-R-Series FX/35KA (Qty 1)
- 344 Revolt Spacer 2.5" (Qty 1)
- 437 Clutch Stop Bracket--Plated Rev B (Qty 1)
-
5#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 5Regular price $2.99 USDRegular priceUnit price per
-
20#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 3Regular price $1.39 USDRegular priceUnit price per
-
25#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
35#015-0692-00
Exhaust-Stand On-FX691V Kawasaki
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
36#015-0730-00
FX730 Kawasaki-2015 Outlaw Base
Qty Used: 1Regular price $2,599.00 USDRegular priceUnit price per
-
36.1#015-0077-01
Exhaust Gasket for 015-0077-00
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
36.2#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
36.3#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
36.4#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
36.5#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
36.6#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
39#015-0781-01
Muffler Gasket for 015-0781-00 / 015-0820-00
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
52#018-0050-00
1/2-13 X 3.25 Hex Bolt-Grade 5
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
60#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
74#018-5006-00
1/2-13 X 1-1/2 GR 5 Hex Bolt
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
81#018-5300-21
7/16-20x2.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
83#018-5321-00
M8 x 1.25 x 20MM Hex Head Bolt
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
103#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
108#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
114#019-8051-00
5/16 Lock washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
163#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
180#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
181#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
201#039-0089-00
Idler Pulley Bracket Weldment--Orange
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
219#041-8052-00
2019 & up Stand On Drive Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
222#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
237#051-5407-00
12" Kawasaki Oil Drain
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
251#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
-
264#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
265#070-5220-19
2019 Stand On Frame--Orange
Qty Used: 1Regular price $749.99 USDRegular priceUnit price per
-
292#086-9002-19
2019 Harness Adaptor-R-Series FX/35KA
Qty Used: 1Regular price $18.96 USDRegular priceUnit price per
-
344#025-5343-00
Revolt Spacer 2.5"
Qty Used: 1Regular price $10.29 USDRegular priceUnit price per
-
437#039-0119-00
Clutch Stop Bracket--Plated
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
