Kawasaki 781 EVO

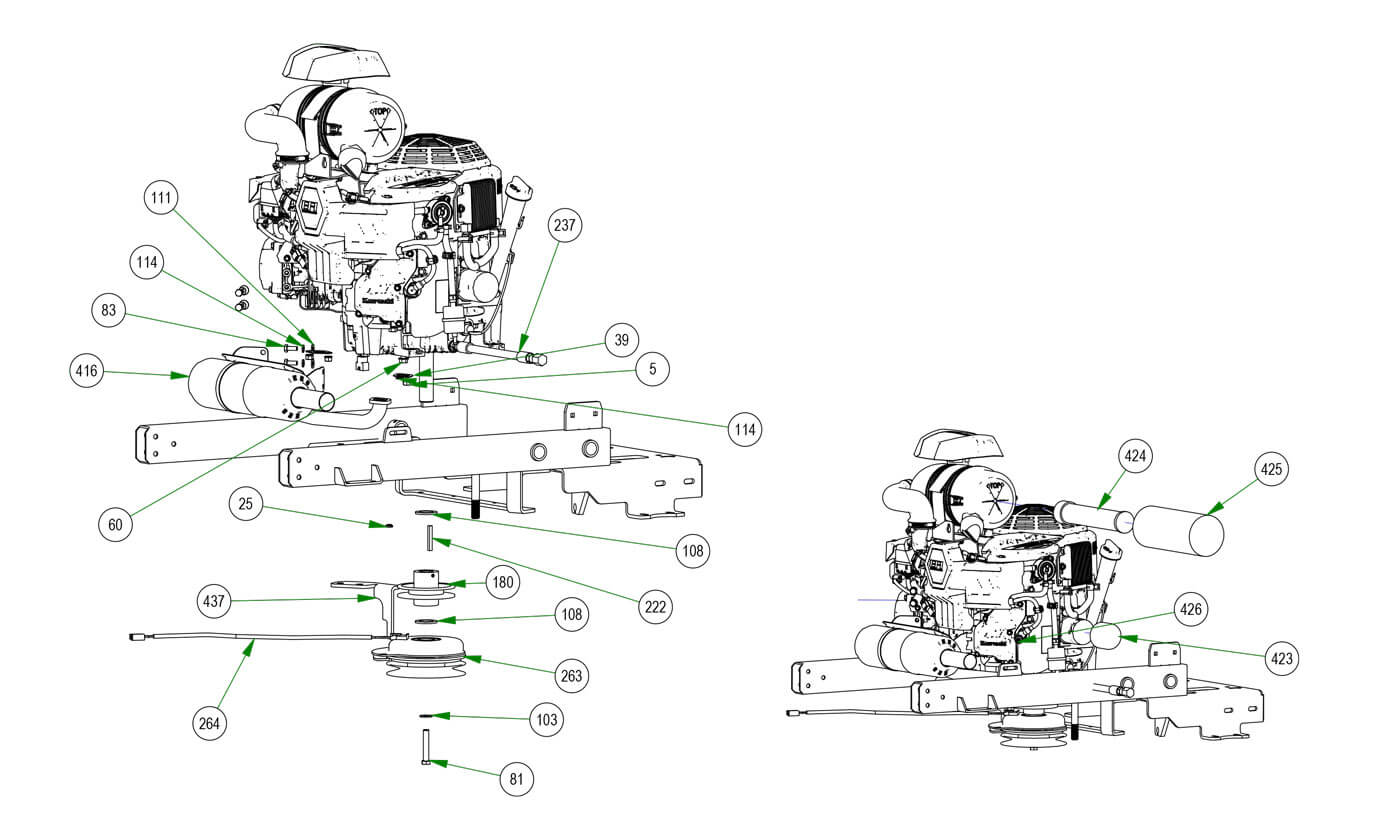

Parts Index
- 5 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 25 5/16-18 Nylock Jam Nut (Qty 1)
- 39 Muffler Gasket for 015-0781-00 / 015-0820-00 (Qty 2)
- 60 3/8 x 1 1/8 Engine Mounting Bolt (Qty 2)
- 81 7/16-20x2.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 83 M8 x 1.25 x 20MM Hex Head Bolt (Qty 4)
- 103 3/8 USS Flat Washer Zinc (Qty 1)
- 108 1.140x1.750x .132 Flat Washer (Qty 2)
- 111 1/4 USS Flat Washer Zinc (Qty 4)
- 114 5/16 Lock washer Zinc (Qty 9)
- 163 5/16-24 x 1/4 Set Screw (Qty 1)
- 180 4 3/4 Motor Pulley (Qty 1)
- 222 1/4 X 2 Square Key Stock (Qty 1)
- 237 12" Kawasaki Oil Drain (Qty 1)
- 240 19" Revolt Fuel Line Assembly (Qty 1)
- 263 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 264 Clutch Pigtail (Qty 1)
- 265 2019 Stand On Frame--Orange (Qty 1)
- 416 Kawasaki FXEVO Revolt Muffler (Qty 1)
- 422 FX820V-EVO (Qty 1)
- 423 Kawasaki Oil Filter (Qty 1)
- 424 Canister Air Filter - Inner (Qty 1)
- 425 Canister Air Fil Outer2010&Old (Qty 1)
- 426 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 439 Harness Adapter for Kawasaki EFI (Qty 1)
-
5#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
25#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
39#015-0781-01
Muffler Gasket for 015-0781-00 / 015-0820-00
Qty Used: 2Regular price $11.99 USDRegular priceUnit price per
-
60#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
81#018-5300-21
7/16-20x2.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
83#018-5321-00
M8 x 1.25 x 20MM Hex Head Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
103#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
108#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
111#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
114#019-8051-00
5/16 Lock washer Zinc
Qty Used: 9Regular price $0.79 USDRegular priceUnit price per
-
163#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
180#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
222#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
237#051-5407-00
12" Kawasaki Oil Drain
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
240#051-8067-19
19\" Revolt Fuel Line Assembly
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
-
264#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
265#070-5220-19
2019 Stand On Frame--Orange
Qty Used: 1Regular price $749.99 USDRegular priceUnit price per
-
416#015-1031-00
Kawasaki FXEVO Revolt Muffler
Qty Used: 1Regular price $103.99 USDRegular priceUnit price per
-
422#015-0820-00
FX820V-EVO
Qty Used: 1Regular price $6,299.99 USDRegular priceUnit price per
-
423#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
424#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
425#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
426#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
439#086-9016-00
Harness Adapter for Kawasaki EFI
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
