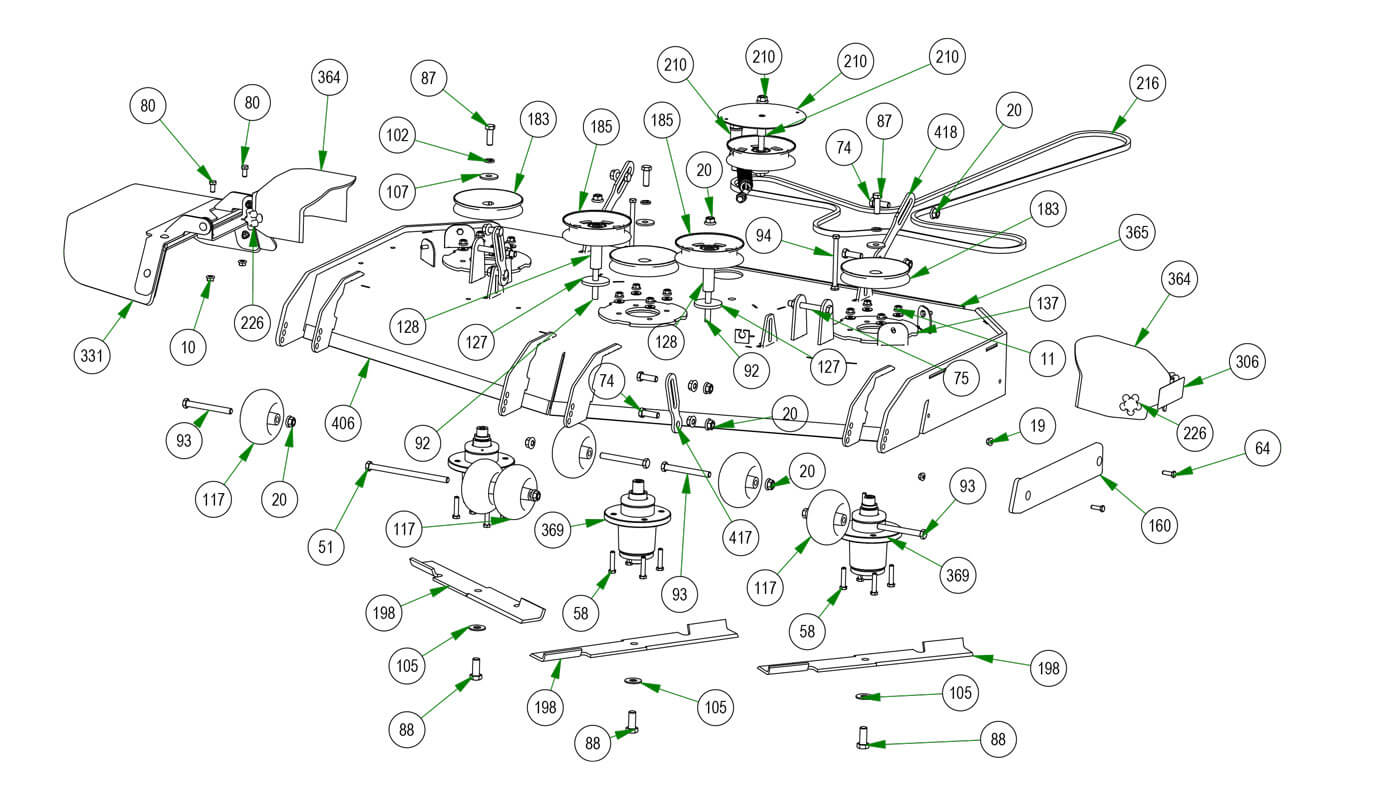

61" Deck Assembly
Parts Index
- 10 3/8-16 Hex Flange Nuts Zinc w/ (Qty 4)
- 11 3/8 Nylock Flange Nut (Qty 14)
- 12 1/2-13 Hex Fange Nuts Zinc w/ (Qty 8)
- 13 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 16 1/2-13 Hex Nuts Zinc (Qty 2)
- 19 5/16-18 Nylon Flange Nut (Qty 5)
- 20 1/2-13 Nylon Insert Flange Nut (Qty 17)
- 51 1/2-13 x 8" Grade 5 Hex Bolt (Qty 1)
- 58 3/8-16 x 1-3/4 Hex C/S (GR 5) ZC (Qty 12)
- 62 All Thread (Qty 1)
- 64 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 74 1/2-13 X 1-1/2 GR 5 Hex Bolt (Qty 8)
- 75 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 2)
- 80 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 2)
- 82 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 2)
- 87 5/8 x 5 1/2 Bolt (Qty 3)
- 88 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 92 1/2 -13 x 4.25 gr. 5 hex bolt (Qty 2)
- 93 1/2-13 X 4-1/2 GR 5 Hex Bolts (Qty 4)
- 94 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 2)
- 98 5/16-18 X 1 Carriage Bolt Zinc (Qty 3)
- 102 1/2 Lockwasher Zinc (Qty 3)
- 105 5/8 Flat Washer (Qty 3)
- 106 5/8 Flat Washer (Qty 2)
- 107 1/2 Belleville Washer #K2000-G (Qty 3)
- 110 .360 ID Black Plastic Washer (Qty 4)
- 113 5/16 USS Flat Washer Zinc (Qty 12)
- 117 Deck Wheel (Qty 6)
- 127 ZT/CZT Deck Round Spacer Idler--Plated (Qty 2)
- 128 2019 Stand On Stationary Idler Spacer (Qty 2)
- 137 Deck Spindle Support Plate 60"--Orange (Qty 3)
- 160 Bumper (Deck) (Qty 1)
- 163 5/16-24 x 1/4 Set Screw (Qty 3)
- 183 6 1/4 Spindle Deck Pulley (Qty 3)
- 185 5 3/4 Idler Pulley-Capitol (Qty 3)
- 190 Deck Spring 2019 Models (Qty 1)
- 198 61" High Lift Blade (Qty 3)
- 210 Idler Assembly (61" Deck) (Qty 1)
- 216 42" MZ Magnum/42"CZT Deck Belt (Qty 1)
- 223 1/4 x 1 Square Key (Qty 3)
- 226 5/16 Black Plastic Knob (Qty 4)
- 229 Toplink (Qty 2)
- 246 Spacer ( Front Fork and Suspension ) (Qty 3)
- 304 2018 61" Deck Decal (Qty 1)
- 306 Danger Decal-Spindle/Discharge (Qty 2)
- 318 61" Revolt Deck Belt Route Decal (Qty 1)
- 326 Rubber Bushing Turnbuckle Patent Decal (Qty 1)
- 331 R-Series, Revolt Chute Assembly (Qty 1)
- 364 2023 Revolt Pulley Covers (Qty 2)
- 365 Stripe Kit Rubber Only-R Series Deck (Qty 1)
- 369 Commercial Cast Iron Spindle (Qty 3)
- 406 2023 61" Revolt Deck--Orange (Qty 1)
- 417 61" Front Deck Hanger--Black (Qty 2)
- 418 48"/54" Rear Deck Hanger--Black (Qty 2)
-
417#039-0244-00
61" Front Deck Hanger--Black
Qty Used: 2Regular price $19.99 USDRegular priceUnit price per
-
418#039-0245-00
48"/54" Rear Deck Hanger--Black
Qty Used: 2Regular price $19.99 USDRegular priceUnit price per
-
10#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
11#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 14Regular price $1.49 USDRegular priceUnit price per
-
12#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
13#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
16#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
19#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
20#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 17Regular price $1.39 USDRegular priceUnit price per
-
51#018-0046-00
1/2-13 x 8" Grade 5 Hex Bolt
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-

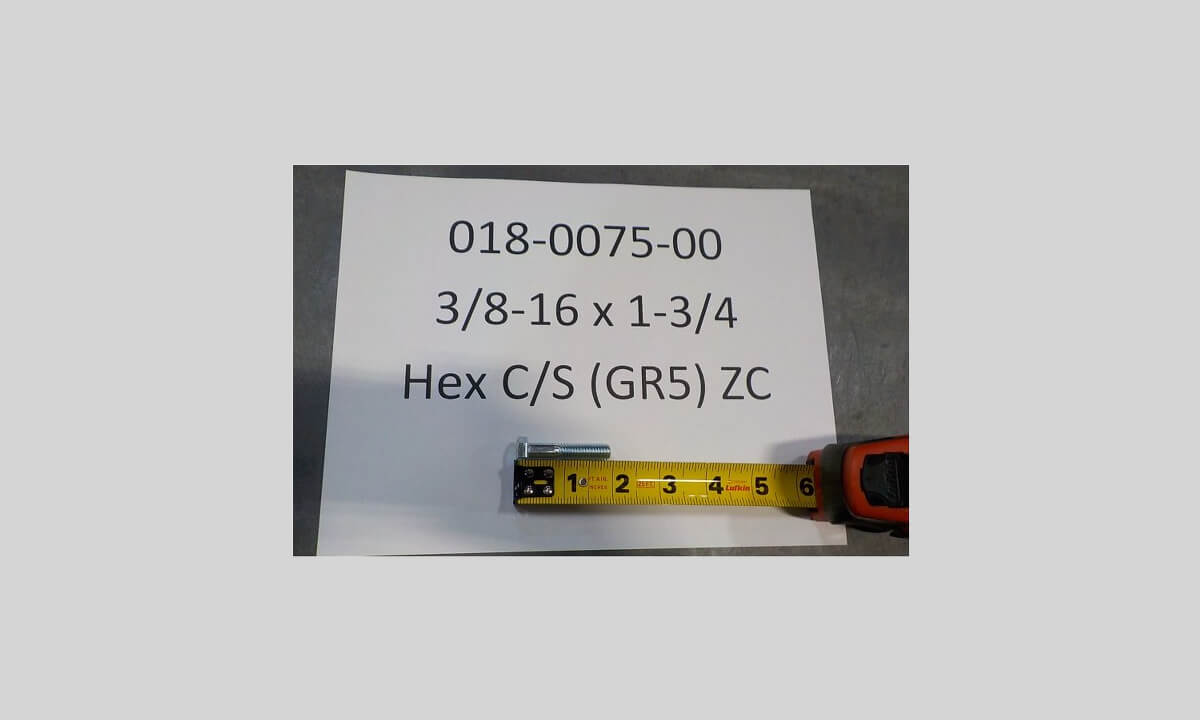

58#018-0075-00
3/8-16 x 1-3/4 Hex C/S (GR 5) ZC
Qty Used: 12Regular price $2.99 USDRegular priceUnit price per
-
62#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
64#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
74#018-5006-00
1/2-13 X 1-1/2 GR 5 Hex Bolt
Qty Used: 8Regular price $0.89 USDRegular priceUnit price per
-
75#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-
80#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
82#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 2Regular price $3.69 USDRegular priceUnit price per
-
87#018-6016-00

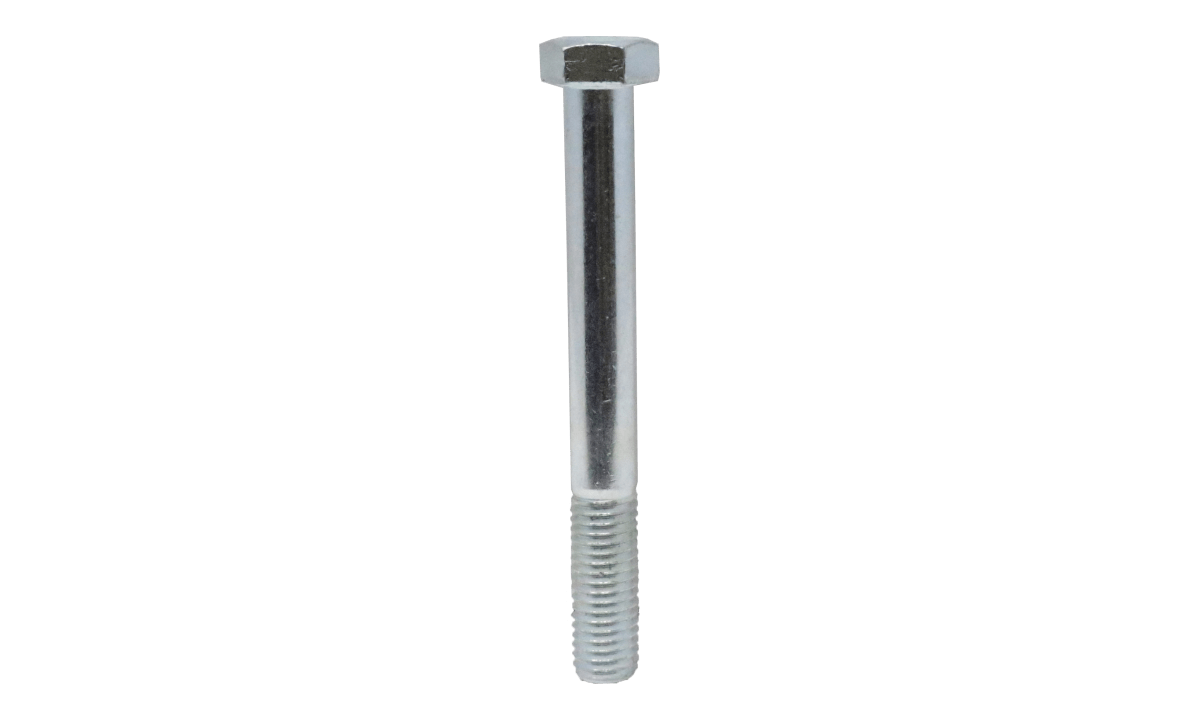

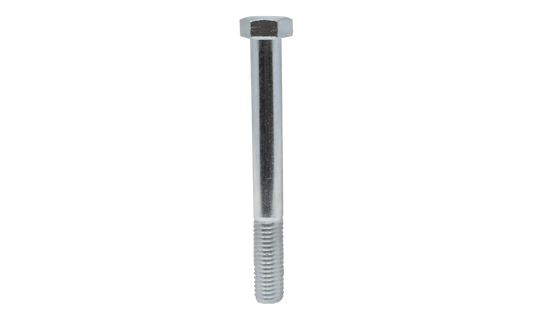

5/8 x 5 1/2 Bolt
Qty Used: 3Regular price $2.69 USDRegular priceUnit price per
-
88#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
92#018-7049-00
1/2 -13 x 4.25 gr. 5 hex bolt
Qty Used: 2Regular price $1.74 USDRegular priceUnit price per
-
93#018-7050-00
1/2-13 X 4-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $2.39 USDRegular priceUnit price per
-
94#018-7060-00
3/8-16 x 5 1/2 Hex Bolt - Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
98#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
102#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
105106#019-5038-00
5/8 Flat Washer
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
107#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 3Regular price $4.69 USDRegular priceUnit price per
-
110#019-6050-00
.360 ID Black Plastic Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
113#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
117#022-1001-00
Deck Wheel
Qty Used: 6Regular price $15.99 USDRegular priceUnit price per
-
127#025-0025-00

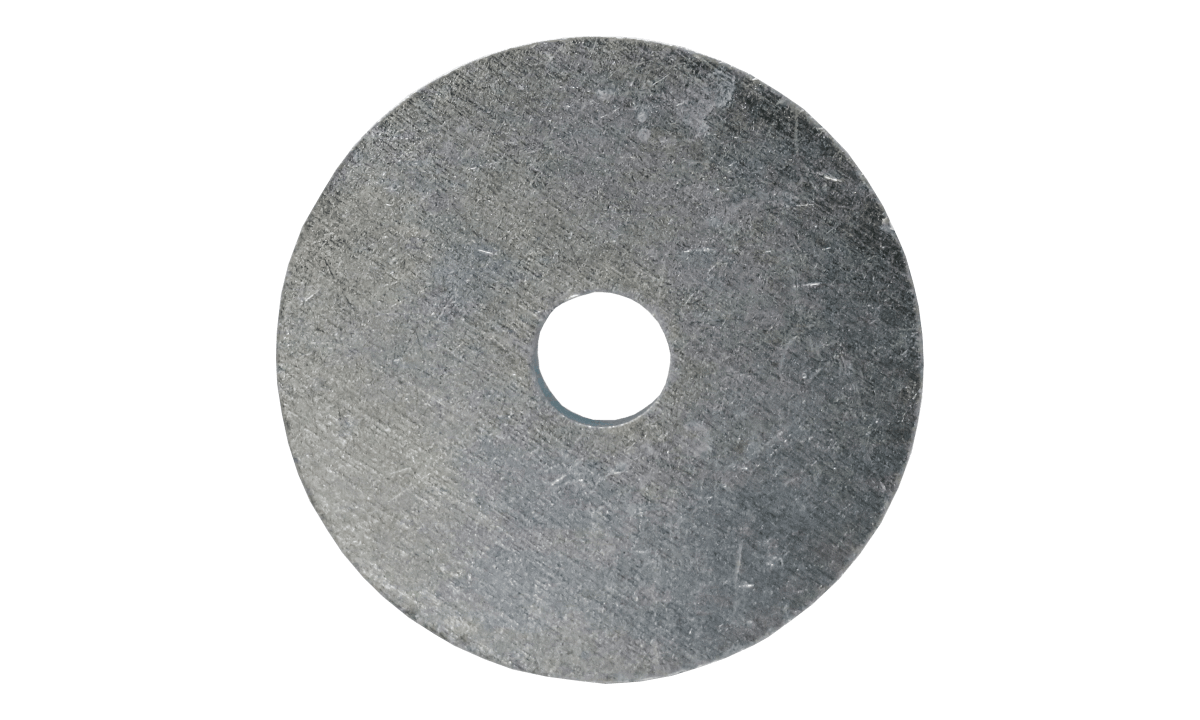

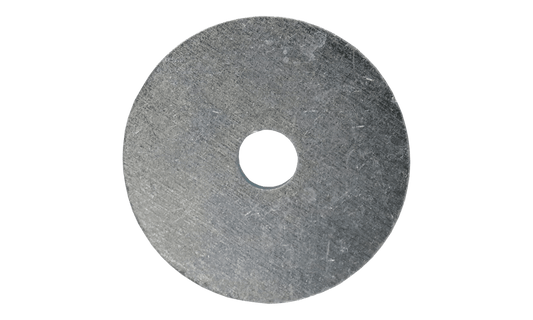

ZT/CZT Deck Round Spacer Idler--Plated
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-

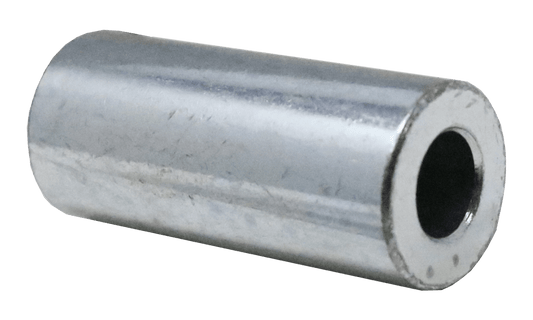

128#025-0032-00

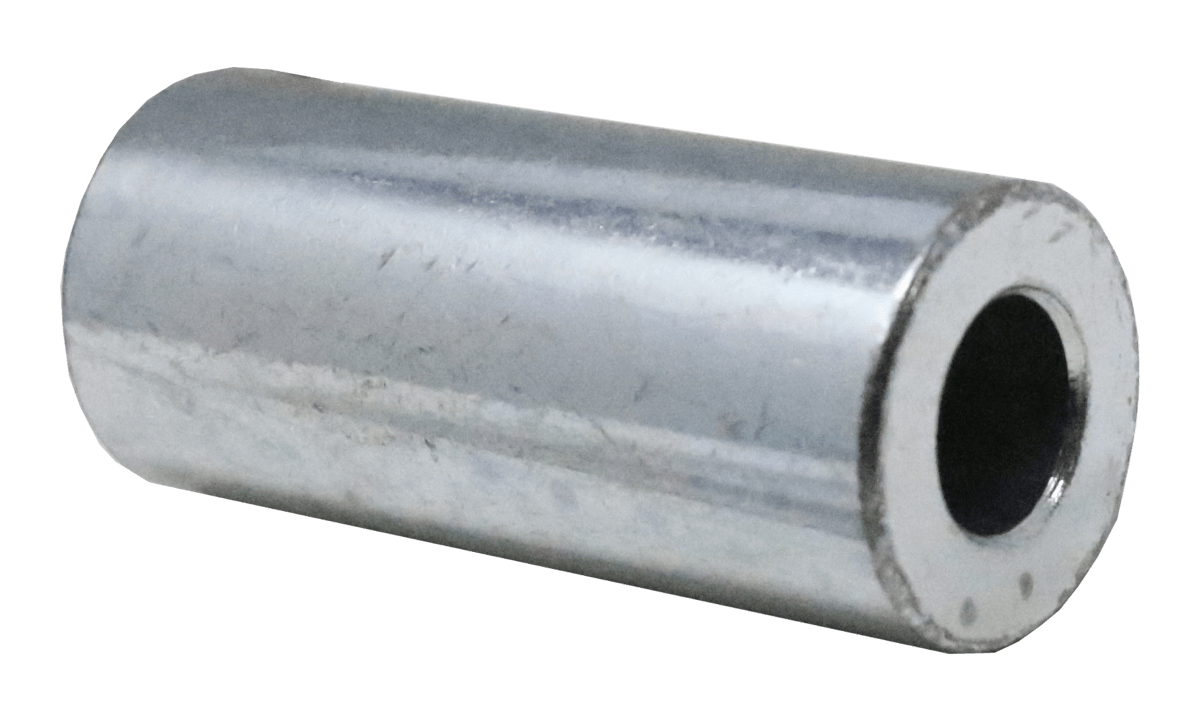

2019 Stand On Stationary Idler Spacer
Qty Used: 2Regular price $7.69 USDRegular priceUnit price per
-
137#026-0025-00
Deck Spindle Support Plate 60\"--Orange
Qty Used: 3Regular price $13.26 USDRegular priceUnit price per
-
160#029-7036-00
Bumper (Deck)
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
163#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 3Regular price $1.59 USDRegular priceUnit price per
-
183#033-6004-00
6 1/4 Spindle Deck Pulley
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
185#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
190#034-2030-00
Deck Spring 2019 Models
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
198#038-6080-00
61" High Lift Fusion Blade
Qty Used: 3Regular price $21.16 USDRegular priceUnit price per
-
210#039-6945-20
Idler Assembly (61" Deck)
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-

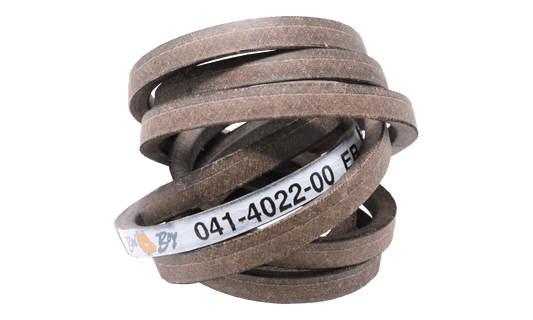

216#041-4022-00

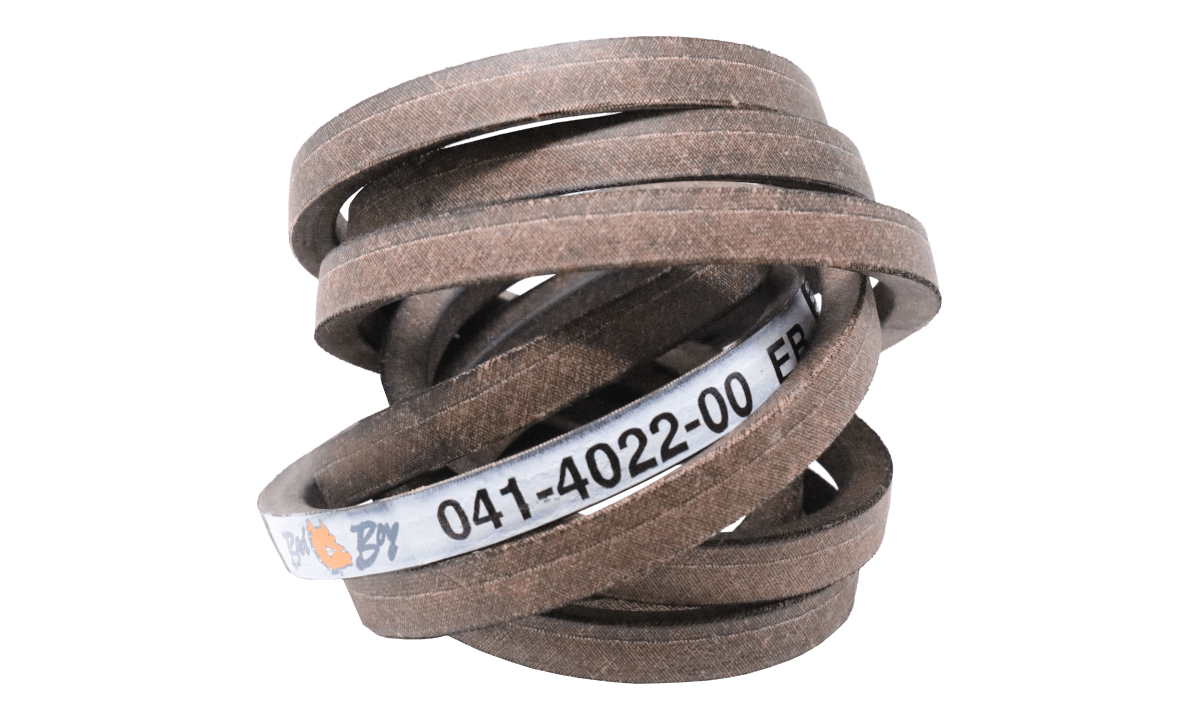

42" MZ Magnum/42"CZT Deck Belt
Qty Used: 1Regular price $72.91 USDRegular priceUnit price per
-
223#042-6030-00
1/4 x 1 Square Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
226#045-6043-00
5/16 Black Plastic Knob
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
-
246#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 3Regular price $5.83 USDRegular priceUnit price per
-
304#091-0917-18
2018 61" Deck Decal
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
306#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
318#091-4052-00
61\" Revolt Deck Belt Route Decal
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
326#091-8001-00
Rubber Bushing Turnbuckle Patent Decal
Qty Used: 1Regular price $0.73 USDRegular priceUnit price per
-
331#210-7000-98
R-Series, Revolt Chute Assembly
Qty Used: 1Regular price $159.22 USDRegular priceUnit price per
-
364#014-4006-00

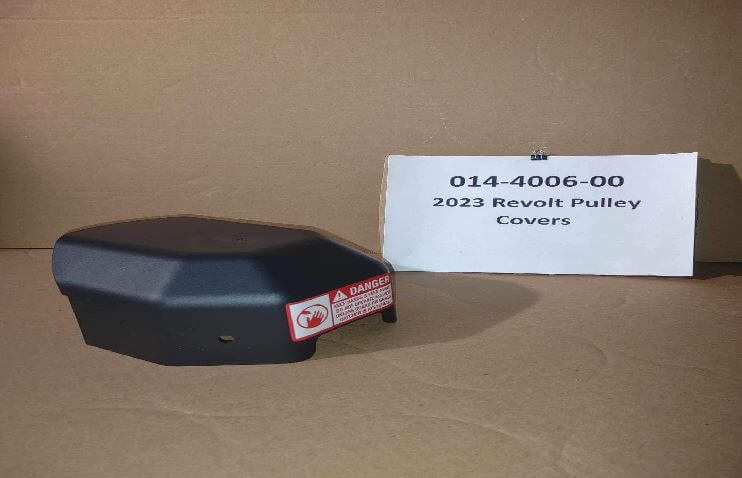

2023 Revolt Pulley Covers
Qty Used: 2Regular price $19.99 USDRegular priceUnit price per
-
365#084-5004-00
Stripe Kit Rubber Only-R Series Deck
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
369#037-4000-00
Commercial Cast Iron Spindle
Qty Used: 3Regular price $291.91 USDRegular priceUnit price per
