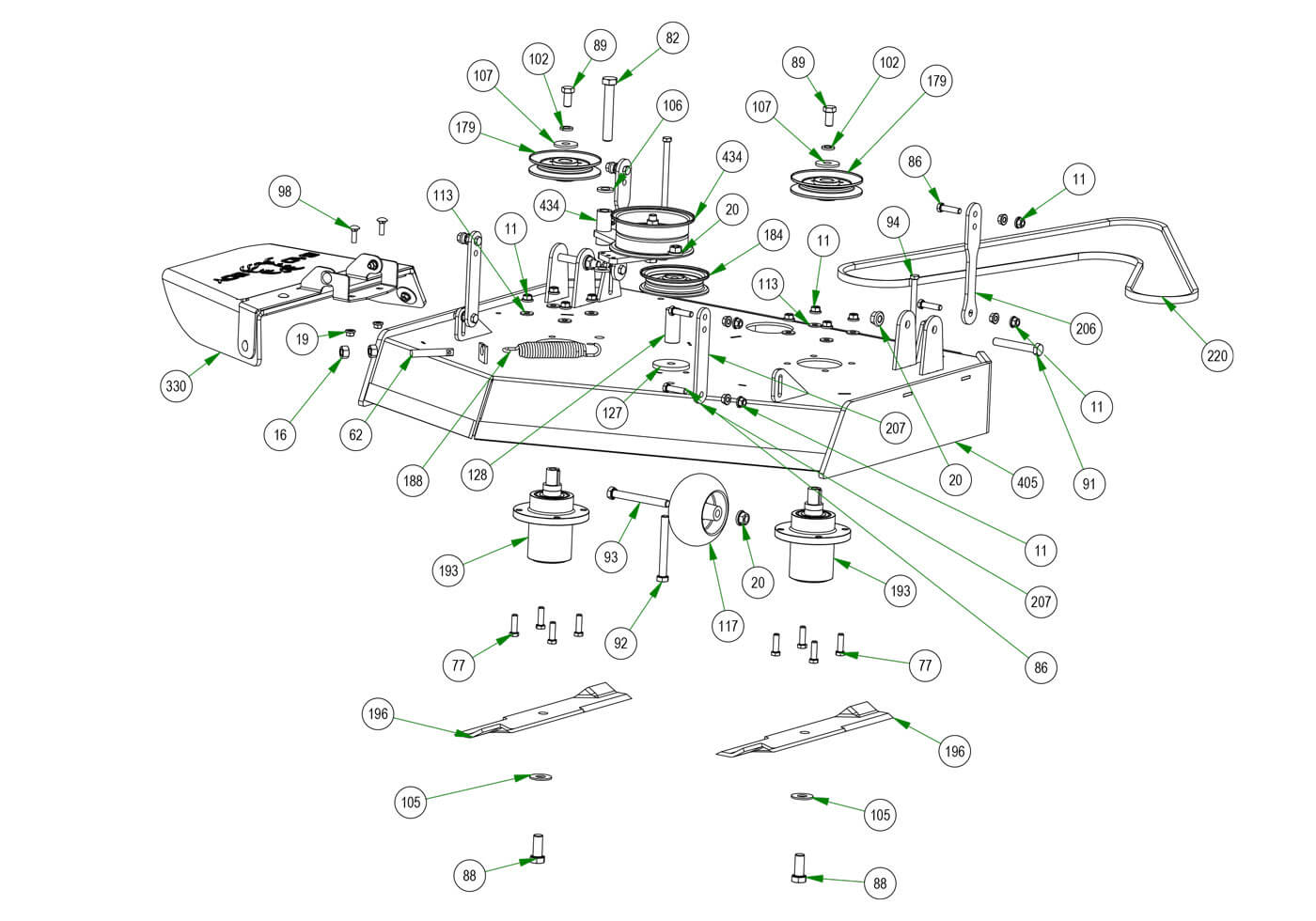

36" Deck Assembly
Parts Index
- 10 3/8-16 Hex Flange Nuts Zinc w/ (Qty 10)
- 11 3/8 Nylock Flange Nut (Qty 18)
- 13 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 16 1/2-13 Hex Nuts Zinc (Qty 2)
- 19 5/16-18 Nylon Flange Nut (Qty 5)
- 20 1/2-13 Nylon Insert Flange Nut (Qty 4)
- 62 All Thread-Pump Idler Tensioner (Qty 1)
- 77 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 8)
- 82 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 86 3/8 x 1 1/2 Bolt (Qty 8)
- 88 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 2)
- 91 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 2)
- 92 1/2 -13 x 4.25 gr. 5 hex bolt (Qty 1)
- 93 1/2-13 X 4-1/2 GR 5 Hex Bolts (Qty 1)
- 94 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 2)
- 98 5/16-18 X 1 Carriage Bolt Zinc (Qty 5)
- 102 1/2 Lockwasher Zinc (Qty 2)
- 105 5/8 Flat Washer (Qty 2)
- 106 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 107 1/2 Belleville Washer #K2000-G (Qty 2)
- 113 5/16 USS Flat Washer Zinc (Qty 8)
- 117 Deck Wheel (Qty 1)
- 127 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 128 2019 Stand On Stationary Idler Spacer (Qty 1)
- 129 36" Stand On Deck Spacer (Qty 4)
- 179 Deck Pulley - 48" Magnum/MZ (Qty 2)
- 184 5 V Idler Pulley w/1/2" Bore- (Qty 1)
- 188 2009 Deck/Pump Idler Spring (Qty 1)
- 193 Revolt 36" Spindle (Qty 2)
- 196 52 High Lift Blade (Qty 2)
- 206 2019 Stand On Deck Hanger Rear--Black (Qty 2)
- 207 2019 Stand On Deck Hanger Front--Black (Qty 2)
- 220 2020 36" Revolt / 2020 36" Walk Behind Deck Belt (Qty 1)
- 221 Caterpillar Fan Belt (Qty 2)
- 330 2020 36" Stand On Chute Assembly (Qty 1)
- 403 2023 4' & 5' Striping Kit Plate--Orange (Qty 1)
- 404 2023 ZT Stripe Kit Rubber (Qty 1)
- 434 2020 36" Revolt Deck Idler Assembly (Qty 1)
-
10#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 10Regular price $1.49 USDRegular priceUnit price per
-
11#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 18Regular price $1.49 USDRegular priceUnit price per
-
13#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
16#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
19#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
20#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
62#018-2004-00
All Thread-Pump Idler Tensioner
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
77#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
82#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
86#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
88#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
91#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
92#018-7049-00
1/2 -13 x 4.25 gr. 5 hex bolt
Qty Used: 1Regular price $1.74 USDRegular priceUnit price per
-
93#018-7050-00
1/2-13 X 4-1/2 GR 5 Hex Bolts
Qty Used: 1Regular price $2.39 USDRegular priceUnit price per
-
94#018-7060-00
3/8-16 x 5 1/2 Hex Bolt - Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
98#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
102#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
105#019-5038-00
5/8 Flat Washer
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
106#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
107#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 2Regular price $4.69 USDRegular priceUnit price per
-
113#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
117#022-1001-00
Deck Wheel
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
127#025-0025-00
ZT/CZT Deck Round Spacer Idler--Plated
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
128#025-0032-00
2019 Stand On Stationary Idler Spacer
Qty Used: 1Regular price $7.69 USDRegular priceUnit price per
-
129#025-0060-00
36" Stand On Deck Spacer
Qty Used: 4Regular price $5.99 USDRegular priceUnit price per
-
179#033-4820-00
Deck Pulley - 48\" Magnum/MZ
Qty Used: 2Regular price $29.18 USDRegular priceUnit price per
-
184#033-7026-00
5 V Idler Pulley w/1/2\" Bore-
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
188#034-2009-00
2009 Deck/Pump Idler Spring
Qty Used: 1Regular price $16.99 USDRegular priceUnit price per
-
193#037-2002-00
Revolt 36" Spindle
Qty Used: 2Regular price $212.29 USDRegular priceUnit price per
-
196#038-3010-00
52 High Lift Fusion Blade
Qty Used: 2Regular price $21.16 USDRegular priceUnit price per
-
206#039-2128-00
2019 Stand On Deck Hanger Rear--Black
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
207#039-2129-00
2019 Stand On Deck Hanger Front--Black
Qty Used: 2Regular price $14.99 USDRegular priceUnit price per
-
220#041-8054-00
2020 36" Revolt / 2020 36" Walk Behind Deck Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
221#041-0010-00
Caterpillar Fan Belt
Qty Used: 2Regular price $79.60 USDRegular priceUnit price per
-
330#210-6016-98
2020 36" Stand On Chute Assembly
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
403#026-0307-00
2023 4' & 5' Striping Kit Plate--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
404#084-5006-00
2023 ZT Stripe Kit Rubber
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
434#039-6952-98
2020 36" Revolt Deck Idler Assembly
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
