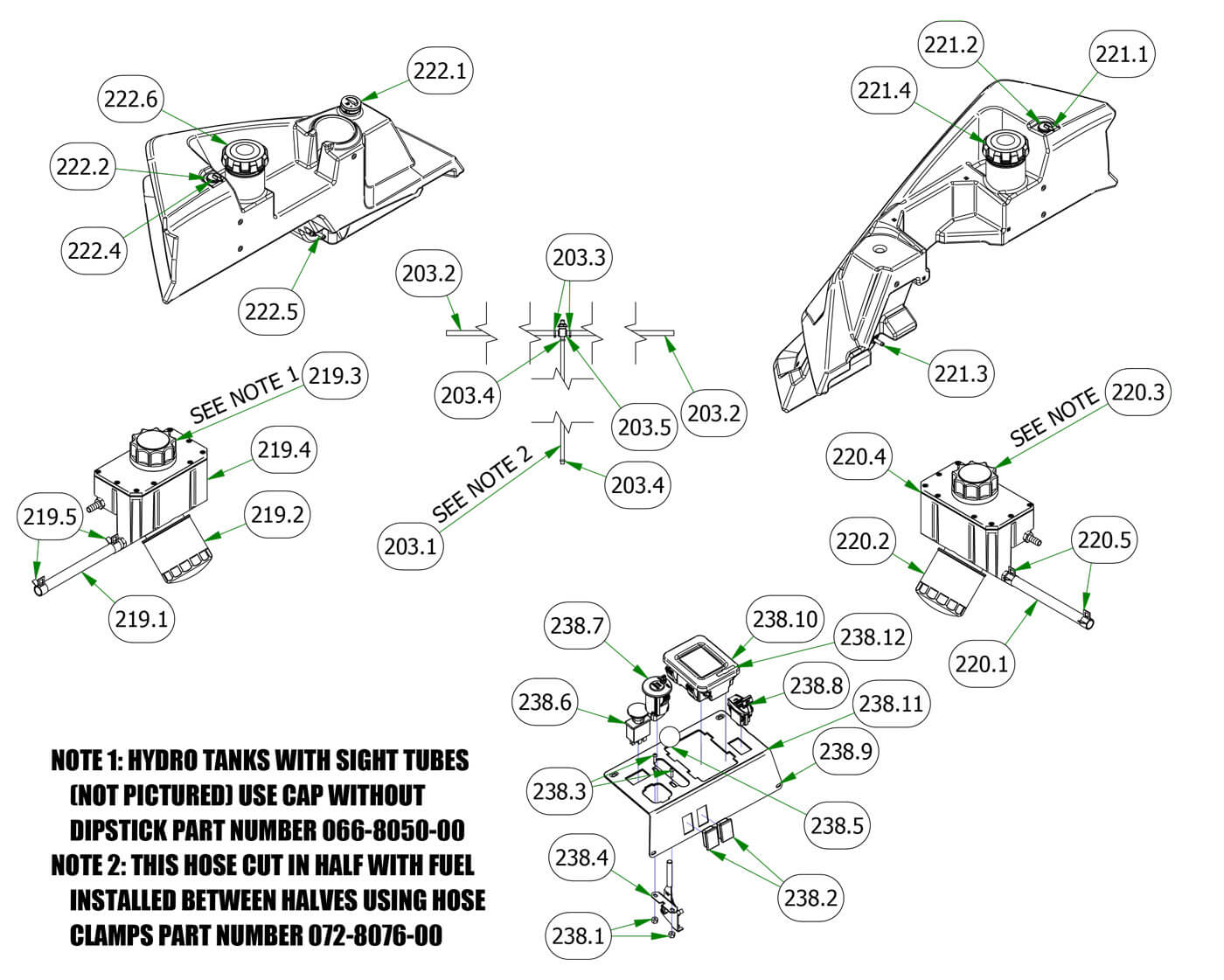

Tanks Subassemblies
Parts Index
- 203.1 22" 1/4" Fuel Line No Clamp (Qty 1)
- 203.2 26" 5/16 Fuel Line No Clamps (Qty 2)
- 203.3 5/8 Fuel Line Clamp (Qty 2)
- 203.4 1/4 Fuel Line Clamp (Qty 2)
- 203.5 3 Way Fuel Shut-Off Valve 5/16 x 5/16 x 1/4 (Qty 1)
- 219 LH Renegade Hydro Tank Assy (Qty 1)
- 219.1 21" 1/2 Braided Hose (Qty 1)
- 219.2 Hydraulic Filter-All Models (Qty 1)
- 219.3 2022 Cap With Dip Stick (Qty 1)
- 219.4 2019 RG/RN Hydro Tank LH (Qty 1)
- 219.5 1/2 Hose Clamp (Qty 2)
- 220 RH Renegade Hydro Tank Assy (Qty 1)
- 220.1 21" 1/2 Braided Hose (Qty 1)
- 220.2 Hydraulic Filter-All Models (Qty 1)
- 220.3 2022 Cap With Dip Stick (Qty 1)
- 220.4 2019 RG/RN Hydro Tank RH (Qty 1)
- 220.5 1/2 Hose Clamp (Qty 2)
- 221 2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS) (Qty 1)
- 221.1 Old Style Grommet for Fule Gau (Qty 1)
- 221.2 Rollover Valve and Grommet New (Qty 1)
- 221.3 Fuel Pickup for 2019 Fuel Tanks (Qty 1)
- 221.4 Fuel Tank Cap for 2019 Fuel Tank (Qty 1)
- 222 2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS) (Qty 1)
- 222.1 Fuel Gauge Assembly w/ Grommet-2014 ZT,2015 Outlaw (Qty 1)
- 222.2 Old Style Grommet for Fule Gau (Qty 1)
- 222.3 New Style Grommet for 2017 MZ Magnum Fuel Gauge (Qty 1)
- 222.4 Rollover Valve and Grommet New (Qty 1)
- 222.5 Fuel Pickup for 2019 Fuel Tanks (Qty 1)
- 222.6 Fuel Tank Cap for 2019 Fuel Tank (Qty 1)
- 238 Renegade Control Panel ASSY (Qty 1)
- 238.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 238.2 Light Plug (Qty 2)
- 238.3 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 238.4 Universal Throttle Head - 2012 (Qty 1)
- 238.5 Throttle / Brake Head Ball (Qty 1)
- 238.6 PTO Engager-Switch for Blades (Qty 1)
- 238.7 2019 Push to Start Switch w/fob (Qty 1)
- 238.8 USB Port (Qty 1)
- 238.9 Digital Control Panel--Orange (Qty 1)
- 238.10 2019 LED Display (Qty 1)
- 238.11 2022 Renegade(GAS) control panal decal (Qty 1)
- 238.12 2022 Digital Display Decal (Qty 1)
-
203.1#051-8067-22
22" 1/4" Fuel Line No Clamp
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
203.2#051-8075-26
26" 5/16 Fuel Line No Clamps
Qty Used: 2Regular price $17.50 USDRegular priceUnit price per
-
203.3#072-8068-00
5/8 Fuel Line Clamp
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
203.4#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
203.5#067-6058-00
3 Way Fuel Shut-Off Valve 5/16 x 5/16 x 1/4
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
219#067-8053-18
LH Renegade Hydro Tank Assy
Qty Used: 1Regular price $201.96 USDRegular priceUnit price per
-
219.1220.1#051-8064-21
21" 1/2 Braided Hose
Qty Used: 1Regular price $10.60 USDRegular priceUnit price per
-
219.2220.2#063-8014-00
Hydraulic Filter-All Models
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
219.3220.3#066-8050-22
2022 Cap With Dip Stick
Qty Used: 1Regular price $27.99 USDRegular priceUnit price per
-

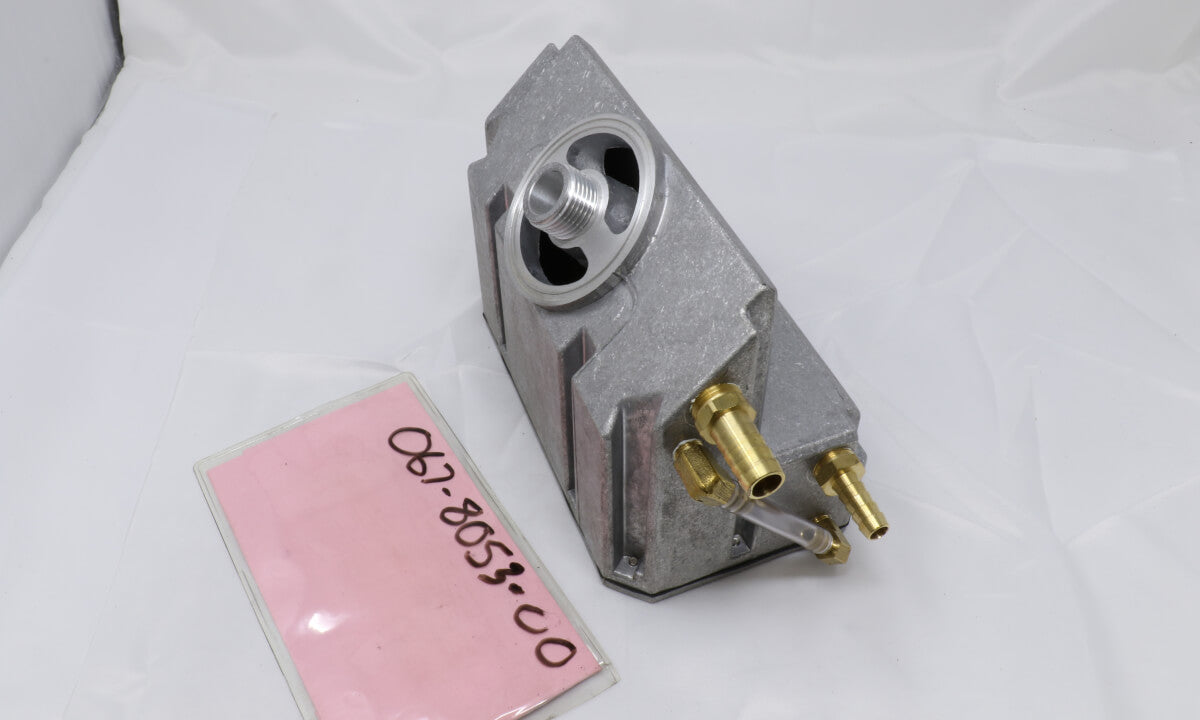

219.4#067-8053-00
2019 RG/RN Hydro Tank LH
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
219.5220.5#072-8066-00
1/2 Hose Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
220#067-8054-18
RH Renegade Hydro Tank Assy
Qty Used: 1Regular price $201.96 USDRegular priceUnit price per
-

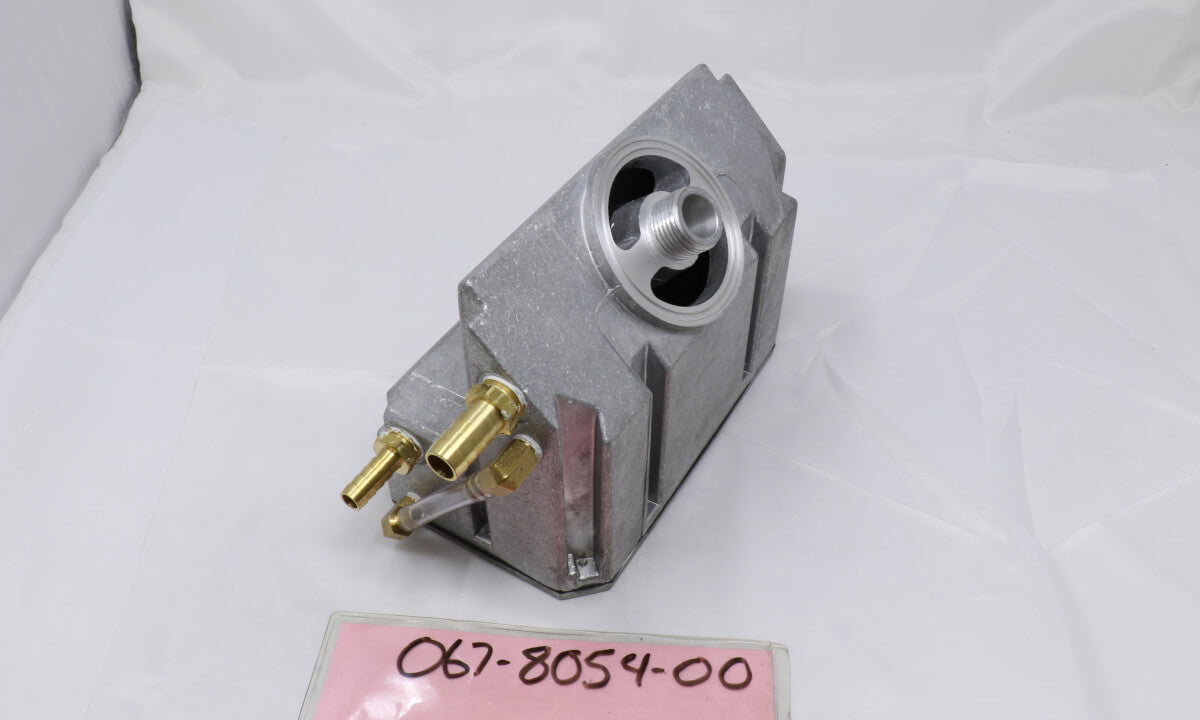

220.4#067-8054-00
2019 RG/RN Hydro Tank RH
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
221#067-9950-50
2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS)
Qty Used: 1Regular price $331.72 USDRegular priceUnit price per
-

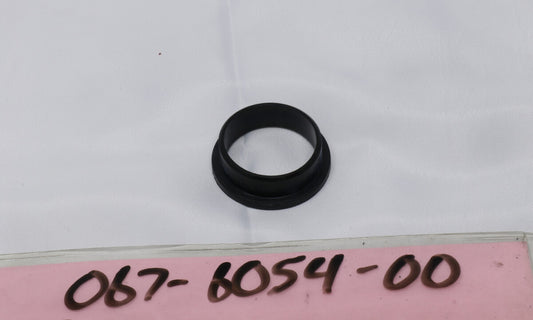

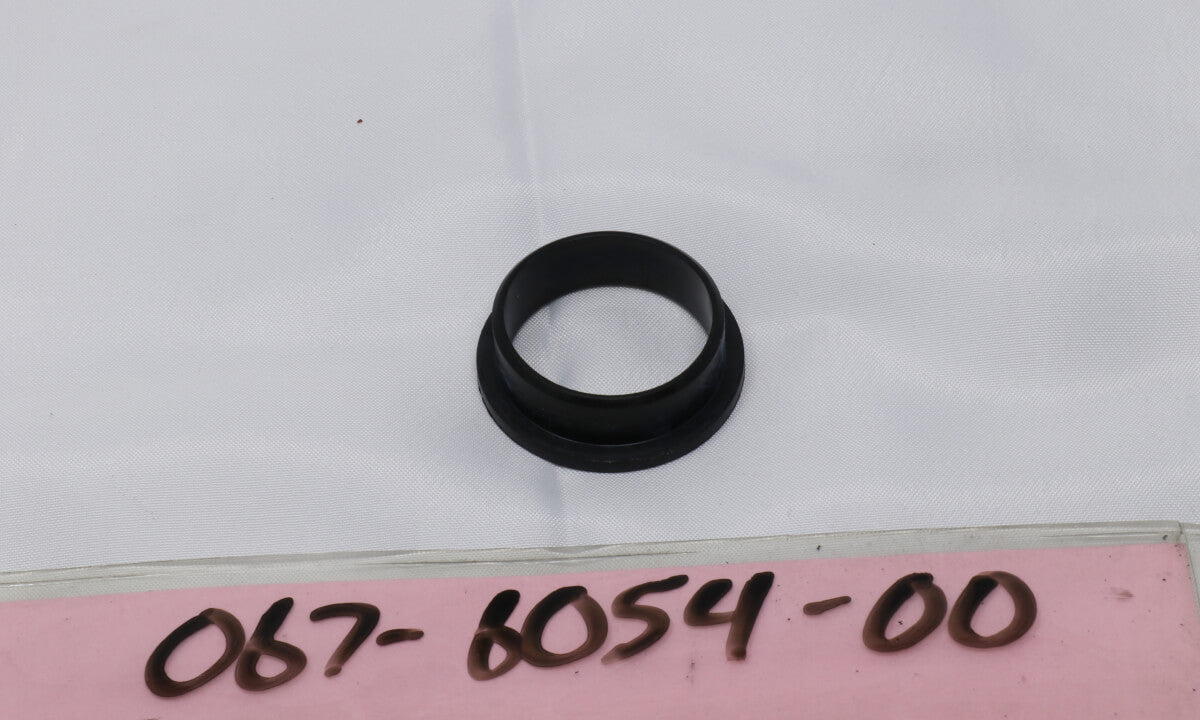

221.1222.2#067-6054-00
Old Style Grommet for Fule Gau
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
221.2222.4#067-6070-00
Rollover Valve and Grommet New
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-

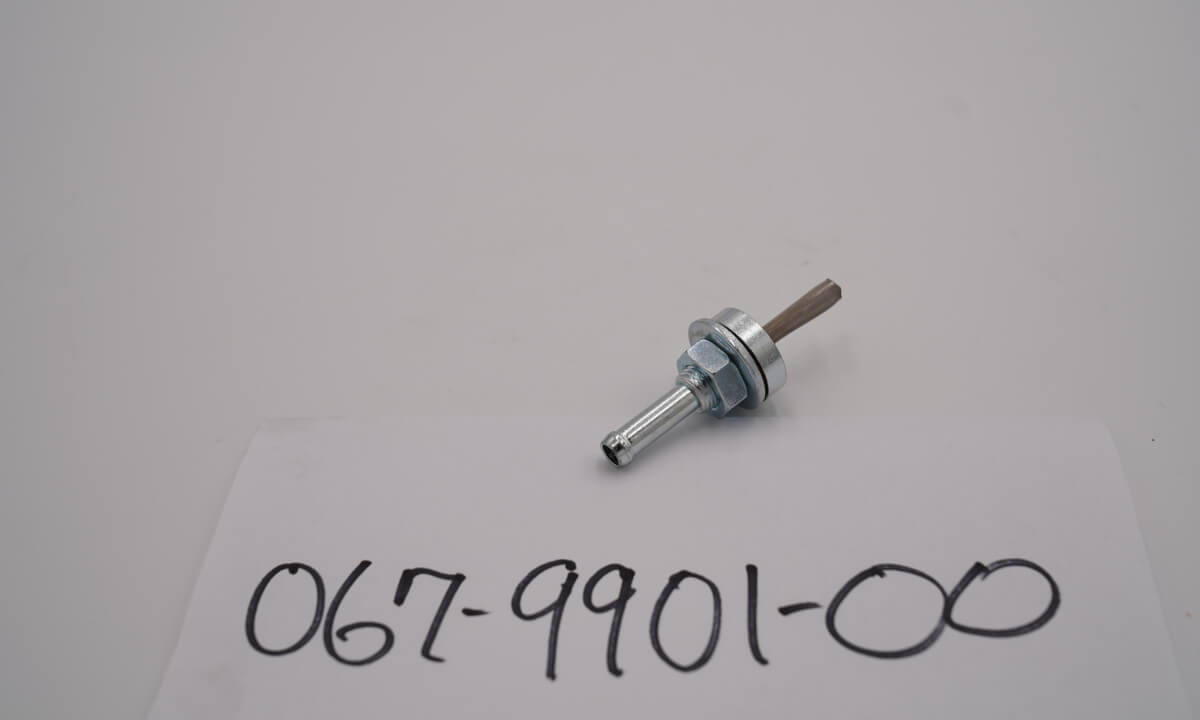

221.3222.5#067-9901-00
Fuel Pickup for 2019 Fuel Tanks
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
221.4222.6#067-9904-00
Fuel Tank Cap for 2019 Fuel Tank
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
222#067-9960-50
2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS)
Qty Used: 1Regular price $331.72 USDRegular priceUnit price per
-

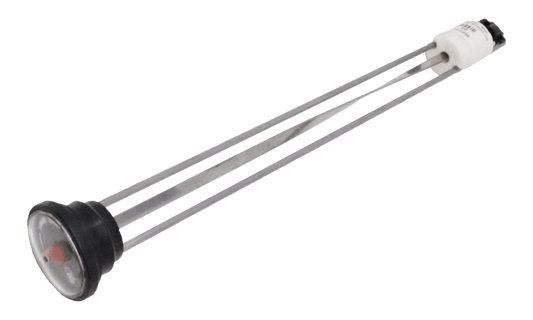

222.1#067-4080-00
Fuel Gauge Assembly w/ Grommet-2014 ZT,2015 Outlaw
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
222.3#067-6056-00
New Style Grommet for 2017 MZ Magnum Fuel Gauge
Qty Used: 1Regular price $6.49 USDRegular priceUnit price per
-
238#079-3482-19
Renegade Control Panel ASSY
Qty Used: 1Regular price $309.99 USDRegular priceUnit price per
-
238.1#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
238.2#018-1040-00
Light Plug
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
238.3#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
238.4#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
238.5#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
238.6#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
238.7#077-0004-00
2019 Push to Start Switch w/fob
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
-

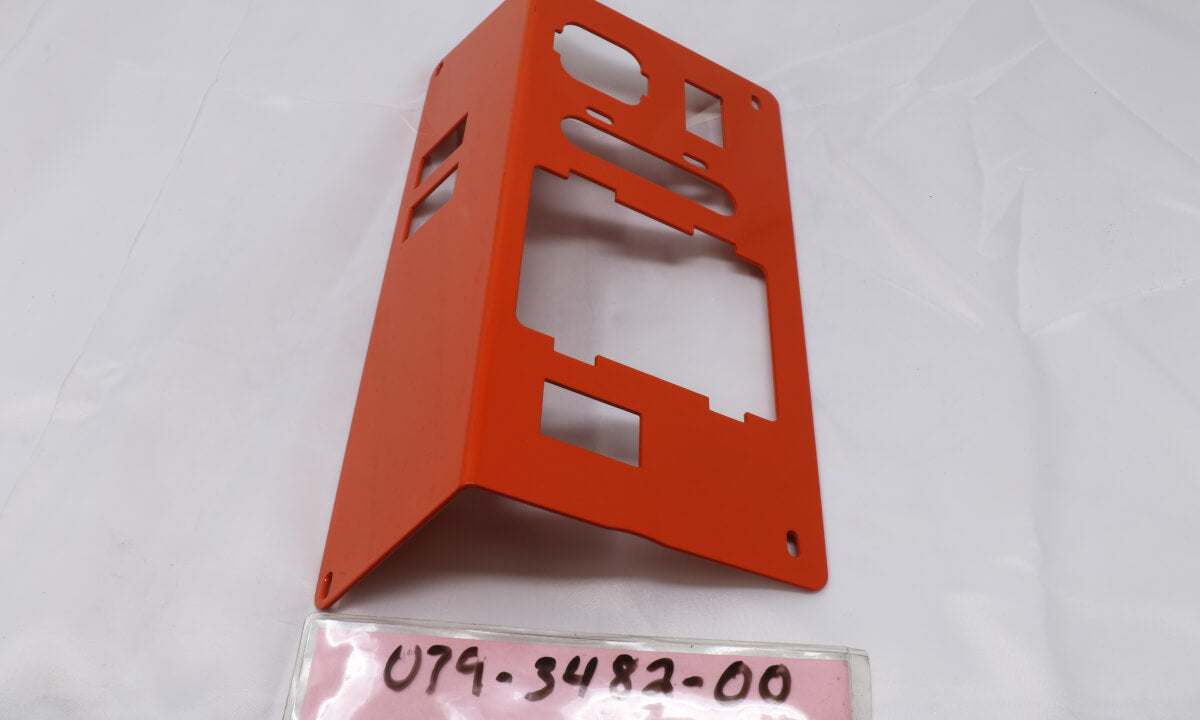

238.9#079-3482-00
Digital Control Panel--Orange
Qty Used: 1Regular price $51.75 USDRegular priceUnit price per
-
238.10#086-0013-00
2019 LED Display
Qty Used: 1Regular price $239.99 USDRegular priceUnit price per
-
238.11#091-4029-22
2022 Renegade(GAS) control panal decal
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
238.12#091-4030-22
2022 Digital Display Decal
Qty Used: 1Regular price $7.69 USDRegular priceUnit price per
