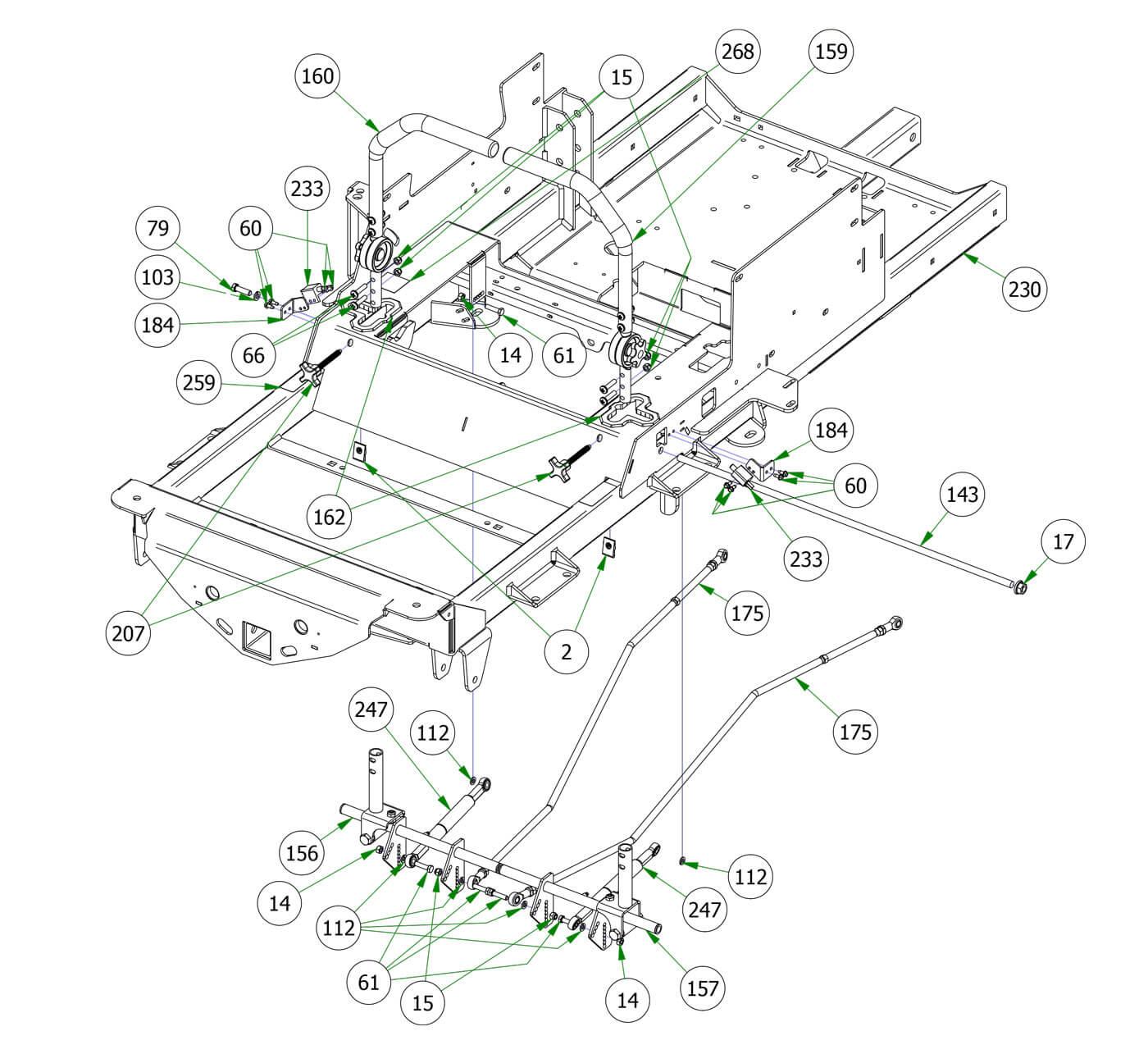

Steering
Parts Index
- 2 Extruded Nut 3/8"-16 3/4" Hole Center With Patch (Qty 2)
- 14 5/16-18 Hex Nuts Zinc (Qty 4)
- 15 5/16-18 Nylon Insert Locknut Z (Qty 6)
- 17 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 60 12-24 x 1/2 HWH Bolt (Qty 8)
- 61 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 6)
- 66 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 4)
- 79 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 1)
- 103 3/8 Lockwasher Zinc (Qty 1)
- 112 5/16 Lock washer Zinc (Qty 6)
- 143 2019 Steering Actuator Rod (Qty 1)
- 156 2019 R Series RH Arm Rod Assembly (Qty 1)
- 157 2019 R Series LH Arm Rod Assembly (Qty 1)
- 159 Black Steering Arm Kit LH (Qty 1)
- 160 Black Steering Arm Kit RH (Qty 1)
- 162 Drive Arm Bushing (Qty 2)
- 175 2019 Renegade Push Rod Assembly (Qty 2)
- 184 2019 Arm Switch Bracket--Plated (Qty 2)
- 207 Star Knob 3/8- 16 x3" (Qty 2)
- 230 2019 Horizontal Gas Frame--Orange (Qty 1)
- 233 Safety Switch (Qty 2)
- 247 Damper (Heim Ends) (Qty 2)
- 259 R-Series LH/RH Steering Control Decal (Qty 1)
- 268 2019 Deck Release Decal (Qty 1)
-

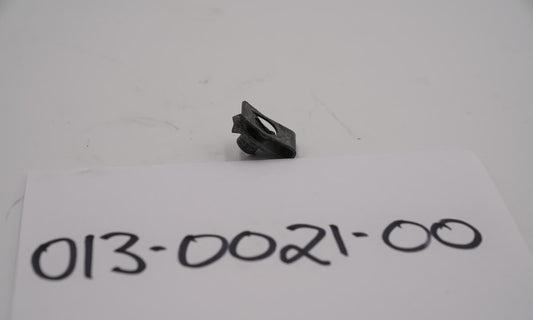

2#013-0021-00
Extruded Nut 3/8"-16 3/4" Hole Center With Patch
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
14#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-

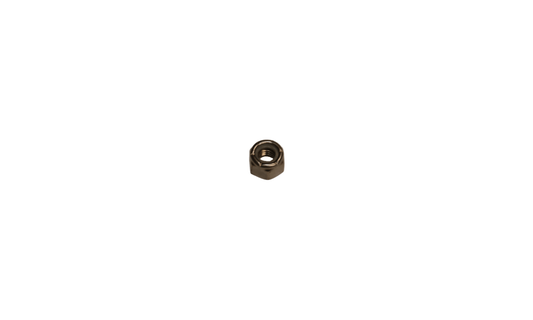

15#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-

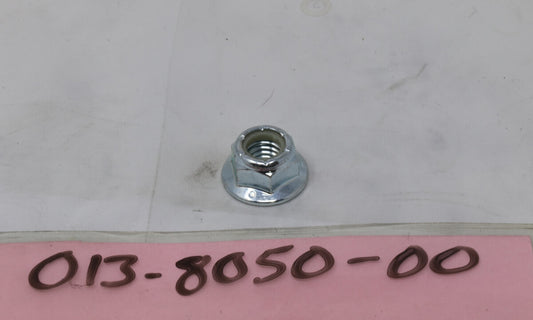

17#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
60#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 8Regular price $1.99 USDRegular priceUnit price per
-

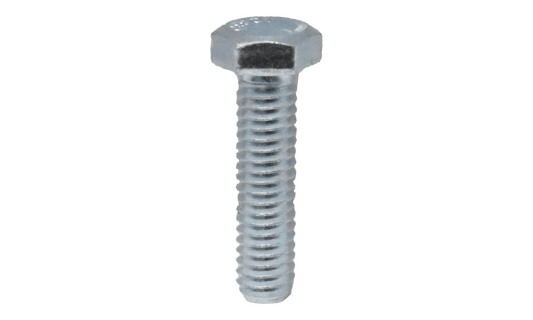

61#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
66#018-2020-18
5/16-18 x 1 3/8\" Button Head Torx Drive Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
79#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
103#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
112#019-8051-00
5/16 Lock washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-

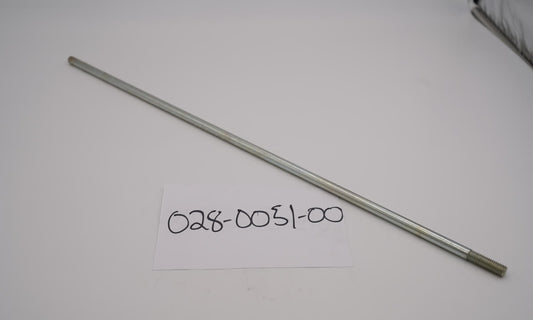

143#028-0051-00
2019 Steering Actuator Rod
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
156#031-0030-19
2019 R Series RH Arm Rod Assembly
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-

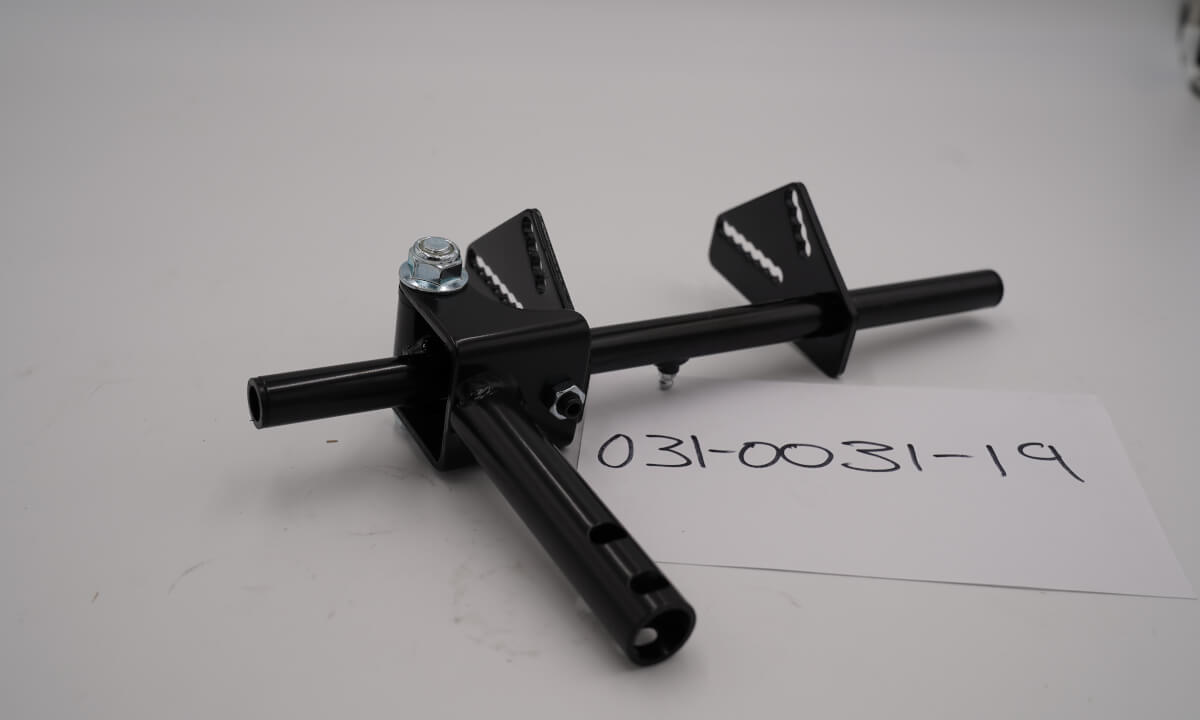

157#031-0031-19
2019 R Series LH Arm Rod Assembly
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
159#031-9005-70
Black Steering Arm Kit LH
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
160#031-9055-70
Black Steering Arm Kit RH
Qty Used: 1Regular price $115.31 USDRegular priceUnit price per
-
162#032-0002-00
Drive Arm Bushing
Qty Used: 2Regular price $14.53 USDRegular priceUnit price per
-

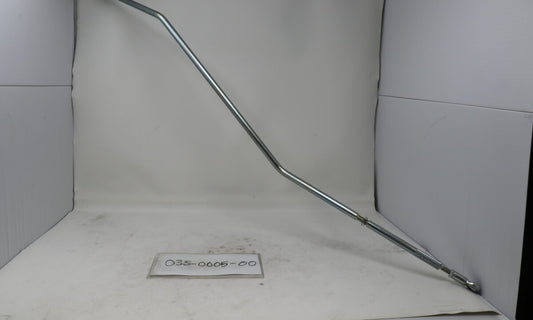

175#035-0005-00
2019 Renegade Push Rod Assembly
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-

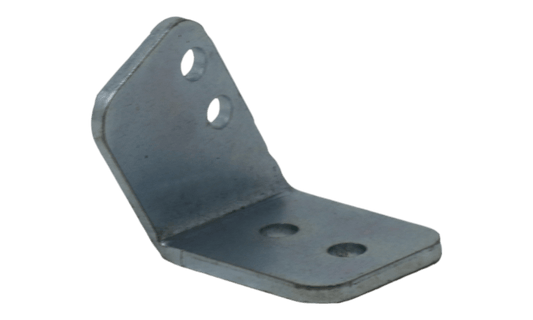

184#039-2160-00
2019 Arm Switch Bracket--Plated
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
207#057-5800-00
Star Knob 3/8- 16 x3"
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
230#070-5373-19
2019 Horizontal Gas Frame--Orange
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-

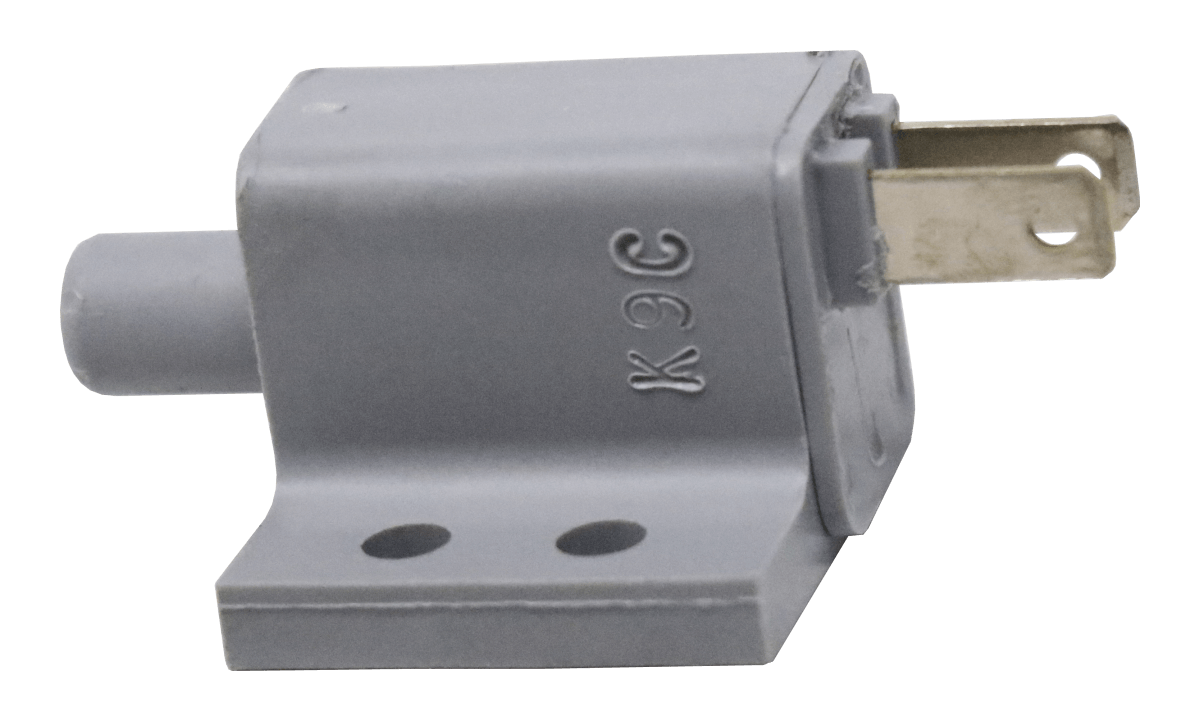

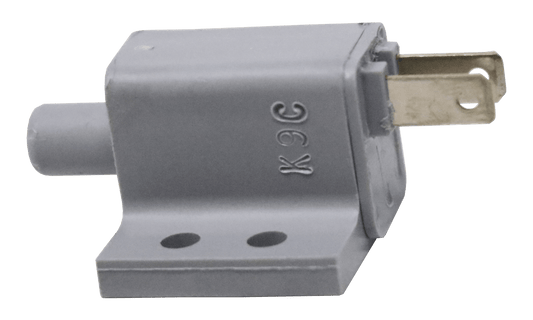

233#077-8073-00
Safety Switch
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
247#087-0002-00
Damper (Heim Ends)
Qty Used: 2Regular price $58.37 USDRegular priceUnit price per
-
259#091-1114-00
2018 LH/RH Steering Control Decal Roll
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
268#091-4037-00
2019 Deck Release Decal
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
