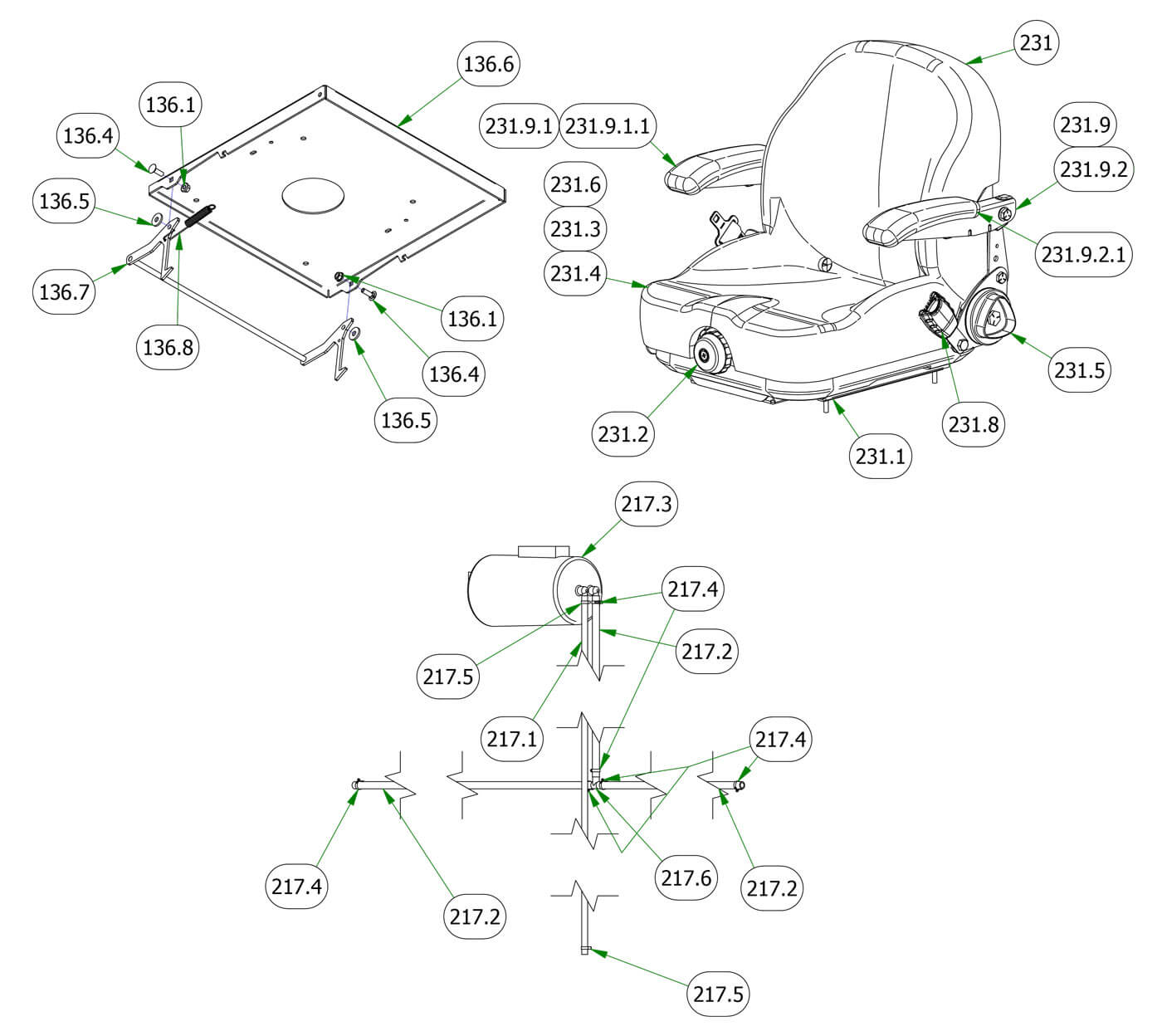

Seat & Brake Subassemblies
Parts Index
- 136 R-Series Seat Plate Assembly (Qty 1)
- 136.5 .360 ID Plastic Washer (Qty 2)
- 136.8 Brake Spring (Qty 1)
- 136.6 Seat Plate--Orange (Qty 1)
- 136.4 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 136.1 5/16-18 Nylon Flange Nut (Qty 2)
- 136.7 Seat Latch Rod (Qty 1)
- 217 2019 R-Series EPA Cannister Assembly (Qty 1)
- 217.1 66" 3/16 Vinyl EPA Line (Qty 1)
- 217.2 38" 1/4 Vinyl Tubing (Qty 3)
- 217.3 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 217.4 MZ Tank Hose Clamp 1/4 Vinyl (Qty 6)
- 217.5 3/16" Vinyl Hose Clamp (Qty 2)
- 217.6 Fuel Line T (Qty 1)
- 231 2022 Seats Inc Suspension Seat with seatbelt (Qty 1)
- 231.1 SEAT RAILS for 071-6065-00/071-6065-22 (Qty 1)
- 231.2 Weight Adjustment Knob for 071-6065-00/071-6065-22 (Qty 1)
- 231.3 Bellows w/Hardware for 071-6065-22 (Qty 1)
- 231.4 Cushion Cover Kit for I3M - Logo for 071-6065-22 (Qty 1)
- 231.5 Recliner Adjust Knob for 071-6065-00/71-6065-22 (Qty 1)
- 231.6 Seat Switch for 071-6065-00/071-6065-22 (Qty 1)
- 231.7 Back Cover for I3M - Recl - Logos for 071-6065-22 (Qty 1)
- 231.8 OBSOLETE USE 071-6063-00 (Qty 1)
- 231.9 Arm Kit for 071-6065-00/071-6065-22 (Qty 1)
- 231.9.1 RH Arm rest -Selfskin Front Adj for 071-6065-22 (Qty 1)
- 231.9.1.1 Arm Pad for 071-6065-00/071-6065-22 (Qty 1)
- 231.9.2 LH Armrest -Selfskin Front Adj for 071-6065-22 (Qty 1)
- 231.9.2.1 Arm Pad for 071-6065-00/071-6065-22 (Qty 1)
-
136#026-2019-21
R-Series Seat Plate Assembly
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
136.5#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
136.8#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
136.6#026-2019-00
Seat Plate--Orange
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
136.4#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
136.1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
136.7#028-0090-00
Seat Latch Rod
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
217#067-0020-19
2019 Outlaw EPA Cannister Assembly
Qty Used: 1Regular price $39.95 USDRegular priceUnit price per
-
217.1#051-2025-66
66" 3/16 Vinyl EPA Line
Qty Used: 1Regular price $12.39 USDRegular priceUnit price per
-
217.2#051-8072-38
38" 1/4 Vinyl Tubing
Qty Used: 3Regular price $26.53 USDRegular priceUnit price per
-
217.3#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
217.4#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 6Regular price $1.45 USDRegular priceUnit price per
-
217.5#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
217.6#073-8068-00
Fuel Line T
Qty Used: 1Regular price $8.82 USDRegular priceUnit price per
-
231#071-6065-22
2022 Seats Inc Suspension Seat with seatbelt
Qty Used: 1Regular price $829.99 USDRegular priceUnit price per
-
231.1#071-6065-06
SEAT RAILS for 071-6065-00/071-6065-22
Qty Used: 1Regular price $92.87 USDRegular priceUnit price per
-
231.2#071-6065-05
Weight Adjustment Knob for 071-6065-00/071-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
231.3#071-6065-13
Bellows w/Hardware for 071-6065-22
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
231.4#071-6065-16
Cushion Cover Kit for I3M - Logo for 071-6065-22
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
231.5#071-6065-10
Recliner Adjust Knob for 071-6065-00/71-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
231.6#071-6065-07
Seat Switch for 071-6065-00/071-6065-22
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
231.7#071-6065-15
Back Cover for I3M - Recl - Logos for 071-6065-22
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
231.8#071-6065-14
OBSOLETE USE 071-6063-00
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
231.9#071-6065-04
Arm Kit for 071-6065-00/071-6065-22
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
231.9.1#071-6065-11
RH Arm rest -Selfskin Front Adj for 071-6065-22
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
231.9.1.1231.9.2.1#071-6065-03
Arm Pad for 071-6065-00/071-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
231.9.2#071-6065-12
LH Armrest -Selfskin Front Adj for 071-6065-22
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
