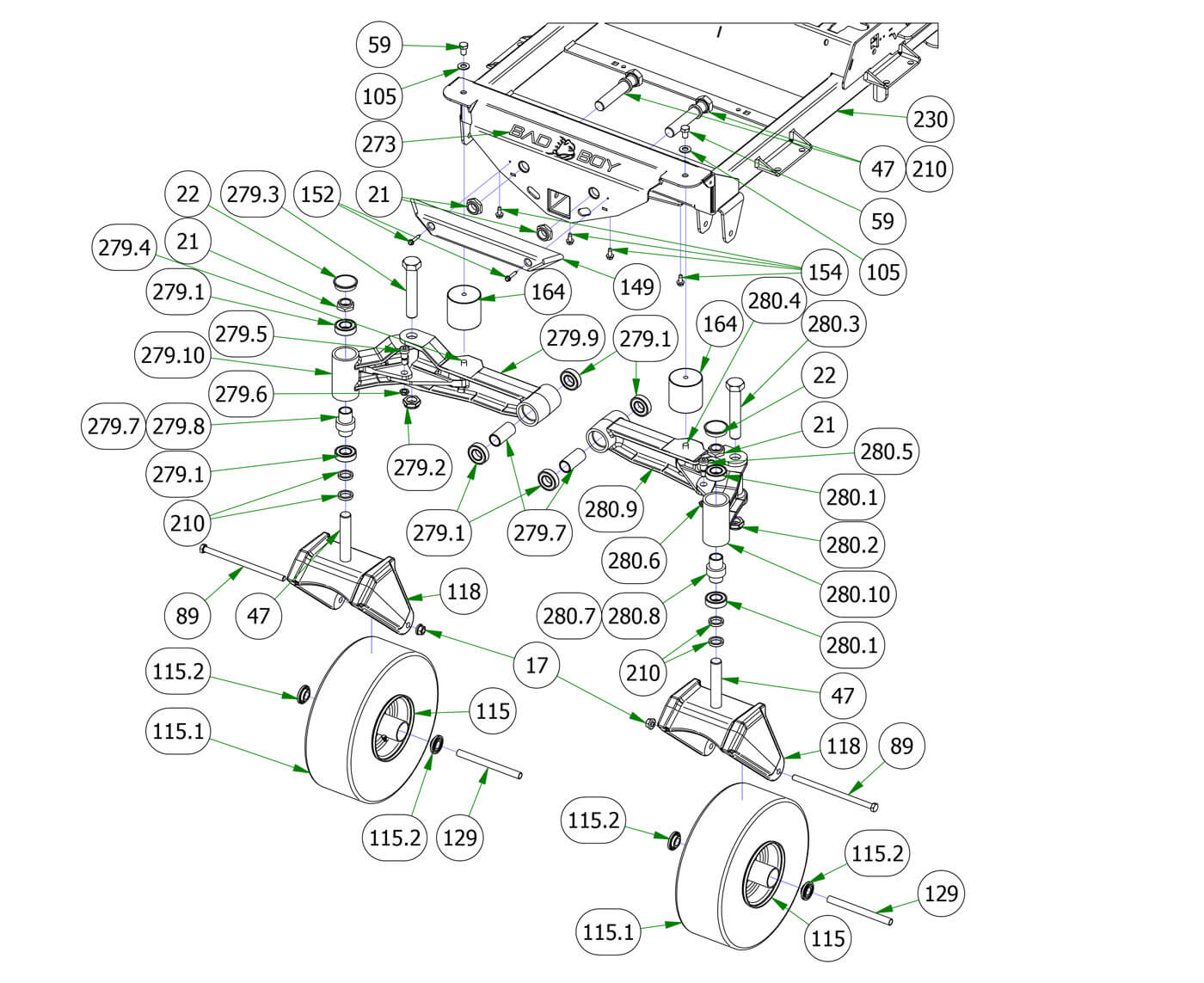

Front End
Parts Index
- 17 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 21 1" Nylock Nut 1/2 Nut - Fine (Qty 4)
- 22 Bearing Retainer Cap (Qty 2)
- 47 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 4)
- 59 1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc (Qty 2)
- 89 1/2-13 X 9 GR 5 Hex Bolts Zinc (Qty 2)
- 105 1/2 SAE Flat Washer GR 8 (Qty 2)
- 115 2019 15x6.00-6 No Flat Black Front Tire (Qty 2)
- 115.1 2019 15x6.00-6 No Flat Black Front Tire (Qty 1)
- 115.2 1 3/4" Bearing-Large Bore (Qty 2)
- 118 2020 R Series Cast Front Fork (Qty 2)
- 129 Front Wheel Spanner-All Models (Qty 2)
- 149 Bumper (Qty 1)
- 152 14 X 1-1/2 HWA A T/S Zinc (Qty 2)
- 154 5/16 x 3/4 Hex Washer Type F (Qty 4)
- 164 Isolator (Blue Dot) (Qty 2)
- 210 Spacer ( Front Fork and Suspension ) (Qty 6)
- 230 2019 Horizontal Gas Frame--Orange (Qty 1)
- 273 Flying Bulldog Front Bumper Decal (Qty 1)
- 276 Independently Articulating Front Suspension Arms (Qty 1)
- 279 2022 61/72 Rogue/Renegade Front Suspension Asy RH (Qty 1)
- 279.1 Caster Bearing (Qty 4)
- 279.2 1" Nylock Nut 1/2 Nut - Fine (Qty 1)
- 279.3 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 1)
- 279.5 5/8 x 5/8 Shoulder Bolt (Qty 1)
- 279.6 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 279.7 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 279.8 Rubber Stabilizer (Front Fork) (Qty 1)
- 279.4 1/2-13 x 1" Stud (Qty 1)
- 280 2022 61/72 Rogue/Renegade Front Suspension Asy LH (Qty 1)
- 280.1 Caster Bearing (Qty 1)
- 280.2 1" Nylock Nut 1/2 Nut - Fine (Qty 1)
- 280.3 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 1)
- 280.4 1/2-13 x 1" Stud (Qty 1)
- 280.5 5/8 x 5/8 Shoulder Bolt (Qty 1)
- 280.6 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 280.7 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 280.8 Rubber Stabilizer (Front Fork) (Qty 1)
-
17#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
21279.2280.2#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
22#014-2025-00
Bearing Retainer Cap
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
47279.3280.3#018-0026-00
1-14 X 5 1/2 BOLT GR 8 ZC YELLOW
Qty Used: 1Regular price $12.99 USDRegular priceUnit price per
-
59#018-1055-00
1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
89#018-7010-00
1/2-13 X 9 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $5.29 USDRegular priceUnit price per
-
105#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 2Regular price $0.75 USDRegular priceUnit price per
-
115115.1#022-0003-00
2019 15x6.00-6 No Flat Black Front Tire
Qty Used: 1Regular price $159.99 USDRegular priceUnit price per
-
115.2#022-7010-00
1 3/4" Bearing-Large Bore
Qty Used: 2Regular price $18.99 USDRegular priceUnit price per
-
118#023-0004-20
2020 R Series Cast Front Fork
Qty Used: 2Regular price $169.99 USDRegular priceUnit price per
-
129#025-5202-00
Front Wheel Spanner-All Models
Qty Used: 2Regular price $9.49 USDRegular priceUnit price per
-
-
152#030-7039-00
14 X 1-1/2 HWA A T/S Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
154#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
164#032-8999-00
Isolator (Blue Dot)
Qty Used: 2Regular price $60.02 USDRegular priceUnit price per
-
210#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 6Regular price $5.83 USDRegular priceUnit price per
-
230#070-5373-19
2019 Horizontal Gas Frame--Orange
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
273#091-4063-00
Flying Bulldog Front Bumper Decal
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
276#091-8002-00
Independently Articulating Front Suspension Arms
Qty Used: 1Regular price $4.99 USDRegular priceUnit price per
-
279#250-0032-03
2022 61/ 72 Rogue/Renagade Front Suspension Asy RH
Qty Used: 1Regular price $249.99 USDRegular priceUnit price per
-
279.1280.1#010-1050-00
Caster Bearing
Qty Used: 1Regular price $17.19 USDRegular priceUnit price per
-
279.5280.5#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 1Regular price $14.59 USDRegular priceUnit price per
-
279.6280.6#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
279.7280.7#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
279.8280.8#029-7050-00
Rubber Stabilizer (Front Fork)
Qty Used: 1Regular price $7.95 USDRegular priceUnit price per
-
279.4280.4#018-2009-00
1/2-13 x 1" Stud
Qty Used: 1Regular price $5.29 USDRegular priceUnit price per
-
280#250-0033-03
2022 61/72 Rogue/Renegade Front Suspension Asy LH
Qty Used: 1Regular price $249.99 USDRegular priceUnit price per
