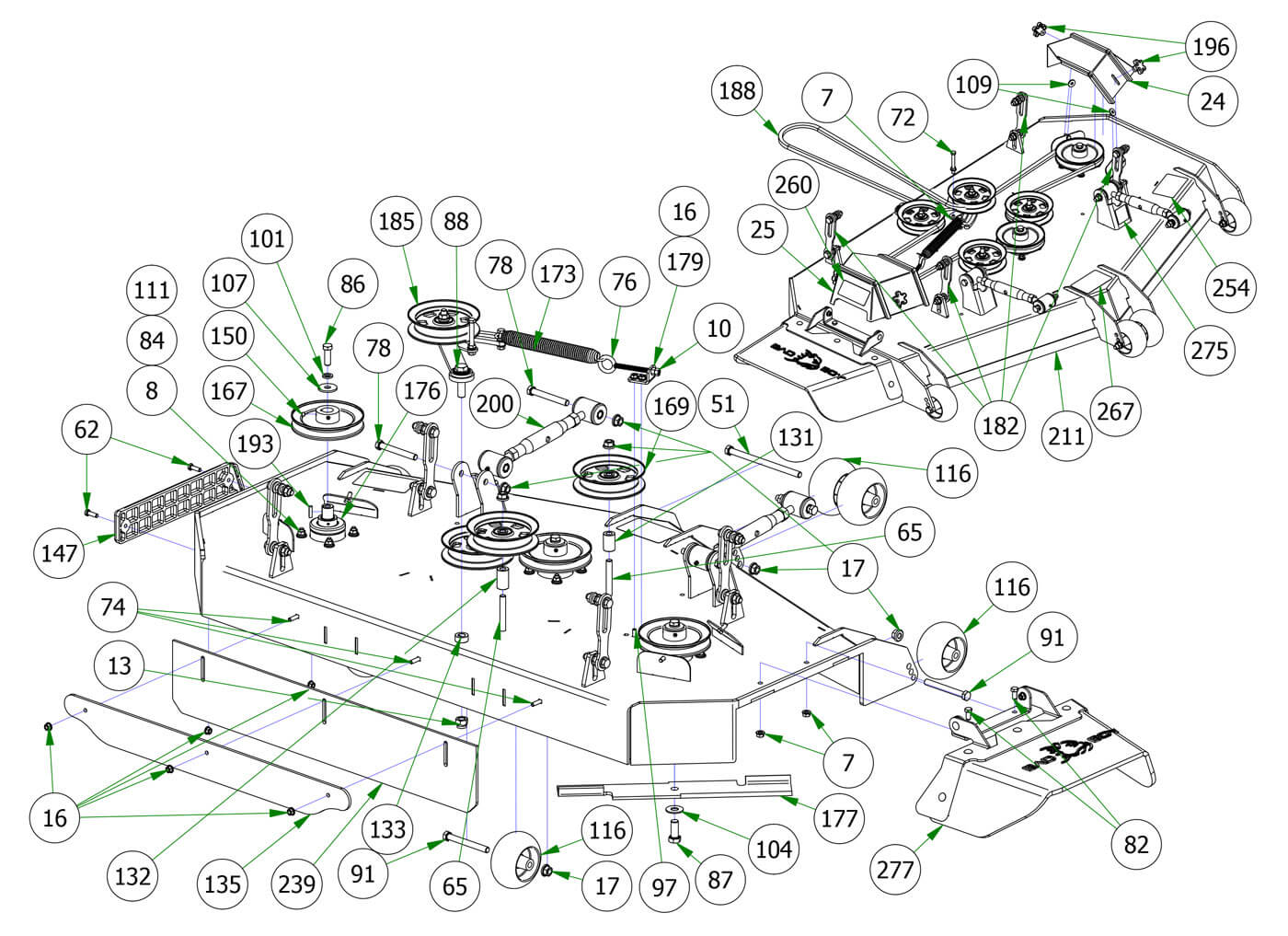

61" Deck Assembly
Parts Index
- 7 3/8-16 Hex Flange Nuts Zinc w/ (Qty 4)
- 8 3/8 Nylock Flange Nut (Qty 12)
- 10 3/8-16 Hex Nuts Zinc (Qty 2)
- 13 5/8-11 Nylon Insert Locknut Zi (Qty 1)
- 16 5/16-18 Nylon Flange Nut (Qty 7)
- 17 1/2-13 Nylon Insert Flange Nut (Qty 12)
- 24 Pulley Cover LH Rogue, Rebel, Renegade 61" (Qty 1)
- 25 Pulley Cover RH Rogue, Rebel, Renegade 61" (Qty 1)
- 51 1/2-13 x 8" Grade 5 Hex Bolt (Qty 1)
- 62 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 65 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 3)
- 72 3/8-16 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 74 5/16-18 X 1-1/4 Carriage Bolt (Qty 3)
- 76 4" 3/8-16 Eye Bolt (Qty 1)
- 78 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 4)
- 82 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 2)
- 84 3/8 x 1 1/2 Bolt (Qty 12)
- 86 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 87 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 88 5/8-11 X 2-1/2 GR 5 Hex Bolts (Qty 1)
- 91 1/2-13 X 4-1/2 GR 5 Hex Bolts (Qty 4)
- 97 5/16 x 7/8 Carriage Bolt (Qty 2)
- 101 1/2 Lockwasher Zinc (Qty 3)
- 104 5/8 Flat Washer (Qty 3)
- 107 1/2 Belleville Washer #K2000-G (Qty 3)
- 109 .360 ID Black Plastic Washer (Qty 4)
- 111 5/16 USS Flat Washer Zinc (Qty 12)
- 116 Deck Wheel (Qty 6)
- 131 .502 ID X 1.000 0D X 1.500 (Qty 2)
- 132 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 133 5/8 Set Collar W/One Set Screw (Qty 1)
- 147 Bumper (Deck) (Qty 1)
- 150 5/16-24 x 1/4 Set Screw (Qty 3)
- 167 6 1/4 Spindle Deck Pulley (Qty 3)
- 169 5 3/4 Idler Pulley-Capitol (Qty 3)
- 173 Deck Spring 2019 Models (Qty 1)
- 176 Commercial Cast Iron Spindle (Qty 3)
- 177 61" High Lift Blade (Qty 3)
- 179 2019 Deck Eye Bolt Tab--Plated (Qty 1)
- 182 Outlaw/Extreme/XP Deck Hanger Assy (Qty 4)
- 185 2019 Renegade Deck Idler (Qty 1)
- 188 61" Renegade Deck Belt (Qty 1)
- 193 1/4 x 1 Square Key (Qty 3)
- 196 5/16 Black Plastic Knob (Qty 4)
- 200 Toplink (Qty 2)
- 211 2019 61" Sloped Deck Weldment--Orange (Qty 1)
- 239 Stripe Kit Rubber Only-R Series Deck (Qty 1)
- 254 2018 61" Deck Decal (Qty 1)
- 260 Danger Decal-Spindle/Discharge (Qty 2)
- 267 2019 Renegade Deck Belt Route Decal (Qty 1)
- 275 Rubber Bushing Turnbuckle Patent Decal (Qty 1)
- 277 R-Series, Revolt Chute Assembly (Qty 1)
-
7#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
8#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 12Regular price $1.49 USDRegular priceUnit price per
-
10#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
13#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
16#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
17#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 12Regular price $1.39 USDRegular priceUnit price per
-
24#014-5052-00
Pulley Cover LH
Qty Used: 1Regular price $16.69 USDRegular priceUnit price per
-
25#014-5053-00
Pulley Cover RH
Qty Used: 1Regular price $16.69 USDRegular priceUnit price per
-
51#018-0046-00
1/2-13 x 8" Grade 5 Hex Bolt
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
62#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
65#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 3Regular price $3.29 USDRegular priceUnit price per
-
72#018-4700-00
3/8-16 X 3 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
74#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
76#018-4707-00
4" 3/8-16 Eye Bolt
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
78#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
82#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
84#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
86#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
87#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
88#018-6059-00
5/8-11 X 2-1/2 GR 5 Hex Bolts
Qty Used: 1Regular price $2.29 USDRegular priceUnit price per
-
91#018-7050-00
1/2-13 X 4-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $2.39 USDRegular priceUnit price per
-
97#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
101#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
104#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
107#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 3Regular price $4.69 USDRegular priceUnit price per
-
109#019-6050-00
.360 ID Black Plastic Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
111#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
116#022-1001-00
Deck Wheel
Qty Used: 6Regular price $15.99 USDRegular priceUnit price per
-
131#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
132#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
133#025-7020-00
5/8 Set Collar W/One Set Screw
Qty Used: 1Regular price $3.97 USDRegular priceUnit price per
-
147#029-7036-00
Bumper (Deck)
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
150#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 3Regular price $1.59 USDRegular priceUnit price per
-
167#033-6004-00
6 1/4 Spindle Deck Pulley
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
169#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
173#034-2030-00
Deck Spring 2019 Models
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
176#037-4000-00
Commercial Cast Iron Spindle
Qty Used: 3Regular price $291.91 USDRegular priceUnit price per
-
177#038-6080-00
61" High Lift Fusion Blade
Qty Used: 3Regular price $21.16 USDRegular priceUnit price per
-
179#039-0144-00
2019 Deck Eye Bolt Tab--Plated
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
182#039-2125-17
Outlaw/Extreme/XP Deck Hanger Assy
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
185#039-6946-17
2019 Renegade Deck Idler
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
188#041-0222-00
2019 & up Renegade / Compact Diesel Deck Belt
Qty Used: 1Regular price $122.06 USDRegular priceUnit price per
-
193#042-6030-00
1/4 x 1 Square Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
196#045-6043-00
5/16 Black Plastic Knob
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
-
211#060-6151-19
2019 61" Sloped Deck Weldment--Orange
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
239#084-5004-00
Stripe Kit Rubber Only-R Series Deck
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
254#091-0917-18
2018 61" Deck Decal
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
260#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
267#091-4033-00
2019 Renegade Deck Belt Route Decal
Qty Used: 1Regular price $8.74 USDRegular priceUnit price per
-
275#091-8001-00
Rubber Bushing Turnbuckle Patent Decal
Qty Used: 1Regular price $0.73 USDRegular priceUnit price per
-
277#210-7000-98
R-Series, Revolt Chute Assembly
Qty Used: 1Regular price $159.22 USDRegular priceUnit price per
