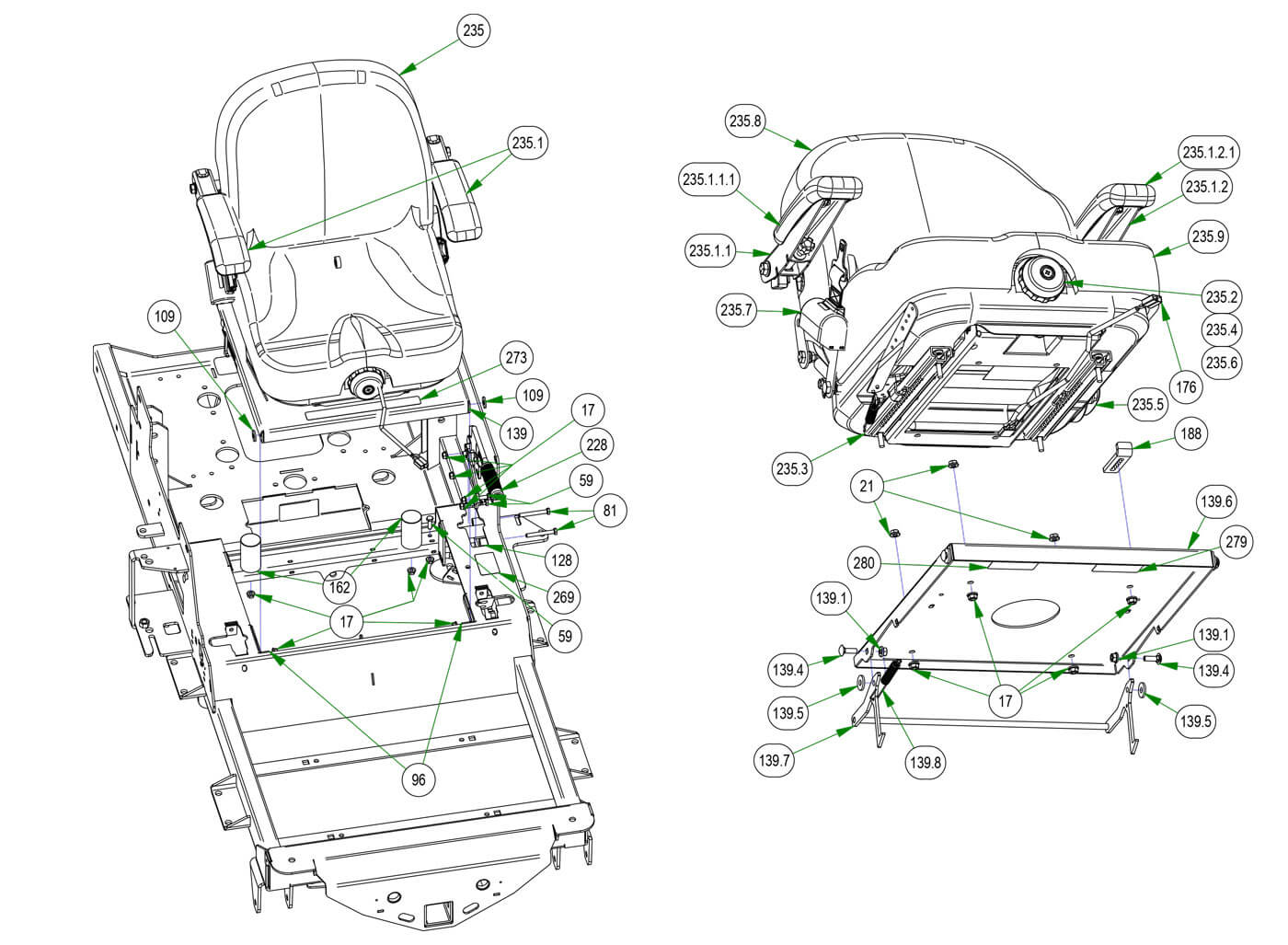

Seat & Brake
Parts Index
- 17 5/16-18 Nylon Flange Nut (Qty 13)
- 21 5/16-18 Hex Flange Nuts Zinc w (Qty 3)
- 59 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 3)
- 81 5/16 x 2 1/2 Bolt (Qty 2)
- 96 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 109 .360 ID Plastic Washer (Qty 2)
- 128 2019 Brake Handle Spacer .625 x 1.5 (Qty 2)
- 139 R-Series Seat Plate Assembly (Qty 1)
- 139.1 5/16-18 Nylon Flange Nut (Qty 2)
- 139.4 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 139.5 .360 ID Plastic Washer (Qty 2)
- 139.6 Seat Plate--Orange (Qty 1)
- 139.7 Seat Latch Rod (Qty 1)
- 139.8 Brake Spring (Qty 1)
- 162 Bumper (Seat) (Qty 2)
- 176 Seat Switch Adaptor - Pup (Qty 1)
- 188 Seat Stop--Plated (Qty 1)
- 228 2019 Rebel, Rogue, Renegade Brake Handle Assy (Qty 1)
- 235 2022 Seats Inc Suspension Seat with seatbelt (Qty 1)
- 235.1 Arm Kit for 071-6065-00/071-6065-22 (Qty 1)
- 235.1.1 RH Arm rest -Selfskin Front Adj for 071-6065-22 (Qty 1)
- 235.1.1.1 Arm Pad for 071-6065-00/071-6065-22 (Qty 1)
- 235.1.2 LH Armrest -Selfskin Front Adj for 071-6065-22 (Qty 1)
- 235.1.2.1 Arm Pad for 071-6065-00/071-6065-22 (Qty 1)
- 235.2 Weight Adjustment Knob for 071-6065-00/071-6065-22 (Qty 1)
- 235.3 SEAT RAILS for 071-6065-00/071-6065-22 (Qty 1)
- 235.4 Seat Switch for 071-6065-00/071-6065-22 (Qty 1)
- 235.5 Recliner Adjust Knob for 071-6065-00/71-6065-22 (Qty 1)
- 235.6 Bellows w/Hardware for 071-6065-22 (Qty 1)
- 235.7 OBSOLETE USE 071-6063-00 (Qty 1)
- 235.8 Back Cover for I3M - Recl - Logos for 071-6065-22 (Qty 1)
- 235.9 Cushion Cover Kit for I3M - Logo for 071-6065-22 (Qty 1)
- 269 R-Series Brake Decal (Qty 1)
- 273 Long Seat Plate Warning Decal (Qty 1)
- 279 Control Adj. Control Rod Decal (Qty 1)
- 280 Control Adj. Control Dampener Decal (Qty 1)
-
17139.1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
21#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
59#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
81#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
96139.4#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
109139.5#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
128#025-0027-00
2019 Brake Handle Spacer .625 x 1.5
Qty Used: 2Regular price $6.59 USDRegular priceUnit price per
-
139#026-2019-21
R-Series Seat Plate Assembly
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
139.6#026-2019-00
Seat Plate--Orange
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
139.7#028-0090-00
Seat Latch Rod
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
139.8#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
162#032-0001-00
Bumper (Seat)
Qty Used: 2Regular price $21.88 USDRegular priceUnit price per
-
176#036-5300-00
Seat Switch Adaptor - Pup
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
188#039-2156-00
Seat stop--Plated
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
228#069-0001-00
2019 Rebel, Rogue, Renegade Brake Handle Assy
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
235#071-6065-22
2022 Seats Inc Suspension Seat with seatbelt
Qty Used: 1Regular price $829.99 USDRegular priceUnit price per
-
235.1#071-6065-04
Arm Kit for 071-6065-00/071-6065-22
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
235.1.1#071-6065-11
RH Arm rest -Selfskin Front Adj for 071-6065-22
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
235.1.1.1235.1.2.1#071-6065-03
Arm Pad for 071-6065-00/071-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
235.1.2#071-6065-12
LH Armrest -Selfskin Front Adj for 071-6065-22
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
235.2#071-6065-05
Weight Adjustment Knob for 071-6065-00/071-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
235.3#071-6065-06
SEAT RAILS for 071-6065-00/071-6065-22
Qty Used: 1Regular price $92.87 USDRegular priceUnit price per
-
235.4#071-6065-07
Seat Switch for 071-6065-00/071-6065-22
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
235.5#071-6065-10
Recliner Adjust Knob for 071-6065-00/71-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
235.6#071-6065-13
Bellows w/Hardware for 071-6065-22
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
235.7#071-6065-14
OBSOLETE USE 071-6063-00
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
235.8#071-6065-15
Back Cover for I3M - Recl - Logos for 071-6065-22
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
235.9#071-6065-16
Cushion Cover Kit for I3M - Logo for 071-6065-22
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
269#091-1101-18
2018 Out/XP/Diesel Brake Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
273#091-3150-00
Outlaw Warning Decal
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
279#091-4038-00
Control Adj. Control Rod Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
280#091-4039-00
Control Adj. Control Dampener Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
