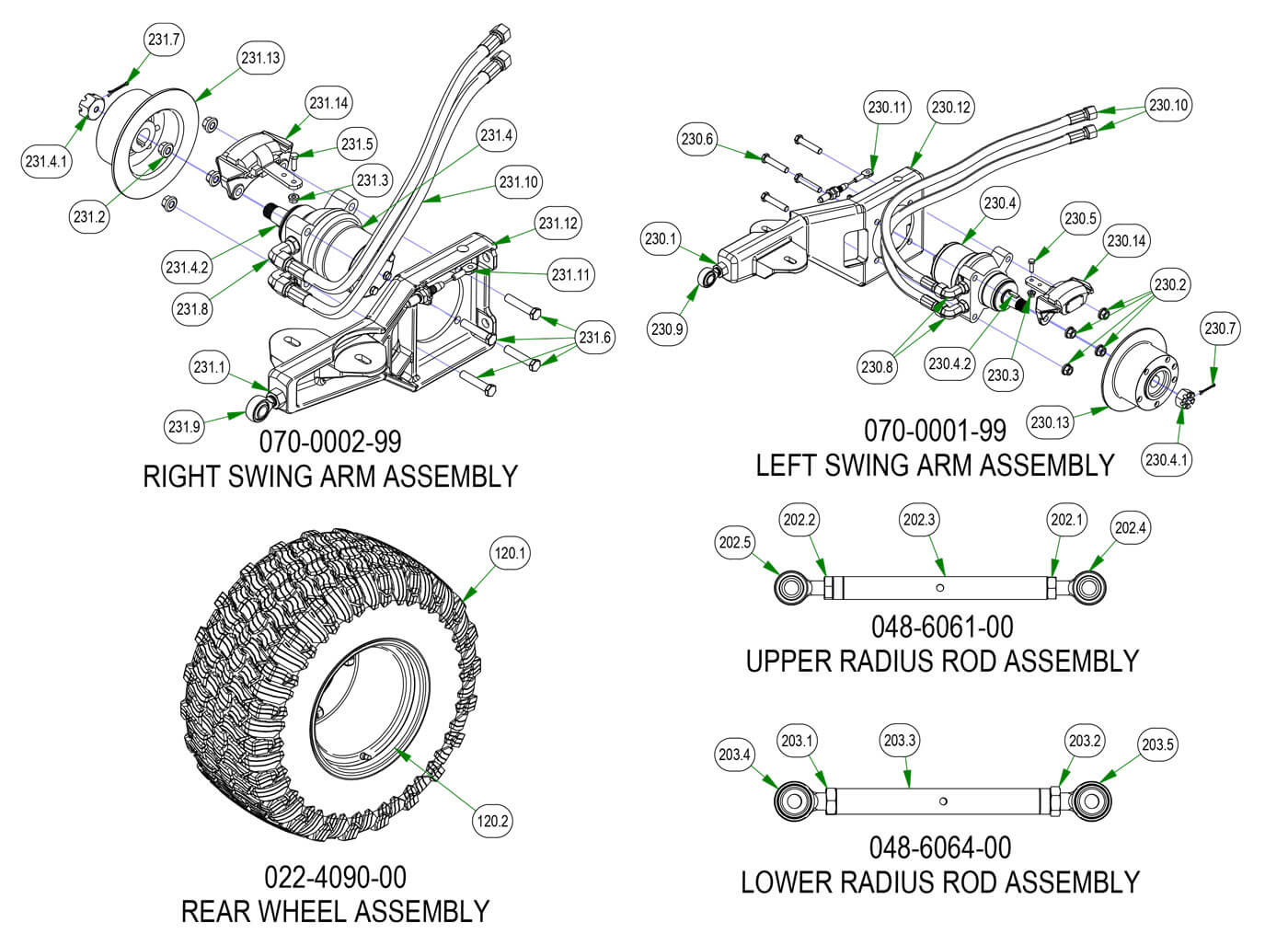

Rear Suspension Subassemblies
Parts Index
- 120 2019 Assy-26x12-12 Reaper Turf 2019-10.5" Rim (Qty 1)
- 120.1 2019 26x12-12 Reaper Turf Tire (Qty 1)
- 120.2 2019 10.5" Wheel Fits 022-4090-00 (Qty 1)
- 202 2019 Rear Radius Rod W/ Greasable Hiem (Qty 1)
- 202.1 Nut, 5/8-18 RH (Qty 1)
- 202.2 Nut, 5/8-18 LH (Qty 1)
- 202.3 2019 Suspension Link Body-RH and LH Threads (Qty 1)
- 202.4 Heim 5/8" RH (Qty 1)
- 202.5 Heim 5/8" LH (Qty 1)
- 203 Supension linkage (3/4 body | 5/8 Hole) (Qty 1)
- 203.2 3/4 - 16 LH Half Nut (Qty 1)
- 203.4 Hime RH (3/4 body | 5/8 hole) (Qty 1)
- 203.5 Heim LH (3/4 Body | 5/8 Hole) (Qty 1)
- 230.1 3/4"-16 Fine Full Nut (Qty 1)
- 230.2 1/2-13 Gr 8 Centerlock Flange Nut (Qty 4)
- 230.3 5/16-18 Nylon Flange Nut (Qty 1)
- 230.4 18ci Parker Wheel Motor - Left (Qty 1)
- 230.5 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 230.6 1/2-13 x 2.75 Gr.8 Hex Head Bolt (Qty 4)
- 230.7 1/8 X 1 1/2 Cotter Pins Zinc (Qty 1)
- 230.8 2019 Rogue/Renegade Wheel Motor 90* Fitting (Qty 2)
- 230.9 Heim 3/4" RH (Qty 1)
- 230.10 2019 Renegade Hydro Hose (Qty 2)
- 230.11 2019 Short Brake Cable-Suspension Models (Qty 1)
- 230.12 2019 Left Trailing Arm (Qty 1)
- 230.13 Brake Disc (96-37486) (Qty 1)
- 230.14 Brake Caliper with Bracket LH (Qty 1)
- 230.4.1 OBSOLETE USE 013-7055-00 (Qty 1)
- 230.4.2 Woodruff Key-Wheel Motor (Qty 1)
- 231.1 3/4"-16 Fine Full Nut (Qty 1)
- 231.2 1/2-13 Gr 8 Centerlock Flange Nut (Qty 4)
- 231.3 5/16-18 Nylon Flange Nut (Qty 1)
- 231.4 18ci Parker Wheel Motor-Right (Qty 1)
- 231.4.1 OBSOLETE USE 013-7055-00 (Qty 1)
- 231.4.2 Woodruff Key-Wheel Motor (Qty 1)
- 231.5 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 231.6 1/2-13 x 2.75 Gr.8 Hex Head Bolt (Qty 4)
- 231.7 1/8 X 1 1/2 Cotter Pins Zinc (Qty 1)
- 231.8 2019 Rogue/Renegade Wheel Motor 90* Fitting (Qty 2)
- 231.9 Heim 3/4" RH (Qty 1)
- 231.10 2019 Renegade Hydro Hose (Qty 2)
- 231.11 2019 Long Brake Cable-Renegade, Rogue (Qty 1)
- 231.12 2019 Right Trailing Arm (Qty 1)
- 231.13 Brake Disc (96-37486) (Qty 1)
- 231.14 Brake Caliper with Bracket RH (Qty 1)
-
120#022-4090-00
2019 Assy-26x12-12 Reaper Turf 2019-10.5" Rim
Qty Used: 1Regular price $209.99 USDRegular priceUnit price per
-
120.1#022-4085-00
2019 26x12-12 Reaper Turf Tire
Qty Used: 1Regular price $209.99 USDRegular priceUnit price per
-
120.2#022-4086-00
2019 10.5" Wheel Fits 022-4090-00
Qty Used: 1Regular price $131.99 USDRegular priceUnit price per
-
202#048-6061-00
2019 Rear Radius Rod W/ Greasable Hiem
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
202.1#013-0019-00
Nut, 5/8-18 RH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
202.2#013-0020-00
Nut, 5/8-18 LH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
202.3#048-0001-00
2019 Suspension Link Body-RH and LH Threads
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
202.4#048-6062-00
Heim 5/8" RH
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
202.5#048-6063-00
Heim 5/8" LH
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
203#048-6064-00
Supension linkage (3/4 body | 5/8 Hole)
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
203.2#013-0028-00
3/4 - 16 LH Half Nut
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
203.4#048-6065-00
Hime RH (3/4 body | 5/8 hole)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
203.5#048-6066-00
Heim LH (3/4 Body | 5/8 Hole)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
230.1231.1#013-0022-00
3/4"-16 Fine Full Nut
Qty Used: 1Regular price $6.69 USDRegular priceUnit price per
-
230.2231.2#013-6040-00
1/2-13 Gr 8 Centerlock Flange Nut
Qty Used: 4Regular price $0.99 USDRegular priceUnit price per
-
230.3231.3#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
230.4#015-4601-00
18ci Parker Wheel Motor - Left
Qty Used: 1Regular price $599.00 USDRegular priceUnit price per
-
230.5231.5#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
230.6231.6#018-6041-00
1/2-13 x 2.75 Gr.8 Hex Head Bolt
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
230.7231.7#020-7022-00
1/8 X 1 1/2 Cotter Pins Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
230.8231.8#024-2065-00
2019 Rogue/Renegade Wheel Motor 90* Fitting
Qty Used: 2Regular price $17.45 USDRegular priceUnit price per
-
230.9231.9#048-7001-00
Heim 3/4" RH
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
230.10231.10#051-6007-00
2019 Renegade Hydro Hose
Qty Used: 2Regular price $51.07 USDRegular priceUnit price per
-
230.11#064-8054-00
2019 Short Brake Cable-Suspension Models
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
230.12#070-0001-00
2019 Left Trailing Arm
Qty Used: 1Regular price $291.91 USDRegular priceUnit price per
-
230.13231.13#092-5201-00
Brake Disc (96-37486)
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-
230.14#092-7001-00
Brake Caliper with Bracket LH
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
230.4.1231.4.1#013-7050-00
OBSOLETE USE 013-7055-00
Qty Used: 1Regular price $10.95 USDRegular priceUnit price per
-
230.4.2231.4.2#042-7041-00
Woodruff Key-Wheel Motor
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
231.4#015-4600-00
18ci Parker Wheel Motor-Right
Qty Used: 1Regular price $599.00 USDRegular priceUnit price per
-
231.11#064-9002-00
2019 Long Brake Cable-Renegade, Rogue
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
231.12#070-0002-00
2019 Right Trailing Arm
Qty Used: 1Regular price $219.99 USDRegular priceUnit price per
-
231.14#092-7000-00
Brake Caliper RH
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
