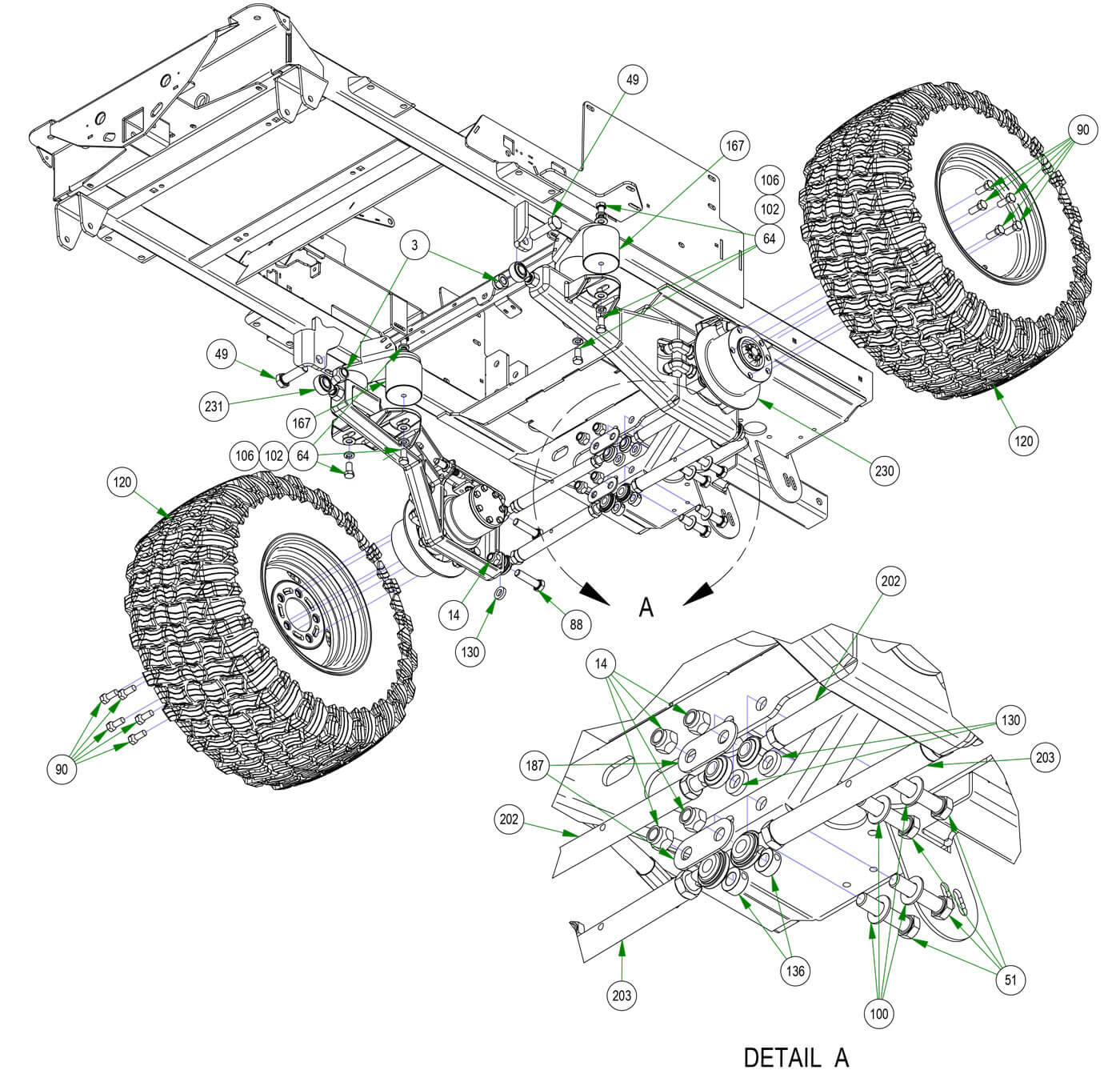

Rear Suspension
Parts Index
- 3 3/4" Course Thread Nylon Lock Nut (Qty 2)
- 14 5/8-11 Nylon Insert Locknut Zi (Qty 8)
- 49 3/4 x 2 1/2 Course Thread Bolt (Qty 2)
- 51 5/8-11 x 2 3/4 Hex Head Bolt GR 5 (Qty 4)
- 64 1/2 x 1 Bolt (Qty 8)
- 88 5/8-11 X 2-1/2 GR 5 Hex Bolts (Qty 4)
- 90 1/2-20 Wheel Bolt -3/4" 60 Degree Seat 1" Threads (Qty 10)
- 100 5/8" Flat Washer SAE Spec Grade 8 (Qty 4)
- 102 1/2 Lockwasher Zinc (Qty 8)
- 106 1/2 SAE Flat Washer GR 8 (Qty 8)
- 120 2019 Assy-26x12-12 Reaper Turf 2019-10.5" Rim (Qty 2)
- 130 Spacer 1.125 OD x .625 ID x .250 Length (Qty 4)
- 136 5/8 Set Collar W/One Set Screw (Qty 2)
- 167 Isolator (Blue Dot) (Qty 4)
- 187 2019 Suspension Gusset--Plated (Qty 2)
- 202 2019 Rear Radius Rod W/ Greasable Hiem (Qty 2)
- 203 Supension linkage (3/4 body | 5/8 Hole) (Qty 2)
- 230.4.1 OBSOLETE USE 013-7055-00 (Qty 1)
- 230.4.2 Woodruff Key-Wheel Motor (Qty 1)
- 231.4.1 OBSOLETE USE 013-7055-00 (Qty 1)
- 231.4.23 Woodruff Key-Wheel Motor (Qty 1)
-
3#013-0023-00
3/4" Course Thread Nylon Lock Nut
Qty Used: 2Regular price $6.69 USDRegular priceUnit price per
-
14#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 8Regular price $1.19 USDRegular priceUnit price per
-
49#018-0045-00
3/4 x 2 1/2 Course Thread Bolt
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
51#018-0049-00
5/8-11 x 2 3/4 Hex Head Bolt GR 5
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
64#018-2030-00
1/2 x 1 Bolt
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
88#018-6059-00
5/8-11 X 2-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $2.29 USDRegular priceUnit price per
-
90#018-7033-00
1/2-20 Wheel Bolt -3/4" 60 Degree Seat 1" Threads
Qty Used: 10Regular price $1.99 USDRegular priceUnit price per
-
100#019-0009-00
5/8" Flat Washer SAE Spec Grade 8
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
102#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 8Regular price $0.00 USDRegular priceUnit price per
-
106#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 8Regular price $0.75 USDRegular priceUnit price per
-
120#022-4090-00
2019 Assy-26x12-12 Reaper Turf 2019-10.5" Rim
Qty Used: 2Regular price $209.99 USDRegular priceUnit price per
-
130#025-0071-00
Spacer 1.125 OD x .625 ID x .250 Length
Qty Used: 4Regular price $13.26 USDRegular priceUnit price per
-
136#025-7020-00
5/8 Set Collar W/One Set Screw
Qty Used: 2Regular price $3.97 USDRegular priceUnit price per
-
167#032-8999-00
Isolator (Blue Dot)
Qty Used: 4Regular price $60.02 USDRegular priceUnit price per
-
187#039-2145-00
2019 Suspension Gusset--Plated
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
202#048-6061-00
2019 Rear Radius Rod W/ Greasable Hiem
Qty Used: 2Regular price $53.06 USDRegular priceUnit price per
-
203#048-6064-00
Supension linkage (3/4 body | 5/8 Hole)
Qty Used: 2Regular price $72.97 USDRegular priceUnit price per
-
230.4.1231.4.1#013-7050-00
OBSOLETE USE 013-7055-00
Qty Used: 1Regular price $10.95 USDRegular priceUnit price per
-
230.4.2231.4.23#042-7041-00
Woodruff Key-Wheel Motor
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
