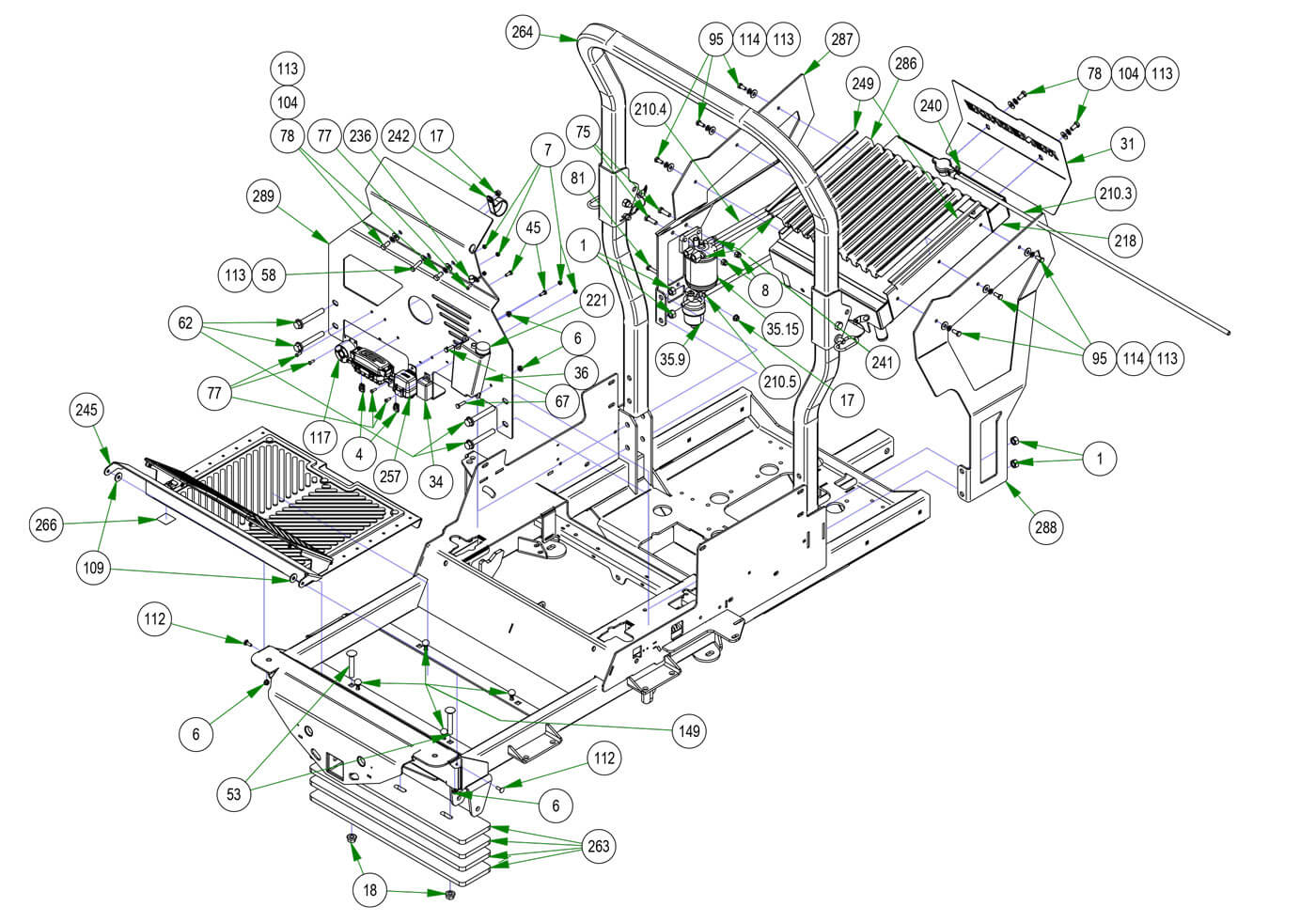

Floorboard, ROPs, & Radiator
Parts Index
- 1 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 4)
- 4 1/4-20 Cage Nut (Qty 2)
- 6 1/4-20 Nylon Insert Flange Nut (Qty 4)
- 7 10-24 Nylon Insert Locknut Zin (Qty 5)
- 8 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 17 5/16-18 Nylon Flange Nut (Qty 2)
- 18 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 34 Auto Shut Down for Cat Diesels (Qty 1)
- 35.9 Fuel Pre-Filter for 015-0097-00 (Qty 1)
- 35.15 Perkins Fuel Filter for 015-0096-00 & 015-0097-00 (Qty 1)
- 36 Overflow Reservoir-27 Kaw (Qty 1)
- 45 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 53 1/2-13 x 3 Carriage Bolt Grade 5 (Qty 2)
- 58 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 1)
- 62 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 4)
- 67 1/4-20 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 75 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 77 10-24 X 5/8 BS C/S 18-8 SS (Qty 5)
- 78 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 4)
- 81 5/16 x 2 1/2 Bolt (Qty 1)
- 95 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 6)
- 104 3/8 Lockwasher Zinc (Qty 4)
- 109 .360 ID Plastic Washer (Qty 2)
- 112 1/4 x 3/4 Carriage Bolt (Qty 2)
- 113 5/16 USS Flat Washer Zinc (Qty 11)
- 114 5/16 Lock washer Zinc (Qty 6)
- 117 Heat Warning Piezo Buzzer (Qty 1)
- 149 2023 Floor Board Rubber Bumpers (Qty 4)
- 210.3 5/16 Clear Hose (Qty 3)
- 210.4 5/16 Fuel Line Hose (Qty 4)
- 210.5 5/8 Fuel Line Clamp (Qty 2)
- 218 2019 Diesel Radiator Kit (Qty 1)
- 221 Reservoir Tank Cap-Overflow Ta (Qty 1)
- 240 5/8 Hose Clamp SS (Qty 1)
- 241 12.5mm/15mm OETIKER 2 Ear Clamp (Qty 3)
- 242 Diesel Clamp - 1 3/4 Vinyl (Qty 1)
- 245 2019 Outlaw Floorboard--Orange (Qty 1)
- 249 Rubber Trim (Qty 2)
- 257 2019 24.7 Diesel Harness (Qty 1)
- 263 Renegade Diesel Counter Weight--Orange (Qty 4)
- 264 2019 2x2 R SERIES Folding Rops (Qty 1)
- 266 Anti-Wobble Patent Decal (Qty 1)
- 286 Radiator Screen Diesel (Qty 1)
- 287 2019 Diesel Radiator Mount-Right--Orange (Qty 1)
- 288 2019 Diesel Radiator Mount-Left--Orange (Qty 1)
-
1#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
4#013-0054-00
1/4-20 Cage Nut
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
6#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
7#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
8#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
17#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
18#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
34#015-0015-00
Auto Shut Down for Cat Diesels
Qty Used: 1Regular price $499.99 USDRegular priceUnit price per
-
35.9#015-0097-07
Fuel Pre-Filter for 015-0097-00
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
35.15#063-2011-01
Perkins Fuel Filter for 015-0096-00 & 015-0097-00
Qty Used: 1Regular price $25.20 USDRegular priceUnit price per
-
36#015-0111-00
Overflow Reservoir-27 Kaw
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
45#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
53#018-0067-00
1/2-13 x 3 Carriage Bolt Grade 5
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
58#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
62#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 4Regular price $3.29 USDRegular priceUnit price per
-
67#018-4007-00
1/4-20 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
75#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
77#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
78#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
81#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
95#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
104#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
109#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
112#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
113#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 11Regular price $0.79 USDRegular priceUnit price per
-
114#019-8051-00
5/16 Lock washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
117#021-8059-00
Heat Warning Piezo Buzzer
Qty Used: 1Regular price $33.99 USDRegular priceUnit price per
-
149#029-4011-00
2023 Floor Board Rubber Bumpers
Qty Used: 4Regular price $1.09 USDRegular priceUnit price per
-
210.3#051-8069-00
5/16 Clear Hose
Qty Used: 3Regular price $2.91 USDRegular priceUnit price per
-
210.4#051-8075-00
5/16 Fuel Line Hose
Qty Used: 4Regular price $4.37 USDRegular priceUnit price per
-
210.5#072-8068-00
5/8 Fuel Line Clamp
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
218#061-5001-98
2019 Diesel Radiator Kit
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
221#066-8075-00
Reservoir Tank Cap-Overflow Ta
Qty Used: 1Regular price $5.89 USDRegular priceUnit price per
-
240#072-8067-00
5/8 Hose Clamp SS
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
241#072-8076-00
12.5mm/15mm OETIKER 2 Ear Clamp
Qty Used: 3Regular price $1.99 USDRegular priceUnit price per
-
242#072-8090-00
Diesel Clamp - 1 3/4 Vinyl
Qty Used: 1Regular price $3.30 USDRegular priceUnit price per
-
245#079-3155-00
2019 Outlaw Floorboard--Orange
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
249#084-4015-00
Rubber Trim
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
257#086-0247-19
2019 24.7 Diesel Harness
Qty Used: 1Regular price $509.41 USDRegular priceUnit price per
-
263#088-1999-00
2019 Outlaw Counter Weight--Orange
Qty Used: 4Regular price $39.79 USDRegular priceUnit price per
-
264#089-0006-00
2019 2x2 R SERIES Outlaw Folding Rops
Qty Used: 1Regular price $436.43 USDRegular priceUnit price per
-
266#091-0020-22
Anti-Wobble Patent Decal
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
286#094-5088-00
Radiator Screen Diesel
Qty Used: 1Regular price $129.99 USDRegular priceUnit price per
-
287#201-8026-00
2019 Diesel Radiator Mount-Right--Orange
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
288#201-8027-00
2019 Diesel Radiator Mount-Left--Orange
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
