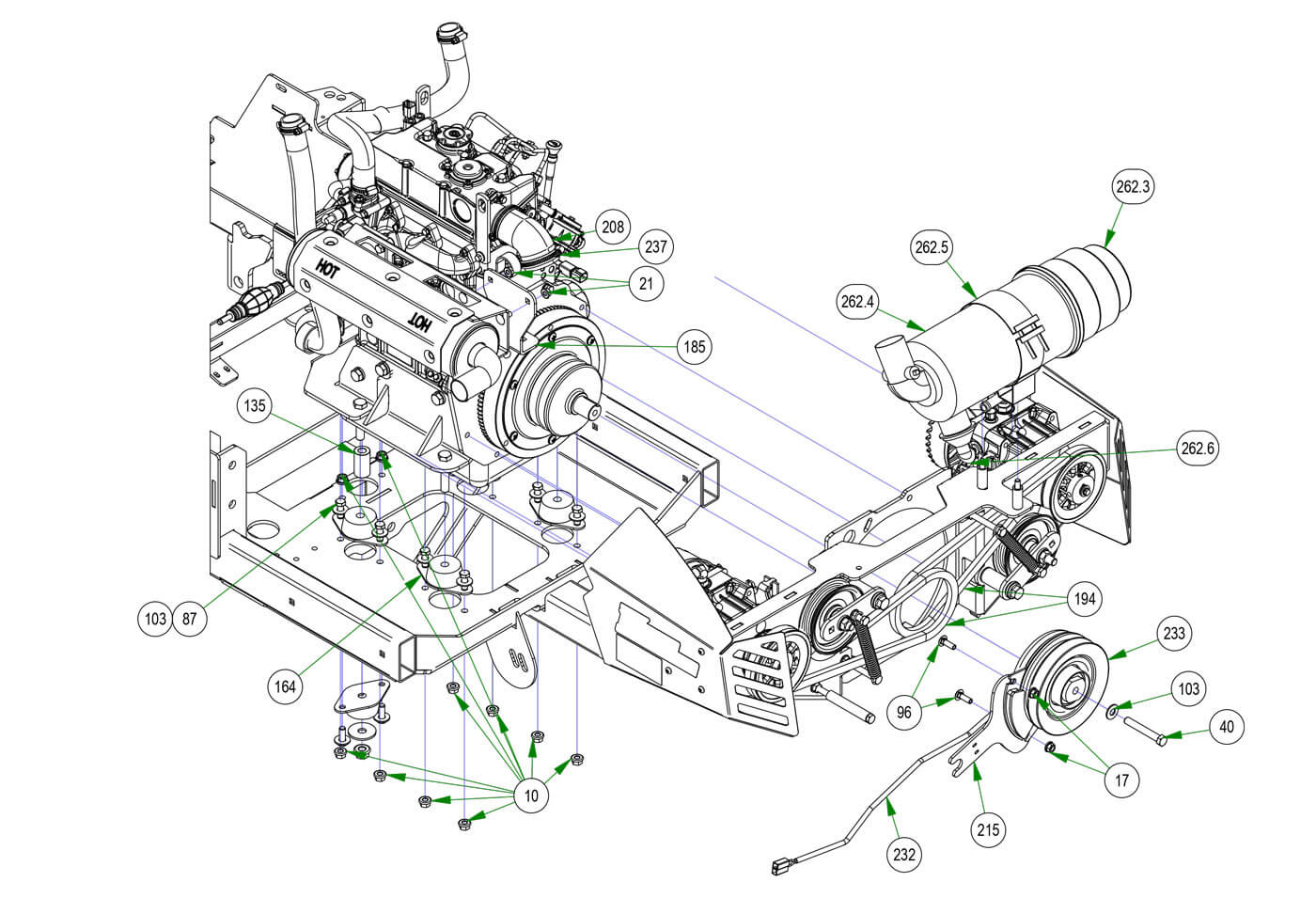

Engine Bay
Parts Index
- 10 3/8 Nylock Flange Nut (Qty 13)
- 17 5/16-18 Nylon Flange Nut (Qty 10)
- 21 5/16-18 Hex Flange Nuts Zinc w (Qty 3)
- 40 7/16-20x3” Hex Bolt GR 8 W/ Patch (Qty 1)
- 74 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 1)
- 87 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 10)
- 103 3/8 USS Flat Washer Zinc (Qty 11)
- 128 2019 Brake Handle Spacer .625 x 1.5 (Qty 2)
- 135 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 164 Rubber Compression Mount (Qty 5)
- 168.1 Cast Pump Pulley - 17mm Assembly (Qty 1)
- 168.2 5/16-18 X 1/2 SOCKET SET SCREW KNURLED CUP POINT (Qty 1)
- 185 2019 Diesel Muffler Bracket--Plated (Qty 1)
- 194 2020 Renegade Pump Belt (Qty 2)
- 208 Air Intake Hose (Qty 1)
- 215 2019 Outlaw Renegade Clutch Bracket--Plated (Qty 1)
- 232 Clutch Pigtail (Qty 1)
- 233 Renegade Clutch (Qty 1)
- 237 2-1/2 Hose Clamp (Qty 2)
- 262 Enginaire Canister VLR-Complet (Qty 1)
- 262.1 Diesel Air Filter - Outer (Qty 1)
- 262.2 Diesel Air Filter - Inner (Qty 1)
- 262.3 Enginaire air canister cap (Qty 1)
- 262.4 Canister forAll Diesel Air (Qty 1)
- 262.5 Mounting Bracket for Diesel Ai (Qty 1)
- 262.6 Debris Plug-Enginaire Filter (Qty 1)
- 44 5/16-18 x 2.25" Hex Bolt Gr 5 (Qty 2)
-
10#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 13Regular price $1.49 USDRegular priceUnit price per
-
17#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
21#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
40#018-0007-21
7/16-20x3” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
74#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
87#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 10Regular price $0.69 USDRegular priceUnit price per
-
103#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 11Regular price $0.79 USDRegular priceUnit price per
-
128#025-0027-00
2019 Brake Handle Spacer .625 x 1.5
Qty Used: 2Regular price $6.59 USDRegular priceUnit price per
-
135#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
164#032-4050-00
Rubber Compression Mount
Qty Used: 5Regular price $71.52 USDRegular priceUnit price per
-
168.1#033-5011-00
Cast Pump Pulley - 17mm Assembly
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
168.2#030-0076-00
5/16-18 X 1/2 SOCKET SET SCREW KNURLED CUP POINT
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
185#039-1025-00
2019 Diesel Muffler Bracket--Plated
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
194#041-8001-00
2020 Renegade Pump Belt
Qty Used: 2Regular price $74.99 USDRegular priceUnit price per
-
208#051-3004-00
Air Intake Hose
Qty Used: 1Regular price $13.19 USDRegular priceUnit price per
-
215#057-5919-00
2019 Outlaw Renegade Clutch Bracket--Plated
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
232#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
233#070-5040-00
Renegade Clutch
Qty Used: 1Regular price $359.99 USDRegular priceUnit price per
-
237#072-2002-00
2-1/2 Hose Clamp
Qty Used: 2Regular price $10.60 USDRegular priceUnit price per
-
262#088-1010-50
Enginaire Canister VLR-Complet
Qty Used: 1Regular price $197.71 USDRegular priceUnit price per
-
262.1#063-2050-00
Diesel Air Filter - Outer
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
262.2#063-2060-00
Diesel Air Filter - Inner
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
262.3#088-1017-00
Enginaire air canister cap
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
262.4#088-1018-00
Canister forAll Diesel Air
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
262.5#088-1019-00
Mounting Bracket for Diesel Ai
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
262.6#088-1020-00
Debris Plug-Enginaire Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
44#018-0023-00
5/16-18 x 2.25" Hex Bolt Gr 5
Qty Used: 2Regular price $0.61 USDRegular priceUnit price per
