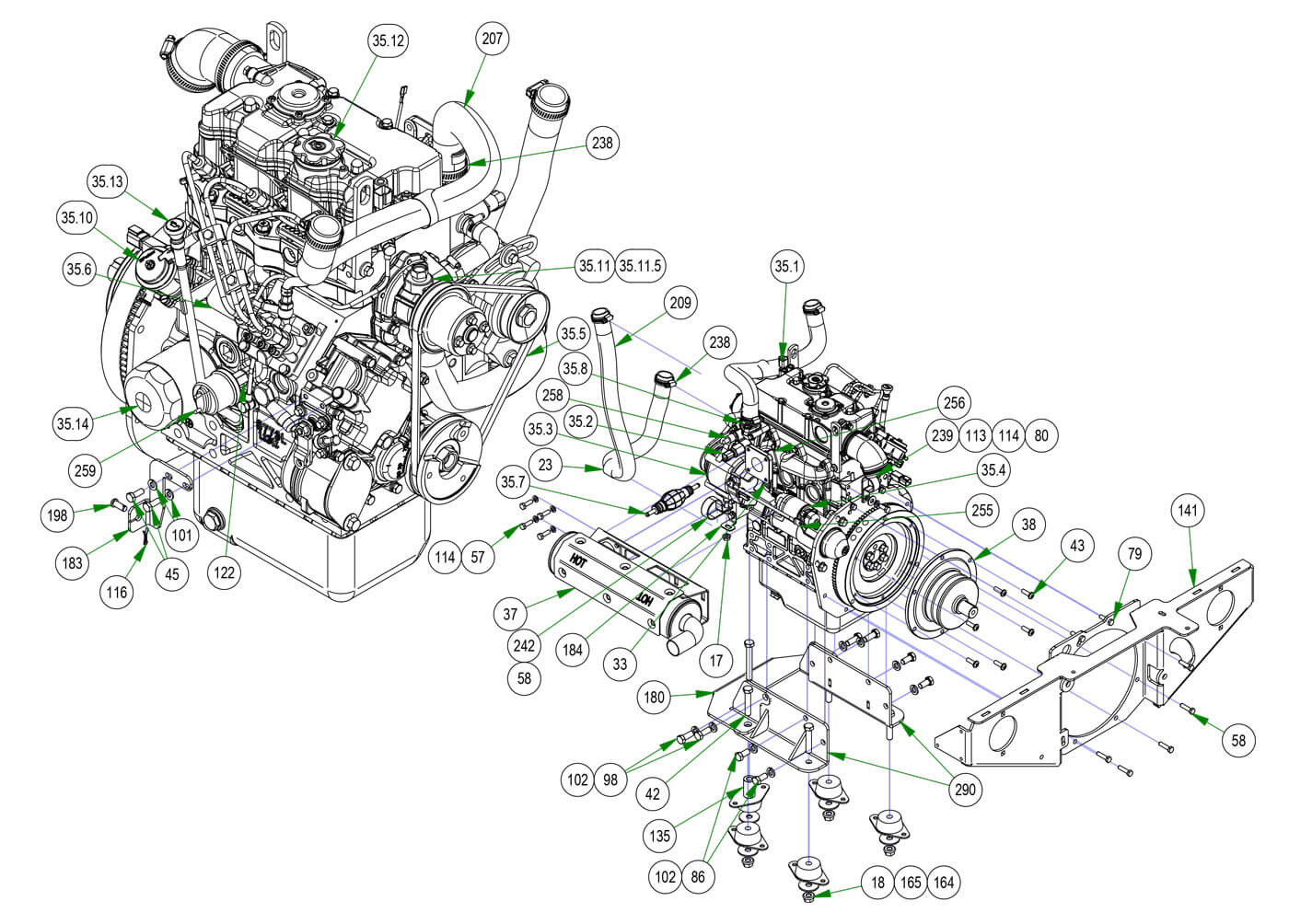

Engine Assembly
Parts Index
- 17 5/16-18 Nylon Flange Nut (Qty 10)
- 18 1/2-13 Nylon Insert Flange Nut (Qty 12)
- 23 2019 Plastic Mesh Hose Loom (Qty 2)
- 33 35/28 CAT Muffler Gasket (Qty 1)
- 35.1 Oil Pressure Sensor for the 015-0096-00/ 015-0097- (Qty 1)
- 35.2 Coolant Temperature Sensor for 015-0096-00 & (Qty 1)
- 35.3 Alternator for 015-0096-00 & 015-0097-00 (Qty 1)
- 35.5 Alternator Belt for 015-0097-00 (Qty 1)
- 35.6 Fuel Shutoff Solenoid for 015-0097-00 (Qty 1)
- 35.7 Fuel Priming Bulb Pump for 015-0097-00 (Qty 1)
- 35.8 Thermostat Gasket for 015-0097-00 (Qty 1)
- 35.10 Fuel Lift Pump for 015-0097-00 (Qty 1)
- 35.11 Water Pump with Gasket for 015-0097-00 (Qty 1)
- 35.11.5 Thermostat for 015-0097-00 (Qty 1)
- 35.14 Perkins Oil Filter for 015-0096-00/015-0097-00 (Qty 1)
- 37 2019 Renegade 1100cc Diesel Muffler (Qty 1)
- 38 2019 Diesel Stub Shaft Double V (Qty 1)
- 42 1/2-13 x 2 1/2 Hex Bolt Gr 5 (Qty 4)
- 43 5/16-18 x 1 Button Head (Qty 6)
- 57 M8 X 1.25 X 25MM Class 10.9 (Qty 4)
- 74 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 1)
- 79 M8 x 1.25 x 30MM Hex Head Bolt (Qty 2)
- 80 M8 x 1.25 x 20MM Hex Head Bolt (Qty 1)
- 86 12mm Bolt - Diesel (Qty 4)
- 102 1/2 Lockwasher Zinc (Qty 8)
- 113 5/16 USS Flat Washer Zinc (Qty 5)
- 114 5/16 Lock washer Zinc (Qty 5)
- 116 3/32 X 1/2 Cotter Pins Zinc (Qty 1)
- 122 8mm x 1/8 Adaptor (Qty 1)
- 128 2019 Brake Handle Spacer .625 x 1.5 (Qty 2)
- 131 ACS Spacer 3/4x3/8x1/4 (Qty 2)
- 135 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 165 Snubbing Washer-032-4050-00 (Qty 5)
- 183 Throttle Bracket--Plated (Qty 1)
- 184 Radiator Hose Clamp Bracket--Plated (Qty 1)
- 198 1/4 X 5/8 Clevis Pin (Qty 1)
- 207 2019 Diesel Radiator Hose Upper Dayco#71796 (Qty 1)
- 208 Air Intake Hose (Qty 1)
- 209 2019 Diesel Radiator Hose Lower Dayco# 70808 (Qty 1)
- 238 1 1/8 Hose Clamp (Qty 4)
- 239 Diesel Hydraulic Hose Clamp (Qty 1)
- 255 Alternator to Starter Cable (Qty 1)
- 258 Temperature Sender- 2012 Gauge (Qty 1)
- 259 Pressure Sender-2012 Gauge (Qty 1)
- 283 Trailing Arm Patent Decal (Qty 1)
- 290 2019 Diesel Motor Mount--Orange (Qty 2)
- 44 5/16-18 x 2.25" Hex Bolt Gr 5 (Qty 2)
-
17#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
18#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 12Regular price $1.39 USDRegular priceUnit price per
-
23#014-1053-00
2019 Plastic Mesh Hose Loom
Qty Used: 2Regular price $8.99 USDRegular priceUnit price per
-

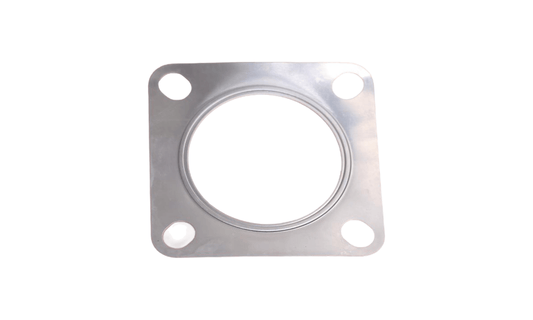

33#015-0010-50
35/28 CAT Muffler Gasket
Qty Used: 1Regular price $15.91 USDRegular priceUnit price per
-

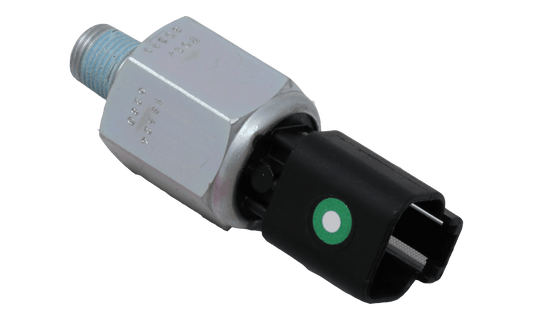

35.1#015-0096-06
Oil Pressure Sensor for the 015-0096-00/ 015-0097-
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-

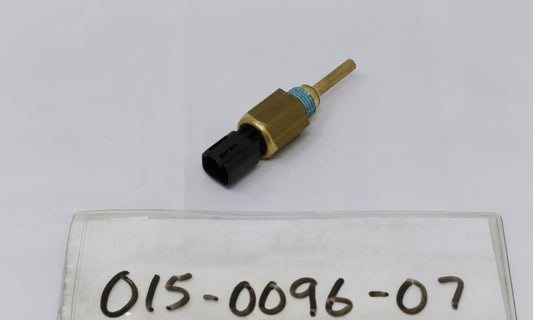

35.2#015-0096-07
Coolant Temperature Sensor for 015-0096-00 &
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
35.3#015-0096-09
Alternator for 015-0096-00 & 015-0097-00
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
-
35.5#015-0097-02
Alternator Belt for 015-0097-00
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
35.6#015-0097-03
Fuel Shutoff Solenoid for 015-0097-00
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
35.7#015-0097-04
Fuel Priming Bulb Pump for 015-0097-00
Qty Used: 1Regular price $79.99 USDRegular priceUnit price per
-
35.8#015-0097-06
Thermostat Gasket for 015-0097-00
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
35.11#015-0097-09
Water Pump with Gasket for 015-0097-00
Qty Used: 1Regular price $249.99 USDRegular priceUnit price per
-
35.11.5#015-0097-05
Thermostat for 015-0097-00
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-

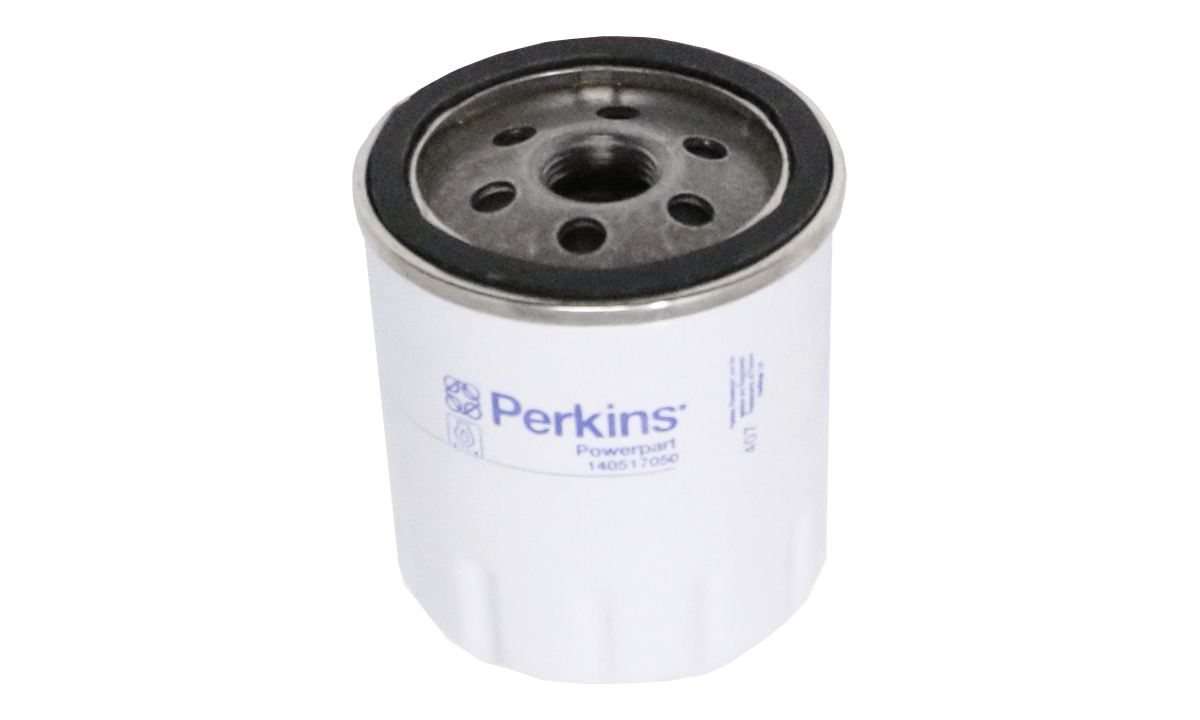

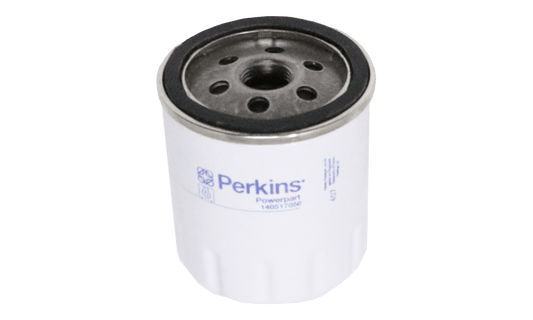

35.14#063-2010-01
Perkins Oil Filter for 015-0096-00/015-0097-00
Qty Used: 1Regular price $27.45 USDRegular priceUnit price per
-
37#015-1019-00
2019 Renegade 1100cc Diesel Muffler
Qty Used: 1Regular price $175.99 USDRegular priceUnit price per
-
38#017-3001-00
2019 Diesel Stub Shaft Double V
Qty Used: 1Regular price $145.96 USDRegular priceUnit price per
-
42#018-0015-00
1/2-13 x 2 1/2 Hex Bolt Gr 5
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-

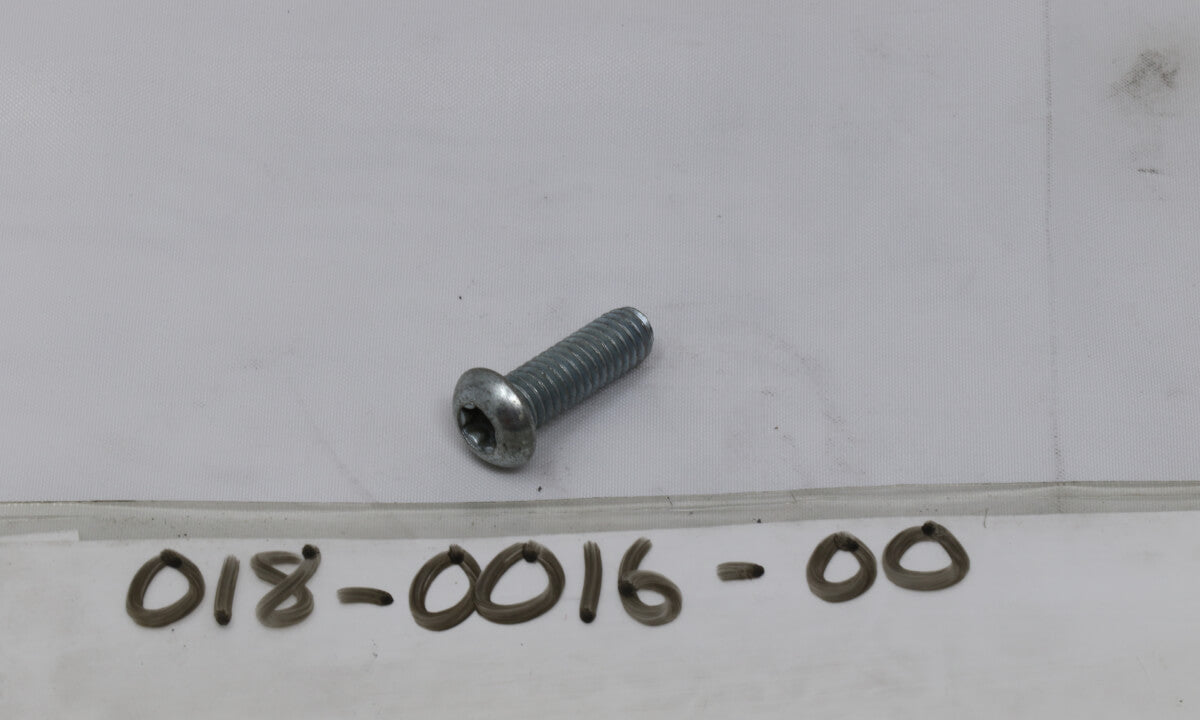

43#018-0016-00
5/16-18 x 1 Button Head
Qty Used: 6Regular price $2.69 USDRegular priceUnit price per
-

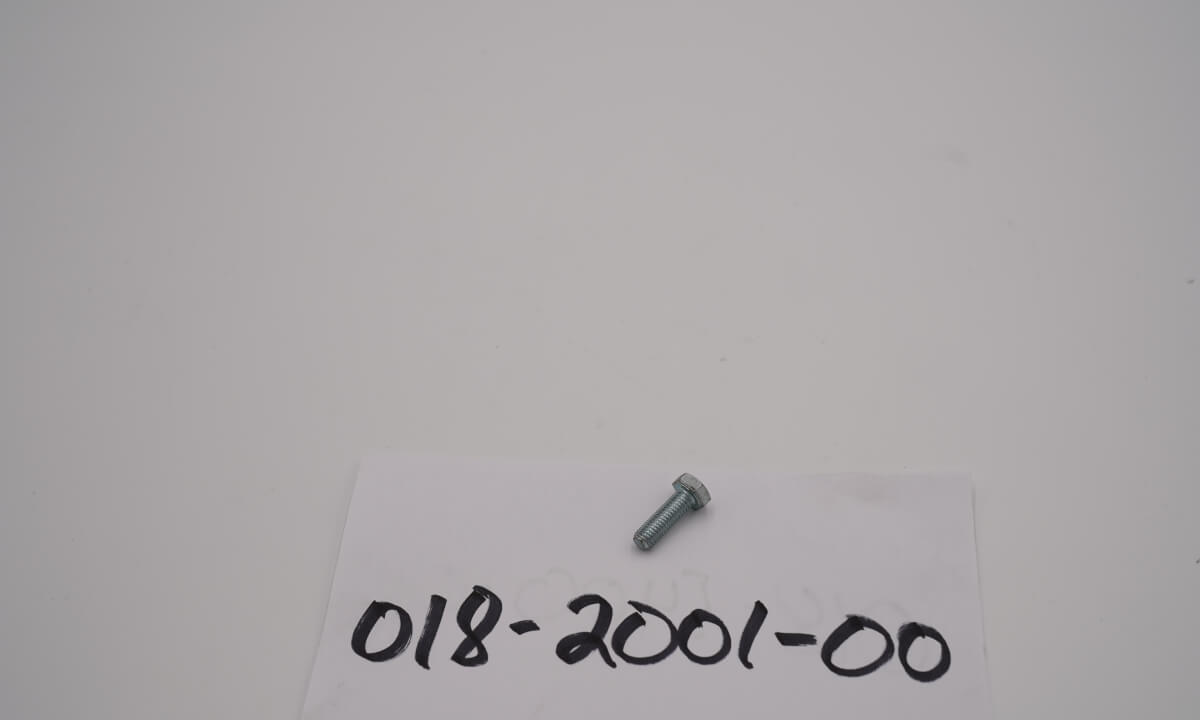

57#018-2001-00
M8 X 1.25 X 25MM Class 10.9
Qty Used: 4Regular price $0.50 USDRegular priceUnit price per
-
74#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-

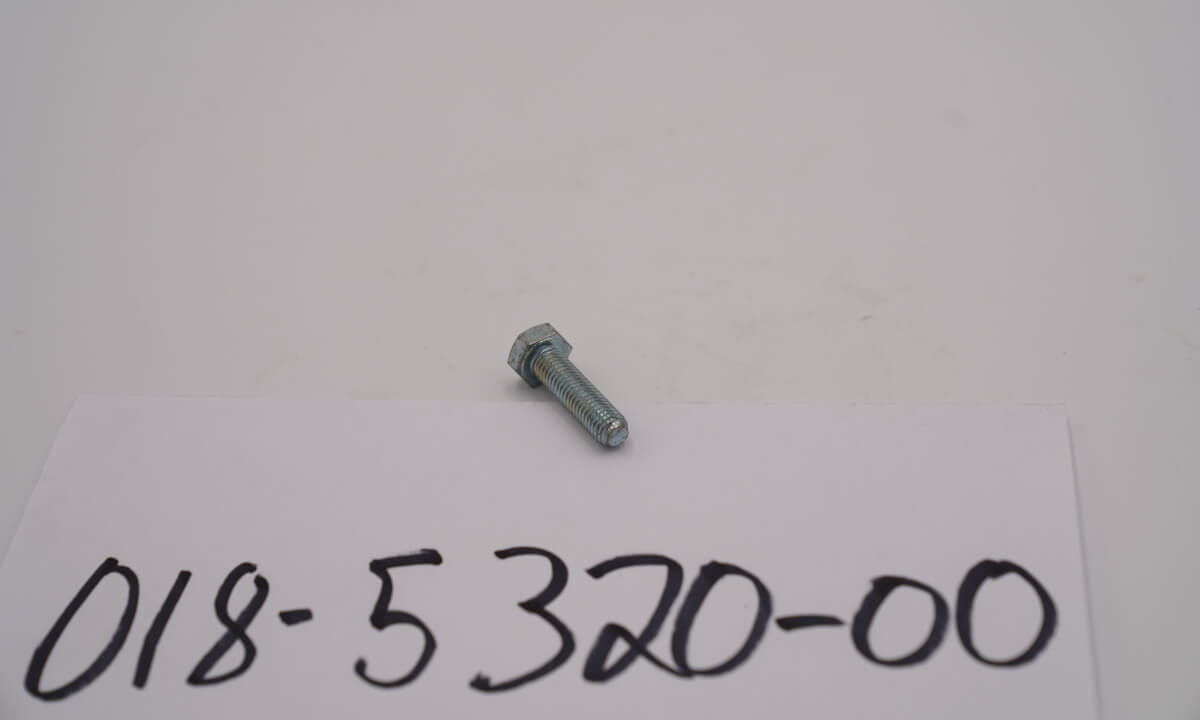

79#018-5320-00
M8 x 1.25 x 30MM Hex Head Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
80#018-5321-00
M8 x 1.25 x 20MM Hex Head Bolt
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-

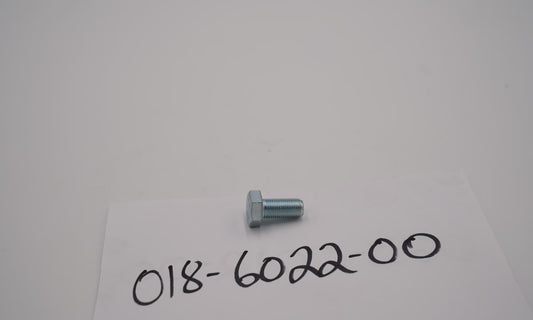

86#018-6022-00
12mm Bolt - Diesel
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
102#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 8Regular price $0.00 USDRegular priceUnit price per
-
113#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
114#019-8051-00
5/16 Lock washer Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-

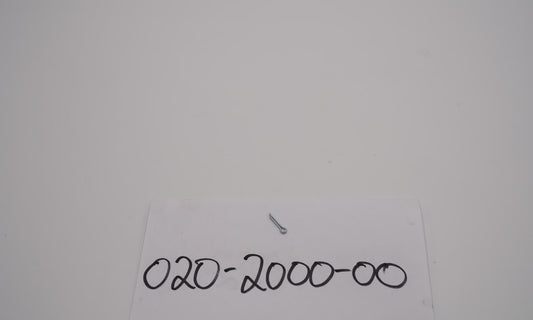

116#020-2000-00
3/32 X 1/2 Cotter Pins Zinc
Qty Used: 1Regular price $0.50 USDRegular priceUnit price per
-

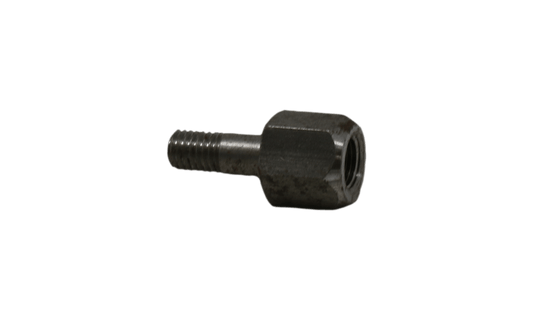

122#024-0070-00
8mm x 1/8 Adaptor
Qty Used: 1Regular price $34.99 USDRegular priceUnit price per
-

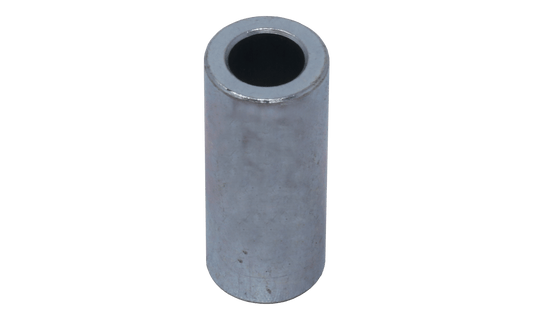

128#025-0027-00
2019 Brake Handle Spacer .625 x 1.5
Qty Used: 2Regular price $6.59 USDRegular priceUnit price per
-

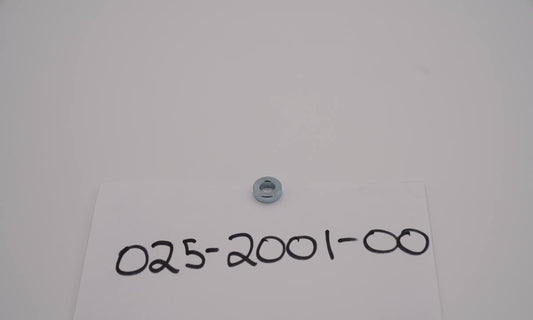

131#025-2001-00
ACS Spacer 3/4x3/8x1/4
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
135#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
165#032-4051-00
Snubbing Washer-032-4050-00
Qty Used: 5Regular price $15.91 USDRegular priceUnit price per
-

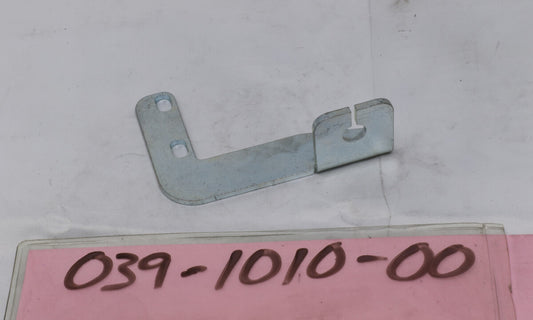

183#039-1010-00
Throttle Bracket--Plated
Qty Used: 1Regular price $4.99 USDRegular priceUnit price per
-
184#039-1015-00
Radiator Hose Clamp Bracket--Plated
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-

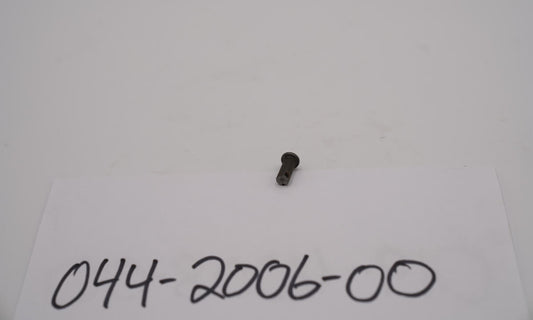

198#044-2006-00
1/4 X 5/8 Clevis Pin
Qty Used: 1Regular price $0.66 USDRegular priceUnit price per
-

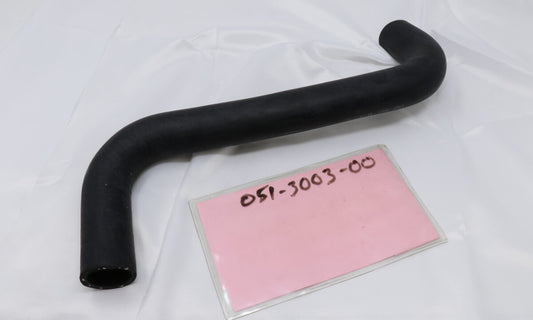

207#051-3003-00
2019 Diesel Radiator Hose Upper Dayco#71796
Qty Used: 1Regular price $46.38 USDRegular priceUnit price per
-
208#051-3004-00
Air Intake Hose
Qty Used: 1Regular price $13.19 USDRegular priceUnit price per
-

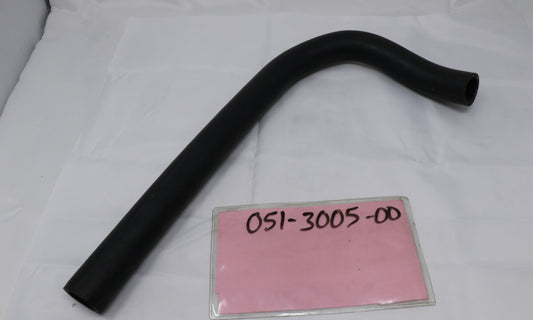

209#051-3005-00
2019 Diesel Radiator Hose Lower Dayco# 70808
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
238#072-2003-00
1 1/8 Hose Clamp
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
239#072-5000-00
Diesel Hydraulic Hose Clamp
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
255#086-0003-00
Alternator to Starter Cable
Qty Used: 1Regular price $7.08 USDRegular priceUnit price per
-

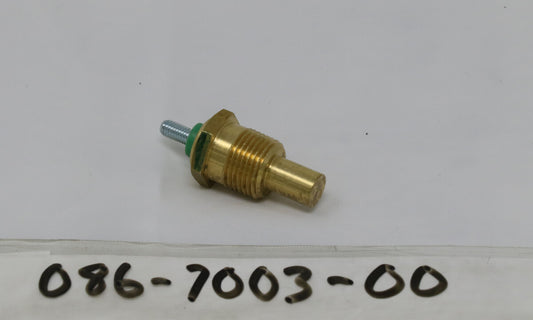

258#086-7003-00
Temperature Sender- 2012 Gauge
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-

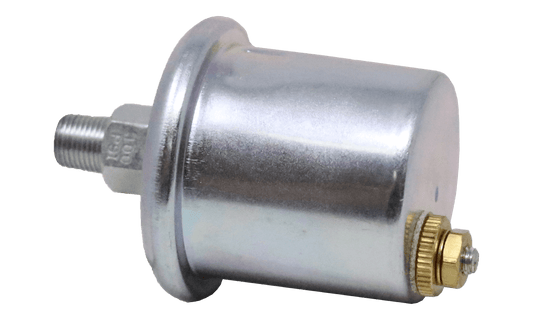

259#086-7004-00
Pressure Sender-2012 Gauge
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
283#091-4064-00
Patent Decal [Rogue/Renegade]
Qty Used: 1Regular price $4.99 USDRegular priceUnit price per![Patent Decal [Rogue/Renegade]](//badboymower-parts.com/cdn/shop/files/no_image_8ee5cef4-c476-40b6-bfd5-79e3ea202790.svg?v=1746052508&width=1445)
-
290#201-8030-00
2019 Diesel Motor Mount--Orange
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
44#018-0023-00
5/16-18 x 2.25" Hex Bolt Gr 5
Qty Used: 2Regular price $0.61 USDRegular priceUnit price per
