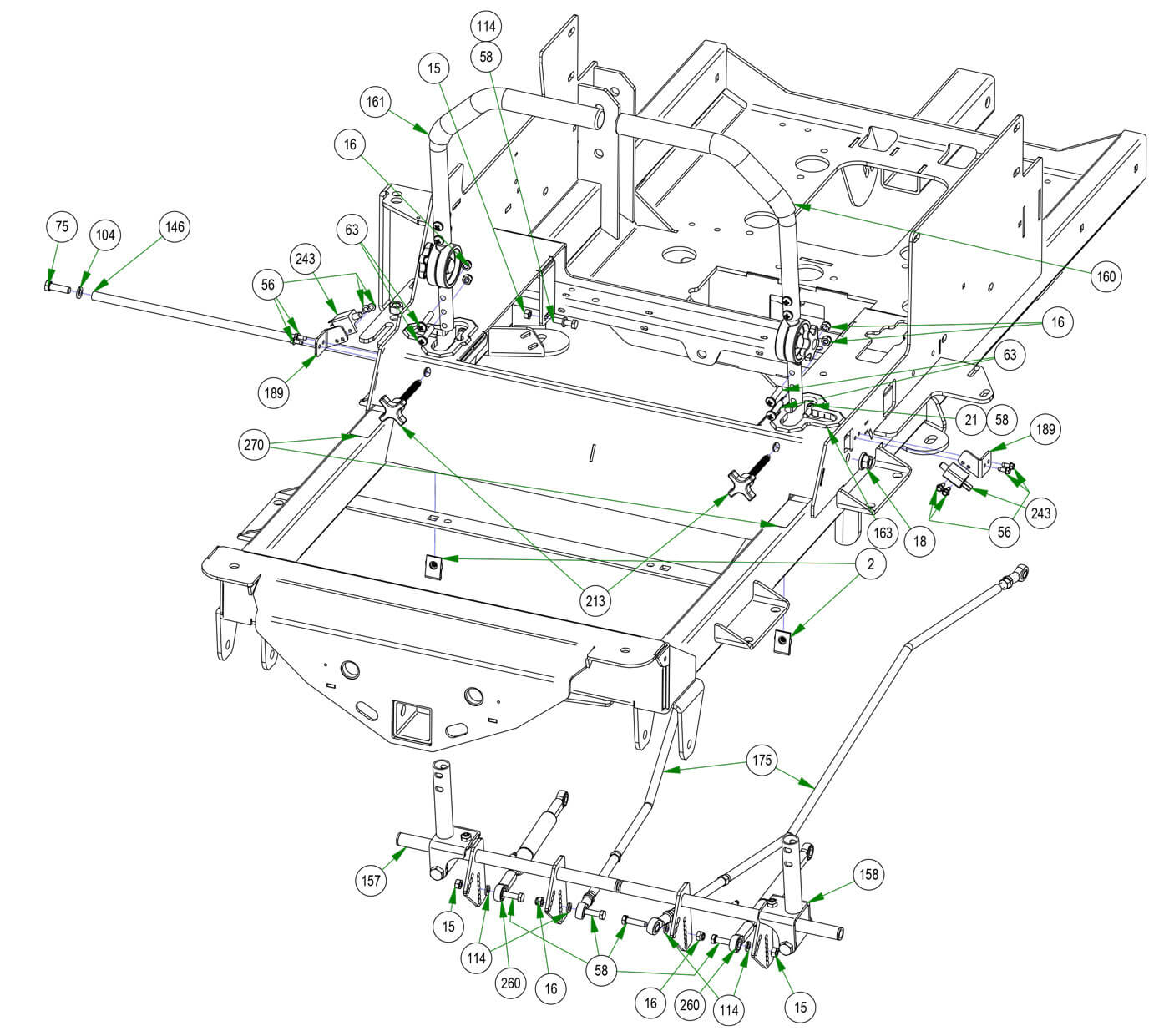

Drive Arms
Parts Index
- 2 Extruded Nut 3/8"-16 3/4" Hole Center With Patch (Qty 2)
- 15 5/16-18 Hex Nuts Zinc (Qty 14)
- 16 5/16-18 Nylon Insert Locknut Z (Qty 6)
- 18 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 21 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 56 12-24 x 1/2 HWH Bolt (Qty 8)
- 58 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 8)
- 63 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 4)
- 75 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 1)
- 104 3/8 Lockwasher Zinc (Qty 1)
- 114 5/16 Lock washer Zinc (Qty 6)
- 146 2019 Steering Actuator Rod (Qty 1)
- 157 2019 R Series RH Arm Rod Assembly (Qty 1)
- 158 2019 R Series LH Arm Rod Assembly (Qty 1)
- 160 Black Steering Arm Kit LH (Qty 1)
- 161 Black Steering Arm Kit RH (Qty 1)
- 163 Drive Arm Bushing (Qty 2)
- 175 2019 Renegade Push Rod Assembly (Qty 2)
- 189 2019 Arm Switch Bracket--Plated (Qty 2)
- 213 Star Knob 3/8- 16 x3" (Qty 2)
- 243 Safety Switch (Qty 2)
- 260 Damper (Heim Ends) (Qty 2)
- 270 R-Series LH/RH Steering Control Decal (Qty 1)
-
2#013-0021-00
Extruded Nut 3/8"-16 3/4" Hole Center With Patch
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
15#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 14Regular price $0.69 USDRegular priceUnit price per
-
16#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
18#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
21#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
56#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 8Regular price $1.99 USDRegular priceUnit price per
-
58#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
63#018-2020-18
5/16-18 x 1 3/8\" Button Head Torx Drive Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
75#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
104#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
114#019-8051-00
5/16 Lock washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
146#028-0051-00
2019 Steering Actuator Rod
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
157#031-0030-19
2019 R Series RH Arm Rod Assembly
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-

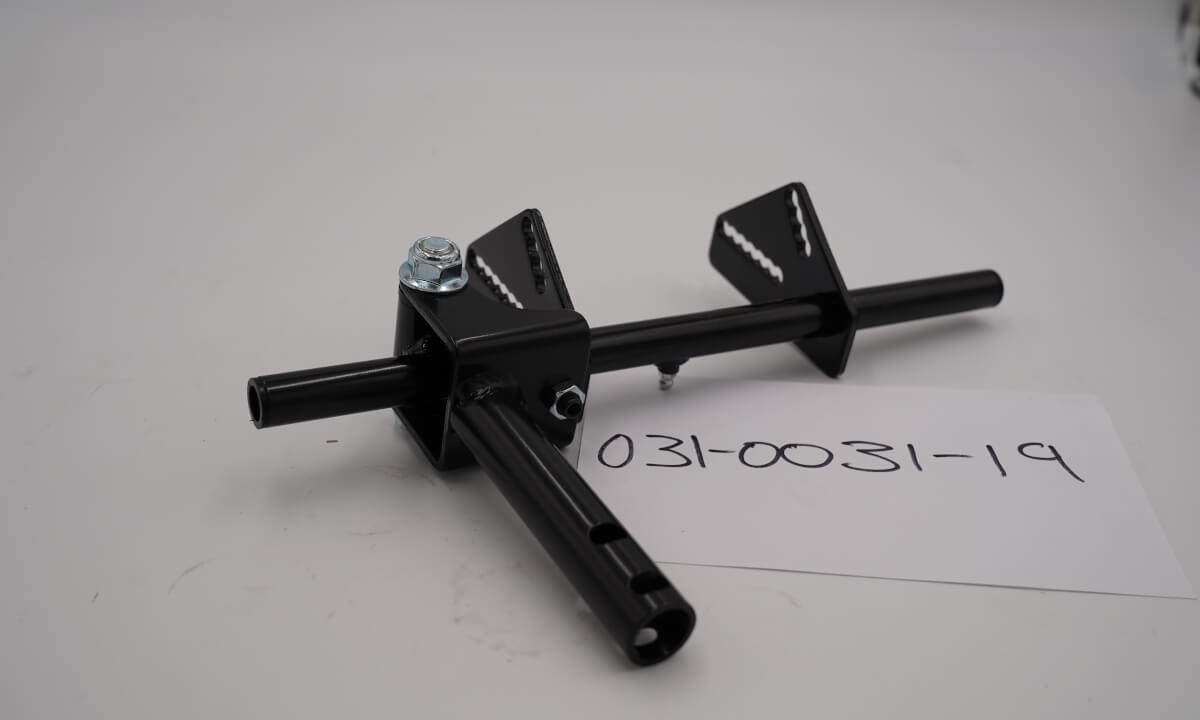

158#031-0031-19
2019 R Series LH Arm Rod Assembly
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
160#031-9005-70
Black Steering Arm Kit LH
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
161#031-9055-70
Black Steering Arm Kit RH
Qty Used: 1Regular price $115.31 USDRegular priceUnit price per
-
163#032-0002-00
Drive Arm Bushing
Qty Used: 2Regular price $14.53 USDRegular priceUnit price per
-
175#035-0005-00
2019 Renegade Push Rod Assembly
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
189#039-2160-00
2019 Arm Switch Bracket--Plated
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
213#057-5800-00
Star Knob 3/8- 16 x3"
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
243#077-8073-00
Safety Switch
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
260#087-0002-00
Damper (Heim Ends)
Qty Used: 2Regular price $58.37 USDRegular priceUnit price per
-
270#091-1114-00
2018 LH/RH Steering Control Decal Roll
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
