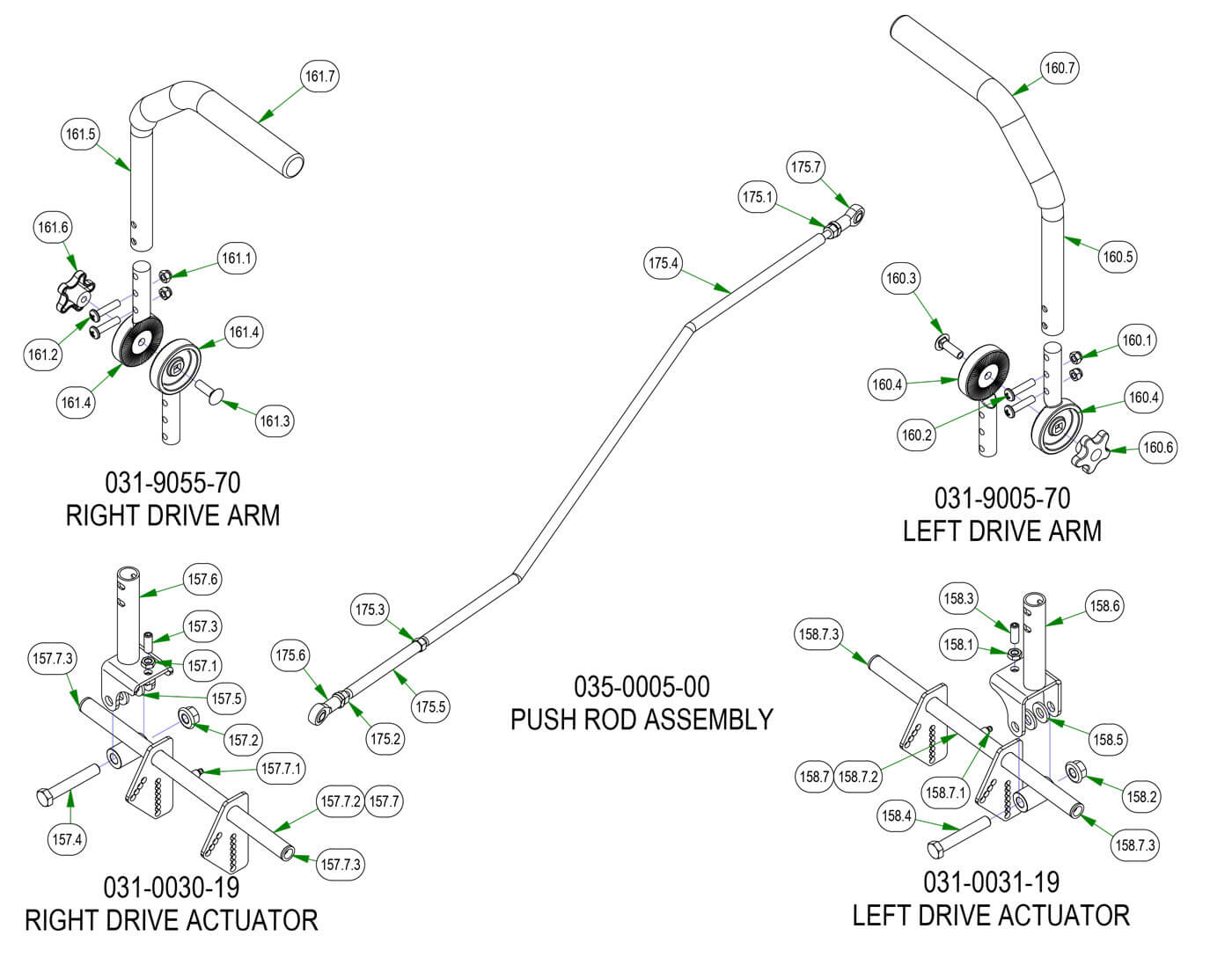

Drive Arm Subassemblies
Parts Index
- 157 2019 R Series RH Arm Rod Assembly (Qty 1)
- 157.1 3/8-16 Half Jam Nut (Qty 1)
- 157.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 157.3 3/8-16 X 1 SOCKET SET SCREW CUP POINT (Qty 1)
- 157.4 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 157.5 .505 ID X 1 OD X .128 THK Washer (Qty 2)
- 157.6 Drive Arm Pivot (Qty 1)
- 157.7 Drive Arm Actuator RH (Qty 1)
- 157.7.1 1/4 Drive-in Grease Fitting (Qty 1)
- 157.7.3 Drive Arm Actuator Bushing (Qty 2)
- 158 2019 R Series LH Arm Rod Assembly (Qty 1)
- 158.1 3/8-16 Half Jam Nut (Qty 1)
- 158.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 158.3 3/8-16 X 1 SOCKET SET SCREW CUP POINT (Qty 1)
- 158.4 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 158.5 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 158.6 Drive Arm Pivot (Qty 1)
- 158.7 Drive Arm Actuator LH (Qty 1)
- 158.7.1 1/4 Drive-in Grease Fitting (Qty 1)
- 158.7.3 Drive Arm Actuator Bushing (Qty 2)
- 160 Black Steering Arm Kit LH (Qty 1)
- 160.1 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 160.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 2)
- 160.3 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 160.4 2019 Upper/Lower Steering Arm Casting (Qty 2)
- 160.5 2019 Steering Arm Tube (Qty 1)
- 160.6 Knob - Adjustable Steering Arm (Qty 1)
- 160.7 Black Steering Grip (Qty 1)
- 161 Black Steering Arm Kit RH (Qty 1)
- 161.1 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 161.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 2)
- 161.3 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 161.4 2019 Upper/Lower Steering Arm Casting (Qty 2)
- 161.5 2019 Steering Arm Tube (Qty 1)
- 161.6 Knob - Adjustable Steering Arm (Qty 1)
- 161.7 Black Steering Grip (Qty 1)
- 175 2019 Renegade Push Rod Assembly (Qty 1)
- 175.1 5/16 RH Nut (Qty 1)
- 175.2 5/16 LH Nut (Qty 1)
- 175.3 3/8-24 Hex Nut Zinc (Qty 1)
- 175.4 2019 Outlaw Gen2 Horizontal Push Rod (Qty 1)
- 175.5 2019 Outlaw Gen2 Horizontal Push Rod Adjuster (Qty 1)
- 175.6 Spherical Rod End - LH Thead - Rebel,Rogue,Renegad (Qty 1)
- 175.7 Spherical Rod End - RH Thread - Rogue and Renegade (Qty 1)
-
157#031-0030-19
2019 R Series RH Arm Rod Assembly
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
157.1158.1#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
157.2158.2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
157.3158.3#018-0063-00
3/8-16 X 1 SOCKET SET SCREW CUP POINT
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
157.4158.4#018-7016-00
1/2-13 X 3 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
157.5158.5#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
157.6158.6#031-0014-00
Drive Arm Pivot
Qty Used: 1Regular price $23.29 USDRegular priceUnit price per
-
157.7#031-0030-00
Drive Arm Actuator RH
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
157.7.1158.7.1#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 1Regular price $0.66 USDRegular priceUnit price per
-
157.7.3158.7.3#031-0032-00
Drive Arm Actuator Bushing
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
158#031-0031-19
2019 R Series LH Arm Rod Assembly
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
158.7#031-0031-00
Drive Arm Actuator LH
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
160#031-9005-70
Black Steering Arm Kit LH
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
160.1161.1#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
160.2161.2#018-2020-18
5/16-18 x 1 3/8\" Button Head Torx Drive Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
160.3161.3#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
160.4161.4#031-9005-00
2019 Upper/Lower Steering Arm Casting
Qty Used: 2Regular price $26.53 USDRegular priceUnit price per
-
160.5161.5#031-9006-00
2019 Steering Arm Tube
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
160.6161.6#045-5000-00
Knob - Adjustable Steering Arm
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
160.7161.7#069-4010-00
Black Steering Grip
Qty Used: 1Regular price $7.38 USDRegular priceUnit price per
-
161#031-9055-70
Black Steering Arm Kit RH
Qty Used: 1Regular price $115.31 USDRegular priceUnit price per
-
175#035-0005-00
2019 Renegade Push Rod Assembly
Qty Used: 1Regular price $43.78 USDRegular priceUnit price per
-
175.1#013-6049-00
5/16 RH Nut
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
175.2#013-6050-00
5/16 LH Nut
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
175.3#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
175.4#035-0005-01
2019 Outlaw Gen2 Horizontal Push Rod
Qty Used: 1Regular price $32.99 USDRegular priceUnit price per
-
175.5#035-0006-00
2019 Outlaw Gen2 Horizontal Push Rod Adjuster
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
175.6#048-3002-00
Spherical Rod End - LH Thead - Rebel,Rogue,Renegad
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
175.7#048-3003-00
Spherical Rod End - RH Thread - Rogue and Renegade
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
