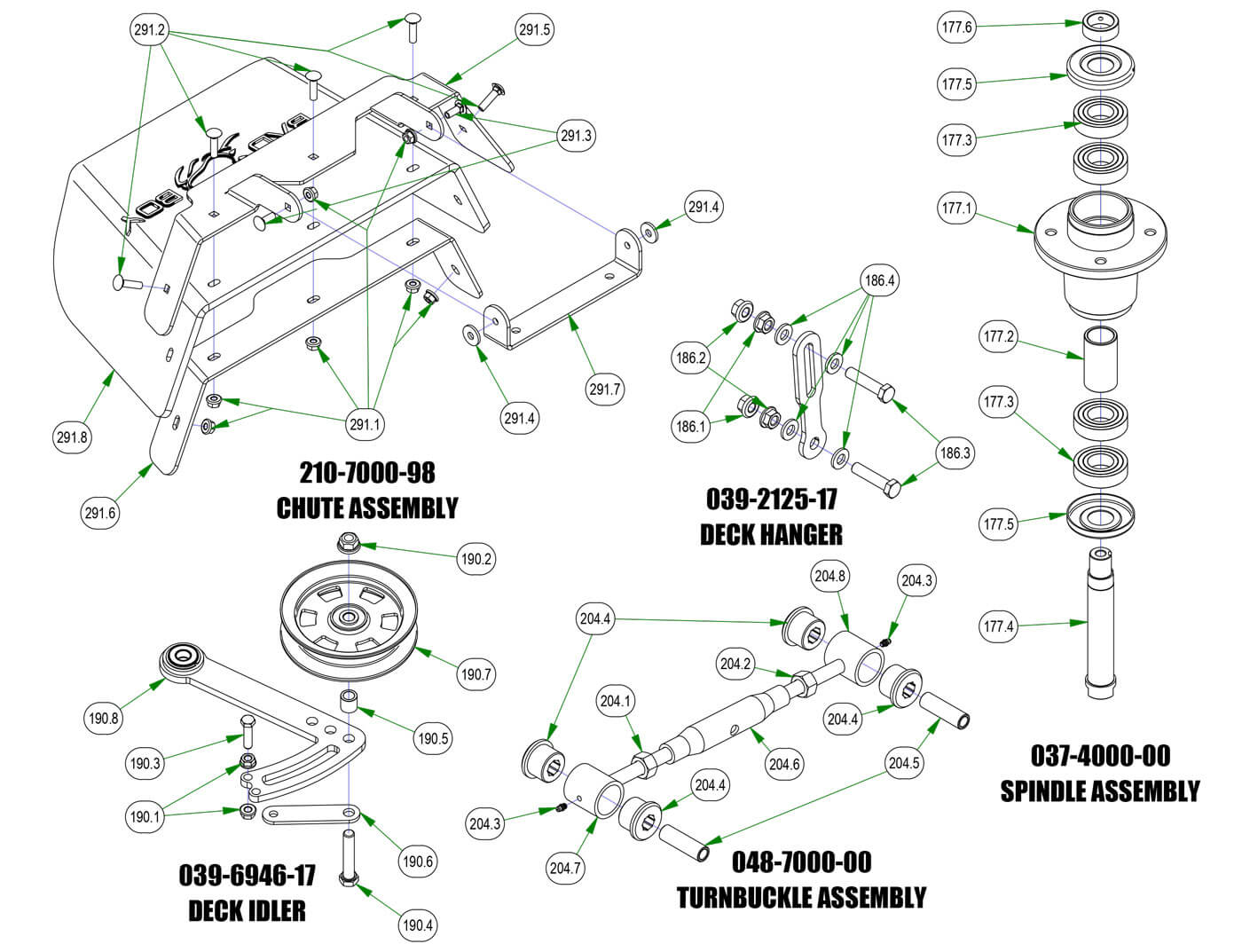

Deck Subassemblies
Parts Index
- 177 Commercial Cast Iron Spindle (Qty 1)
- 177.1 2017 Outlaw/XP/Diesel Cast Iron Spindle Housing (Qty 1)
- 177.2 2015 Spindle Spacer (Qty 1)
- 177.3 OBSOLETE USE 037-6029-00 (Qty 4)
- 177.4 Short Spindle Shaft for Locking Collar- No Grooved (Qty 1)
- 177.5 Dust Cover for 037-8000-00 - (Qty 2)
- 177.6 Collar Spacer - Top of Spindle (Qty 1)
- 186 Outlaw/Extreme/XP Deck Hanger Assy (Qty 1)
- 186.1 1/2-13 Hex Fange Nuts Zinc w/ (Qty 2)
- 186.2 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 186.3 1/2-13 X 2-1/4 GR 5 Hex Bolts (Qty 2)
- 186.4 .505 ID X 1 OD X .128 THK Washer (Qty 4)
- 186.5 OBSOLETE USE 039-2125-17 (Qty 1)
- 190 2019 Renegade Deck Idler (Qty 1)
- 190.1 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 190.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 190.3 3/8 x 1 1/2 Bolt (Qty 1)
- 190.4 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 190.5 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 190.6 Belt Tensioner Retainer Plate--Plated (Qty 1)
- 190.7 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 190.8 Idler Bracket--Plated (Qty 1)
- 204 Toplink (Qty 1)
- 204.1 11/16-12 Hex Nut-2015 Toplink (Qty 1)
- 204.2 11/16-12 Lefthand Hex Nut-Topl (Qty 1)
- 204.3 1/4 Drive-in Grease Fitting (Qty 2)
- 204.4 Bushing-2015 Outlaw Toplink (Qty 4)
- 204.5 Sleeve-2015 Outlaw Toplink (Qty 2)
- 204.6 2015 Outlaw Toplink Body (Qty 1)
- 204.7 2015 Outlaw Toplink RH End (Qty 1)
- 204.8 2015 Outlaw Toplink LH End (Qty 1)
- 291 R-Series, Revolt Chute Assembly (Qty 1)
- 291.1 5/16-18 Nylon Flange Nut (Qty 7)
- 291.2 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 291.3 5/16 x 7/8 Carriage Bolt (Qty 2)
- 291.4 .360 ID Plastic Washer (Qty 2)
- 291.5 Chute Bracket (upper) (Qty 1)
- 291.6 Chute Bracket (lower) (Qty 1)
- 291.7 Chute Hanger (Qty 1)
- 291.8 Discharge Chute (Rubber Component) (Qty 1)
-
177#037-4000-00
Commercial Cast Iron Spindle
Qty Used: 1Regular price $291.91 USDRegular priceUnit price per
-
177.1#037-4000-01
2017 Outlaw/XP/Diesel Cast Iron Spindle Housing
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-
177.2#037-4002-00
2015 Spindle Spacer
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
177.3#037-6023-00
OBSOLETE USE 037-6029-00
Qty Used: 4Regular price $39.79 USDRegular priceUnit price per
-
177.4#037-6026-00
Short Spindle Shaft w/Locking Collar- No Grooved
Qty Used: 1Regular price $78.29 USDRegular priceUnit price per
-
177.5#037-8002-00
Dust Cover for 037-8000-00
Qty Used: 2Regular price $10.99 USDRegular priceUnit price per
-
177.6#037-9050-00
Collar Spacer - Top of Spindle
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
186#039-2125-17
Outlaw/Extreme/XP Deck Hanger Assy
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
186.1#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
186.2190.2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
186.3#018-6037-00
1/2-13 X 2-1/4 GR 5 Hex Bolts
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
186.4#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
186.5#039-2125-00
OBSOLETE USE 039-2125-17
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
190#039-6946-17
2019 Renegade Deck Idler
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
190.1#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
190.3#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
190.4#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
190.5#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
190.6#026-0167-00
Belt Tensioner Retainer Plate--Plated
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
190.7#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
190.8#039-6946-00
Idler Bracket--Plated
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
-
204.1#013-0007-00
11/16-12 Hex Nut-2015 Toplink
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
204.2#013-0008-00
11/16-12 Lefthand Hex Nut-Topl
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
204.3#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 2Regular price $0.66 USDRegular priceUnit price per
-
204.4#032-2000-00
Bushing-2015 Outlaw Toplink
Qty Used: 4Regular price $3.97 USDRegular priceUnit price per
-
204.5#032-2001-00
Sleeve-2015 Outlaw Toplink
Qty Used: 2Regular price $3.97 USDRegular priceUnit price per
-
204.6#048-7020-00
2015 Outlaw Toplink Body
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
204.7#048-7021-00
2015 Outlaw Toplink RH End
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
204.8#048-7022-00
2015 Outlaw Toplink LH End
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
291#210-7000-98
R-Series, Revolt Chute Assembly
Qty Used: 1Regular price $159.22 USDRegular priceUnit price per
-
291.1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
291.2#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
291.3#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
291.4#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
291.5#039-4893-00
Chute Bracket (upper)
Qty Used: 1Regular price $43.78 USDRegular priceUnit price per
-
291.6#039-4894-00
Chute Bracket (lower)
Qty Used: 1Regular price $40.86 USDRegular priceUnit price per
-
291.7#206-6018-00
Chute Hanger
Qty Used: 1Regular price $8.79 USDRegular priceUnit price per
-
291.8#210-6025-00
Discharge Chute (Rubber Component)
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
