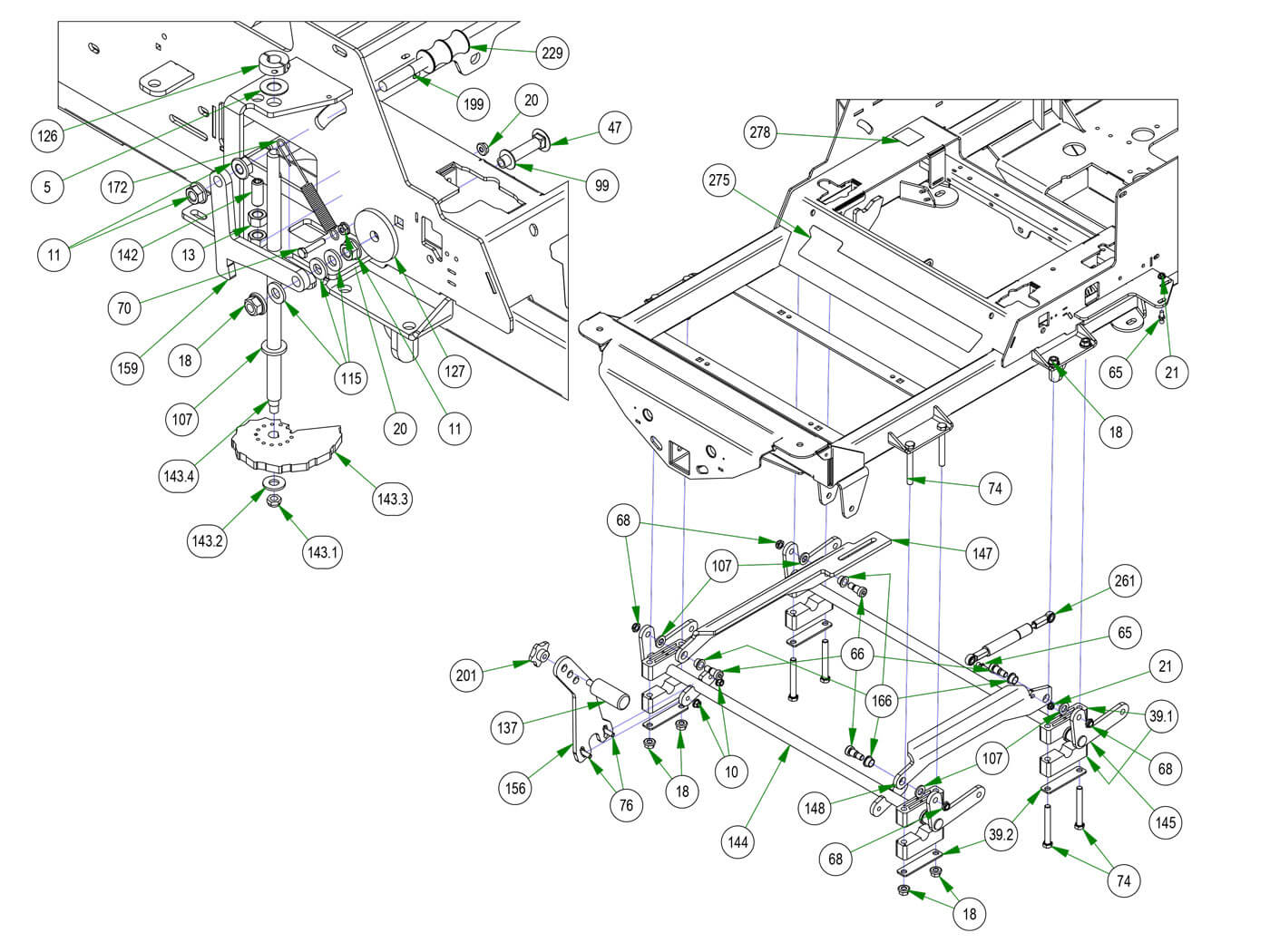

Deck Height Actuators
Parts Index
- 5 .630 ID x 1.130 OD x .062 THK F/W Nylon Black (Qty 1)
- 10 3/8 Nylock Flange Nut (Qty 2)
- 11 1/2-13 Hex Fange Nuts Zinc w/ (Qty 3)
- 13 1/2-13 Hex Nuts Zinc (Qty 1)
- 18 1/2-13 Nylon Insert Flange Nut (Qty 9)
- 20 1/4-20 Hex Flange Nuts Zinc w/ (Qty 12)
- 21 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 39 2015 Outlaw Pillow Block (Qty 4)
- 39.1 Two Piece Pillow Block-Male (Qty 2)
- 39.2 Two Piece Pillow Block-Plate (Qty 1)
- 47 2 1/2 X 1/2 Carriage Bolt (Qty 1)
- 65 10mm Ball Stud (Long Thread) (Qty 2)
- 66 5/8 x 5/8 Shoulder Bolt (Qty 4)
- 68 1/2-13 Nylon Insert Jam Locknut (Qty 4)
- 70 1/4-20 X 1-1/4 GR 5 Hex Bolt (Qty 1)
- 74 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 8)
- 76 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 99 .517 Square Hole Round Washer (Qty 1)
- 107 .630 ID X 1.122 OD X .142 THK (Qty 5)
- 115 .505 ID X 1 OD X .128 THK Washer (Qty 13)
- 126 Split Collar (Qty 1)
- 127 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 137 Knurled Foot Pedal (Qty 1)
- 142 Deck Height Cam Plunger (Qty 1)
- 143 R-Series Deck Height Dial Rod Assy (Qty 1)
- 143.1 3/8-24 Nylon Insert Jam Locknu (Qty 1)
- 143.2 3/8 USS Flat Washer Zinc (Qty 1)
- 143.3 Deck Height Cam Plate (Qty 1)
- 143.4 2019 "R" Series Dial Rod (Qty 1)
- 144 Actuator Bar (Front) (Qty 1)
- 145 Actuator Bar (Rear) (Qty 1)
- 147 2019 Actuator Linkage-Right-Black (Qty 1)
- 156 Foot Lift Upright Lever--Orange (Qty 1)
- 159 Deck Travel Lock Lever--Plated (Qty 1)
- 166 Bronze Bushing - SF-2024-8 (Qty 4)
- 172 Brake Spring (Qty 1)
- 199 Seat Bracket Pin - 2008 Models (Qty 1)
- 201 Star Knob 1/2-13 (Qty 1)
- 229 Grip (Travel Lock) (Qty 1)
- 261 Dampener (250lbs) (Qty 1)
- 275 2019 Renegade Cooler Cover Decal (Qty 1)
- 278 2019 Deck Release Decal (Qty 1)
-

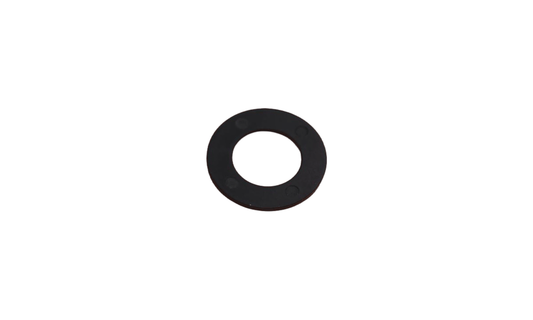

5#013-0080-00
.630 ID x 1.130 OD x .062 THK F/W Nylon Black
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
10#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
11#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
13#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
18#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 9Regular price $1.39 USDRegular priceUnit price per
-
20#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 12Regular price $0.69 USDRegular priceUnit price per
-
21#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
39#017-9075-00
2015 Outlaw Pillow Block
Qty Used: 4Regular price $21.88 USDRegular priceUnit price per
-
39.1#017-9000-00
Two Piece Pillow Block-Male
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
39.2#017-9025-00
Two Piece Pillow Block-Plate
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-

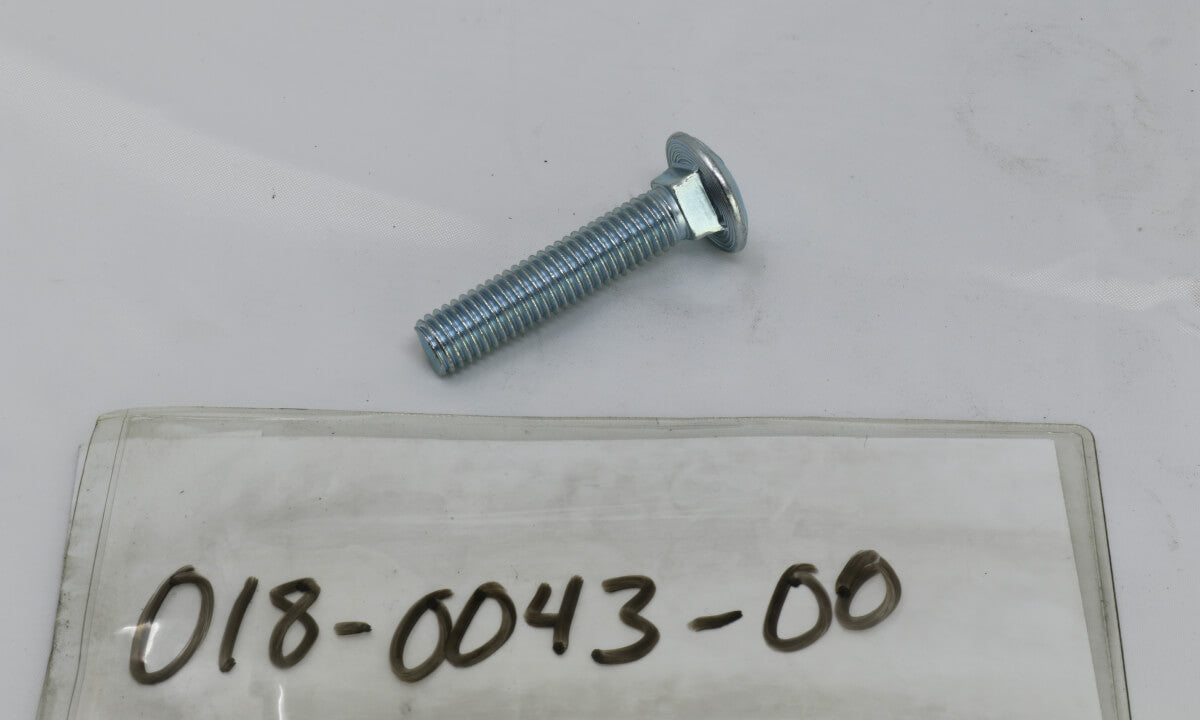

47#018-0043-00
2 1/2 X 1/2 Carriage Bolt
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-

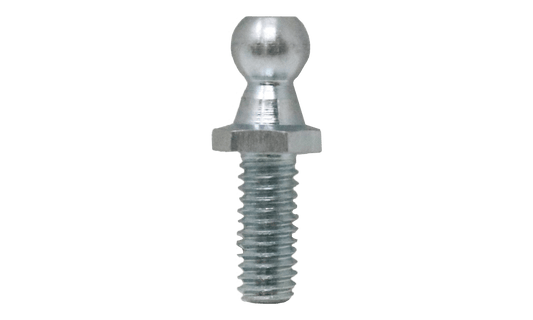

65#018-2055-00
10mm Ball Stud (Long Thread)
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
66#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 4Regular price $14.59 USDRegular priceUnit price per
-
68#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 4Regular price $1.59 USDRegular priceUnit price per
-

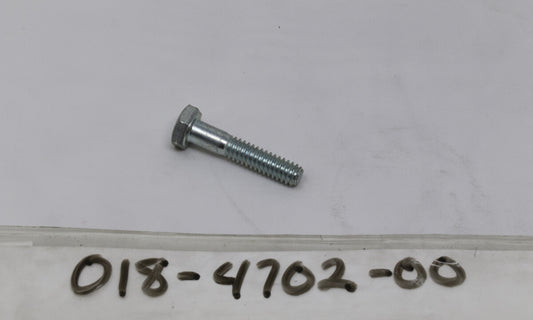

70#018-4702-00
1/4-20 X 1-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
74#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 8Regular price $3.99 USDRegular priceUnit price per
-
76#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
99#019-0007-00
.517 Square Hole Round Washer
Qty Used: 1Regular price $1.09 USDRegular priceUnit price per
-
107#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
115#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 13Regular price $0.69 USDRegular priceUnit price per
-

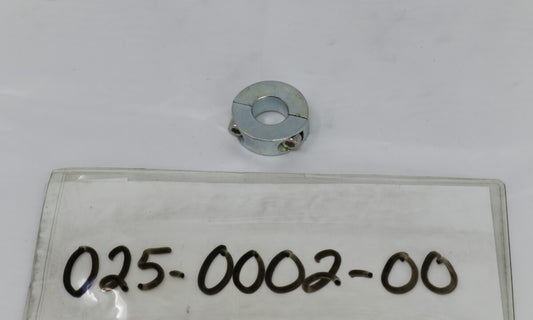

126#025-0002-00
Split Collar
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-

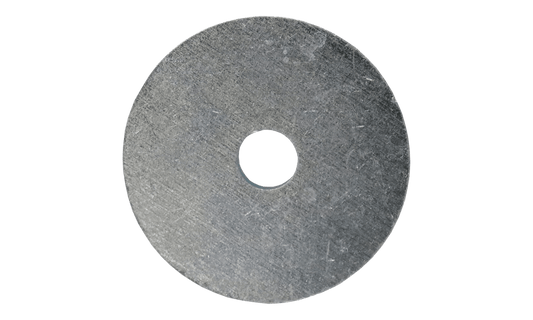

127#025-0025-00
ZT/CZT Deck Round Spacer Idler--Plated
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-

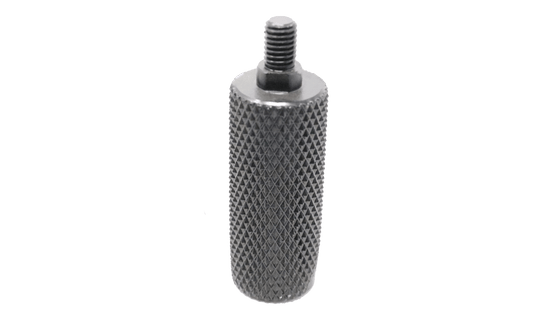

137#026-0026-00
Knurled Foot Pedal
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-

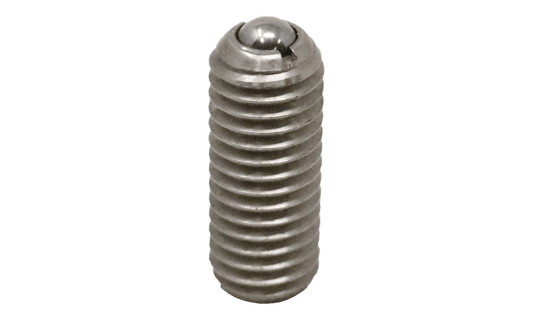

142#028-0008-00
Deck Height Cam Plunger
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
143#028-0015-19
2019 Outlaw Gen2 Deck Height Dial Rod Assy
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
143.1#018-4011-00
3/8-24 Nylon Insert Jam Locknu
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
143.2#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
143.3#026-1101-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
143.4#028-0015-00
2019 "R" Series Dial Rod
Qty Used: 1Regular price $16.49 USDRegular priceUnit price per
-
144#028-0026-00
Actuator Bar (Front)
Qty Used: 1Regular price $119.41 USDRegular priceUnit price per
-
145#028-0027-00
Actuator Bar (Rear)
Qty Used: 1Regular price $76.99 USDRegular priceUnit price per
-
147#028-6075-22
2019 Actuator Linkage-Right-Black
Qty Used: 1Regular price $40.99 USDRegular priceUnit price per
-

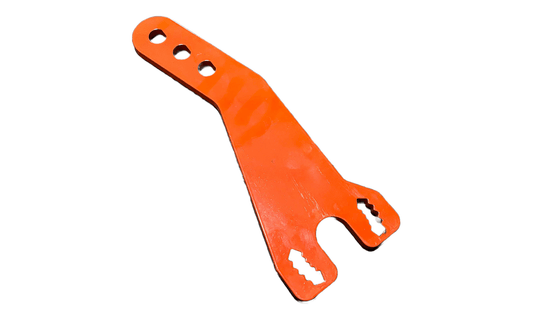

156#031-0003-00
Foot Lift Upright Lever--Orange
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-

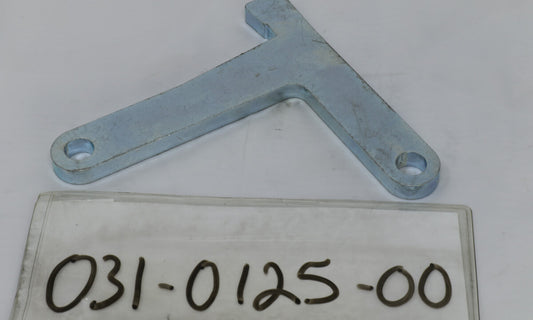

159#031-0125-00
Deck Travel Lock Lever--Plated
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
166#032-5052-00
Bronze Bushing - SF-2024-8
Qty Used: 4Regular price $4.37 USDRegular priceUnit price per
-
172#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-

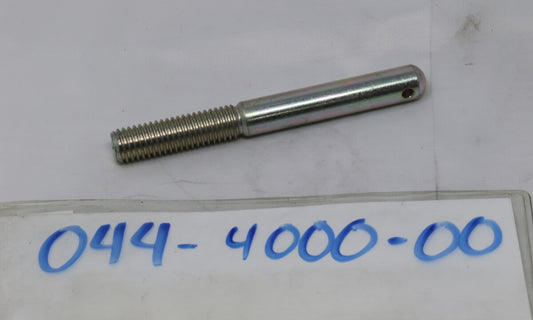

199#044-4000-00
Seat Bracket Pin - 2008 Models
Qty Used: 1Regular price $6.59 USDRegular priceUnit price per
-
201#045-6044-00
Star Knob 1/2-13
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-

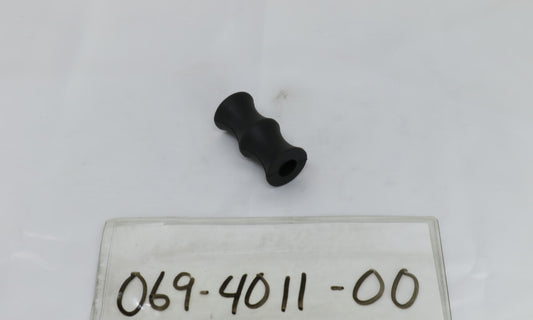

229#069-4011-00
Grip (Travel Lock)
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-

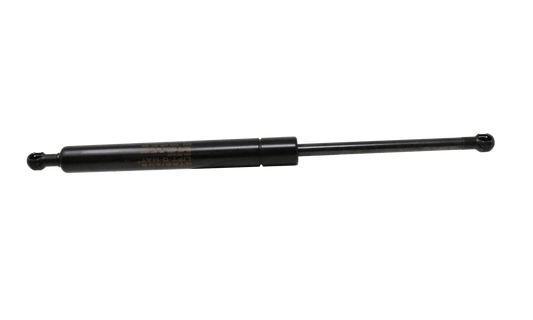

261#087-6100-00
Dampener (250lbs)
Qty Used: 1Regular price $72.91 USDRegular priceUnit price per
-

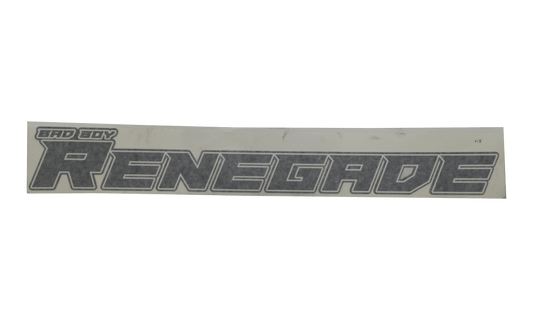

275#091-4015-00
2019 Renegade Cooler Cover Decal
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
278#091-4037-00
2019 Deck Release Decal
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
