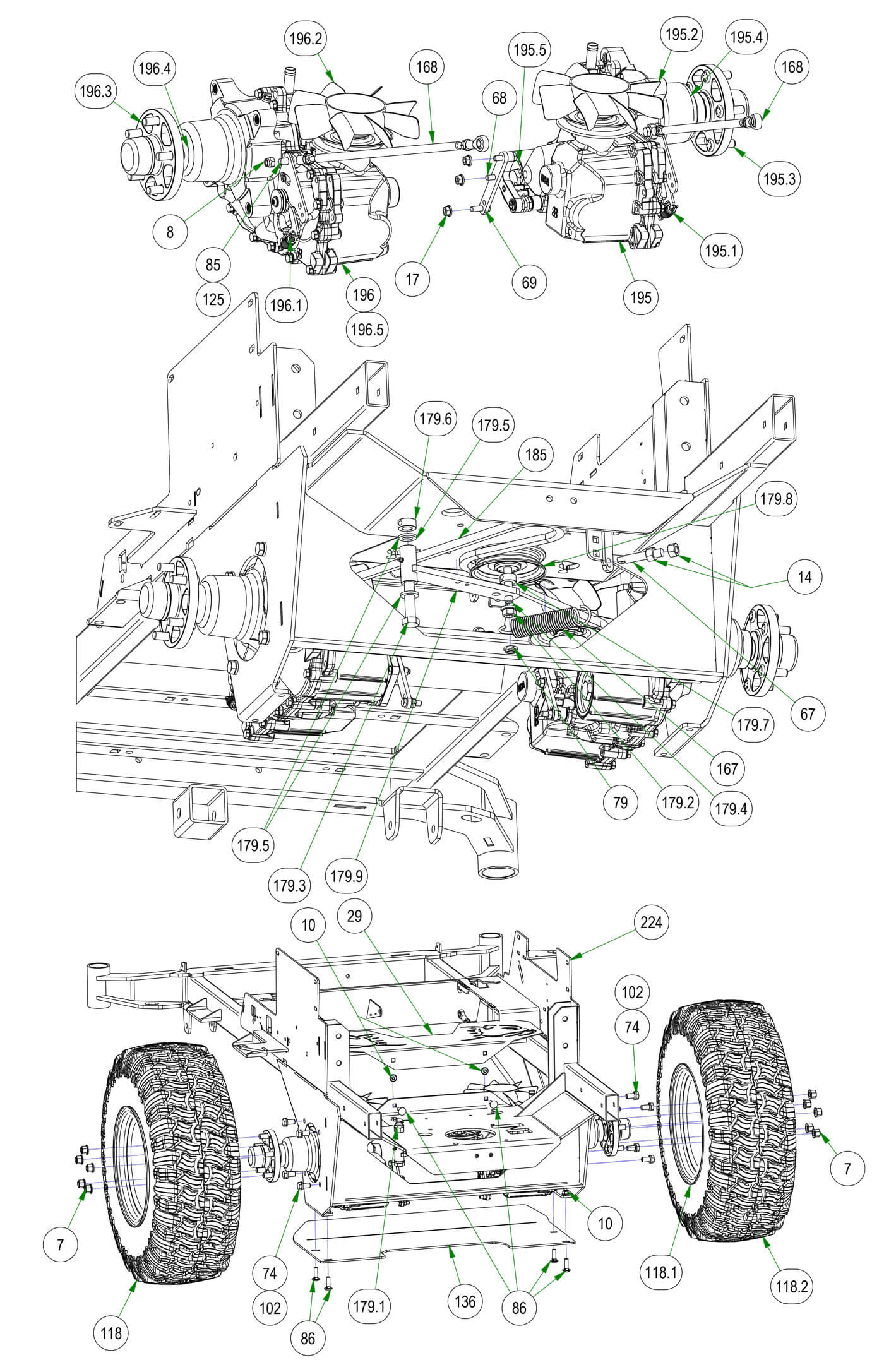

Transaxles Assembly
Parts Index
- 7 Acorn Lug Nut (Qty 10)
- 8 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 10 3/8 Nylock Flange Nut (Qty 6)
- 14 1/2-13 Hex Nuts Zinc (Qty 2)
- 17 5/16-18 Nylon Flange Nut (Qty 6)
- 29 2019 Rigid Fan Guard--Orange (Qty 1)
- 67 All Thread (Qty 1)
- 68 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 4)
- 69 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 74 1/2 x 1 Bolt (Qty 8)
- 79 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 85 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 86 3/8-16 X 1-1/4 Carriage Bolt (Qty 6)
- 102 1/2 Lockwasher Zinc (Qty 8)
- 118 Rear Wheel Assy-24x12-12 Reaper Turf (Qty 2)
- 118.1 2015 Outlaw Black Wheel12x8.5"/2019 022-4091-00 (Qty 1)
- 118.2 2018 24x12-12 Reaper Turf Tire-Fits 022-4100-00 (Qty 1)
- 125 Drive Arm Transaxle Spacer (Qty 2)
- 136 Rigid Skid Plate--Orange (Qty 1)
- 167 2019 Deck Spring - Big Diameter (Qty 1)
- 168 2019 Rebel Push Rod Assembly (Qty 2)
- 168.1 5/16 LH Nut (Qty 1)
- 168.2 3/8-24 Hex Nut Zinc (Qty 1)
- 168.4 Spherical Rod End (Qty 1)
- 168.5 Spherical Rod End - LH Thead - Rebel,Rogue,Renegad (Qty 1)
- 176 2015 Outlaw Brake Adapter Brkt--Plated (Qty 2)
- 179 2019 Rebel Pump Idler (Qty 1)
- 179.1 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 179.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 179.3 5/8-11 x 4-1/2 GR 5 Hex Bolt (Qty 1)
- 179.4 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 179.5 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 179.6 5/8 Set Collar W/One Set Screw (Qty 1)
- 179.7 1/2 Set Collar w/set collar (Qty 1)
- 179.8 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 179.9 Idler Bracket (Qty 1)
- 185 2019 & up Rebel Pump Belt (Qty 1)
- 195 4400 Transaxle-Left- Rebel (Qty 1)
- 195.1 Gold Transaxle Spring (Qty 1)
- 195.2 Fan/Pulley Kit for 4400 Outlaw (Qty 1)
- 195.3 Hub for 4400 Transaxle (Qty 1)
- 195.4 Seal Kit for 4400 Series Outlaw Transaxle (Qty 1)
- 195.5 Hydro Filter for 4400 Transaxl (Qty 1)
- 196 4400 TransaxleRight- Rebel (Qty 1)
- 196.1 Gold Transaxle Spring (Qty 1)
- 196.2 Fan/Pulley Kit for 4400 Outlaw (Qty 1)
- 196.3 Hub for 4400 Transaxle (Qty 1)
- 196.4 Seal Kit for 4400 Series Outlaw Transaxle (Qty 1)
- 196.5 Hydro Filter for 4400 Transaxl (Qty 1)
- 224 2023 Rebel Frame--Orange (Qty 1)
-
7#013-3000-00
Acorn Lug Nut
Qty Used: 10Regular price $2.99 USDRegular priceUnit price per
-
8#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
10#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 6Regular price $1.49 USDRegular priceUnit price per
-
14#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
17#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
29#014-5070-00
2019 Rigid Fan Guard--Orange
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
67#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
68#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
69#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
74#018-2030-00
1/2 x 1 Bolt
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
79#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
85#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
86#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 6Regular price $0.99 USDRegular priceUnit price per
-
102#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 8Regular price $0.00 USDRegular priceUnit price per
-
118#022-4100-00
2018 Outlaw Assy-24x12-12 Reaper Turf
Qty Used: 2Regular price $299.99 USDRegular priceUnit price per
-
118.1#022-4070-00
2015 Outlaw Black Wheel12x8.5"/2019 022-4091-00
Qty Used: 1Regular price $131.99 USDRegular priceUnit price per
-
118.2#022-4095-00
2018 24x12-12 Reaper Turf Tire-Fits 022-4100-00
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
125#025-0036-00
Drive Arm Transaxle Spacer
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
136#026-2240-00
Rigid Skid Plate--Orange
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
167#034-9050-00
2019 Deck Spring - Big Diameter
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
168#035-0003-00
2019 Rebel Push Rod Assembly
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
168.1#013-6050-00
5/16 LH Nut
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
168.2#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
168.4#048-3000-00
Spherical Rod End-Outlaw Only
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
168.5#048-3002-00
Spherical Rod End - LH Thead - Rebel,Rogue,Renegad
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
176#039-2135-00
2015 Outlaw Brake Adapter Brkt--Plated
Qty Used: 2Regular price $6.99 USDRegular priceUnit price per
-
179#039-6945-03
2019 Rebel Pump Idler
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
179.1#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
179.2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
179.3#018-5309-00
5/8-11 x 4-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
179.4#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
179.5#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
179.6#025-7020-00
5/8 Set Collar W/One Set Screw
Qty Used: 1Regular price $3.97 USDRegular priceUnit price per
-
179.7#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
179.8#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
179.9#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
185#041-8050-00
2019 & up Rebel Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
195#050-1000-00
4400 Transaxle-Left-Base Outlaw/2019 Rebel
Qty Used: 1Regular price $909.99 USDRegular priceUnit price per
-
195.1196.1#034-9080-00
Gold Transaxle Spring
Qty Used: 1Regular price $13.92 USDRegular priceUnit price per
-
195.2196.2#050-1025-00
Fan/Pulley Kit for 4400 Outlaw
Qty Used: 1Regular price $109.46 USDRegular priceUnit price per
-
195.3196.3#050-2082-00
Hub for 4400 Transaxle
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
195.4196.4#050-8003-00
Seal Kit for 4400 Series Outlaw Transaxle
Qty Used: 1Regular price $99.51 USDRegular priceUnit price per
-
195.5196.5#063-1070-00
Hydro Filter for 4400 Transaxl
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
196#050-1050-00
4400 TransaxleRight-Base Outlaw/2019 Rebel
Qty Used: 1Regular price $909.99 USDRegular priceUnit price per
-
224#070-2304-00
2023 Rebel Frame--Orange
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
