Kawasaki EVO

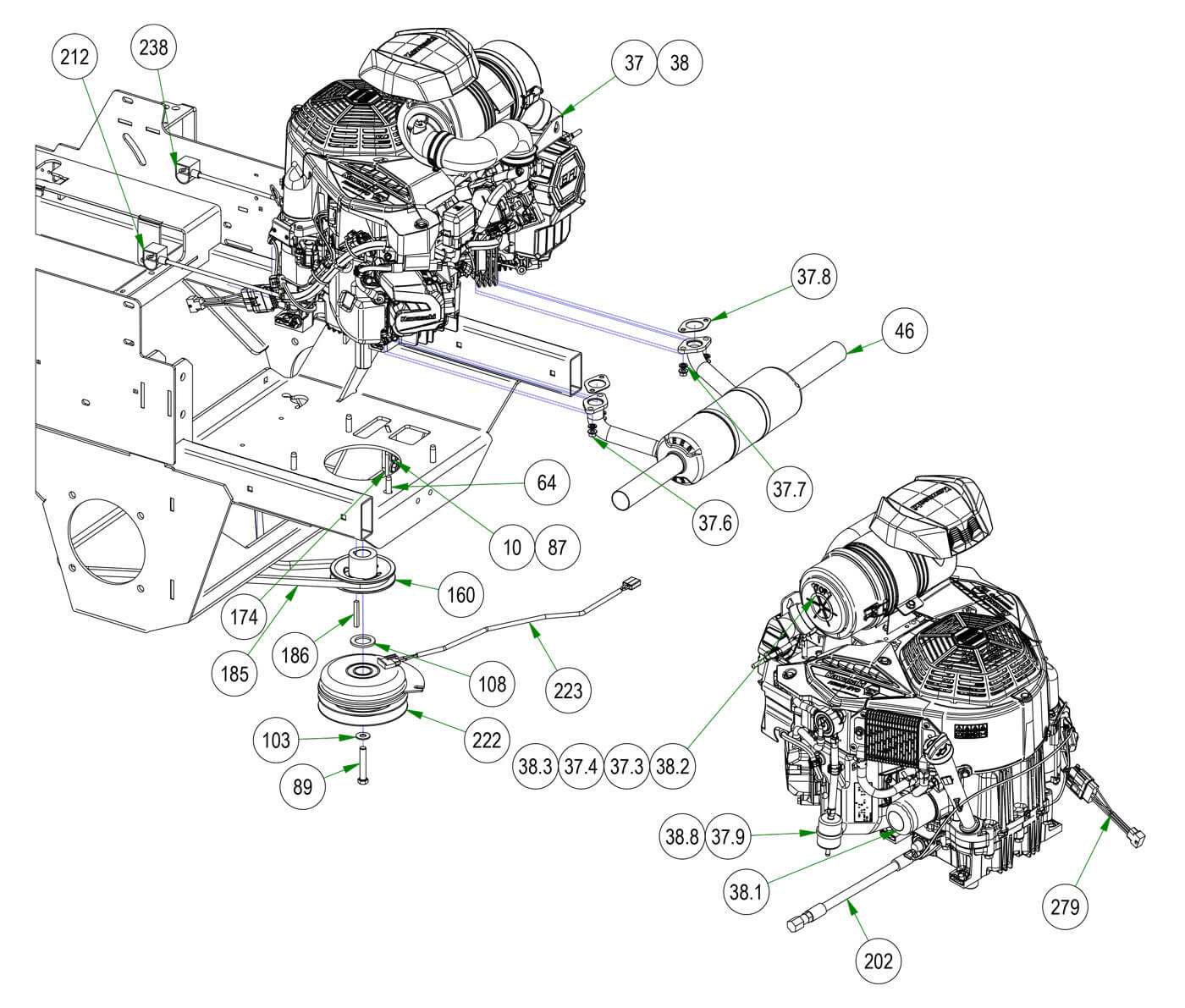

Parts Index
- 10 3/8 Nylock Flange Nut (Qty 2)
- 37 FX781V-EVO (Qty 1)
- 37.2 Kawasaki Oil Filter (Qty 1)
- 37.3 Canister Air Filter - Inner (Qty 1)
- 37.4 Canister Air Fil Outer2010&Old (Qty 1)
- 37.5 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 37.6 Exhaust Nut for 2018 Kawasaki Walk Behind (Qty 4)
- 37.7 Exhaust Washer Spring / Muffler Mount Lock Washer (Qty 4)
- 37.8 Muffler Gasket for 015-0781-00 / 015-0820-00 (Qty 2)
- 37.9 Universal Inline Fuel Filter (Qty 1)
- 38 FX820V-EVO (Qty 1)
- 38.2 Canister Air Filter - Inner (Qty 1)
- 38.3 Canister Air Fil Outer2010&Old (Qty 1)
- 38.4 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 38.5 Exhaust Nut for 2018 Kawasaki Walk Behind (Qty 4)
- 38.6 Exhaust Washer Spring / Muffler Mount Lock Washer (Qty 4)
- 38.7 Muffler Gasket for 015-0781-00 / 015-0820-00 (Qty 2)
- 38.8 Universal Inline Fuel Filter (Qty 1)
- 46 Kawasaki FXEVO Rebel Muffler (Qty 1)
- 64 3/8-16 x 1-1/2 IND HWH Unslot Tri-Lob TRS (Qty 4)
- 87 3/8 x 1 Carriage Bolt (Qty 2)
- 89 7/16-20x2.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 103 3/8 USS Flat Washer Zinc (Qty 1)
- 108 1.140x1.750x .132 Flat Washer (Qty 1)
- 160 4 3/4 Motor Pulley (Qty 1)
- 174 Rebel Clutch Stop Tab (Qty 1)
- 185 2019 & up Rebel Pump Belt (Qty 1)
- 186 1/4 X 2 Square Key Stock (Qty 1)
- 202 12" Kawasaki Oil Drain (Qty 1)
- 212 14" Red Battery Cable (Qty 1)
- 222 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 223 Clutch Pigtail (Qty 1)
- 224 2023 Rebel Frame--Orange (Qty 1)
- 238 Rebel, Rogue Ground Wire (Qty 1)
- 279 Harness Adapter for Kawasaki EFI (Qty 1)
-
10#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
37#015-0781-00
FX781V-EVO
Qty Used: 1Regular price $5,999.99 USDRegular priceUnit price per
-
37.2#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
37.338.2#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
37.438.3#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
37.538.4#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
37.638.5#015-0543-06
Exhaust Nut for 2018 Kawasaki Walk Behind
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
37.738.6#015-0543-05
Exhaust Washer Spring / Muffler Mount Lock Washer
Qty Used: 4Regular price $0.99 USDRegular priceUnit price per
-
37.838.7#015-0781-01
Muffler Gasket for 015-0781-00 / 015-0820-00
Qty Used: 2Regular price $11.99 USDRegular priceUnit price per
-
37.938.8#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
38#015-0820-00
FX820V-EVO
Qty Used: 1Regular price $6,299.99 USDRegular priceUnit price per
-
46#015-1030-00
Kawasaki FXEVO Rebel Muffler
Qty Used: 1Regular price $104.99 USDRegular priceUnit price per
-
64#018-0082-00
3/8-16 x 1-1/2 IND HWH Unslot Tri-Lob TRS
Qty Used: 4Regular price $1.59 USDRegular priceUnit price per
-
87#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
89#018-5300-21
7/16-20x2.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
103#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
108#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
160#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
174#039-0178-00
Rebel Clutch Stop Tab
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
185#041-8050-00
2019 & up Rebel Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
186#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
202#051-5407-00
12" Kawasaki Oil Drain
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
212#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
-
223#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
224#070-2304-00
2023 Rebel Frame--Orange
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
-
238#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
279#086-9016-00
Harness Adapter for Kawasaki EFI
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
