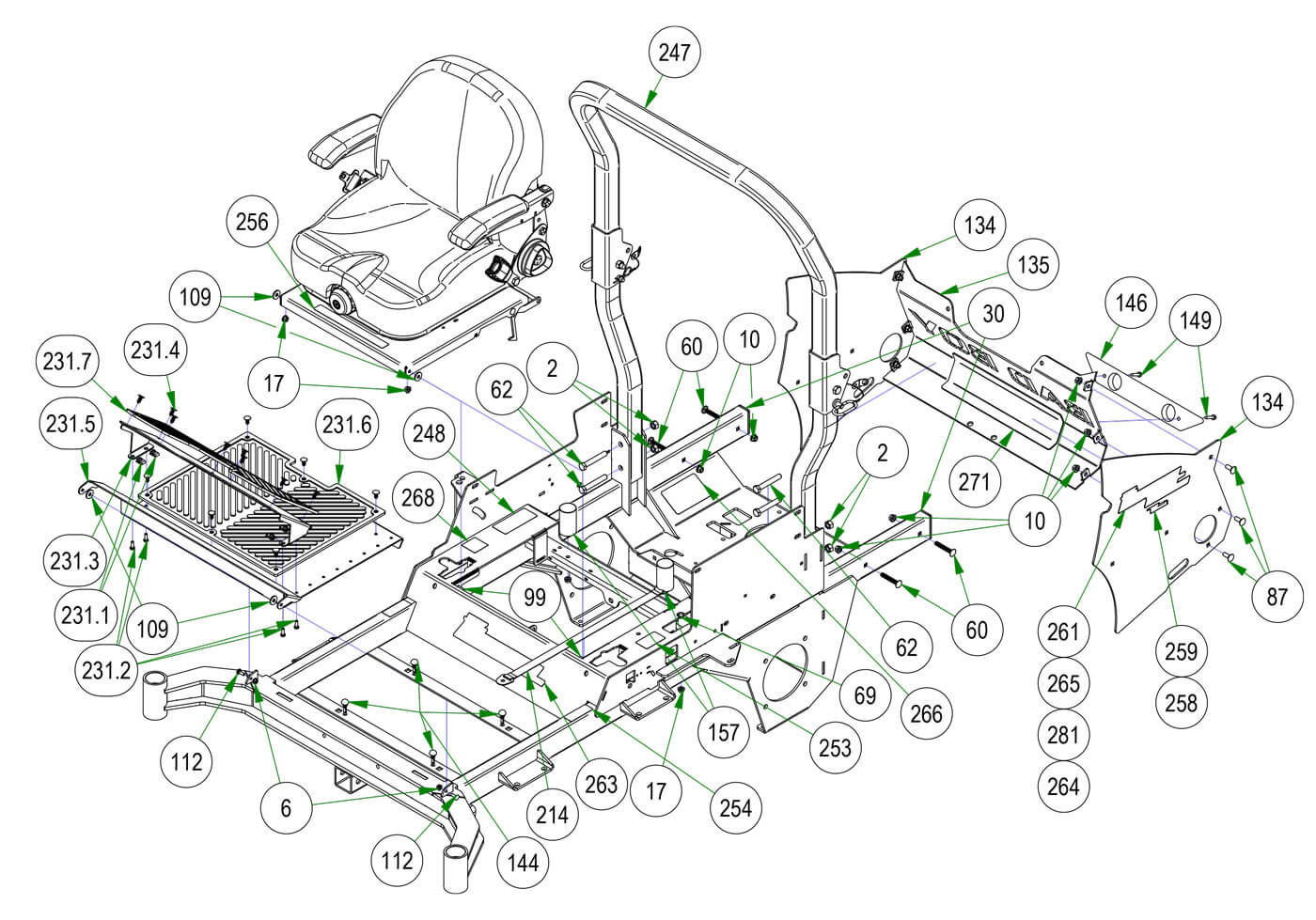

Covers & Seat Pan Assembly
Parts Index
- 2 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 4)
- 6 1/4-20 Nylon Insert Flange Nut (Qty 3)
- 10 3/8 Nylock Flange Nut (Qty 12)
- 17 5/16-18 Nylon Flange Nut (Qty 9)
- 20 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 30 1 1/2x 3 Frame Plug (Qty 2)
- 56 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 60 3/8 x 2 1/2 Carriage Bolt (Qty 4)
- 62 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 4)
- 69 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 87 3/8 x 1 Carriage Bolt (Qty 6)
- 99 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 109 .360 ID Plastic Washer (Qty 4)
- 112 1/4 x 3/4 Carriage Bolt (Qty 2)
- 133 R-Series Seat Plate Assembly (Qty 1)
- 134 2019 Vertical Rigid Rear Cover Side--Orange (Qty 2)
- 135 2019 Vertical Rear Cover Tailgate-Orange (Qty 1)
- 144 2023 Floor Board Rubber Bumpers (Qty 4)
- 146 Bumper (Qty 1)
- 149 14 X 1-1/2 HWA A T/S Zinc (Qty 2)
- 157 Bumper (Seat) (Qty 2)
- 177 Seat Stop--Plated (Qty 1)
- 214 Seat Strap with Buckles (Qty 1)
- 215 2019 R-Series EPA Cannister Assembly (Qty 1)
- 224 2023 Rebel Frame--Orange (Qty 1)
- 225 2021 Rebel Seat (Qty 1)
- 231 2019 Outlaw Floorboard--Orange (Qty 1)
- 231.1 1/4-20 Cage Nut (Qty 4)
- 231.2 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 4)
- 231.3 Adjustable Foot Plate--Orange (Qty 1)
- 231.4 Ratchet Fastener - Floorboard (Qty 14)
- 231.5 2019 Outlaw Floorboard--Orange (Qty 1)
- 231.6 Mat (Floor) (Qty 1)
- 231.7 Mat (Foot Plate) (Qty 1)
- 247 2019 2x2 R SERIES Folding Rops (Qty 1)
- 248 2023 EPA Build Date Punch Decal (Qty 1)
- 253 R-Series Brake Decal (Qty 1)
- 254 R-Series LH/RH Steering Control Decal (Qty 1)
- 256 Long Seat Plate Warning Decal (Qty 1)
- 258 2022 Powered by Kawi Decal (Qty 2)
- 259 2022 Powered By Kohler Decal (Qty 2)
- 261 2019 Rebel 852cc Backplate Cluster (Qty 1)
- 263 2019 Rebel Cooler Cover Decal (Qty 1)
- 264 2019 Rebel 747cc Backplate Cluster (Qty 1)
- 265 2019 Rebel 999cc Backplate Cluster (Qty 1)
- 266 2019 Rebel Pump Belt Route Decal (Qty 1)
- 268 2019 Deck Release Decal (Qty 1)
- 269 Control Adj. Control Rod Decal (Qty 1)
- 270 Control Adj. Control Dampener Decal (Qty 1)
- 271 Heat Shield (Fiberglass Adhesive) (Qty 1)
-
2#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
6#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 3Regular price $1.39 USDRegular priceUnit price per
-
10#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 12Regular price $1.49 USDRegular priceUnit price per
-
17#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 9Regular price $0.79 USDRegular priceUnit price per
-
20#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
30#014-9003-00
1 1/2x 3 Frame Plug
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
56#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
60#018-0044-00
3/8 x 2 1/2 Carriage Bolt
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
62#018-0050-00
1/2-13 X 3.25 Hex Bolt-Grade 5
Qty Used: 4Regular price $1.19 USDRegular priceUnit price per
-
69#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
87#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
99#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
109#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
112#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
133#026-2019-21
R-Series Seat Plate Assembly
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
134#026-2219-00
2019 Vertical Rigid Rear Cover Side--Orange
Qty Used: 2Regular price $169.99 USDRegular priceUnit price per
-
135#026-2221-00
2019 Vertical Rear Cover Tailgate-Orange
Qty Used: 1Regular price $225.56 USDRegular priceUnit price per
-
144#029-4011-00
2023 Floor Board Rubber Bumpers
Qty Used: 4Regular price $1.09 USDRegular priceUnit price per
-
-
149#030-7039-00
14 X 1-1/2 HWA A T/S Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
157#032-0001-00
Bumper (Seat)
Qty Used: 2Regular price $21.88 USDRegular priceUnit price per
-
177#039-2156-00
Seat stop--Plated
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
214#064-8083-00
Seat Strap with Buckles
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
215#067-0020-19
2019 Outlaw EPA Cannister Assembly
Qty Used: 1Regular price $39.95 USDRegular priceUnit price per
-
224#070-2304-00
2023 Rebel Frame--Orange
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
-
225#071-2103-00
2021 Rebel Seat
Qty Used: 1Regular price $569.99 USDRegular priceUnit price per
-
231231.5#079-3155-00
2019 Outlaw Floorboard--Orange
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
231.1#013-0054-00
1/4-20 Cage Nut
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
231.2#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
231.3#026-2230-00
Adjustable Foot Plate--Orange
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
231.4#040-6080-00
Ratchet Fastener - Floorboard
Qty Used: 14Regular price $2.91 USDRegular priceUnit price per
-
231.6#081-0050-00
Mat (Floor)
Qty Used: 1Regular price $72.99 USDRegular priceUnit price per
-
231.7#081-0051-00
Mat (Foot Plate)
Qty Used: 1Regular price $72.99 USDRegular priceUnit price per
-
247#089-0006-00
2019 2x2 R SERIES Outlaw Folding Rops
Qty Used: 1Regular price $436.43 USDRegular priceUnit price per
-
248#091-0015-23
2023 EPA Build Date Punch Decal
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
253#091-1101-18
2018 Out/XP/Diesel Brake Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
254#091-1114-00
2018 LH/RH Steering Control Decal Roll
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
256#091-3150-00
Outlaw Warning Decal
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
258#091-4003-22
2022 Powered by Kawi Decal
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
259#091-4004-22
2022 Powered By Kohler Decal
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-

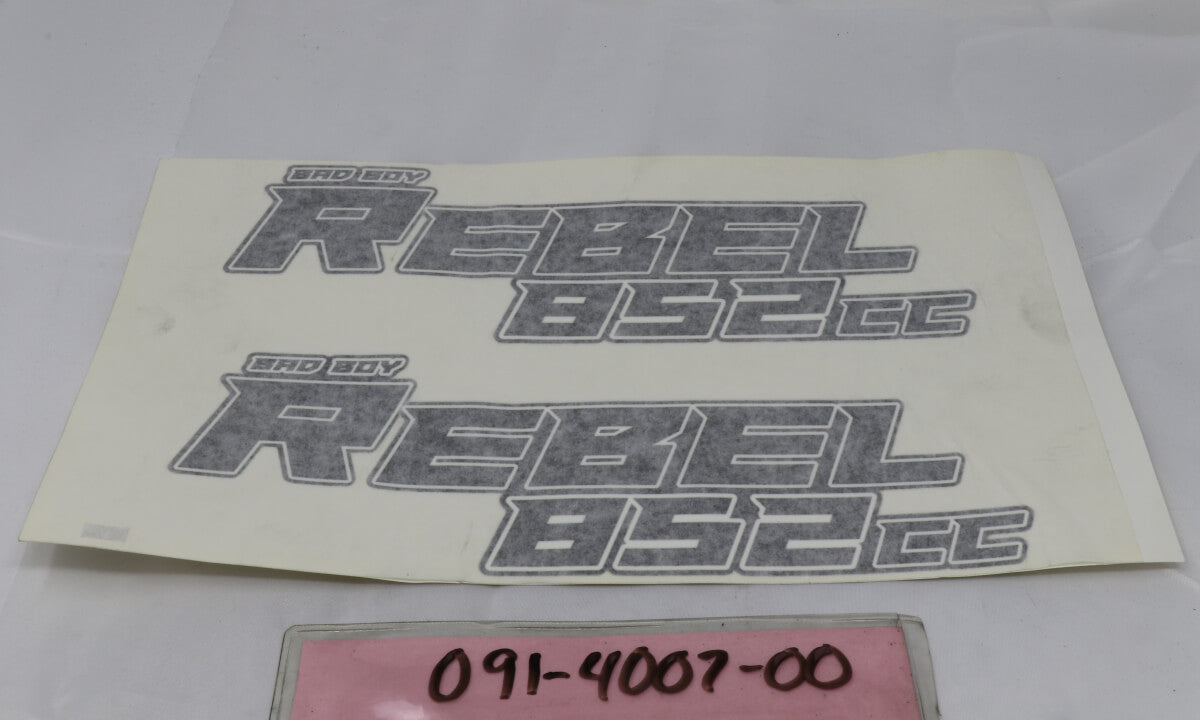

261#091-4007-00
2019 Rebel 852cc Backplate Cluster
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-

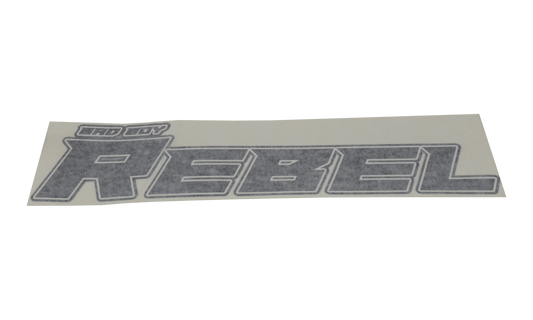

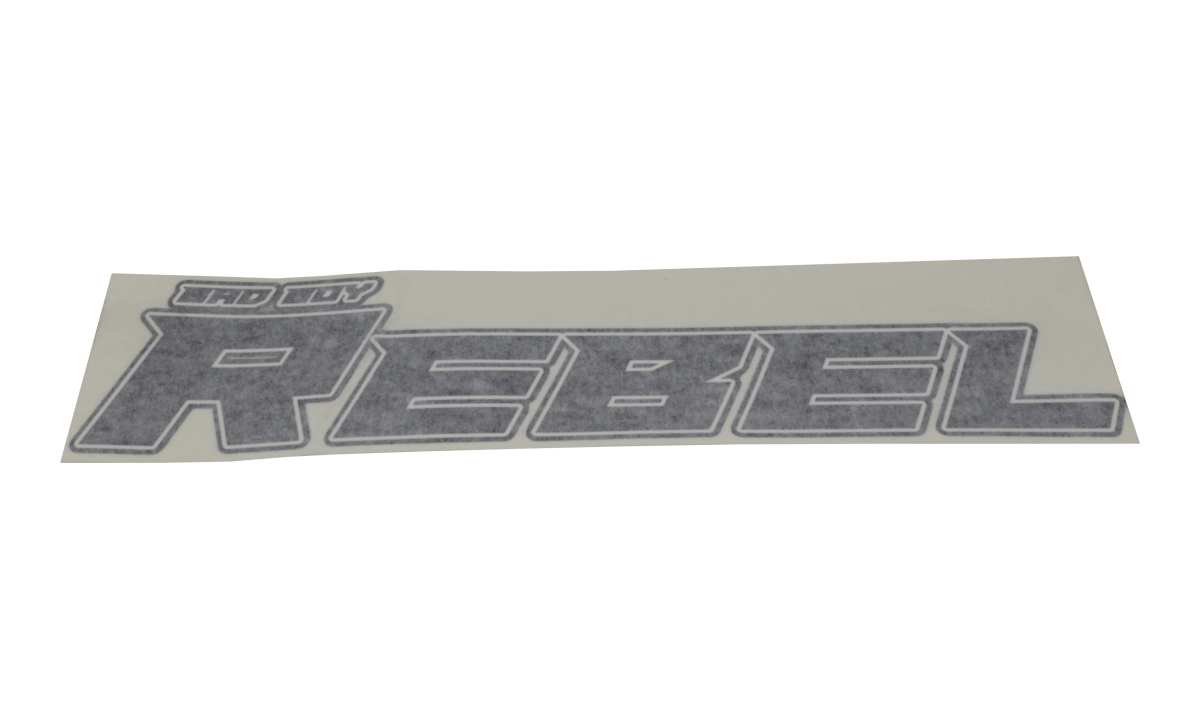

263#091-4010-00
2019 Rebel Cooler Cover Decal
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
264#091-4011-00
2019 Rebel 747cc Backplate Cluster
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
265#091-4023-00
2019 Rebel 999cc Backplate Cluster
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
266#091-4034-00
2019 Rebel Pump Belt Route Decal
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
268#091-4037-00
2019 Deck Release Decal
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
269#091-4038-00
Control Adj. Control Rod Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
270#091-4039-00
Control Adj. Control Dampener Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
271#091-4050-00
Heat Shield (Fiberglass Adhesive)
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
