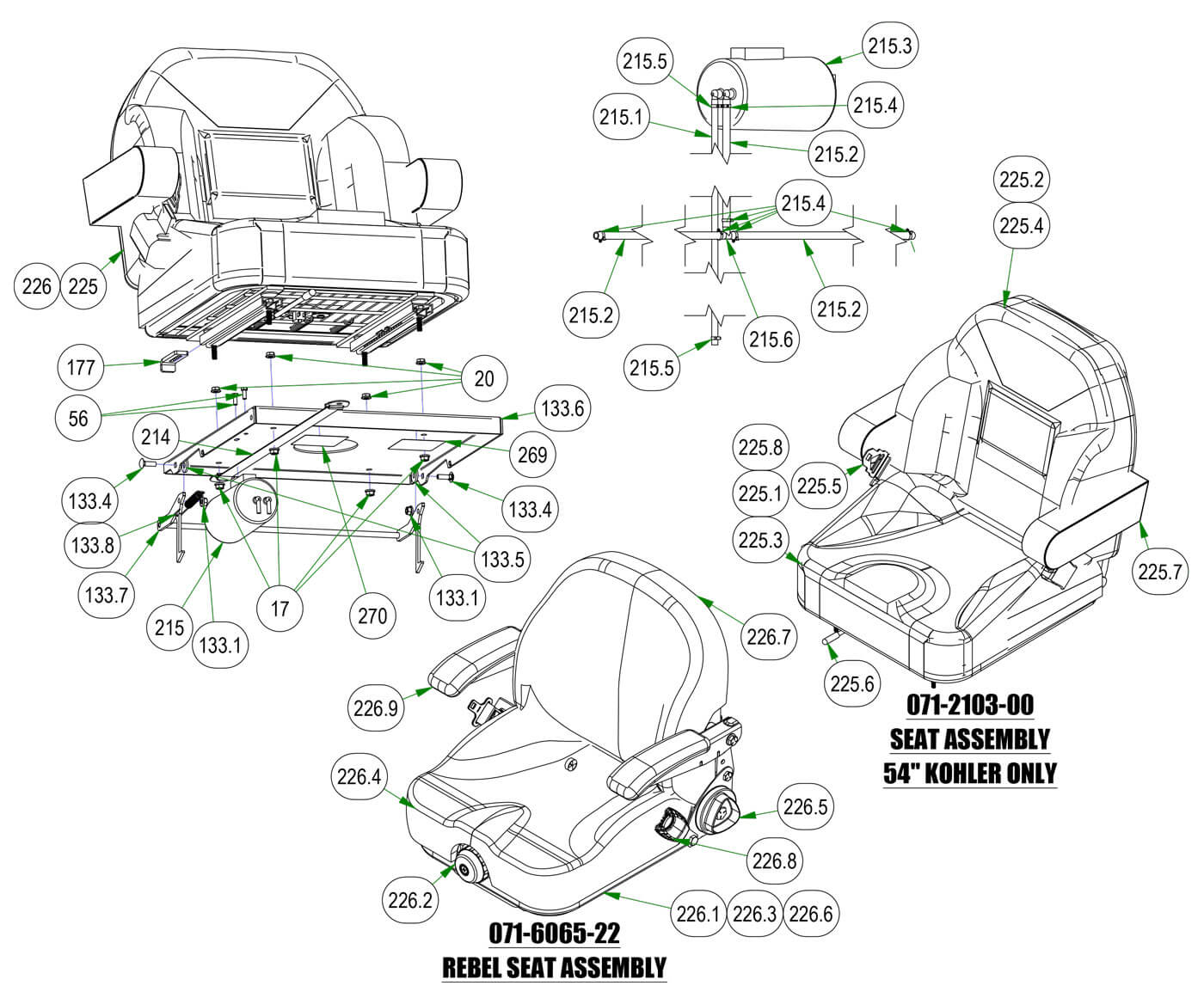

Covers & Seat
Parts Index
- 17 5/16-18 Nylon Flange Nut (Qty 9)
- 20 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 56 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 133 R-Series Seat Plate Assembly (Qty 1)
- 133.1 5/16-18 Nylon Flange Nut (Qty 2)
- 133.4 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 133.5 .360 ID Plastic Washer (Qty 2)
- 133.6 Seat Plate--Orange (Qty 1)
- 133.7 Seat Latch Rod (Qty 1)
- 133.8 Brake Spring (Qty 1)
- 177 Seat Stop--Plated (Qty 1)
- 214 Seat Strap with Buckles (Qty 1)
- 215 2019 R-Series EPA Cannister Assembly (Qty 1)
- 215.1 66" 3/16 Vinyl EPA Line (Qty 1)
- 215.2 38" 1/4 Vinyl Tubing (Qty 3)
- 215.3 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 215.4 MZ Tank Hose Clamp 1/4 Vinyl (Qty 6)
- 215.5 3/16" Vinyl Hose Clamp (Qty 2)
- 215.6 Fuel Line T (Qty 1)
- 224 2023 Rebel Frame--Orange (Qty 1)
- 225 2021 Rebel Seat (Qty 1)
- 225.1 Seat Cover for 071-2103-00 (Qty 1)
- 225.2 Back Cover for 071-2103-00 (Qty 1)
- 225.3 Foam Molded Seat for the 071-2103-00 (Qty 1)
- 225.4 Foam Molded Back for the 071-2103-00 (Qty 1)
- 225.5 OBSOLETE USE 071-5083-00 (Qty 1)
- 225.6 Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger (Qty 1)
- 225.7 Arm Rest Kit for 071-5060-18/071-2103-00 (Qty 1)
- 225.8 Seat Switch for 071-5060-18/071-2102-22/071-2400-0 (Qty 1)
- 226 2022 Seats Inc Suspension Seat with seatbelt (Qty 1)
- 226.1 SEAT RAILS for 071-6065-00/071-6065-22 (Qty 1)
- 226.2 Weight Adjustment Knob for 071-6065-00/071-6065-22 (Qty 1)
- 226.3 Bellows w/Hardware for 071-6065-22 (Qty 1)
- 226.4 Cushion Cover Kit for I3M - Logo for 071-6065-22 (Qty 1)
- 226.5 Recliner Adjust Knob for 071-6065-00/71-6065-22 (Qty 1)
- 226.6 Seat Switch for 071-6065-00/071-6065-22 (Qty 1)
- 226.7 Back Cover for I3M - Recl - Logos for 071-6065-22 (Qty 1)
- 226.8 OBSOLETE USE 071-6063-00 (Qty 1)
- 226.9 Arm Kit for 071-6065-00/071-6065-22 (Qty 1)
- 269 Control Adj. Control Rod Decal (Qty 1)
- 270 Control Adj. Control Dampener Decal (Qty 1)
-
17133.1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
20#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
56#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
133#026-2019-21
R-Series Seat Plate Assembly
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
133.4#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
133.5#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
133.6#026-2019-00
Seat Plate--Orange
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
133.7#028-0090-00
Seat Latch Rod
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
133.8#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
177#039-2156-00
Seat stop--Plated
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
214#064-8083-00
Seat Strap with Buckles
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
215#067-0020-19
2019 Outlaw EPA Cannister Assembly
Qty Used: 1Regular price $39.95 USDRegular priceUnit price per
-
215.1#051-2025-66
66" 3/16 Vinyl EPA Line
Qty Used: 1Regular price $12.39 USDRegular priceUnit price per
-
215.2#051-8072-38
38" 1/4 Vinyl Tubing
Qty Used: 3Regular price $26.53 USDRegular priceUnit price per
-
215.3#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
215.4#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 6Regular price $1.45 USDRegular priceUnit price per
-
215.5#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
215.6#073-8068-00
Fuel Line T
Qty Used: 1Regular price $8.82 USDRegular priceUnit price per
-
224#070-2304-00
2023 Rebel Frame--Orange
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
-
225#071-2103-00
2021 Rebel Seat
Qty Used: 1Regular price $569.99 USDRegular priceUnit price per
-
225.1#071-2103-01
Seat Cover for 071-2103-00
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
225.2#071-2103-02
Back Cover for 071-2103-00
Qty Used: 1Regular price $131.37 USDRegular priceUnit price per
-
225.3#071-2103-03
Foam Molded Seat for the 071-2103-00
Qty Used: 1Regular price $89.99 USDRegular priceUnit price per
-
225.4#071-2103-04
Foam Molded Back for the 071-2103-00
Qty Used: 1Regular price $89.99 USDRegular priceUnit price per
-
225.5#071-2103-05
OBSOLETE USE 071-5083-00
Qty Used: 1Regular price $106.14 USDRegular priceUnit price per
-
225.6#071-5015-00
Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
225.7#071-5069-00
Arm Rest Kit for 071-5060-18/071-2103-00
Qty Used: 1Regular price $139.99 USDRegular priceUnit price per
-
225.8#071-5070-00
Seat Switch for 071-5060-18/071-2102-22/071-2400-0
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
226#071-6065-22
2022 Seats Inc Suspension Seat with seatbelt
Qty Used: 1Regular price $829.99 USDRegular priceUnit price per
-
226.1#071-6065-06
SEAT RAILS for 071-6065-00/071-6065-22
Qty Used: 1Regular price $92.87 USDRegular priceUnit price per
-
226.2#071-6065-05
Weight Adjustment Knob for 071-6065-00/071-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
226.3#071-6065-13
Bellows w/Hardware for 071-6065-22
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
226.4#071-6065-16
Cushion Cover Kit for I3M - Logo for 071-6065-22
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
226.5#071-6065-10
Recliner Adjust Knob for 071-6065-00/71-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
226.6#071-6065-07
Seat Switch for 071-6065-00/071-6065-22
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
226.7#071-6065-15
Back Cover for I3M - Recl - Logos for 071-6065-22
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
226.8#071-6065-14
OBSOLETE USE 071-6063-00
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
226.9#071-6065-04
Arm Kit for 071-6065-00/071-6065-22
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
269#091-4038-00
Control Adj. Control Rod Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
270#091-4039-00
Control Adj. Control Dampener Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
