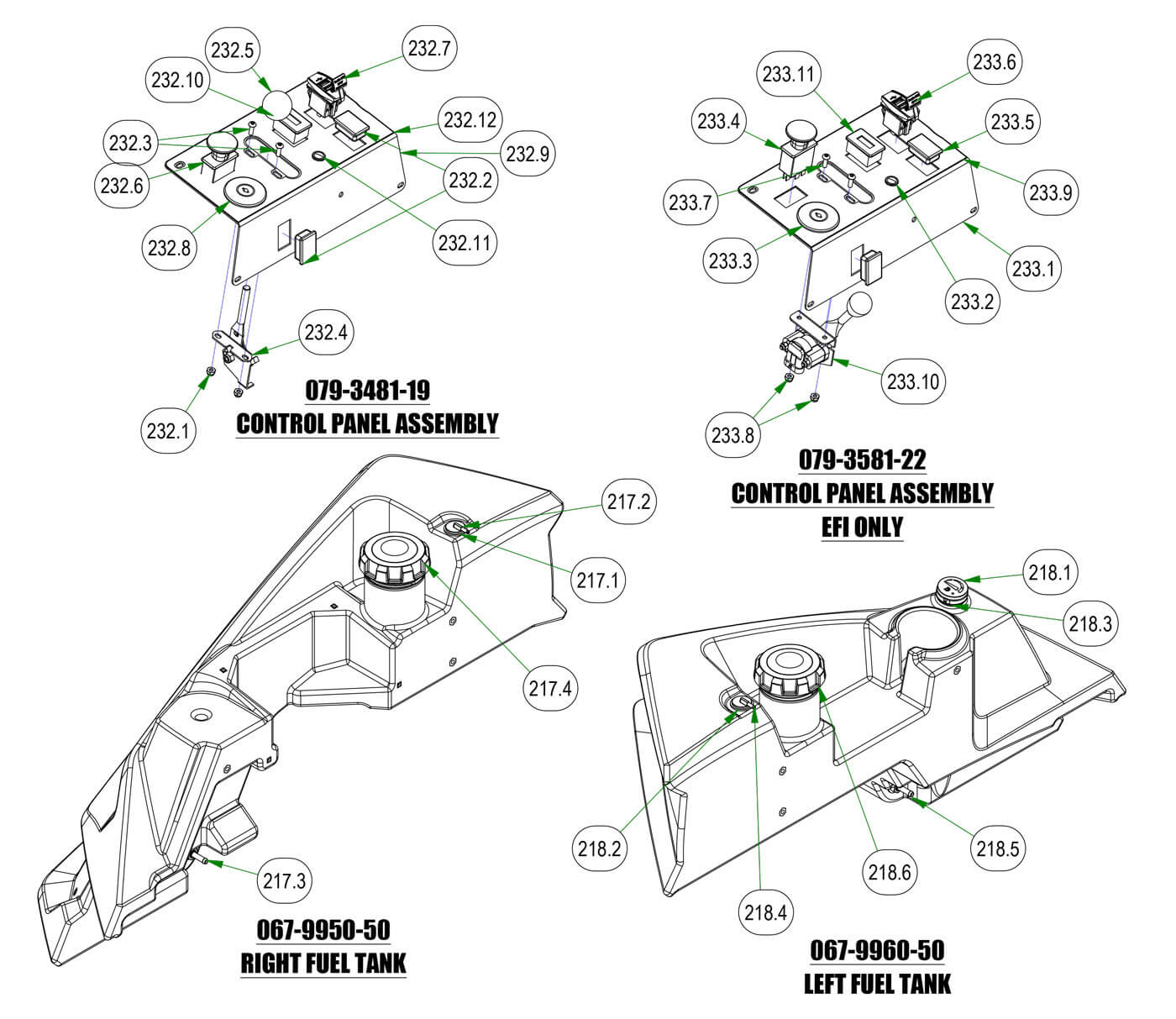

Control Panel Assembly & Fuel Tank

Parts Index
- 217 2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS) (Qty 1)
- 217.1 Old Style Grommet for Fule Gau (Qty 1)
- 217.2 Rollover Valve and Grommet New (Qty 1)
- 217.3 Fuel Pickup for 2019 Fuel Tanks (Qty 1)
- 217.4 Fuel Tank Cap for 2019 Fuel Tank (Qty 1)
- 218 2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS) (Qty 1)
- 218.1 Fuel Gauge Assembly w/ Grommet-2014 ZT,2015 Outlaw (Qty 1)
- 218.2 Old Style Grommet for Fule Gau (Qty 1)
- 218.3 New Style Grommet for 2017 MZ Magnum Fuel Gauge (Qty 1)
- 218.4 Rollover Valve and Grommet New (Qty 1)
- 218.5 Fuel Pickup for 2019 Fuel Tanks (Qty 1)
- 218.6 Fuel Tank Cap for 2019 Fuel Tank (Qty 1)
- 232 Rebel/Rogue Control Panel Assy (Qty 1)
- 232.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 232.2 Light Plug (Qty 2)
- 232.3 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 232.4 Universal Throttle Head - 2012 (Qty 1)
- 232.5 Throttle / Brake Head Ball (Qty 1)
- 232.6 PTO Engager-Switch for Blades (Qty 1)
- 232.7 USB Port (Qty 1)
- 232.8 Ignition Switch (Qty 1)
- 232.9 2022 Rebel Control Panel--Orange (Qty 1)
- 232.10 Tachometer-N310-0100-1018 (Qty 1)
- 232.11 Oil Light (Qty 1)
- 232.12 2022 Rebel/ Rogue Control Panel Decal (Qty 1)
- 233.1 2022 Rebel Control Panel--Orange (Qty 1)
- 233.2 Oil Light (Qty 1)
- 233.3 Ignition Switch (Qty 1)
- 233.4 PTO Engager-Switch for Blades (Qty 1)
- 233.5 Light Plug (Qty 2)
- 233.6 USB Port (Qty 1)
- 233.7 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 233.8 10-24 Nylon Insert Locknut Zin (Qty 2)
- 233.9 2022 Rebel/ Rogue Control Panel Decal (Qty 1)
- 233.10 Kawasaki \ Kohler Drive by Wire Throttle (Qty 1)
- 233.11 Tachometer-Kohler/Yamaha EFI (Qty 1)
