852cc Kawasaki FX850

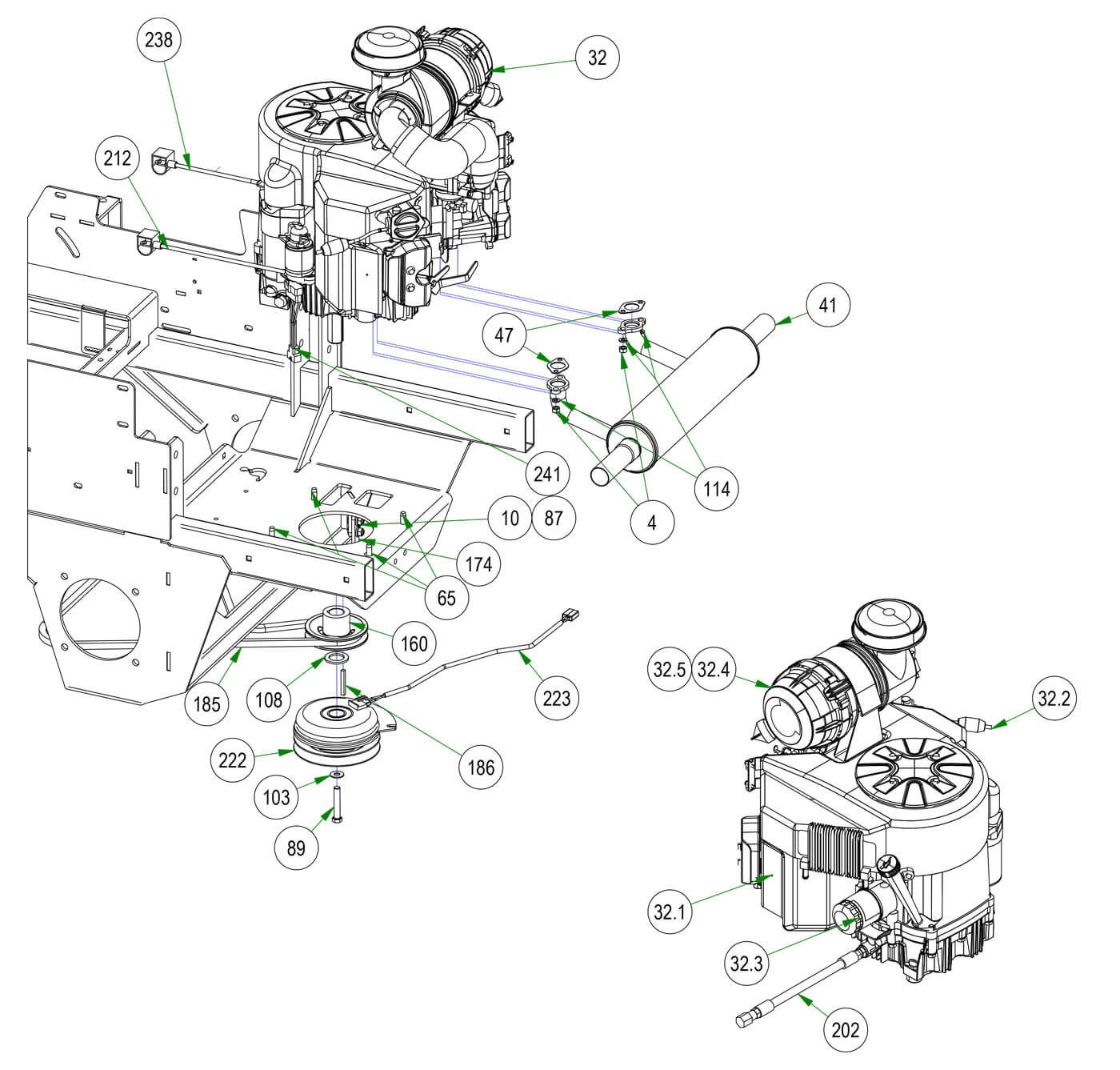

Parts Index
- 4 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 10 3/8 Nylock Flange Nut (Qty 2)
- 32 31hp Kawa Engine FX-850V-AS15R (Qty 1)
- 32.1 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 32.2 Universal Inline Fuel Filter (Qty 1)
- 32.3 Kawasaki Oil Filter (Qty 1)
- 32.4 Canister Air Fil Outer2010&Old (Qty 1)
- 32.5 Canister Air Filter - Inner (Qty 1)
- 41 2019 Rebel/Rogue Kawasaki 850 Muffler (Qty 1)
- 47 Exhaust Gasket for 27 - Single Gasket (Qty 2)
- 65 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 87 3/8 x 1 Carriage Bolt (Qty 2)
- 89 7/16-20x2.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 103 3/8 USS Flat Washer Zinc (Qty 1)
- 108 1.140x1.750x .132 Flat Washer (Qty 1)
- 114 5/16 Lock washer Zinc (Qty 4)
- 160 4 3/4 Motor Pulley (Qty 1)
- 174 Rebel Clutch Stop Tab (Qty 1)
- 185 2019 & up Rebel Pump Belt (Qty 1)
- 186 1/4 X 2 Square Key Stock (Qty 1)
- 202 12" Kawasaki Oil Drain (Qty 1)
- 212 14" Red Battery Cable- Rebel, Raider (Qty 1)
- 222 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 223 Clutch Pigtail (Qty 1)
- 238 Rebel, Rogue Ground Wire (Qty 1)
- 241 2019 Harness Adaptor-R-Series FX/35KA (Qty 1)
- 224 2023 Rebel Frame--Orange (Qty 1)
-
4#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
10#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
32#015-0031-00
31hp Kawa Engine FX-850V-AS15R
Qty Used: 1Regular price $2,995.00 USDRegular priceUnit price per
-
32.1#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
32.2#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
32.3#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
32.4#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
32.5#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
41#015-1011-00
2019 Rebel/Rogue Kawasaki 850 Muffler
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
47#015-2709-00
Exhaust Gasket for 27 - Single Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
65#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
87#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
89#018-5300-21
7/16-20x2.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
103#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
108#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
114#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
160#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
174#039-0178-00
Rebel Clutch Stop Tab
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
185#041-8050-00
2019 & up Rebel Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
186#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
202#051-5407-00
12" Kawasaki Oil Drain
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
212#064-5301-01
14" Red Battery Cable-Base Outlaw
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
-
223#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
238#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
241#086-9002-19
2019 Harness Adaptor-R-Series FX/35KA
Qty Used: 1Regular price $18.96 USDRegular priceUnit price per
-
224#070-2304-00
2023 Rebel Frame--Orange
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
