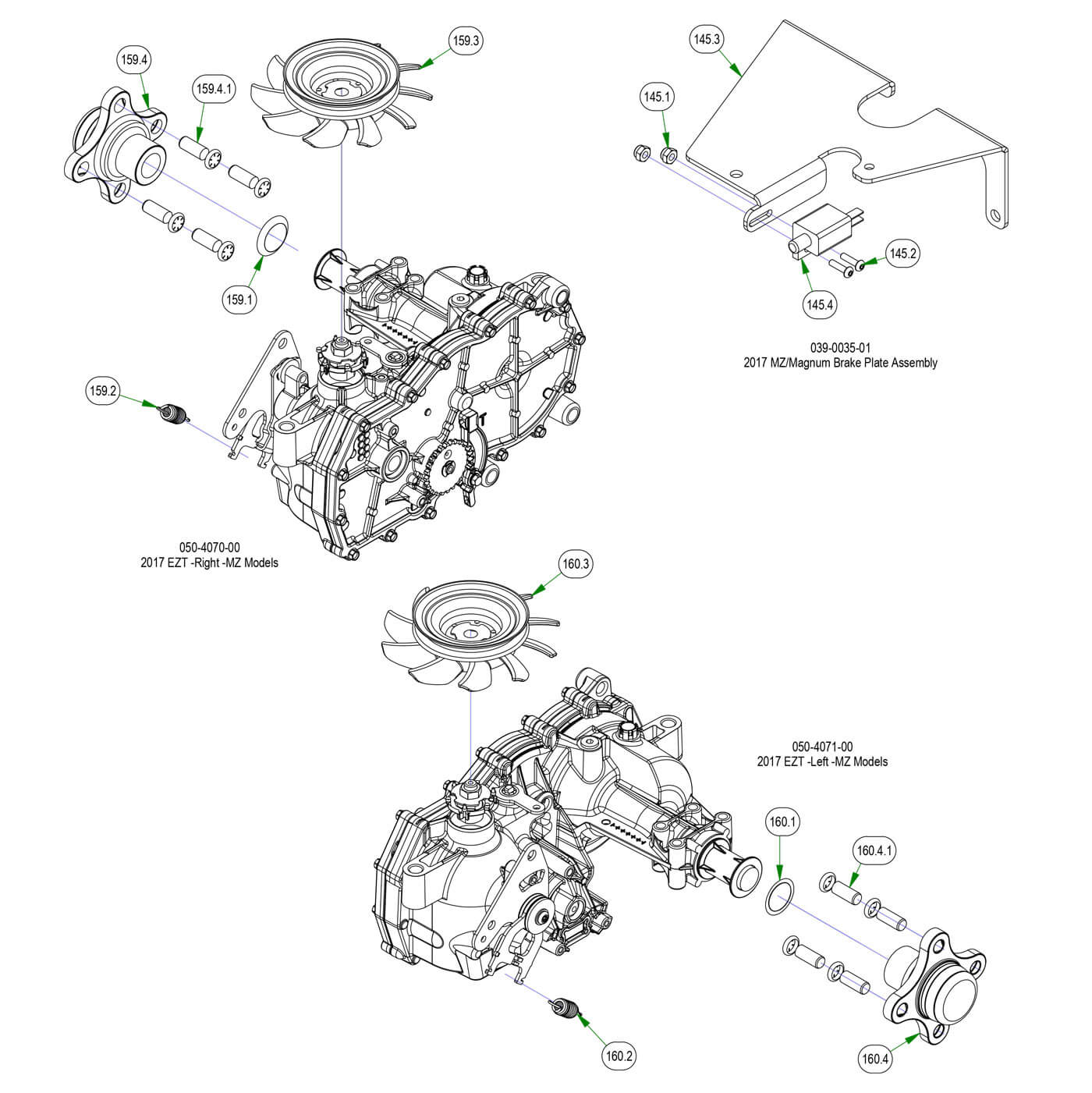

Transaxles Subassemblies
Parts Index
- 145 2017 MZ/Magnum brake plate assembly (Qty 1)
- 145.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 145.2 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 145.3 Brake Lock Bracket (Qty 1)
- 145.4 Safety Switch (Qty 1)
- 159 Magnum RH Transaxle (Qty 1)
- 159.1 MZ Seal & Retainer Kit (Qty 1)
- 159.2 Gold Transaxle Spring (Qty 1)
- 159.3 Fan/Pulley Kit for ZT / 2017 MZ (Qty 1)
- 159.4 MZ 4 Bolt Hub Kit (Qty 1)
- 159.4.1 Transaxle Wheel Studs/ Drum Brake Studs (Qty 1)
- 160 Magnum LH Transaxle (Qty 1)
- 160.1 MZ Seal & Retainer Kit (Qty 1)
- 160.2 Gold Transaxle Spring (Qty 1)
- 160.3 Fan/Pulley Kit for ZT / 2017 MZ (Qty 1)
- 160.4 MZ 4 Bolt Hub Kit (Qty 1)
- 160.4.1 Transaxle Wheel Studs/ Drum Brake Studs (Qty 1)
-
145#039-0035-01
2017 MZ/Magnum brake plate assembly
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
145.1#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
145.2#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
145.3#039-0035-00
Brake Lock Bracket
Qty Used: 1Regular price $8.74 USDRegular priceUnit price per
-
145.4#077-8073-00
Safety Switch
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
159#050-4070-00
2017 EZT - Right - MZ Models
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-

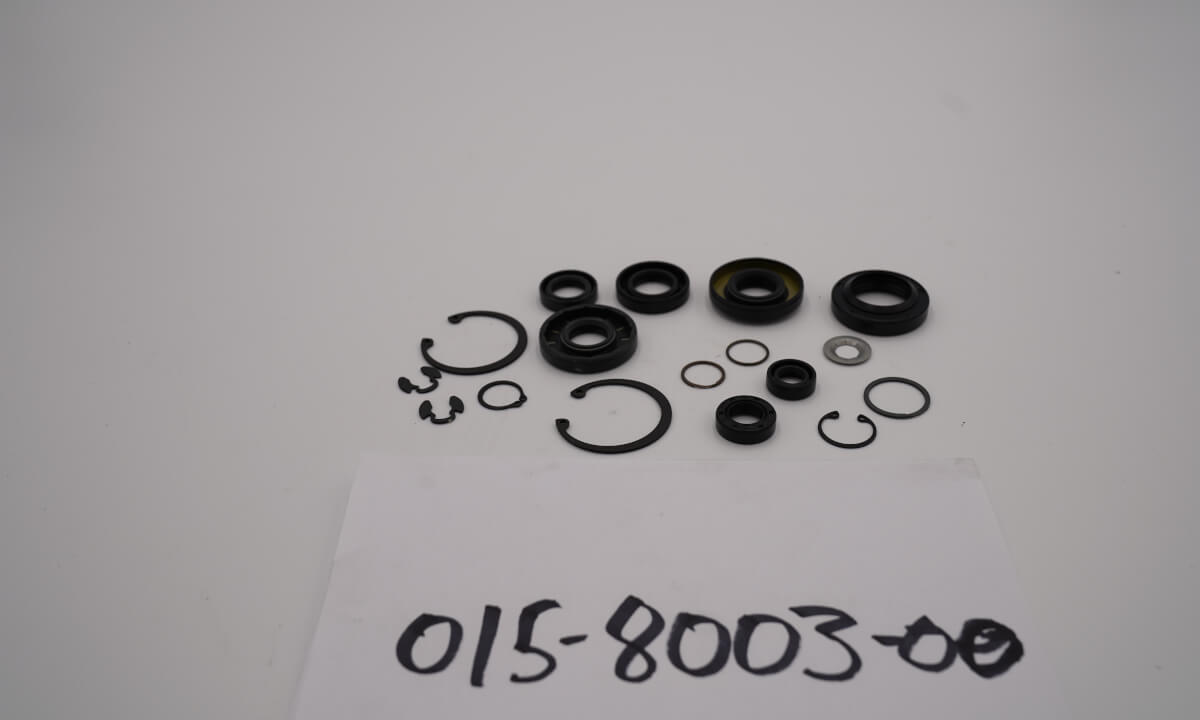

159.1160.1#015-8003-00
MZ Seal & Retainer Kit
Qty Used: 1Regular price $80.88 USDRegular priceUnit price per
-
159.2160.2#034-9080-00
Gold Transaxle Spring
Qty Used: 1Regular price $13.92 USDRegular priceUnit price per
-
159.3160.3#050-2075-00
Fan/Pulley Kit for ZT / 2017 MZ
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-

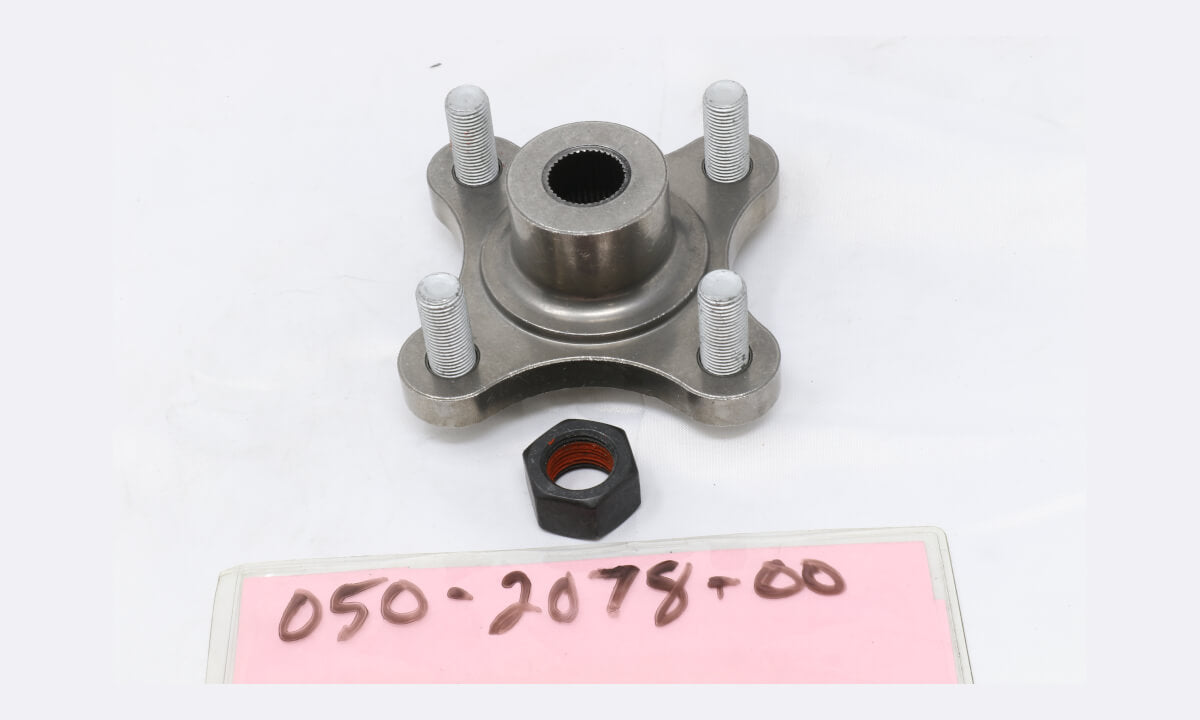

159.4160.4#050-2078-00
MZ 4 Bolt Hub Kit
Qty Used: 1Regular price $79.99 USDRegular priceUnit price per
-
159.4.1160.4.1#050-2012-00
Transaxle Wheel Studs/ Drum Brake Studs
Qty Used: 1Regular price $5.10 USDRegular priceUnit price per
-
160#050-4071-00
2017 EZT - Left - MZ Models
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
