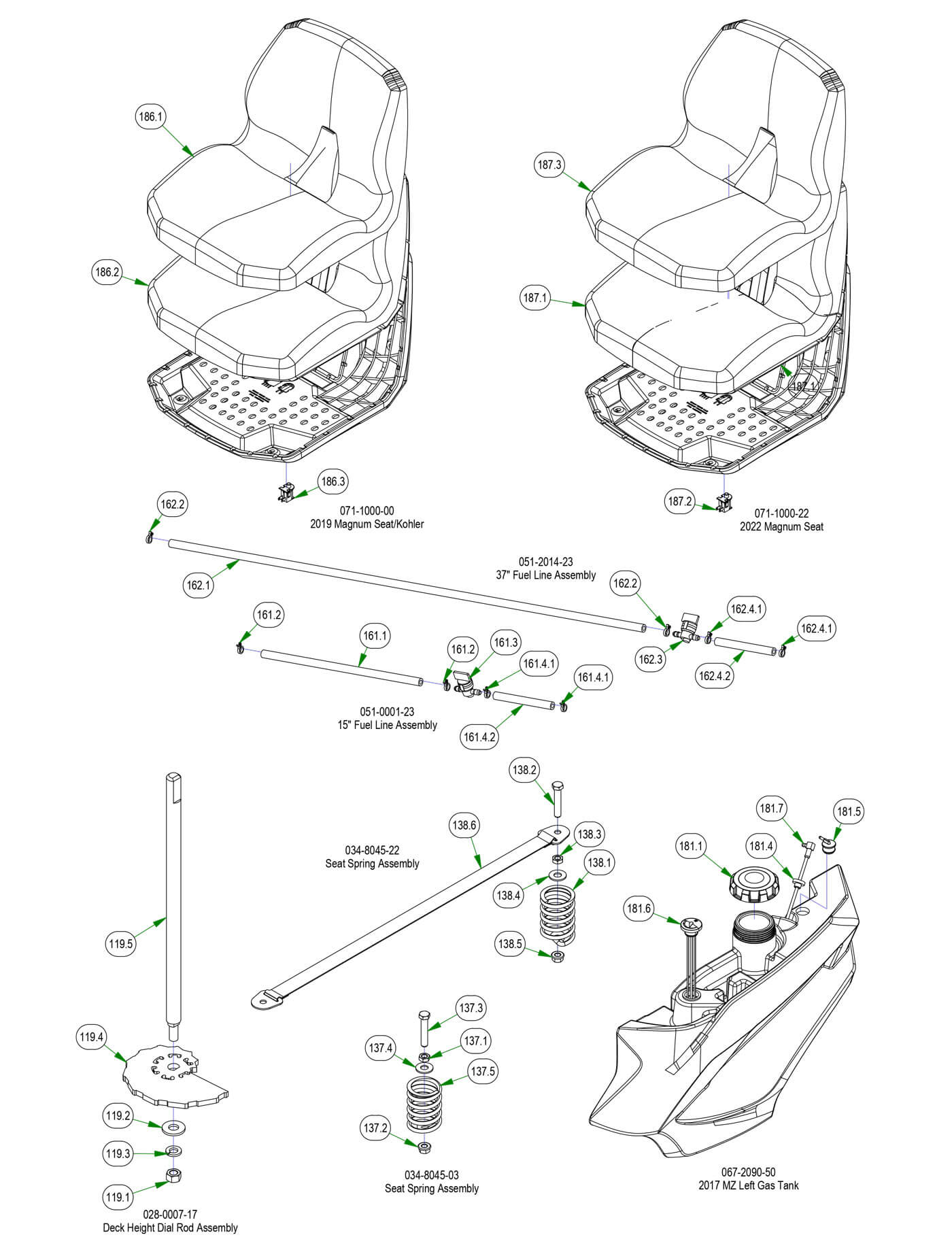

Seat, Fuel Line, Brake Handle etc.
Parts Index
- 119 2017 MZ Magnum Deck Height Rod Assembly (Qty 1)
- 119.1 3/8-24 Hex Nut Zinc (Qty 1)
- 119.2 3/8 USS Flat Washer Zinc (Qty 1)
- 119.3 3/8 Lockwasher Zinc (Qty 1)
- 119.4 Deck Height Cam Plate (Qty 1)
- 119.5 2017 Deck Height Dial Rod MZ (Qty 1)
- 137 2017 MZ/ZT Seat Spring Assembly (Qty 1)
- 137.1 3/8-16 Half Jam Nut (Qty 1)
- 137.2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 137.3 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 137.4 3/8 USS Flat Washer Zinc (Qty 1)
- 137.5 Seat Spring (Qty 1)
- 138 2022 Mav/HD Seat Spring Assembly with Strap (Qty 1)
- 138.1 Seat Spring (Qty 1)
- 138.2 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 138.3 3/8-16 Half Jam Nut (Qty 1)
- 138.4 3/8 USS Flat Washer Zinc (Qty 1)
- 138.5 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 138.6 Seat Strap with Buckles (Qty 1)
- 161.1 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 161.2 1/4 Fuel Line Clamp (Qty 2)
- 161.3 2 Way Fuel Shut-Off Valve (Qty 1)
- 161.4.1 1/4 Fuel Line Clamp (Qty 2)
- 161.4.2 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 162.1 33" 1/4 Fuel Line No Clamp (Qty 1)
- 162.2 1/4 Fuel Line Clamp (Qty 2)
- 162.3 2 Way Fuel Shut-Off Valve (Qty 1)
- 162.4.1 1/4 Fuel Line Clamp (Qty 2)
- 162.4.2 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 181 2017 Magnum Left Side Fuel Tank (Qty 1)
- 181.1 3.5" Tethered Fuel Cap (Qty 1)
- 181.4 Grommet for ZT Elite Fuel Line (Qty 1)
- 181.5 Rollover Valve and Grommet New (Qty 1)
- 181.6 Fuel Gauge w/ Grommet (Qty 1)
- 181.7 Fuel Line Pickup Tube for ZT (Qty 1)
- 186 2019 Rambler Seat/Kohler (Qty 1)
- 186.1 Seat Cover for 071-1000-00 (Qty 1)
- 186.2 Seat Foam for 071-1000-00 (Qty 1)
- 186.3 OBSOLETE USE 071-5065-07 (Qty 1)
- 187 2022 Magnum Seat (Qty 1)
- 187.2 OBSOLETE USE 071-5065-07 (Qty 1)
- 187.3 Bad Boy SK120 Cover with Logo for 071-1000-22 (Qty 1)
-
119#028-0007-17
2017 MZ Magnum Deck Height Rod Assembly
Qty Used: 1Regular price $24.95 USDRegular priceUnit price per
-
119.1#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
119.2137.4138.4#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
119.3#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
119.4#026-1100-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
119.5#028-0007-00
2017 Deck Height Dial Rod MZ
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
137#034-8045-03
2017 MZ/ZT Seat Spring Assembly
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-

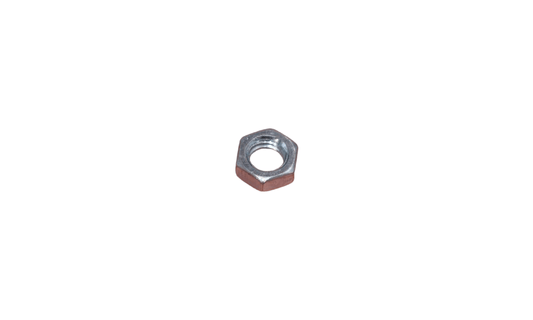

137.1138.3#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
137.2138.5#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
137.3138.2#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-

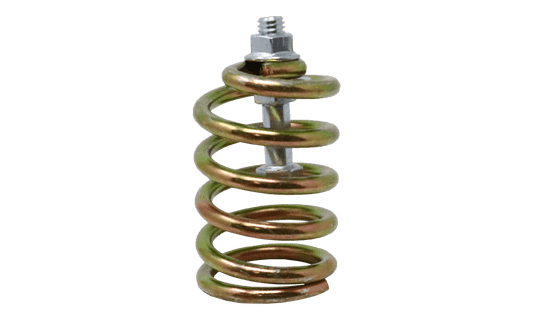

137.5138.1#034-8045-00
Seat Spring
Qty Used: 1Regular price $19.15 USDRegular priceUnit price per
-
138#034-8045-22
2022 Mav/HD seat spring assembly with strap
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-

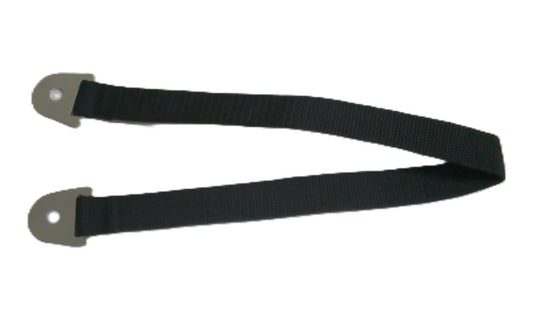

138.6#064-8083-00
Seat Strap with Buckles
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
161.1161.4.2162.4.2#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
161.2161.4.1162.2162.4.1#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-

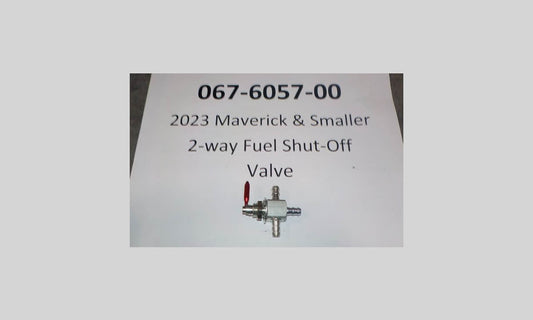

161.3162.3#067-6057-00
2 Way Fuel Shut-Off Valve
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
162.1#051-2014-01
33" 1/4 Fuel Line No Clamp
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
-
181#067-2090-50
2017 Magnum Left Side Fuel Tank
Qty Used: 1Regular price $238.83 USDRegular priceUnit price per
-
181.1#066-8083-00
3.5" Tethered Fuel Cap
Qty Used: 1Regular price $19.84 USDRegular priceUnit price per
-

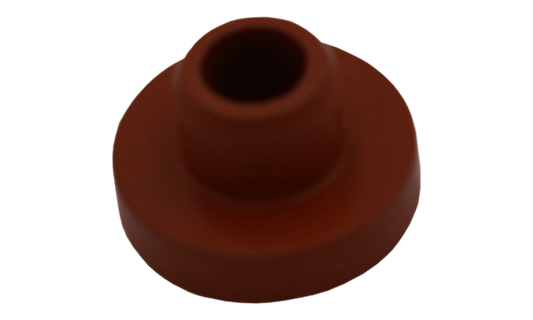

181.4#067-6080-00
Grommet for ZT Elite Fuel Line
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-

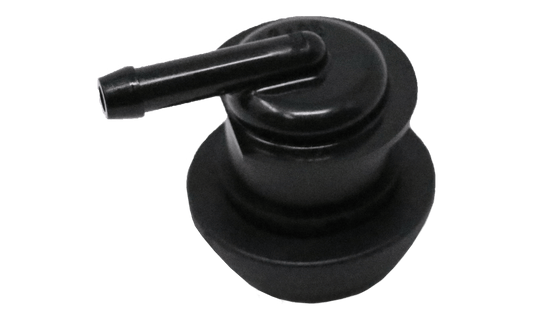

181.5#067-6070-00
Rollover Valve and Grommet New
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
181.6#067-4090-00
Fuel Gauge w/ Grommet
Qty Used: 1Regular price $42.99 USDRegular priceUnit price per
-
181.7#067-0011-00
Fuel Line Pickup Tube for ZT
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
186#071-1000-00
2019 Rambler Seat/Kohler
Qty Used: 1Regular price $399.99 USDRegular priceUnit price per
-
186.1#071-1001-00
Seat Cover for 071-1000-00
Qty Used: 1Regular price $119.41 USDRegular priceUnit price per
-
186.2#071-1002-00
Seat Foam for 071-1000-00
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
186.3187.2#071-1004-00
OBSOLETE USE 071-5065-07
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
187#071-1000-22
2022 Magnum Seat
Qty Used: 1Regular price $399.99 USDRegular priceUnit price per
-
187.3#071-1005-00
Bad Boy SK120 Cover with Logo for 071-1000-22
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
