Pillow Block, Wiring Harness, EPA Cannister etc.

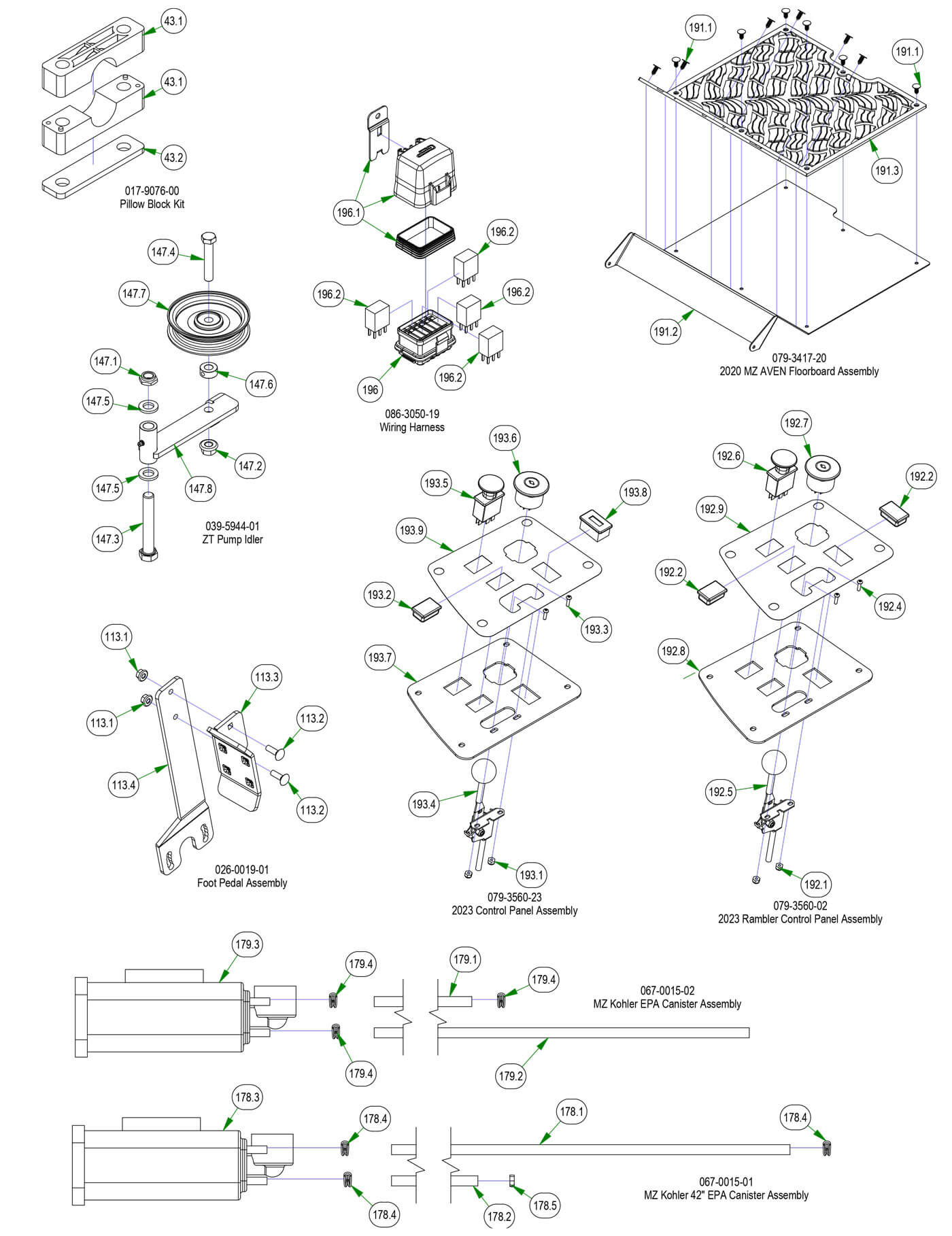

Parts Index
- 43 Pillow Block (Qty 4)
- 43.1 2017 Magnum Pillow Block-Male (Qty 2)
- 43.2 2017 Magnum Pillow Block-Metal Plate (Qty 1)
- 113 2017 MZ Foot Pedal Assembly (Qty 1)
- 113.1 5/16-18 Nylon Flange Nut (Qty 2)
- 113.2 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 113.3 Foot Pedal--Orange (Qty 1)
- 113.4 2017 MZ/ZT Deck Pedal Lever--Orange (Qty 1)
- 147 Pump Idler Bracket Assembly-ZT, MZ, Aven, Raider (Qty 1)
- 147.1 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 147.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 147.3 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 147.4 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 147.5 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 147.6 1/2 Set Collar w/set collar (Qty 1)
- 147.7 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 178 MZ Briggs/CXI EPA Cannister Assy (Qty 1)
- 178.1 3/16 Vinyl 53" EPA Line (Qty 1)
- 178.2 3/16 Clear 44" EPA Line (Qty 1)
- 178.3 Carbon Canister for Magnum/MZ (Qty 1)
- 178.4 5.5 mm Vinyl Hose Clamp (Qty 3)
- 178.5 3/16" Vinyl Hose Clamp (Qty 1)
- 179 MZ/Revolt Kawasaki EPA Cannister Assy (Qty 1)
- 179.1 44" x 3/16" black hose (Qty 1)
- 179.2 52" x 3/16" clear hose (Qty 1)
- 179.3 Carbon Canister for Magnum/MZ (Qty 1)
- 179.4 5.5 mm Vinyl Hose Clamp (Qty 3)
- 191.1 Ratchet Fastener - Floorboard (Qty 12)
- 191.2 2017 MZ/ZT Floorboard--Orange (Qty 1)
- 191.3 2021 Maverick Floor Mat W/ Reaper Tread (Qty 1)
- 192.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 192.2 Light Plug (Qty 2)
- 192.4 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 192.5 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 192.6 PTO Engager-Switch for Blades (Qty 1)
- 192.7 Ignition Switch (Qty 1)
- 192.8 2023 Control Panel--Orange (Qty 1)
- 192.9 2023 Control Panel Decal (Qty 1)
- 193.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 193.2 Light Plug (Qty 1)
- 193.3 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 193.4 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 193.5 PTO Engager-Switch for Blades (Qty 1)
- 193.6 Ignition Switch (Qty 1)
- 193.7 2023 Control Panel--Orange (Qty 1)
- 193.8 Tachometer-N310-0100-1018 (Qty 1)
- 193.9 2023 Control Panel Decal (Qty 1)
- 196 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 196.1 2019 Relay Cap Kit (Qty 1)
- 196.2 2019 Relay Terminal (Qty 4)
-
43#017-9076-00
Pillow Block
Qty Used: 4Regular price $21.88 USDRegular priceUnit price per
-
43.1#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 2Regular price $19.89 USDRegular priceUnit price per
-
43.2#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
113#026-0019-01
2017 MZ Foot Pedal Assembly
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
113.1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
113.2#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
113.3#026-0019-00
Foot Pedal--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
113.4#031-0500-00
2017 MZ/ZT Deck Pedal Lever--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
147#039-5944-01
Pump Idler Bracket Assembly-ZT/MZ/Compact Outlaw
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
147.1#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
147.2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
147.3#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
147.4#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
147.5#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
147.6#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
147.7#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
No sequence found for SKU:
MZ Briggs/CXI EPA Cannister Assy
Regular price $0.00 USDRegular priceUnit price per
-
178.1#051-2023-01
3/16 Vinyl 53" EPA Line
Qty Used: 1Regular price $8.79 USDRegular priceUnit price per
-
178.2#051-2027-01
3/16 Clear 44" EPA Line
Qty Used: 1Regular price $6.59 USDRegular priceUnit price per
-
178.3179.3#067-0015-00
Carbon Canister for Magnum/MZ
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
178.4179.4#072-0002-00
5.5 mm Vinyl Hose Clamp
Qty Used: 3Regular price $2.19 USDRegular priceUnit price per
-
178.5#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
179#067-0015-02
MZ Kohler/Kawasaki EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
179.1#051-2023-02
44" x 3/16" black hose
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
179.2#051-2027-02
52" x 3/16" clear hose
Qty Used: 1Regular price $6.59 USDRegular priceUnit price per
-
191.1#040-6080-00
Ratchet Fastener - Floorboard
Qty Used: 12Regular price $2.91 USDRegular priceUnit price per
-
191.2#079-3417-00
2017 MZ/ZT Floorboard--Orange
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
191.3#081-4001-00
2021 Maverick Floor Mat W/ Reaper Tread
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
192.1193.1#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
192.2193.2#018-1040-00
Light Plug
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
192.4193.3#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
192.5193.4#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
192.6193.5#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
192.7193.6#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
192.8193.7#079-3461-00
2023 Control Panel--Orange
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
192.9193.9#091-4072-00
2023 Control Panel Decal
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
193.8#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
196#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
196.1#086-1202-01
2019 Relay Cap Kit
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
196.2#086-1202-19
2019 Relay Terminal
Qty Used: 4Regular price $23.34 USDRegular priceUnit price per
