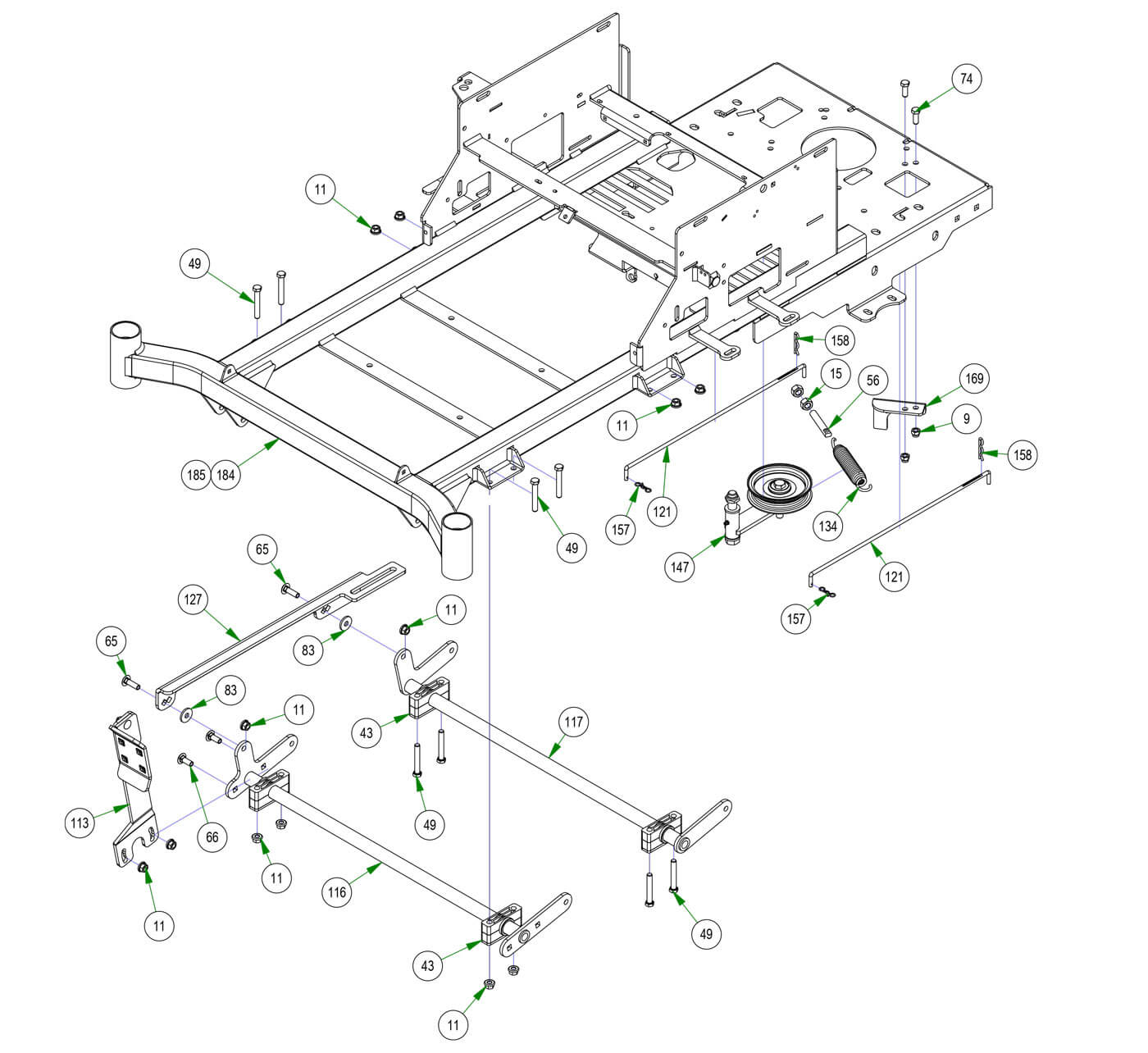

Lower Frame
Parts Index
- 9 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 11 3/8 Nylock Flange Nut (Qty 12)
- 15 1/2-13 Hex Nuts Zinc (Qty 2)
- 43 Pillow Block (Qty 4)
- 49 3/8x2 1/2" Hex Bolt (Qty 8)
- 56 All Thread (Qty 1)
- 65 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 66 3/8 x 1 Carriage Bolt (Qty 2)
- 74 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 83 .390 ID Plastic Washer (Qty 2)
- 113 2017 MZ Foot Pedal Assembly (Qty 1)
- 116 Actuator Bar (Front) (Qty 1)
- 117 Actuator Bar (Rear) (Qty 1)
- 121 Neutral Rod (Qty 2)
- 127 2017 MZ/ZT Actuator Linkage--Orange (Qty 1)
- 134 2015 Deck Idler Spring (Qty 1)
- 147 Pump Idler Bracket Assembly-ZT, MZ, Aven, Raider (Qty 1)
- 157 Bow Pin (Qty 2)
- 158 Neutral Rod Clip (Qty 2)
- 169 Clutch Stop (Qty 1)
-
9#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
11#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 12Regular price $1.49 USDRegular priceUnit price per
-
15#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
43#017-9076-00
Pillow Block
Qty Used: 4Regular price $21.88 USDRegular priceUnit price per
-
49#018-0028-00
3/8x2 1/2" Hex Bolt
Qty Used: 8Regular price $3.99 USDRegular priceUnit price per
-
56#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
65#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
66#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
74#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
83#019-2073-00
.390 ID Plastic Washer
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
113#026-0019-01
2017 MZ Foot Pedal Assembly
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
116#028-0002-00
Actuator Bar (Front)
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
117#028-0003-00
Actuator Bar (Rear)
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
121#028-0070-00
Neutral Rod
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
127#031-0510-00
2017 MZ/ZT Actuator Linkage--Orange
Qty Used: 1Regular price $43.78 USDRegular priceUnit price per
-
134#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
147#039-5944-01
Pump Idler Bracket Assembly-ZT/MZ/Compact Outlaw
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
-
158#044-2008-00
Neutral Rod Clip
Qty Used: 2Regular price $1.31 USDRegular priceUnit price per
-
169#057-5900-00
Clutch Stop
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
