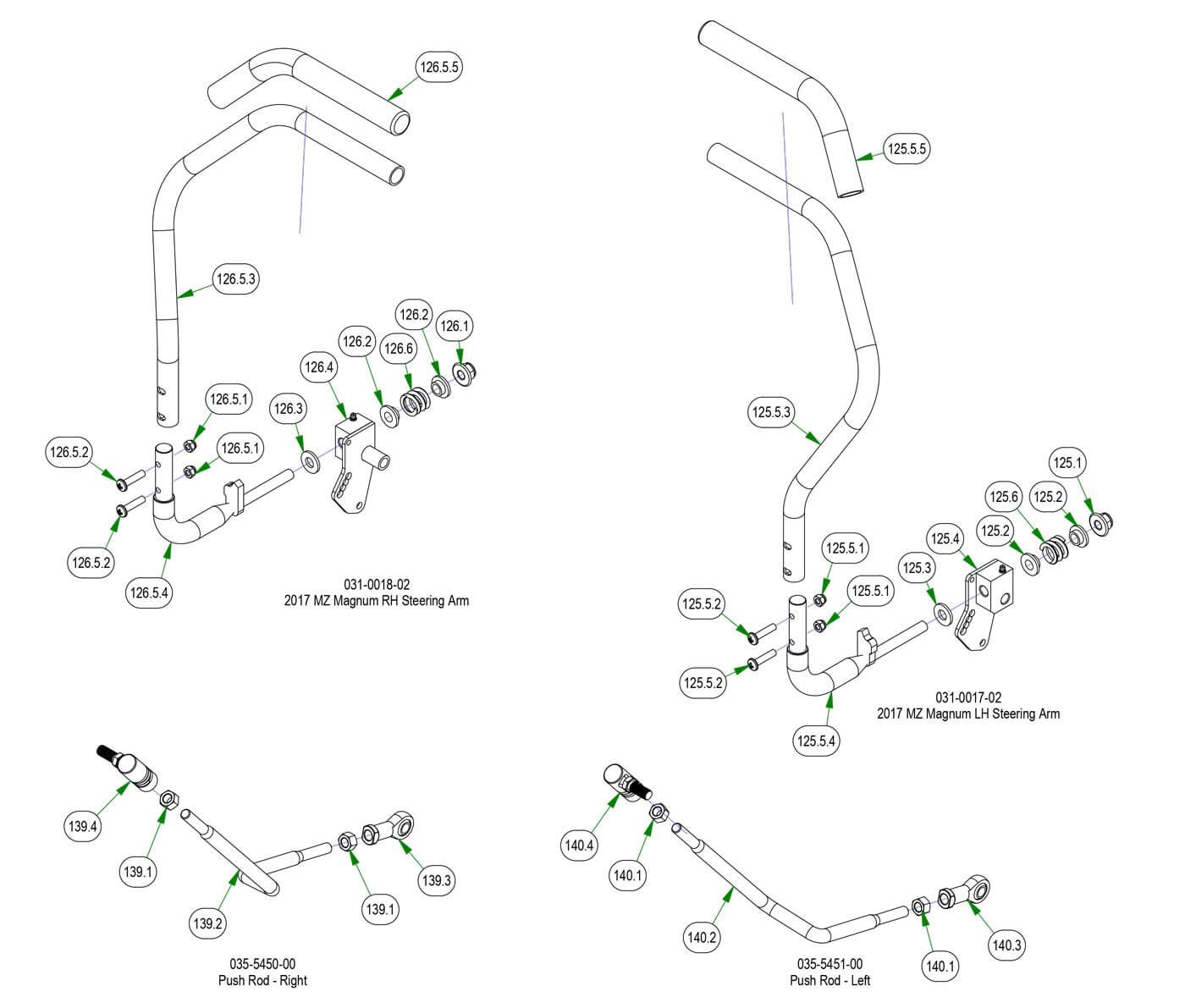

Drive Arm Subassemblies
Parts Index
- 125 2017 MZ Magnum LH Steering Arm (Qty 1)
- 125.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 125.2 .515 ID Plastic Shoulder Washer (Qty 2)
- 125.3 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 125.4 Drive Lever Housing LH (Qty 1)
- 125.5 Orange ZT Steering Arm Left- (Qty 1)
- 125.5.1 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 125.5.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 2)
- 125.5.3 Steering Arm Left - 5" Tubing (Qty 1)
- 125.5.4 Steering Arm Elbow- Left (Qty 1)
- 125.5.5 Black Steering Grip (Qty 1)
- 125.6 Drive Lever Housing Spring (Qty 1)
- 126 2017 MZ Magnum RH Steering Arm (Qty 1)
- 126.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 126.2 .515 ID Plastic Shoulder Washer (Qty 2)
- 126.3 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 126.4 Drive Lever Housing RH (Qty 1)
- 126.5 Orange ZT Steering Arm-Right (Qty 1)
- 126.5.1 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 126.5.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 2)
- 126.5.3 Steering Arm Right - 5" Tubing (Qty 1)
- 126.5.4 Steering Arm Elbow - Right (Qty 1)
- 126.5.5 Black Steering Grip (Qty 1)
- 126.6 Drive Lever Housing Spring (Qty 1)
- 139 Push Rod RH (Assembly) (Qty 1)
- 139.1 3/8-24 Hex Nut Zinc (Qty 2)
- 139.3 Spherical Rod End (Qty 1)
- 139.4 Quick Release Ball Joint (Qty 1)
- 140 Push Rod LH (Assembly) (Qty 1)
- 140.1 3/8-24 Hex Nut Zinc (Qty 2)
- 140.3 Spherical Rod End (Qty 1)
- 140.4 Quick Release Ball Joint (Qty 1)
-

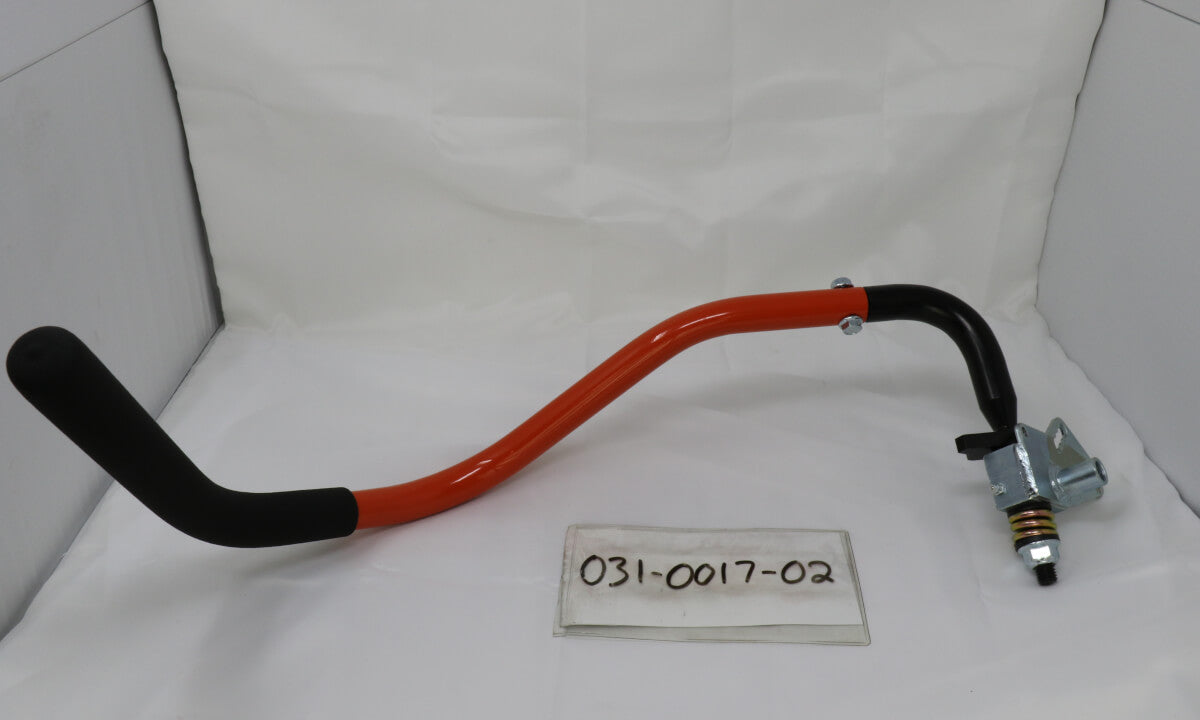

125#031-0017-02
2017 MZ Magnum LH Steering Arm
Qty Used: 1Regular price $144.59 USDRegular priceUnit price per
-
125.1126.1#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
125.2126.2#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
125.3126.3#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
125.4#031-0017-98
Drive Lever Housing LH
Qty Used: 1Regular price $29.19 USDRegular priceUnit price per
-
125.5#031-8850-70
Black ZT Steering Arm Left-
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
-
125.5.1126.5.1#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
125.5.2126.5.2#018-2020-18
5/16-18 x 1 3/8\" Button Head Torx Drive Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
125.5.3#031-8850-02
Steering Arm Left - 5" Tubing
Qty Used: 1Regular price $79.55 USDRegular priceUnit price per
-
125.5.4#031-9020-70
Steering Arm Elbow- Left
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
125.5.5126.5.5#069-4010-00
Black Steering Grip
Qty Used: 1Regular price $7.38 USDRegular priceUnit price per
-
125.6126.6#034-8025-00
Drive Lever Housing Spring
Qty Used: 1Regular price $3.70 USDRegular priceUnit price per
-

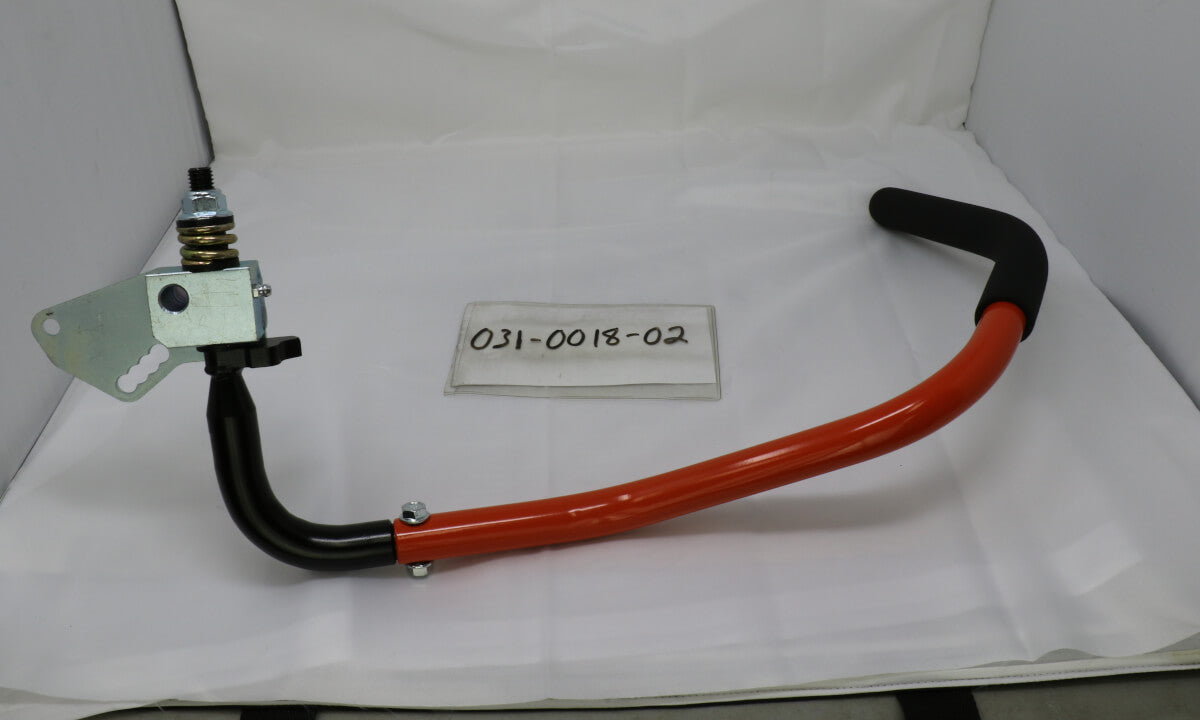

126#031-0018-02
2017 MZ Magnum RH Steering Arm
Qty Used: 1Regular price $144.59 USDRegular priceUnit price per
-
126.4#031-0018-98
Drive Lever Housing RH
Qty Used: 1Regular price $21.89 USDRegular priceUnit price per
-
126.5#031-8851-70
Black ZT Steering Arm-Right
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
-
126.5.3#031-8851-02
Steering Arm Right - 5" Tubing
Qty Used: 1Regular price $79.55 USDRegular priceUnit price per
-
126.5.4#031-9025-70
Steering Arm Elbow - Right
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
139#035-5450-00
Push Rod RH (Assembly)
Qty Used: 1Regular price $31.73 USDRegular priceUnit price per
-
139.1140.1#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
139.3140.3#048-3000-00
Spherical Rod End-Outlaw Only
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
139.4140.4#099-2009-00
Quick Release Ball Joint
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
140#035-5451-00
Push Rod LH (Assembly)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
