19HP Briggs

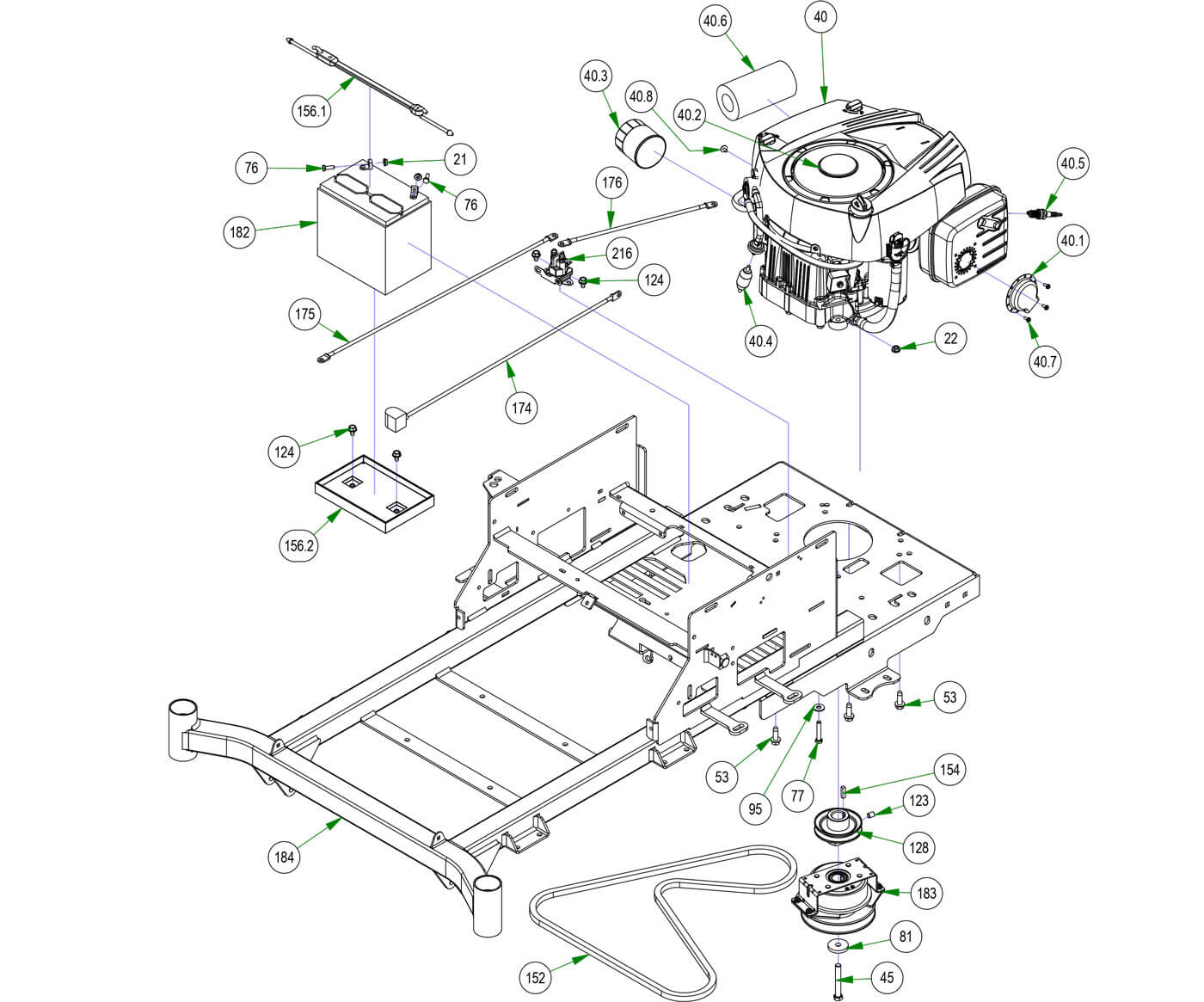

Parts Index
- 21 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 22 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 40 19 HP Briggs Engine (Qty 1)
- 40.1 Muffler Deflector (Qty 1)
- 40.2 Briggs 19HP Rotating Screen (Qty 1)
- 40.3 Briggs Oil Filter (Qty 1)
- 40.4 Universal Inline Fuel Filter (Qty 1)
- 40.5 Spark Plug-Kohler/Briggs (Qty 1)
- 40.6 19/21 HP Briggs Air Filter and (Qty 1)
- 40.7 Muffler Deflector Screws (Qty 1)
- 45 7/16-20x3” Hex Bolt GR 8 W/ Patch (Qty 1)
- 53 3/8 x 1 1/8 Engine Mounting Bolt (Qty 3)
- 76 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 77 5/16-18x1-3/4 GR 5 Hex Bolts (Qty 1)
- 81 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
- 95 5/16 USS Flat Washer Zinc (Qty 1)
- 123 3/8-16x1/2 Socket Set Cup Point (Qty 1)
- 124 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 4)
- 128 3 3/4 Motor Pulley-2009 MZ (Qty 1)
- 152 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 154 1/4 x 1 Square Key (Qty 1)
- 156 2023 Battery Hold Down Assembly (Qty 1)
- 156.1 2023 Rubber Battery Hold Down Strap (Qty 1)
- 156.2 2023 Battery Tray Only (Qty 1)
- 165 Rambler Choke Cable (Qty 1)
- 174 24 inch Black Cable - MZ/ZT (Qty 1)
- 175 24 Red Battery Cable (Qty 1)
- 176 14" Red Battery Cable (Qty 1)
- 182 Battery - All models except Renegade and Revolt (Qty 1)
- 183 Clutch For 1" Shaft (Qty 1)
- 216 Solenoid (752-1251-210HP) (Qty 1)
-
21#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
22#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
40#015-1923-00
19 HP Briggs Engine
Qty Used: 1Regular price $1,699.99 USDRegular priceUnit price per
-
40.1#015-1923-03
Muffler Deflector
Qty Used: 1Regular price $3.19 USDRegular priceUnit price per
-
40.3#063-8018-00
Briggs Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
40.4#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
40.5#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
40.6#063-4026-00
19/21 HP Briggs Air Filter and
Qty Used: 1Regular price $36.49 USDRegular priceUnit price per
-
40.7#015-1923-04
Muffler Deflector Screws
Qty Used: 1Regular price $0.29 USDRegular priceUnit price per
-
45#018-0007-21
7/16-20x3” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
53#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 3Regular price $1.39 USDRegular priceUnit price per
-
76#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
77#018-8059-00
5/16-18x1-3/4 GR 5 Hex Bolts
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
81#019-0010-00
7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
Qty Used: 1Regular price $5.39 USDRegular priceUnit price per
-
95#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
123#030-6029-00
3/8-16x1/2 Socket Set Cup Point
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
124#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
128#033-2010-00
3 3/4 Motor Pulley-2009 MZ
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
152#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
154#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
156#043-8930-98
2023 Battery Hold Down Assembly
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
156.1#043-8930-00
2023 Rubber Battery Hold Down Strap
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
156.2#043-8931-00
2023 Battery Tray Only
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
165#054-8016-00
Choke-Lightning/AOS/Pup/MZ KAW
Qty Used: 1Regular price $26.99 USDRegular priceUnit price per
-
174#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
175#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
176#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
182#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
183#070-0055-00
Clutch For 1\" Shaft
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
216#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
