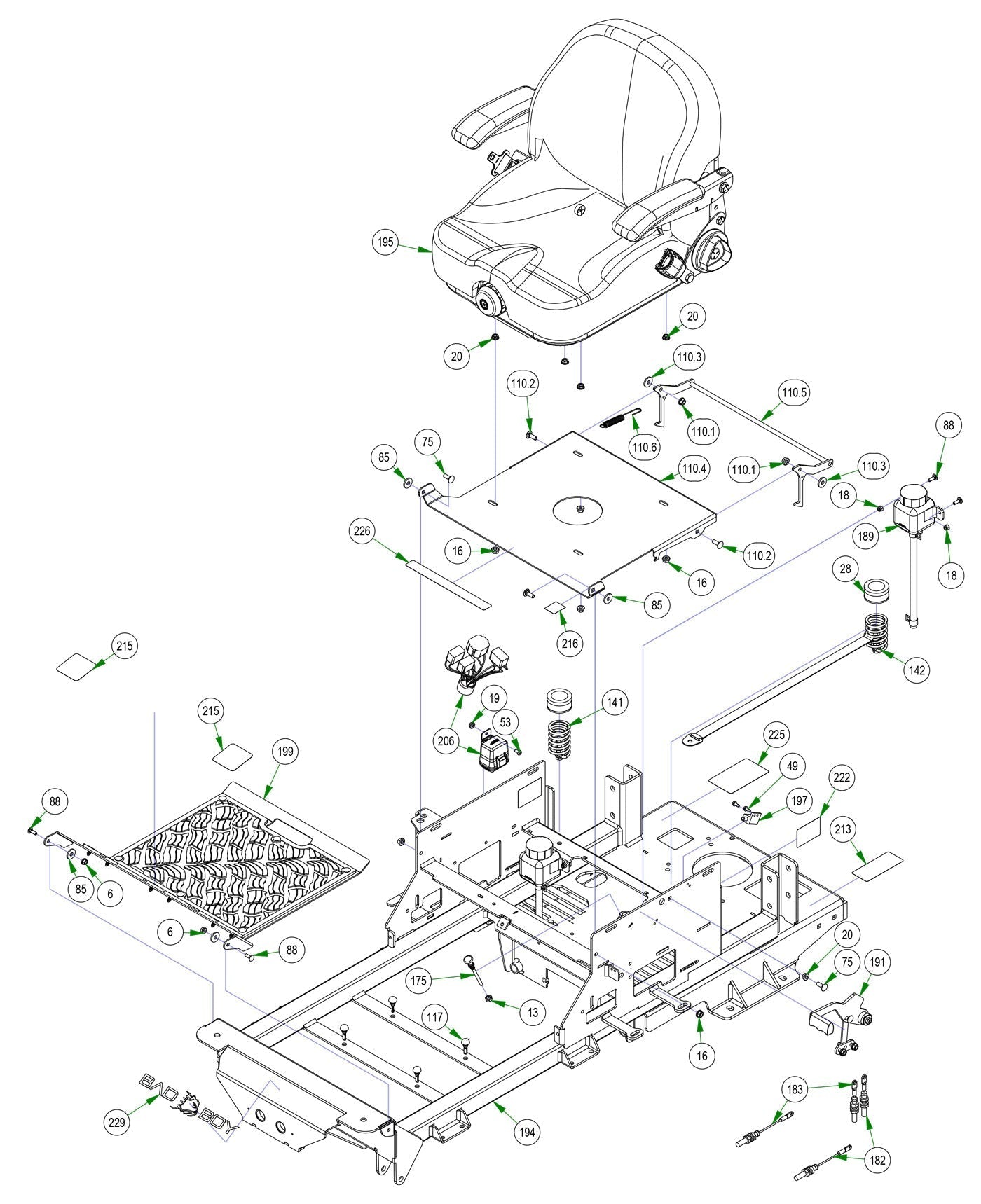

Upper Frame
Parts Index
- 6 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 13 3/8-24 Hex Nut Zinc (Qty 1)
- 16 5/16-18 Nylon Flange Nut (Qty 6)
- 18 1/4-20 Nylon Insert Locknut Zi (Qty 4)
- 19 1/4-20 Hex Flange Nuts Zinc w/ (Qty 1)
- 20 5/16-18 Hex Flange Nuts Zinc w (Qty 5)
- 28 Seat Spring Cap Cover (Qty 2)
- 49 12-24 x 1/2 HWH Bolt (Qty 2)
- 53 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 1)
- 75 5/16 x 7/8 Carriage Bolt (Qty 3)
- 85 .360 ID Plastic Washer (Qty 4)
- 88 1/4 x 3/4 Carriage Bolt (Qty 6)
- 107 2022 Maverick Rear Cover Assembly (Qty 1)
- 110.1 5/16-18 Nylon Flange Nut (Qty 2)
- 110.2 5/16 x 7/8 Carriage Bolt (Qty 2)
- 110.3 .360 ID Plastic Washer (Qty 2)
- 110.4 Seat Plate 2016--Orange (Qty 1)
- 110.5 Seat Latch Rod (Qty 1)
- 110.6 Brake Spring (Qty 1)
- 117 2023 Floor Board Rubber Bumpers (Qty 4)
- 141 2017 MZ/ZT Seat Spring Assembly (Qty 1)
- 142 2022 Mav/HD Seat Spring Assembly with Strap (Qty 1)
- 175 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 182 2021 Load Balanced Brake Cable 1 (Qty 1)
- 183 2021 Load Balanced Brake Cable 2 (Qty 1)
- 189 2017 ZT Hydro Tank Assembly (Qty 2)
- 191 Brake Handle Assembly For HD Down (Qty 1)
- 194 2023 Maverick Frame--Orange (Qty 1)
- 195 2022 Seats Inc Suspension Seat with seatbelt (Qty 1)
- 197 Safety Switch (Qty 1)
- 199 2021 Maverick Floorboard Assembly (Qty 1)
- 206 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 213 2023 EPA Build Date Punch Decal (Qty 1)
- 215 ZT, Mav, HD Steering Control Decals (Qty 1)
- 216 MZ, ZT, Aven, Mav, HD Brake Decal (Qty 1)
- 222 Yellow Hydraulic Decal (Qty 2)
- 225 Maverick Pump Belt Decal (Qty 1)
- 226 Long Seat Plate Warning Decal (Qty 1)
- 229 Flying Bulldog Front Bumper Decal (Qty 1)
-
6#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
13#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
16110.1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
18#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
19#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
20#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
28#014-8047-00
Seat Spring Cap Cover
Qty Used: 2Regular price $8.12 USDRegular priceUnit price per
-
49#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
53#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
75110.2#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
85110.3#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
88#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 6Regular price $1.49 USDRegular priceUnit price per
-
107#026-0205-22
2022 Maverick Rear Cover Assembly
Qty Used: 1Regular price $159.99 USDRegular priceUnit price per
-
110.4#026-1016-00
Seat Plate 2016--Orange
Qty Used: 1Regular price $102.11 USDRegular priceUnit price per
-
110.5#028-0090-00
Seat Latch Rod
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
110.6#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
117#029-4011-00
2023 Floor Board Rubber Bumpers
Qty Used: 4Regular price $1.09 USDRegular priceUnit price per
-
141#034-8045-03
2017 MZ/ZT Seat Spring Assembly
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
142#034-8045-22
2022 Mav/HD seat spring assembly with strap
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
175#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
182#064-3050-21
2021 Load Balanced Brake Cable 1
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
183#064-3051-21
2021 Load Balanced Brake Cable 2
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
189#067-8090-03
2017 ZT Hydro Tank Assembly
Qty Used: 2Regular price $39.68 USDRegular priceUnit price per
-
191#069-1051-21
Load Balanced Brake Handle Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
195#071-6065-22
2022 Seats Inc Suspension Seat with seatbelt
Qty Used: 1Regular price $829.99 USDRegular priceUnit price per
-
197#077-8073-00
Safety Switch
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
199#079-3470-21
2021 Maverick Floorboard Assembly
Qty Used: 1Regular price $129.99 USDRegular priceUnit price per
-
206#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
213#091-0015-23
2023 EPA Build Date Punch Decal
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
215#091-0021-00
2018 Maverick Steering Control Decals
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
216#091-0339-18
2018 MZ/Magnum/ZT/MAV/Comp Out Brake Decal
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
222#091-1020-00
Yellow Hydraulic Decal
Qty Used: 2Regular price $1.46 USDRegular priceUnit price per
-
225#091-3017-50
Maverick Pump Belt Decal
Qty Used: 1Regular price $4.39 USDRegular priceUnit price per
-
226#091-3150-00
Outlaw Warning Decal
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
229#091-4063-00
Flying Bulldog Front Bumper Decal
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
