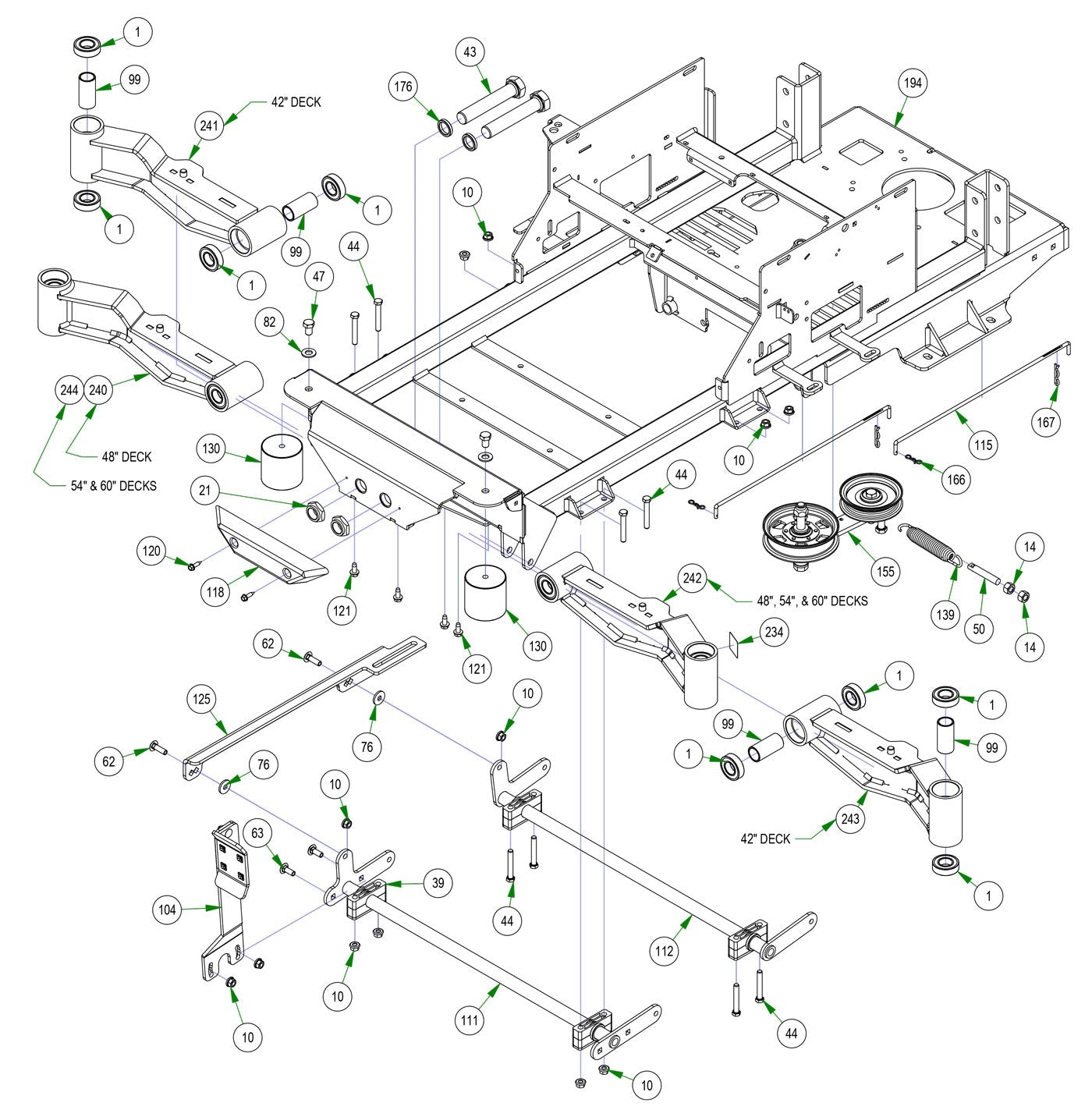

Lower Frame
Parts Index
- 1 Caster Bearing (Qty 8)
- 10 3/8 Nylock Flange Nut (Qty 12)
- 14 1/2-13 Hex Nuts Zinc (Qty 2)
- 21 1" Nylock Nut 1/2 Nut - Fine (Qty 2)
- 39 Pillow Block (Qty 4)
- 43 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 2)
- 44 3/8x2 1/2" Hex Bolt (Qty 8)
- 47 1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc (Qty 2)
- 50 All Thread (Qty 1)
- 62 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 63 3/8 x 1 Carriage Bolt (Qty 2)
- 76 .390 ID Plastic Washer (Qty 2)
- 82 1/2 SAE Flat Washer GR 8 (Qty 2)
- 99 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 4)
- 104 2017 MZ Foot Pedal Assembly (Qty 1)
- 111 Actuator Bar (Front) (Qty 1)
- 112 Actuator Bar (Rear) (Qty 1)
- 115 Neutral Rod (Qty 2)
- 118 ZT, Mav, HD, Revolt Front Bumper (Qty 1)
- 120 1/4 x 1 Hex Head Tek Screw (Qty 2)
- 121 5/16 x 3/4 Hex Washer Type F (Qty 4)
- 125 2017 MZ/ZT Actuator Linkage--Orange (Qty 1)
- 130 Isolator (Red Dot) (Qty 2)
- 139 2015 Deck Idler Spring (Qty 1)
- 155 Pump Idler Bracket Assy-Maverick (Qty 1)
- 166 Bow Pin (Qty 2)
- 167 Neutral Rod Clip (Qty 2)
- 176 Spacer ( Front Fork and Suspension ) (Qty 2)
- 194 2023 Maverick Frame--Orange (Qty 1)
- 234 Independently Articulating Front Suspension Arms (Qty 1)
- 240 2021 Maverick RH Arm Assembly (Qty 1)
- 242 2021 Maverick LH Front Suspenson Arm Assy (Qty 1)
- 244 2021 Maverick RH Long Front Suspension Arm Assy (Qty 1)
-
1#010-1050-00
Caster Bearing
Qty Used: 8Regular price $17.19 USDRegular priceUnit price per
-
10#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 12Regular price $1.49 USDRegular priceUnit price per
-
14#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
21#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
39#017-9076-00
Pillow Block
Qty Used: 4Regular price $21.88 USDRegular priceUnit price per
-
43#018-0026-00
1-14 X 5 1/2 BOLT GR 8 ZC YELLOW
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
44#018-0028-00
3/8x2 1/2" Hex Bolt
Qty Used: 8Regular price $3.99 USDRegular priceUnit price per
-
47#018-1055-00
1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
50#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
62#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
63#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
76#019-2073-00
.390 ID Plastic Washer
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
82#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 2Regular price $0.75 USDRegular priceUnit price per
-
99#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 4Regular price $13.12 USDRegular priceUnit price per
-
104#026-0019-01
2017 MZ Foot Pedal Assembly
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
111#028-0002-00
Actuator Bar (Front)
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
112#028-0003-00
Actuator Bar (Rear)
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
115#028-0070-00
Neutral Rod
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
-
120#030-7040-00
1/4 x 1 Hex Head Tek Screw
Qty Used: 2Regular price $1.00 USDRegular priceUnit price per
-
121#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
125#031-0510-00
2017 MZ/ZT Actuator Linkage--Orange
Qty Used: 1Regular price $43.78 USDRegular priceUnit price per
-
130#032-9002-00
Isolator (Red Dot)
Qty Used: 2Regular price $66.33 USDRegular priceUnit price per
-
139#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
155#039-5944-05
Pump Idler Bracket Assy-Maverick
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
-
167#044-2008-00
Neutral Rod Clip
Qty Used: 2Regular price $1.31 USDRegular priceUnit price per
-
176#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
234#091-8002-00
Independently Articulating Front Suspension Arms
Qty Used: 1Regular price $4.99 USDRegular priceUnit price per
-
240#250-2751-21
2021 Maverick RH Arm Assembly
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
242#250-2801-21
2021 Maverick LH Front Suspenson Arm Assy
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
244#250-2851-21
2021 Maverick RH Long Front Suspension Arm Assy
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
