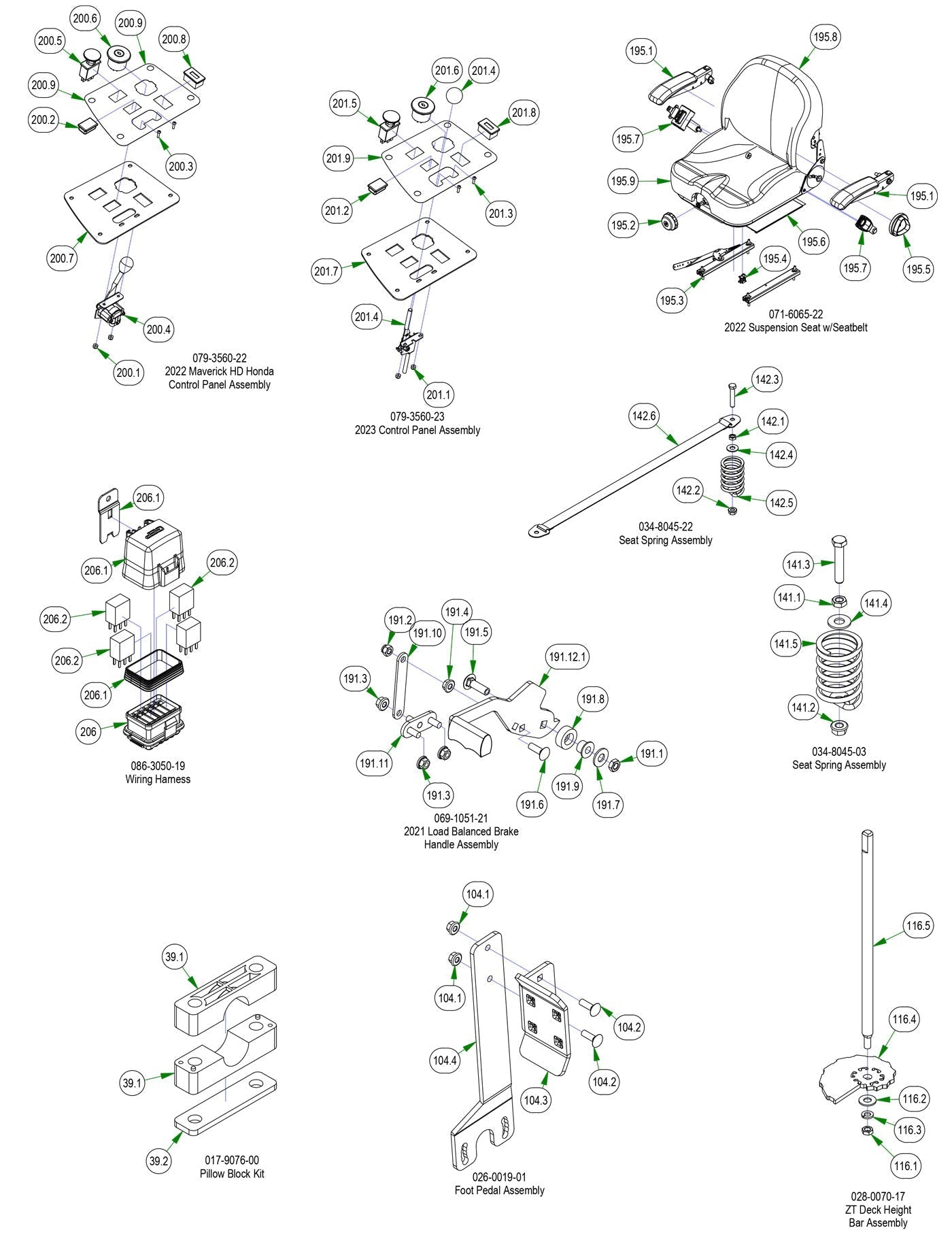

Frame Subassemblies - Seat, Control Panel, etc
Parts Index
- 39 Pillow Block (Qty 4)
- 39.1 2017 Magnum Pillow Block-Male (Qty 2)
- 39.2 2017 Magnum Pillow Block-Metal Plate (Qty 1)
- 59 5/16-18 X 1-1/4 Carriage Bolt (Qty 12)
- 104 2017 MZ Foot Pedal Assembly (Qty 1)
- 104.1 5/16-18 Nylon Flange Nut (Qty 2)
- 104.2 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 104.3 Foot Pedal--Orange (Qty 1)
- 104.4 2017 MZ/ZT Deck Pedal Lever--Orange (Qty 1)
- 108 2023 4' & 5' Striping Kit Plate--Orange (Qty 4)
- 116 2017 ZT Deck Height Bar Assy. (Qty 1)
- 116.1 3/8-24 Hex Nut Zinc (Qty 1)
- 116.2 3/8 USS Flat Washer Zinc (Qty 1)
- 116.3 3/8 Lockwasher Zinc (Qty 1)
- 116.4 Deck Height Cam Plate (Qty 1)
- 116.5 2017 Deck Height Dial Rod ZT (Qty 1)
- 141 2017 MZ/ZT Seat Spring Assembly (Qty 1)
- 141.1 3/8-16 Half Jam Nut (Qty 1)
- 141.2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 141.3 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 141.4 3/8 USS Flat Washer Zinc (Qty 1)
- 141.5 Seat Spring (Qty 1)
- 142 2022 Mav/HD Seat Spring Assembly with Strap (Qty 1)
- 142.1 3/8-16 Half Jam Nut (Qty 1)
- 142.2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 142.3 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 142.4 3/8 USS Flat Washer Zinc (Qty 1)
- 142.5 Seat Spring (Qty 1)
- 142.6 Seat Strap with Buckles (Qty 1)
- 191 Brake Handle Assembly For HD Down (Qty 1)
- 191.1 3/8-16 Centerlock Half Nut (Qty 1)
- 191.2 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap) (Qty 1)
- 191.3 5/16-18 Nylon Flange Nut (Qty 1)
- 191.4 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 191.5 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 191.6 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 191.7 3/8 USS Flat Washer Zinc (Qty 1)
- 191.8 Brake Lever Spacer (Qty 1)
- 191.9 Bronze Bushing SF-1220-8 (Qty 1)
- 191.10 Brake Cable Extension Plate (Qty 1)
- 191.12 Load Balanced Brake Handle With Grip (Qty 1)
- 191.12.2 Brake Handle Rubber (Qty 1)
- 195 2022 Seats Inc Suspension Seat with seatbelt (Qty 1)
- 195.1 Arm Kit for 071-6065-00/071-6065-22 (Qty 1)
- 195.2 Weight Adjustment Knob for 071-6065-00/071-6065-22 (Qty 1)
- 195.3 SEAT RAILS for 071-6065-00/071-6065-22 (Qty 1)
- 195.4 Seat Switch for 071-6065-00/071-6065-22 (Qty 1)
- 195.5 Recliner Adjust Knob for 071-6065-00/71-6065-22 (Qty 1)
- 195.6 Bellows w/Hardware for 071-6065-22 (Qty 1)
- 195.7 OBSOLETE USE 071-6063-00 (Qty 1)
- 195.8 Back Cover for I3M - Recl - Logos for 071-6065-22 (Qty 1)
- 195.9 Cushion Cover Kit for I3M - Logo for 071-6065-22 (Qty 1)
- 200.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 200.2 Light Plug (Qty 1)
- 200.3 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 200.4 Honda Drive By wire Throttle (Qty 1)
- 200.5 PTO Engager-Switch for Blades (Qty 1)
- 200.6 Ignition Switch (Qty 1)
- 200.7 2023 Control Panel--Orange (Qty 1)
- 200.8 Tachometer-N310-0100-1018 (Qty 1)
- 200.9 2023 Control Panel Decal (Qty 1)
- 201.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 201.2 Light Plug (Qty 1)
- 201.3 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 201.4 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 201.5 PTO Engager-Switch for Blades (Qty 1)
- 201.6 Ignition Switch (Qty 1)
- 201.7 2023 Control Panel--Orange (Qty 1)
- 201.8 Tachometer-N310-0100-1018 (Qty 1)
- 201.9 2023 Control Panel Decal (Qty 1)
- 206 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 206.1 2019 Relay Cap Kit (Qty 1)
- 206.2 2019 Relay Terminal (Qty 4)
- 202 2023 ZT Stripe Kit Rubber (Qty 4)
-
