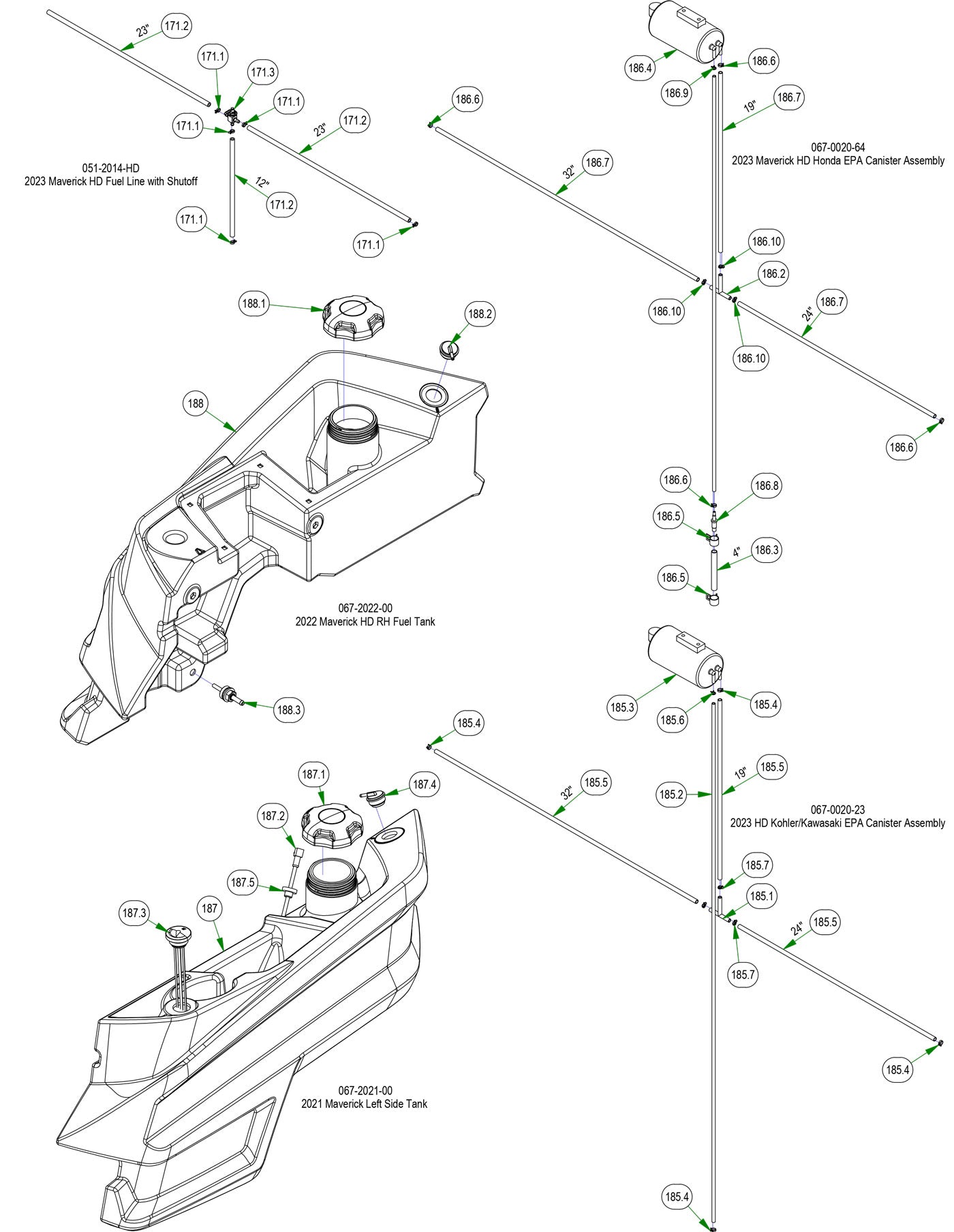

Frame Sub Assemblies - Fuel Line, Fuel Tank, etc.
Parts Index
- 59 5/16-18 X 1-1/4 Carriage Bolt (Qty 12)
- 108 2023 4' & 5' Striping Kit Plate--Orange (Qty 4)
- 171.1 1/4 Fuel Line Clamp (Qty 5)
- 171.2 1/4 Fuel Line Hose PRICED/FOOT (Qty 4)
- 171.3 3 Way Shut-Off Valve 1/4x1/4x1/4 (Qty 1)
- 185.1 Fuel Line T (Qty 1)
- 185.2 3/16 Vinyl 55" EPA Line (Qty 1)
- 185.3 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 185.4 MZ Tank Hose Clamp 1/4 Vinyl (Qty 4)
- 185.5 1/4" Vinyl Tubing - Black per foot (Qty 6)
- 185.6 5.5 mm Vinyl Hose Clamp (Qty 1)
- 186.1 44" x 3/16" black hose (Qty 1)
- 186.2 Fuel Line T (Qty 1)
- 186.3 3/8" Black PVC Tubing (Qty 1)
- 186.4 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 186.5 3/8 Hose Clamp - CTB-16-STFS (Qty 2)
- 186.6 MZ Tank Hose Clamp 1/4 Vinyl (Qty 4)
- 186.7 1/4" Vinyl Tubing - Black per foot (Qty 6)
- 186.8 3/8 - 1/4 Nylon Reducer (Qty 1)
- 186.9 5.5 mm Vinyl Hose Clamp (Qty 1)
- 187 2021 Maverick Left Side Tank (Qty 1)
- 187.1 3.5" Tethered Fuel Cap (Qty 1)
- 187.2 Fuel Line Pickup Tube for ZT (Qty 1)
- 187.3 Fuel Gauge w/ Grommet (Qty 1)
- 187.4 Rollover Valve and Grommet New (Qty 1)
- 187.5 Grommet for ZT Elite Fuel Line (Qty 1)
- 188 2022 Maverick HD RH Fuel Tank (Qty 1)
- 188.1 3.5" Tethered Fuel Cap (Qty 1)
- 188.2 Rollover Valve and Grommet New (Qty 1)
- 188.3 Fuel Pickup for 067-2022-00 (Maverick HD RH Fuel) (Qty 1)
- 202 2023 ZT Stripe Kit Rubber (Qty 4)
-
59#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 12Regular price $0.69 USDRegular priceUnit price per
-
108#026-0307-00
2023 4' & 5' Striping Kit Plate--Orange
Qty Used: 4Regular price $9.99 USDRegular priceUnit price per
-
171.1#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 5Regular price $0.88 USDRegular priceUnit price per
-
171.2#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 4Regular price $5.83 USDRegular priceUnit price per
-
171.3#067-6059-00
3 Way Shut-Off Valve 1/4x1/4x1/4
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
185.1186.2#073-8068-00
Fuel Line T
Qty Used: 1Regular price $8.82 USDRegular priceUnit price per
-
185.2#051-2025-02
3/16 Vinyl 55" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
185.3186.4#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
185.4186.6#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 4Regular price $1.45 USDRegular priceUnit price per
-
185.5186.7#051-8072-00
1/4" Vinyl Tubing - Black per foot
Qty Used: 6Regular price $2.91 USDRegular priceUnit price per
-
185.6186.9#072-0002-00
5.5 mm Vinyl Hose Clamp
Qty Used: 1Regular price $2.19 USDRegular priceUnit price per
-
186.1#051-2023-02
44" x 3/16" black hose
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
186.3#051-8065-00
3/8" Black PVC Tubing
Qty Used: 1Regular price $6.99 USDRegular priceUnit price per
-
186.5#072-8065-00
3/8 Hose Clamp - CTB-16-STFS
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
186.8#073-8071-00
3/8 - 1/4 Nylon Reducer
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
187#067-2021-00
2021 Maverick Left Side Tank
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
187.1188.1#066-8083-00
3.5" Tethered Fuel Cap
Qty Used: 1Regular price $19.84 USDRegular priceUnit price per
-
187.2#067-0011-00
Fuel Line Pickup Tube for ZT
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
187.3#067-4090-00
Fuel Gauge w/ Grommet
Qty Used: 1Regular price $42.99 USDRegular priceUnit price per
-
187.4188.2#067-6070-00
Rollover Valve and Grommet New
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
187.5#067-6080-00
Grommet for ZT Elite Fuel Line
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
188#067-2022-00
2022 Maverick HD RH Fuel Tank
Qty Used: 1Regular price $449.99 USDRegular priceUnit price per
-
188.3#067-9902-00
Fuel Pickup for 067-2022-00 (Maverick HD RH Fuel)
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
202#084-5006-00
2023 ZT Stripe Kit Rubber
Qty Used: 4Regular price $53.06 USDRegular priceUnit price per
