Engine - Kohler

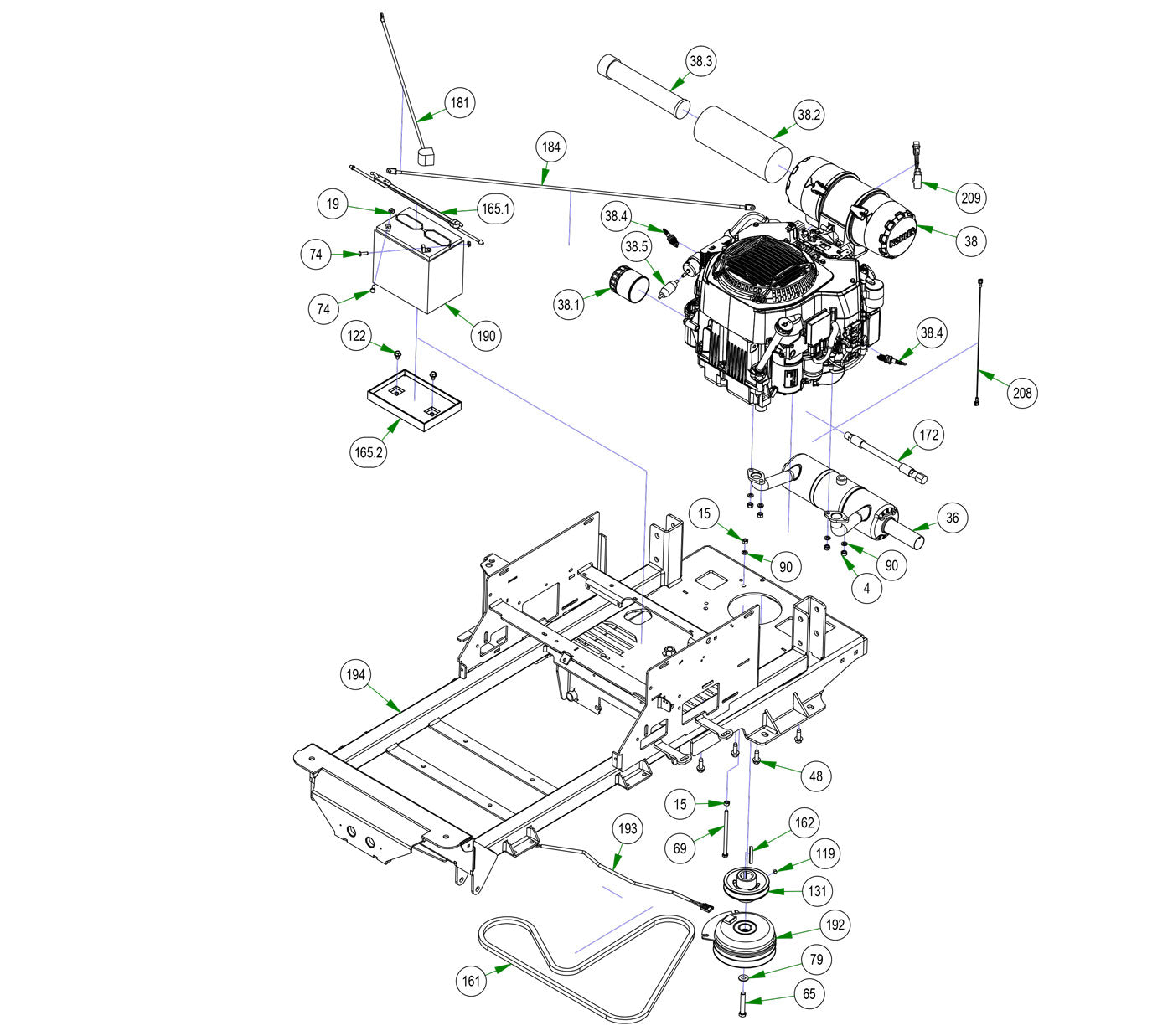

Parts Index
- 4 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 15 5/16-18 Hex Nuts Zinc (Qty 2)
- 19 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 36 2023 ECV749 Maverick HD Muffler (Qty 1)
- 38 Kohler Command 26.5 EFI (Qty 1)
- 38.1 Oil Filter - 27 & 30 Kohler (Qty 1)
- 38.2 Canister Air Fil Outer2010&Old (Qty 1)
- 38.3 Canister Air Filter - Inner (Qty 1)
- 38.4 Spark Plug-Kohler/Briggs (Qty 2)
- 38.5 25/26 HP Koh Fuel Filter ZT/MZ (Qty 1)
- 48 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 65 7/16-20x2.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 69 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 74 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 79 3/8 USS Flat Washer Zinc (Qty 1)
- 119 5/16-24 x 1/4 Set Screw (Qty 1)
- 122 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 2)
- 131 4 3/4 Motor Pulley (Qty 1)
- 161 Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick (Qty 1)
- 162 1/4 X 2 Square Key Stock (Qty 1)
- 165 2023 Battery Hold Down Assembly (Qty 1)
- 165.1 2023 Rubber Battery Hold Down Strap (Qty 1)
- 165.2 2023 Battery Tray Only (Qty 1)
- 172 Kohler Oil Drain Hose (Qty 1)
- 181 24 inch Black Cable - MZ/ZT (Qty 1)
- 184 36 Red Battery Cable (Qty 1)
- 190 Battery - All models except Renegade and Revolt (Qty 1)
- 192 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 193 Clutch Pigtail (Qty 1)
- 194 2023 Maverick Frame--Orange (Qty 1)
- 209 2019 Harness Adaptor-Carbureted Yamaha (Qty 1)
-
4#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
15#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
19#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
36#015-1029-00
2023 ECV749 Maverick HD Muffler
Qty Used: 1Regular price $89.99 USDRegular priceUnit price per
-
38#015-7530-00
Kohler Command 26.5 EFI
Qty Used: 1Regular price $2,699.00 USDRegular priceUnit price per
-
38.1#063-5400-00
Oil Filter - 27 & 30 Kohler
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
38.2#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
38.3#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
38.4#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
38.5#063-5001-00
25/26 HP Koh Fuel Filter ZT/MZ
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
-
48#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
65#018-5300-21
7/16-20x2.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
69#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
74#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
79#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
119#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
122#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
131#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
161#041-7400-00
Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
162#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
165#043-8930-98
2023 Battery Hold Down Assembly
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
165.1#043-8930-00
2023 Rubber Battery Hold Down Strap
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
165.2#043-8931-00
2023 Battery Tray Only
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
172#051-5401-00
Kohler Oil Drain Hose
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
181#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
184#064-8060-00
36 Red Battery Cable
Qty Used: 1Regular price $19.56 USDRegular priceUnit price per
-
190#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
-
193#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
209#086-9008-19
2019 Harness Adaptor-Carbureted Yamaha
Qty Used: 1Regular price $13.19 USDRegular priceUnit price per
