Engine - Honda

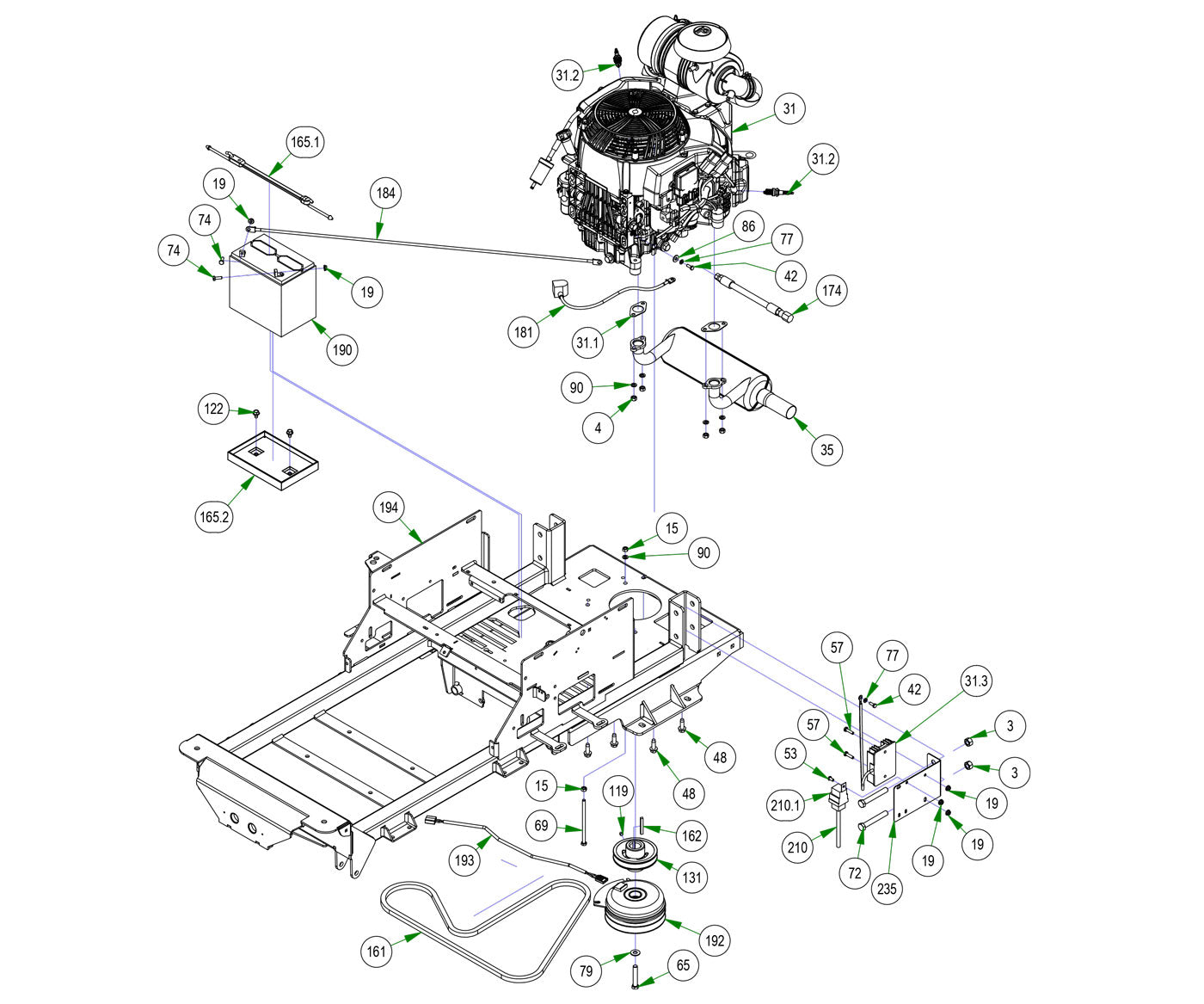

Parts Index
- 3 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 2)
- 4 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 15 5/16-18 Hex Nuts Zinc (Qty 2)
- 19 1/4-20 Hex Flange Nuts Zinc w/ (Qty 5)
- 31 Spark Plug for Honda GXVI 700/800 Only (Qty 1)
- 31.1 Exhaust Gasket for 015-0077-00 (Qty 2)
- 31.2 Spark Plug for the 015-0091-00 (GXV630) (Qty 2)
- 31.3 Regulator Rectifier for Honda (015-0091-00) (Qty 1)
- 35 2019 Honda Maverick Exhaust (Qty 1)
- 42 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 48 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 53 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 1)
- 57 1/4-20 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 65 7/16-20x2.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 69 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 72 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 2)
- 74 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 77 1/4 Lockwasher Zinc (Qty 2)
- 79 3/8 USS Flat Washer Zinc (Qty 1)
- 86 1/4 USS Flat Washer Zinc (Qty 1)
- 90 5/16 Lock washer Zinc (Qty 5)
- 119 5/16-24 x 1/4 Set Screw (Qty 1)
- 122 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 2)
- 131 4 3/4 Motor Pulley (Qty 1)
- 161 Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick (Qty 1)
- 162 1/4 X 2 Square Key Stock (Qty 1)
- 165 2023 Battery Hold Down Assembly (Qty 1)
- 165.1 2023 Rubber Battery Hold Down Strap (Qty 1)
- 165.2 2023 Battery Tray Only (Qty 1)
- 174 2019 Honda Oil Drain (Qty 1)
- 181 24 inch Black Cable - MZ/ZT (Qty 1)
- 184 36 Red Battery Cable (Qty 1)
- 190 Battery - All models except Renegade and Revolt (Qty 1)
- 192 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 193 Clutch Pigtail (Qty 1)
- 194 2023 Maverick Frame--Orange (Qty 1)
- 210.1 2022 Relay for the 086-9019-00 (Qty 1)
- 235 Honda Rectifier Mount--Orange (Qty 1)
-
3#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
4#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
15#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
19#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-

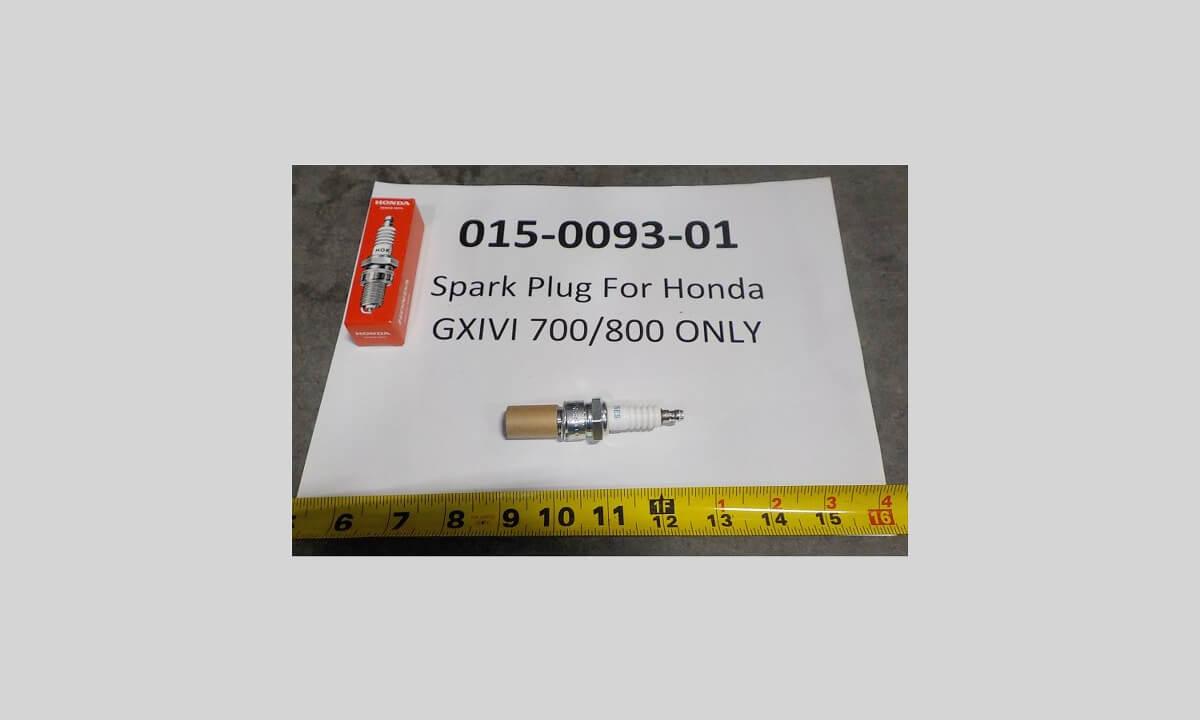

31#015-0093-01
Spark Plug for Honda GXVI 700/800 Only
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
31.1#015-0077-01
Exhaust Gasket for 015-0077-00
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
31.2#015-0091-04
Spark Plug for the 015-0091-00
Qty Used: 2Regular price $10.20 USDRegular priceUnit price per
-
31.3#015-0091-06
Regulator Rectifier for Honda (015-0091-00)
Qty Used: 1Regular price $224.25 USDRegular priceUnit price per
-
35#015-1016-00
2019 Honda Maverick Exhaust
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
42#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
48#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
53#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
57#018-4007-00
1/4-20 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
65#018-5300-21
7/16-20x2.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
69#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
72#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
74#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
77#019-4008-00
1/4 Lockwasher Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
79#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
86#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
90#019-8051-00
5/16 Lock washer Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
119#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
122#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
131#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
161#041-7400-00
Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
162#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
165#043-8930-98
2023 Battery Hold Down Assembly
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
165.1#043-8930-00
2023 Rubber Battery Hold Down Strap
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
165.2#043-8931-00
2023 Battery Tray Only
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
174#051-5405-00
2019 Honda Oil Drain
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
181#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
184#064-8060-00
36 Red Battery Cable
Qty Used: 1Regular price $19.56 USDRegular priceUnit price per
-
190#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
-
193#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
210.1#086-1200-00
2022 Relay for the 086-9019-00
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
235#201-0020-00
Honda Rectifier Mount--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
