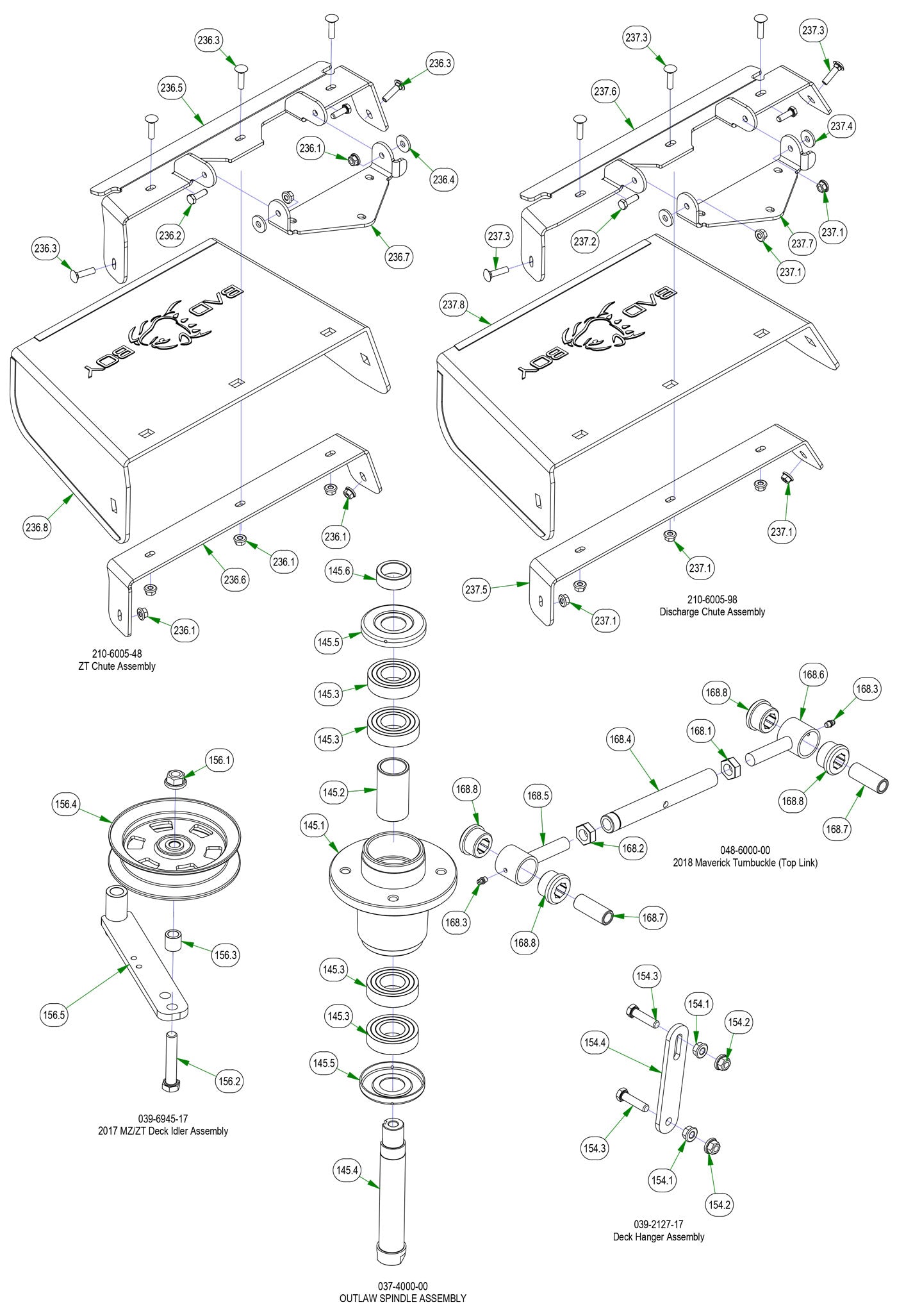

Deck Subassemblies
Parts Index
- 59 5/16-18 X 1-1/4 Carriage Bolt (Qty 3)
- 108 2023 4' & 5' Striping Kit Plate--Orange (Qty 1)
- 145 Commercial Cast Iron Spindle (Qty 3)
- 145.1 2017 Outlaw/XP/Diesel Cast Iron Spindle Housing (Qty 1)
- 145.2 2015 Spindle Spacer (Qty 1)
- 145.3 OBSOLETE USE 037-6029-00 (Qty 4)
- 145.4 Short Spindle Shaft for Locking Collar- No Grooved (Qty 1)
- 145.5 Dust Cover for 037-8000-00 - (Qty 2)
- 145.6 MZ/ZT Deck Hanger Assembly (Qty 1)
- 154 MZ/ZT Deck Hanger Assembly (Qty 4)
- 154.1 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 154.2 3/8 Nylock Flange Nut (Qty 2)
- 154.3 3/8 x 1 1/2 Bolt (Qty 2)
- 154.4 Deck hanger for 039-2127-17 (Qty 1)
- 156 2017 MZ/ZT Deck Idler Assembly (Qty 1)
- 156.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 156.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 156.3 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 156.4 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 156.5 Idler Bracket (Qty 1)
- 168 Toplink (Qty 2)
- 168.1 Nut, 5/8-18 LH (Qty 1)
- 168.2 Nut, 5/8-18 LH (Qty 1)
- 168.3 1/4-28 Threaded Grease Fitting (Qty 2)
- 168.4 2018 Maverick Toplink Body (Qty 1)
- 168.5 2018 Maverick Topllink Bushing Retainer-Left Hand (Qty 1)
- 168.6 2018 Maverick Topllink Bushing Retainer-Right Hand (Qty 1)
- 168.7 2018 Maverick Topllink Bushing Sleeve (Qty 2)
- 168.8 2018 Maverick Topllink Bushing (Qty 4)
- 202 2023 ZT Stripe Kit Rubber (Qty 1)
- 236 2013 48" ZT/Chute Assembly (Qty 1)
- 236.1 5/16-18 Nylon Flange Nut (Qty 7)
- 236.2 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 236.3 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 236.4 .360 ID Plastic Washer (Qty 2)
- 236.5 48/52 Discharge Top Bracket (Qty 1)
- 236.6 48/52 Discharge Lower Bracket (Qty 1)
- 236.7 Discharge Chute Hanger-Deck (Qty 1)
- 236.8 Discharge Chute (Rubber Component) (Qty 1)
- 237 2017 54"/60" ZT/Mav Chute Assembly (Qty 1)
- 237.1 5/16-18 Nylon Flange Nut (Qty 7)
- 237.2 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 237.3 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 237.4 .360 ID Plastic Washer (Qty 2)
- 237.5 60 Discharge Lower Bracket (Qty 1)
- 237.6 60 Discharge Chute Upper (Qty 1)
- 237.7 Discharge Chute Hanger-Deck (Qty 1)
- 237.8 Discharge Chute (Rubber Component) (Qty 1)
-
59236.3237.3#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
108#026-0307-00
2023 4' & 5' Striping Kit Plate--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
145#037-4000-00
Commercial Cast Iron Spindle
Qty Used: 3Regular price $291.91 USDRegular priceUnit price per
-
145.1#037-4000-01
2017 Outlaw/XP/Diesel Cast Iron Spindle Housing
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-
145.2#037-4002-00
2015 Spindle Spacer
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
145.3#037-6023-00
OBSOLETE USE 037-6029-00
Qty Used: 4Regular price $39.79 USDRegular priceUnit price per
-
145.4#037-6026-00
Short Spindle Shaft w/Locking Collar- No Grooved
Qty Used: 1Regular price $78.29 USDRegular priceUnit price per
-
145.5#037-8002-00
Dust Cover for 037-8000-00
Qty Used: 2Regular price $10.99 USDRegular priceUnit price per
-
145.6154#039-2127-17
MZ/ZT Deck Hanger Assembly
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
154.1#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
154.2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
154.3#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
154.4#039-2127-00
OBSOLETE USE 039-2127-17
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
156#039-6945-17
2017 MZ/ZT Deck Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
156.1#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
156.2#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
156.3#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
156.4#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
156.5#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
-
168.1168.2#013-0020-00
Nut, 5/8-18 LH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
168.3#024-0001-00
1/4-28 Threaded Grease Fitting
Qty Used: 2Regular price $0.50 USDRegular priceUnit price per
-
168.4#048-6001-00
2018 Maverick Toplink Body
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
168.5#048-6002-00
2018 Maverick Topllink Bushing Retainer-Left Hand
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
168.6#048-6003-00
2018 Maverick Topllink Bushing Retainer-Right Hand
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
168.7#048-6004-00
2018 Maverick Topllink Bushing Sleeve
Qty Used: 2Regular price $10.55 USDRegular priceUnit price per
-
168.8#048-6005-00
2018 Maverick Topllink Bushing
Qty Used: 4Regular price $29.99 USDRegular priceUnit price per
-
202#084-5006-00
2023 ZT Stripe Kit Rubber
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
236#210-6005-48
2013 48" ZT/Chute Assembly
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
236.1237.1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
236.2237.2#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
236.4237.4#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
236.5#039-4870-00
48/52 Discharge Top Bracket
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-
236.6#039-4871-00
48/52 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
236.7237.7#206-6017-00
Discharge Chute Hanger-Deck
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
236.8237.8#210-6005-00
Discharge Chute (Rubber Component)
Qty Used: 1Regular price $55.99 USDRegular priceUnit price per
-
237#210-6005-98
2017 54"/60" ZT/Mav Chute Assembly
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
237.5#039-4863-00
60 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
237.6#039-4864-00
60 Discharge Chute Upper
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
