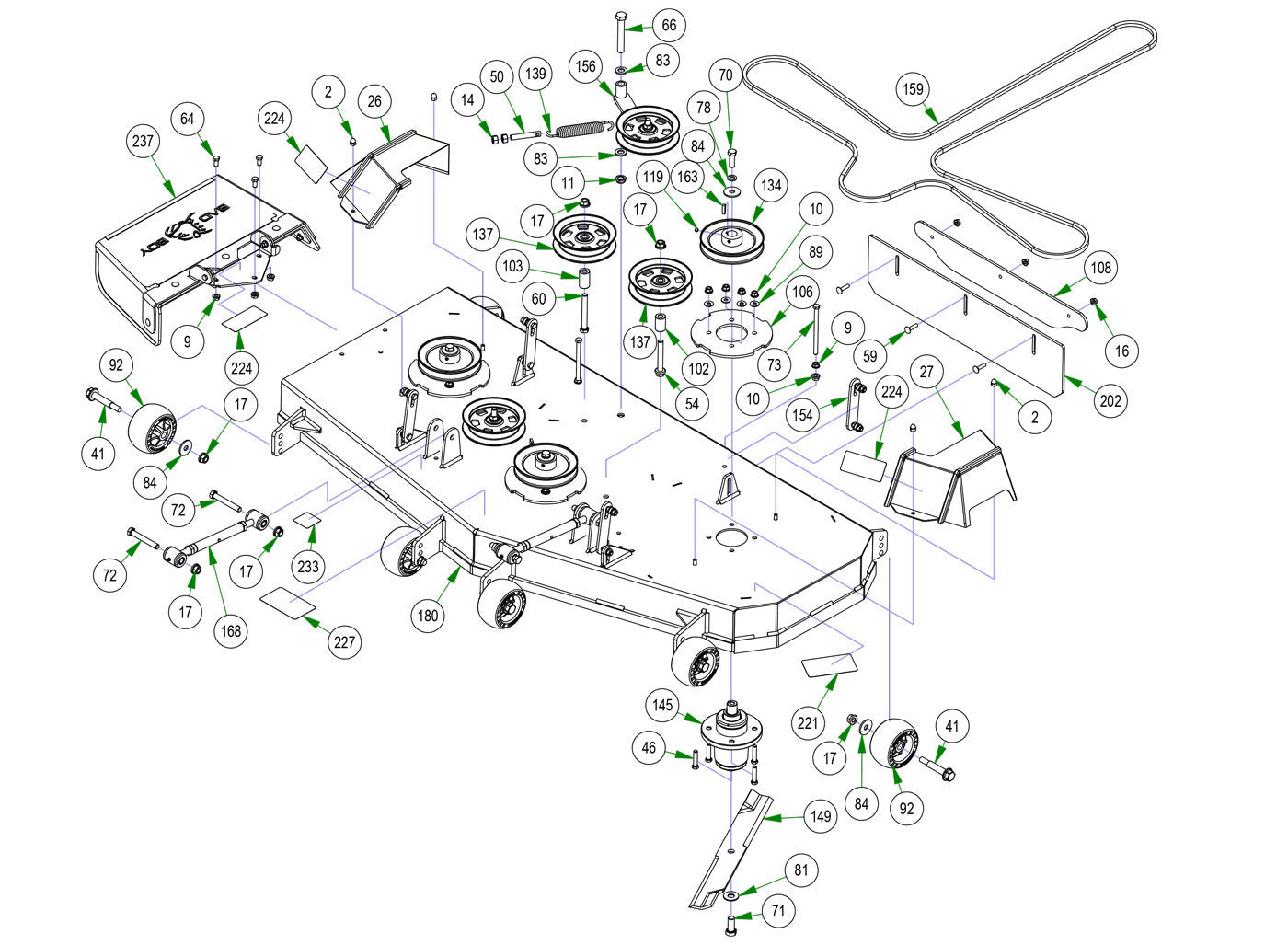

60" Deck Assembly
Parts Index
- 2 Acorn Nut-Pulley Cover (Qty 2)
- 9 3/8-16 Hex Flange Nuts Zinc w/ (Qty 5)
- 10 3/8 Nylock Flange Nut (Qty 14)
- 11 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 14 1/2-13 Hex Nuts Zinc (Qty 2)
- 16 5/16-18 Nylon Flange Nut (Qty 3)
- 17 1/2-13 Nylon Insert Flange Nut (Qty 13)
- 26 RH Pulley Cover 54"/60" (Qty 1)
- 27 LH Pulley Cover 54"/60" (Qty 1)
- 41 Deck Wheel Bolt (Qty 6)
- 46 3/8-16 x 1-3/4 Hex C/S (GR 5) ZC (Qty 12)
- 50 All Thread (Qty 1)
- 54 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 2)
- 59 5/16-18 X 1-1/4 Carriage Bolt (Qty 3)
- 60 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 1)
- 64 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 3)
- 66 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 70 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 71 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 72 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 4)
- 73 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 2)
- 78 1/2 Lockwasher Zinc (Qty 3)
- 81 5/8 Flat Washer (Qty 3)
- 83 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 84 1/2 Belleville Washer #K2000-G (Qty 9)
- 89 5/16 USS Flat Washer Zinc (Qty 12)
- 92 Deck Wheel (Qty 6)
- 102 .502 ID X 1.000 0D X 1.500 (Qty 2)
- 103 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 106 Deck Spindle Support Plate 60"--Orange (Qty 3)
- 108 2023 4' & 5' Striping Kit Plate--Orange (Qty 1)
- 119 5/16-24 x 1/4 Set Screw (Qty 3)
- 134 6 1/4 Spindle Deck Pulley (Qty 3)
- 137 5 3/4 Idler Pulley-Capitol (Qty 3)
- 139 2015 Deck Idler Spring (Qty 1)
- 145 Commercial Cast Iron Spindle (Qty 3)
- 149 60" High Lift Blade (Qty 3)
- 154 MZ/ZT Deck Hanger Assembly (Qty 4)
- 156 2017 MZ/ZT Deck Idler Assembly (Qty 1)
- 159 60 Pup/Lightning/ZT/Mav/Avenger/ - 54 Rebel/Rogue (Qty 1)
- 163 1/4 x 1 Square Key (Qty 3)
- 168 Toplink (Qty 2)
- 180 2023 60" ZT/Maverick/HD Deck--Orange (Qty 1)
- 202 2023 ZT Stripe Kit Rubber (Qty 1)
- 221 2018 60" Deck Decal (Qty 1)
- 224 Danger Decal-Spindle/Discharge (Qty 3)
- 227 Deck Belt Route Decal (Qty 1)
- 233 Rubber Bushing Turnbuckle Patent Decal (Qty 1)
- 237 2017 54"/60" ZT/Mav Chute Assembly (Qty 1)
-
2#013-0004-00
Acorn Nut-Pulley Cover
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
9#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 5Regular price $1.49 USDRegular priceUnit price per
-
10#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 14Regular price $1.49 USDRegular priceUnit price per
-
11#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
14#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
16#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
17#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 13Regular price $1.39 USDRegular priceUnit price per
-
26#014-5020-00
2021 Maverick 54"/60" RH Pulley Cover
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
27#014-5021-00
2021 Maverick 54"/60" LH Pulley Cover
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
41#018-0010-00
Deck Wheel Bolt - 2011 Outlaw
Qty Used: 6Regular price $5.89 USDRegular priceUnit price per
-
46#018-0075-00
3/8-16 x 1-3/4 Hex C/S (GR 5) ZC
Qty Used: 12Regular price $2.99 USDRegular priceUnit price per
-
50#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
54#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
59#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
60#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
64#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
66#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
70#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
71#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
72#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
73#018-7060-00
3/8-16 x 5 1/2 Hex Bolt - Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
78#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
81#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
83#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
84#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 9Regular price $4.69 USDRegular priceUnit price per
-
89#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
92#022-1000-00
Deck Wheel
Qty Used: 6Regular price $15.99 USDRegular priceUnit price per
-
102#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
103#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
106#026-0025-00
Deck Spindle Support Plate 60\"--Orange
Qty Used: 3Regular price $13.26 USDRegular priceUnit price per
-
108#026-0307-00
2023 4' & 5' Striping Kit Plate--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
119#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 3Regular price $1.59 USDRegular priceUnit price per
-
134#033-6004-00
6 1/4 Spindle Deck Pulley
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
137#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
139#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
145#037-4000-00
Commercial Cast Iron Spindle
Qty Used: 3Regular price $291.91 USDRegular priceUnit price per
-
149#038-6060-00
60\" High Lift Blade
Qty Used: 3Regular price $21.16 USDRegular priceUnit price per
-
154#039-2127-17
MZ/ZT Deck Hanger Assembly
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
156#039-6945-17
2017 MZ/ZT Deck Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
159#041-1650-00
60 Pup/Lightning/ZT/Mav/Avenger/ - 54 Rebel/Rogue
Qty Used: 1Regular price $84.99 USDRegular priceUnit price per
-
163#042-6030-00
1/4 x 1 Square Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
-
180#060-2316-00
2023 60" ZT/Maverick/HD Deck--Orange
Qty Used: 1Regular price $999.99 USDRegular priceUnit price per
-
202#084-5006-00
2023 ZT Stripe Kit Rubber
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
221#091-0905-18
2018 60" Deck Decal
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
224#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 3Regular price $2.91 USDRegular priceUnit price per
-
227#091-3309-00
Deck Belt Route Decal
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
233#091-8001-00
Rubber Bushing Turnbuckle Patent Decal
Qty Used: 1Regular price $0.73 USDRegular priceUnit price per
-
237#210-6005-98
2017 54"/60" ZT/Mav Chute Assembly
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
