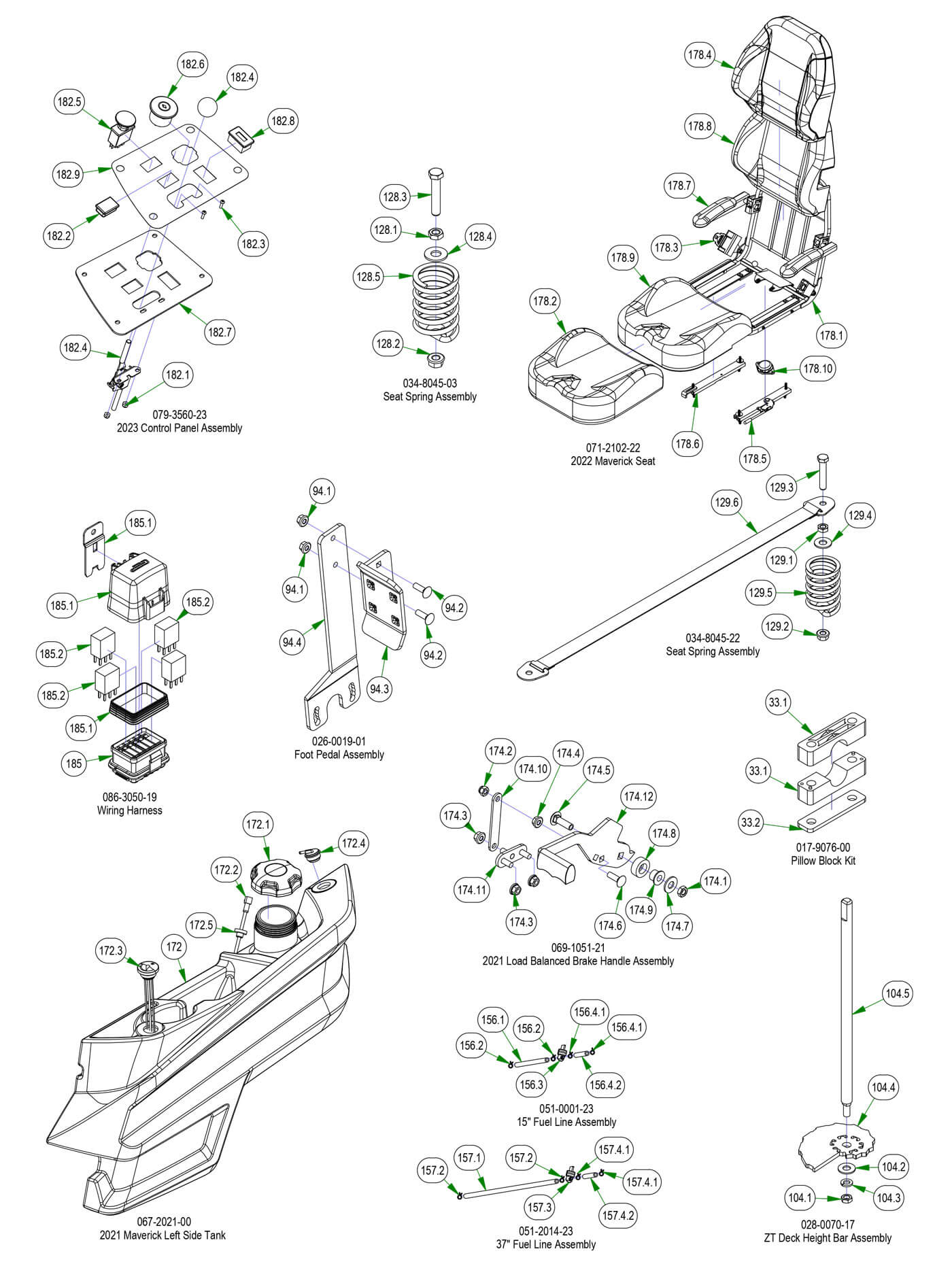

Frame Subassemblies - Seat, Control Panel, etc
Parts Index
- 33 Pillow Block (Qty 4)
- 33.1 2017 Magnum Pillow Block-Male (Qty 2)
- 33.2 2017 Magnum Pillow Block-Metal Plate (Qty 1)
- 94 2017 MZ Foot Pedal Assembly (Qty 1)
- 94.1 5/16-18 Nylon Flange Nut (Qty 2)
- 94.2 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 94.3 Foot Pedal--Orange (Qty 1)
- 94.4 2017 MZ/ZT Deck Pedal Lever--Orange (Qty 1)
- 104.1 3/8-24 Hex Nut Zinc (Qty 1)
- 104.2 3/8 USS Flat Washer Zinc (Qty 1)
- 104.3 3/8 Lockwasher Zinc (Qty 1)
- 104.4 Deck Height Cam Plate (Qty 1)
- 104.5 2017 Deck Height Dial Rod ZT (Qty 1)
- 128 2017 MZ/ZT Seat Spring Assembly (Qty 1)
- 128.1 3/8-16 Half Jam Nut (Qty 1)
- 128.2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 128.3 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 128.4 3/8 USS Flat Washer Zinc (Qty 1)
- 128.5 Seat Spring (Qty 1)
- 129 2022 Mav/HD Seat Spring Assembly with Strap (Qty 1)
- 129.1 3/8-16 Half Jam Nut (Qty 1)
- 129.2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 129.3 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 129.4 3/8 USS Flat Washer Zinc (Qty 1)
- 129.5 Seat Spring (Qty 1)
- 129.6 Seat Strap with Buckles (Qty 1)
- 156.1 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 156.2 1/4 Fuel Line Clamp (Qty 2)
- 156.3 2 Way Fuel Shut-Off Valve (Qty 1)
- 156.4.1 1/4 Fuel Line Clamp (Qty 2)
- 156.4.2 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 157.1 33" 1/4 Fuel Line No Clamp (Qty 1)
- 157.2 1/4 Fuel Line Clamp (Qty 2)
- 157.3 2 Way Fuel Shut-Off Valve (Qty 1)
- 157.4.1 1/4 Fuel Line Clamp (Qty 2)
- 157.4.2 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 172 2021 Maverick Left Side Tank (Qty 1)
- 172.1 3.5" Tethered Fuel Cap (Qty 1)
- 172.2 Fuel Line Pickup Tube for ZT (Qty 1)
- 172.3 Fuel Gauge w/ Grommet (Qty 1)
- 172.4 Rollover Valve and Grommet New (Qty 1)
- 172.5 Grommet for ZT Elite Fuel Line (Qty 1)
- 174 Brake Handle Assembly For HD Down (Qty 1)
- 174.1 3/8-16 Centerlock Half Nut (Qty 1)
- 174.2 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap) (Qty 1)
- 174.3 5/16-18 Nylon Flange Nut (Qty 3)
- 174.4 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 174.5 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 174.6 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 174.7 3/8 USS Flat Washer Zinc (Qty 1)
- 174.8 Brake Lever Spacer (Qty 1)
- 174.9 Bronze Bushing SF-1220-8 (Qty 1)
- 174.10 Brake Cable Extension Plate (Qty 1)
- 174.11 Brake Load Balancer Weldment (Qty 1)
- 174.12 Load Balanced Brake Handle With Grip (Qty 1)
- 178 2021 Maverick Seat (Qty 1)
- 178.2 Bad Boy Seat Cover for 071-2102-22 (Qty 1)
- 178.3 Webb Manufacturing Seat Belt Set for 071-2102-22 (Qty 1)
- 178.4 Bad Boy Back Cover for 071-2102-22 (Qty 1)
- 178.6 Seat Slide Slave Slide for 071-2102-22 (Qty 1)
- 178.7 Arm Rest w/ Shorter AFT Bracket for 071-2102-22 (Qty 1)
- 178.8 Back Cover Molded Foam for 071-5060-18/071-2102-22 (Qty 1)
- 178.9 Seat Cover Molded Foam for 071-5060-18/071-2102-22 (Qty 1)
- 178.10 Seat Switch for 071-5060-18/071-2102-22/071-2400-0 (Qty 1)
- 182.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 182.2 Light Plug (Qty 1)
- 182.3 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 182.4 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 182.5 PTO Engager-Switch for Blades (Qty 1)
- 182.6 Ignition Switch (Qty 1)
- 182.7 2023 Control Panel--Orange (Qty 1)
- 182.8 2023 Control Panel--Orange (Qty 1)
- 182.9 2023 Control Panel Decal (Qty 1)
- 185 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 185.1 2019 Relay Cap Kit (Qty 1)
- 185.2 2019 Relay Terminal (Qty 4)
-
33#017-9076-00
Pillow Block
Qty Used: 4Regular price $21.88 USDRegular priceUnit price per
-
33.1#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 2Regular price $19.89 USDRegular priceUnit price per
-
33.2#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
94#026-0019-01
2017 MZ Foot Pedal Assembly
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
94.1174.3#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
94.2174.6#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
94.3#026-0019-00
Foot Pedal--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
94.4#031-0500-00
2017 MZ/ZT Deck Pedal Lever--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
104.1#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
104.2128.4129.4174.7#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
104.3#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
104.4#026-1100-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
104.5#028-0014-00
2017 Deck Height Dial Rod ZT
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
128#034-8045-03
2017 MZ/ZT Seat Spring Assembly
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
128.1129.1#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
128.2129.2#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
128.3129.3#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
128.5129.5#034-8045-00
Seat Spring
Qty Used: 1Regular price $19.15 USDRegular priceUnit price per
-
129#034-8045-22
2022 Mav/HD seat spring assembly with strap
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
129.6#064-8083-00
Seat Strap with Buckles
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
156.1156.4.2157.4.2#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
156.2156.4.1157.2157.4.1#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
156.3157.3#067-6057-00
2 Way Fuel Shut-Off Valve
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
157.1#051-2014-01
33" 1/4 Fuel Line No Clamp
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
-
172#067-2021-00
2021 Maverick Left Side Tank
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
172.1#066-8083-00
3.5" Tethered Fuel Cap
Qty Used: 1Regular price $19.84 USDRegular priceUnit price per
-
172.2#067-0011-00
Fuel Line Pickup Tube for ZT
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
172.3#067-4090-00
Fuel Gauge w/ Grommet
Qty Used: 1Regular price $42.99 USDRegular priceUnit price per
-
172.4#067-6070-00
Rollover Valve and Grommet New
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
172.5#067-6080-00
Grommet for ZT Elite Fuel Line
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
174#069-1051-21
Load Balanced Brake Handle Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
174.1#013-0012-00
3/8-16 Centerlock Half Nut
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
174.2#013-8042-00
5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
174.4#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
174.5#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
174.8#025-0001-00
Brake Lever Spacer
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
174.9#032-5053-00
Bronze Bushing SF-1220-8
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
174.10#039-0170-00
Brake Cable Extension Plate
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
174.11#039-0171-00
Brake Load Balancer Weldment
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
174.12#069-1051-00
Load Balanced Brake Handle With Grip
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
178#071-2102-00
2021 Maverick Seat
Qty Used: 1Regular price $662.13 USDRegular priceUnit price per
-
178.2#071-2114-00
Bad Boy Seat Cover for 071-2102-22
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
178.3#071-2115-00
Webb Manufacturing Seat Belt Set for 071-2102-22
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
178.4#071-2116-00
Bad Boy Back Cover for 071-2102-22
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
178.6#071-2118-00
Seat Slide Slave Slide for 071-2102-22
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
178.7#071-2119-00
Arm Rest w/ Shorter AFT Bracket for 071-2102-22
Qty Used: 1Regular price $139.99 USDRegular priceUnit price per
-
178.8#071-5067-01
Back Cover Molded Foam for 071-5060-18/071-2102-22
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
178.9#071-5068-01
Seat Cover Molded Foam for 071-5060-18/071-2102-22
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
178.10#071-5070-00
Seat Switch for 071-5060-18/071-2102-22/071-2400-0
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
182.1#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
182.2#018-1040-00
Light Plug
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
182.3#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
182.4#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
182.5#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
182.6#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
182.7182.8#079-3461-00
2023 Control Panel--Orange
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
182.9#091-4072-00
2023 Control Panel Decal
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
185#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
185.1#086-1202-01
2019 Relay Cap Kit
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
185.2#086-1202-19
2019 Relay Terminal
Qty Used: 4Regular price $23.34 USDRegular priceUnit price per
