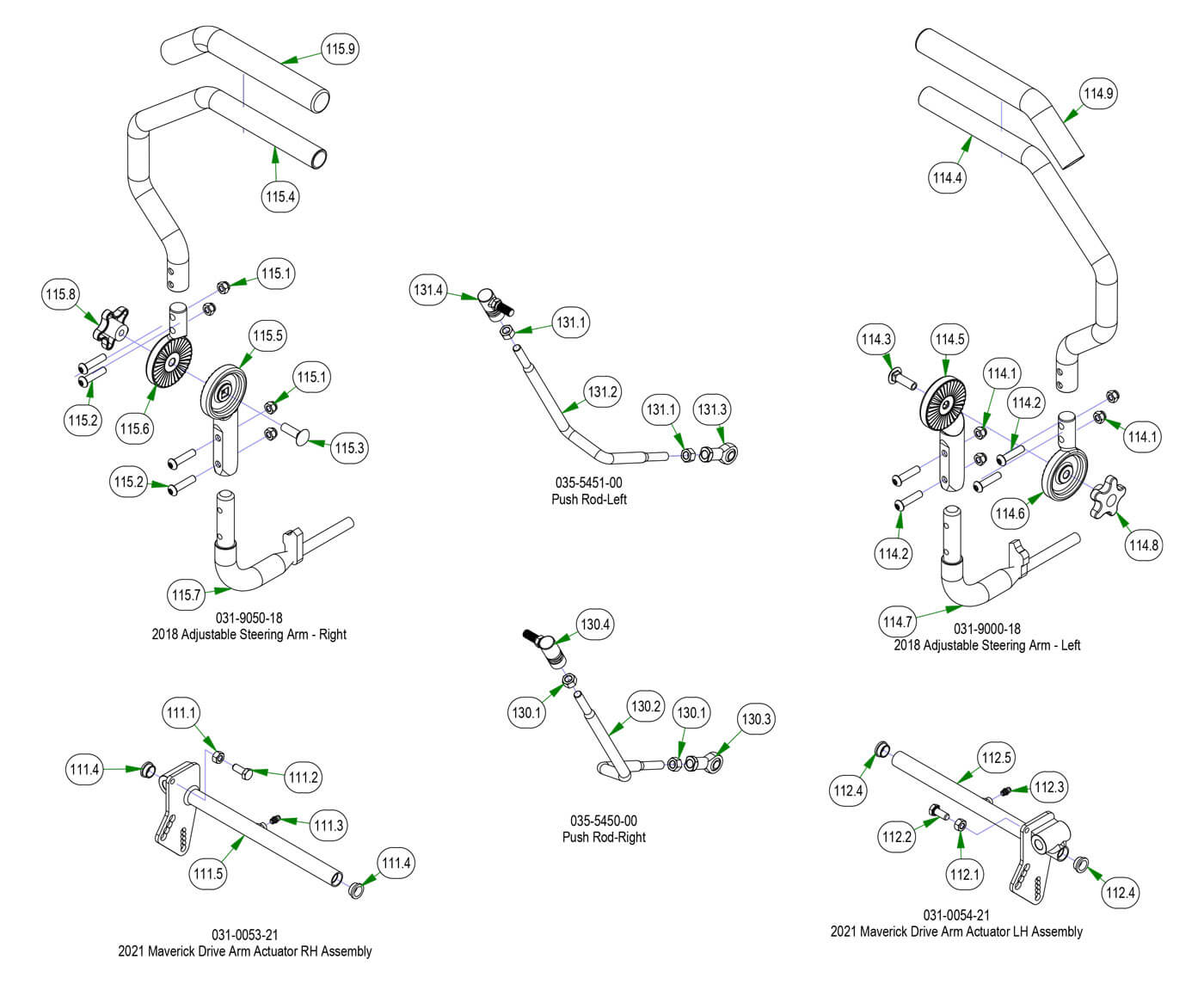

Drive Arm Subassemblies
Parts Index
- 111 2021 Maverick Drive Arm Actuator RH Assembly (Qty 1)
- 111.1 5/16-18 Hex Nuts Zinc (Qty 1)
- 111.2 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 1)
- 111.3 1/4 Drive-in Grease Fitting (Qty 1)
- 111.4 Drive Arm Actuator Bushing (Qty 2)
- 111.5 2021 Maverick Drive Actuator RH Weldment (Qty 1)
- 112 2021 Maverick Drive Arm Actuator LH Assembly (Qty 1)
- 112.1 5/16-18 Hex Nuts Zinc (Qty 1)
- 112.2 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 1)
- 112.3 1/4 Drive-in Grease Fitting (Qty 1)
- 112.4 Drive Arm Actuator Bushing (Qty 2)
- 112.5 2021 Maverick Drive Actuator LH Weldment (Qty 1)
- 114 2018 Adj. Steering Arm L-Black (Qty 1)
- 114.1 5/16-18 Nylon Insert Locknut Z (Qty 4)
- 114.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 4)
- 114.3 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 114.4 2018 Upper Tube Adjustable Steering Arm (Qty 1)
- 114.5 2018 Black Lower Adjuster - Steering Arm - Left (Qty 1)
- 114.6 2018 Black Upper Adjuster - Steering Arm - Left (Qty 1)
- 114.7 2018 Black Steering Arm Elbow - Left (Qty 1)
- 114.8 Knob - Adjustable Steering Arm (Qty 1)
- 114.9 Black Steering Grip (Qty 1)
- 115 2018 Adj. Steering Arm R-Black (Qty 1)
- 115.1 5/16-18 Nylon Insert Locknut Z (Qty 4)
- 115.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 4)
- 115.3 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 115.4 2018 Upper Tube Adjustable Steering Arm (Qty 1)
- 115.5 2018 Black Lower Adjuster - Steering Arm - Right (Qty 1)
- 115.6 2018 Black Upper Adjuster - Steering Arm - Right (Qty 1)
- 115.7 2018 Black Steering Arm Elbow - Right (Qty 1)
- 115.8 Knob - Adjustable Steering Arm (Qty 1)
- 115.9 Black Steering Grip (Qty 1)
- 130 Push Rod RH (Assembly) (Qty 1)
- 130.1 3/8-24 Hex Nut Zinc (Qty 2)
- 130.3 Spherical Rod End (Qty 1)
- 130.4 Quick Release Ball Joint (Qty 1)
- 131 Push Rod LH (Assembly) (Qty 1)
- 131.1 3/8-24 Hex Nut Zinc (Qty 2)
- 131.3 Spherical Rod End (Qty 1)
- 131.4 Quick Release Ball Joint (Qty 1)
-
111#031-0053-21
2021 Maverick Drive Arm Actuator RH Assembly
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
111.1112.1#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
111.2112.2#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
111.3112.3#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 1Regular price $0.66 USDRegular priceUnit price per
-
111.4112.4#031-0032-00
Drive Arm Actuator Bushing
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
111.5#031-0053-00
2021 Maverick Drive Actuator RH Weldment
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
112#031-0054-21
2021 Maverick Drive Arm Actuator LH Assembly
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
112.5#031-0054-00
2021 Maverick Drive Actuator LH Weldment
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
114#031-9000-18
2018 Adj. Steering Arm L-Black
Qty Used: 1Regular price $144.50 USDRegular priceUnit price per
-
114.1115.1#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
114.2115.2#018-2020-18
5/16-18 x 1 3/8\" Button Head Torx Drive Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
114.3115.3#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
114.4115.4#031-9010-18
2018 Upper Tube Adjustable Steering Arm
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
114.5#031-9014-18
2018 Black Lower Adjuster - Steering Arm - Left
Qty Used: 1Regular price $49.76 USDRegular priceUnit price per
-
114.6#031-9017-18
2018 Black Upper Adjuster - Steering Arm - Left
Qty Used: 1Regular price $49.76 USDRegular priceUnit price per
-
114.7#031-9020-18
2018 Black Steering Arm Elbow - Left
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
114.8115.8#045-5000-00
Knob - Adjustable Steering Arm
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
114.9115.9#069-4010-00
Black Steering Grip
Qty Used: 1Regular price $7.38 USDRegular priceUnit price per
-
115#031-9050-18
2018 Adj. Steering Arm R-Black
Qty Used: 1Regular price $144.50 USDRegular priceUnit price per
-
115.5#031-9015-18
2018 Black Lower Adjuster - Steering Arm - Right
Qty Used: 1Regular price $49.76 USDRegular priceUnit price per
-
115.6#031-9016-18
2018 Black Upper Adjuster - Steering Arm - Right
Qty Used: 1Regular price $49.76 USDRegular priceUnit price per
-
115.7#031-9025-18
2018 Black Steering Arm Elbow - Right
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
130#035-5450-00
Push Rod RH (Assembly)
Qty Used: 1Regular price $31.73 USDRegular priceUnit price per
-
130.1131.1#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
130.3131.3#048-3000-00
Spherical Rod End-Outlaw Only
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
130.4131.4#099-2009-00
Quick Release Ball Joint
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
131#035-5451-00
Push Rod LH (Assembly)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
