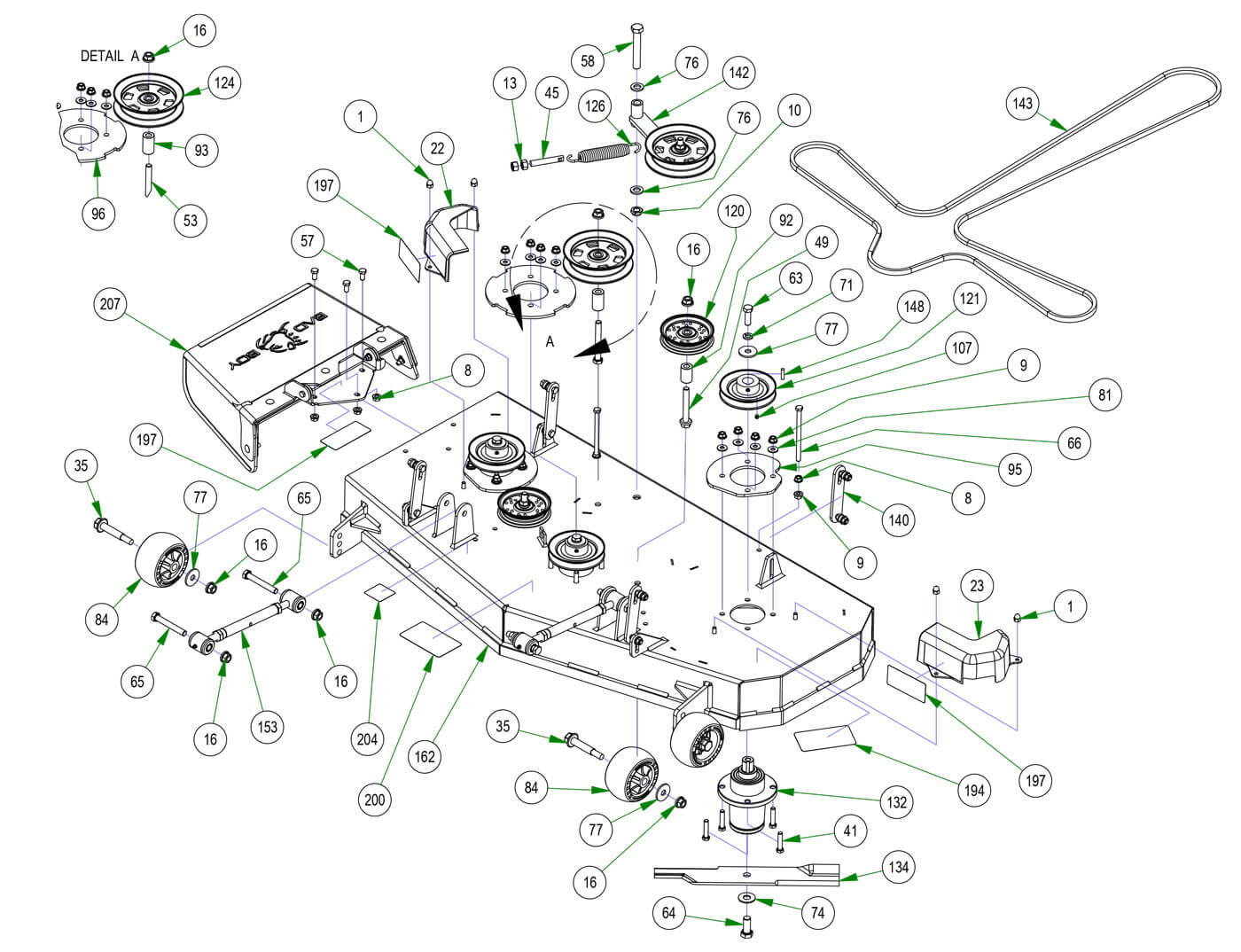

48" Deck Assembly
Parts Index
- 1 Acorn Nut-Pulley Cover (Qty 4)
- 8 3/8-16 Hex Flange Nuts Zinc w/ (Qty 5)
- 9 3/8 Nylock Flange Nut (Qty 14)
- 10 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 13 1/2-13 Hex Nuts Zinc (Qty 2)
- 16 1/2-13 Nylon Insert Flange Nut (Qty 11)
- 22 Pulley Cover RH 42"/48" (Qty 1)
- 23 Pulley Cover LH 42"/48" (Qty 1)
- 35 Deck Wheel Bolt (Qty 4)
- 41 3/8-16 x 1-3/4 Hex C/S (GR 5) ZC (Qty 12)
- 45 All Thread (Qty 1)
- 49 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 2)
- 53 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 1)
- 57 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 3)
- 58 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 63 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 64 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 65 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 4)
- 66 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 2)
- 71 1/2 Lockwasher Zinc (Qty 3)
- 74 5/8 Flat Washer (Qty 3)
- 76 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 77 1/2 Belleville Washer #K2000-G (Qty 7)
- 81 5/16 USS Flat Washer Zinc (Qty 12)
- 84 Deck Wheel (Qty 4)
- 92 .502 ID X 1.000 0D X 1.500 (Qty 2)
- 93 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 95 42 & 48 Deck Spindle Support Plate--Orange (Qty 2)
- 96 Deck Spindle Support Plate 60"--Orange (Qty 1)
- 107 5/16-24 x 1/4 Set Screw (Qty 3)
- 120 4 3/4 Idler Pulley - ABFI-76 (Qty 2)
- 121 5" Spindle Deck Pulley - DB-80 (Qty 3)
- 124 5 3/4 Idler Pulley-Capitol (Qty 1)
- 126 2015 Deck Idler Spring (Qty 1)
- 132 Spindle-Aluminum (Qty 3)
- 134 48" ZT/Mav/Compact Outlaw Blade (Qty 3)
- 140 MZ/ZT Deck Hanger Assembly (Qty 4)
- 142 2017 MZ/ZT Deck Idler Assembly (Qty 1)
- 143 48" MZ/ZT/Mav/Compact Outlaw Deck Belt (Qty 1)
- 148 1/4 x 1 Square Key (Qty 3)
- 153 Toplink (Qty 2)
- 162 2023 48" ZT/Maverick/HD Deck--Orange (Qty 1)
- 194 2018 48" Deck Decal (Qty 1)
- 197 Danger Decal-Spindle/Discharge (Qty 3)
- 200 Deck Belt Route Decal (Qty 1)
- 204 Rubber Bushing Turnbuckle Patent Decal (Qty 1)
- 207 2013 48" ZT/Chute Assembly (Qty 1)
-
1#013-0004-00
Acorn Nut-Pulley Cover
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
8#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 5Regular price $1.49 USDRegular priceUnit price per
-
9#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 14Regular price $1.49 USDRegular priceUnit price per
-
10#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
13#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
16#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 11Regular price $1.39 USDRegular priceUnit price per
-
22#014-4025-00
Pulley Cover RH
Qty Used: 1Regular price $16.69 USDRegular priceUnit price per
-
23#014-4026-00
Pulley Cover LH 42\"/48\"
Qty Used: 1Regular price $16.69 USDRegular priceUnit price per
-
35#018-0010-00
Deck Wheel Bolt - 2011 Outlaw
Qty Used: 4Regular price $5.89 USDRegular priceUnit price per
-
41#018-0075-00
3/8-16 x 1-3/4 Hex C/S (GR 5) ZC
Qty Used: 12Regular price $2.99 USDRegular priceUnit price per
-
45#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
49#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
53#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
57#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
58#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
63#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
64#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
65#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
66#018-7060-00
3/8-16 x 5 1/2 Hex Bolt - Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
71#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
74#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
76#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
77#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 7Regular price $4.69 USDRegular priceUnit price per
-
81#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
84#022-1000-00
Deck Wheel
Qty Used: 4Regular price $15.99 USDRegular priceUnit price per
-
92#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
93#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
95#026-0024-00
42 & 48 Deck Spindle Support Plate--Orange
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
96#026-0025-00
Deck Spindle Support Plate 60\"--Orange
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
107#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 3Regular price $1.59 USDRegular priceUnit price per
-
120#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 2Regular price $29.18 USDRegular priceUnit price per
-
121#033-6003-00
5" Spindle Deck Pulley - DB-80
Qty Used: 3Regular price $39.79 USDRegular priceUnit price per
-
124#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
126#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
132#037-6015-50
Spindle-Aluminum
Qty Used: 3Regular price $199.99 USDRegular priceUnit price per
-
134#038-5350-00
48" ZT/Mav/Compact Outlaw Blade with Fusion
Qty Used: 3Regular price $21.16 USDRegular priceUnit price per
-
140#039-2127-17
MZ/ZT Deck Hanger Assembly
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
142#039-6945-17
2017 MZ/ZT Deck Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
143#041-1470-00
48" MZ/ZT/Mav/Compact Outlaw Deck Belt
Qty Used: 1Regular price $81.67 USDRegular priceUnit price per
-
148#042-6030-00
1/4 x 1 Square Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
-
162#060-2312-00
2023 48" ZT/Maverick/HD Deck--Orange
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
194#091-0903-18
2018 48" Deck Decal
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
197#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 3Regular price $2.91 USDRegular priceUnit price per
-
200#091-3309-00
Deck Belt Route Decal
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
204#091-8001-00
Rubber Bushing Turnbuckle Patent Decal
Qty Used: 1Regular price $0.73 USDRegular priceUnit price per
-
207#210-6005-48
2013 48" ZT/Chute Assembly
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
