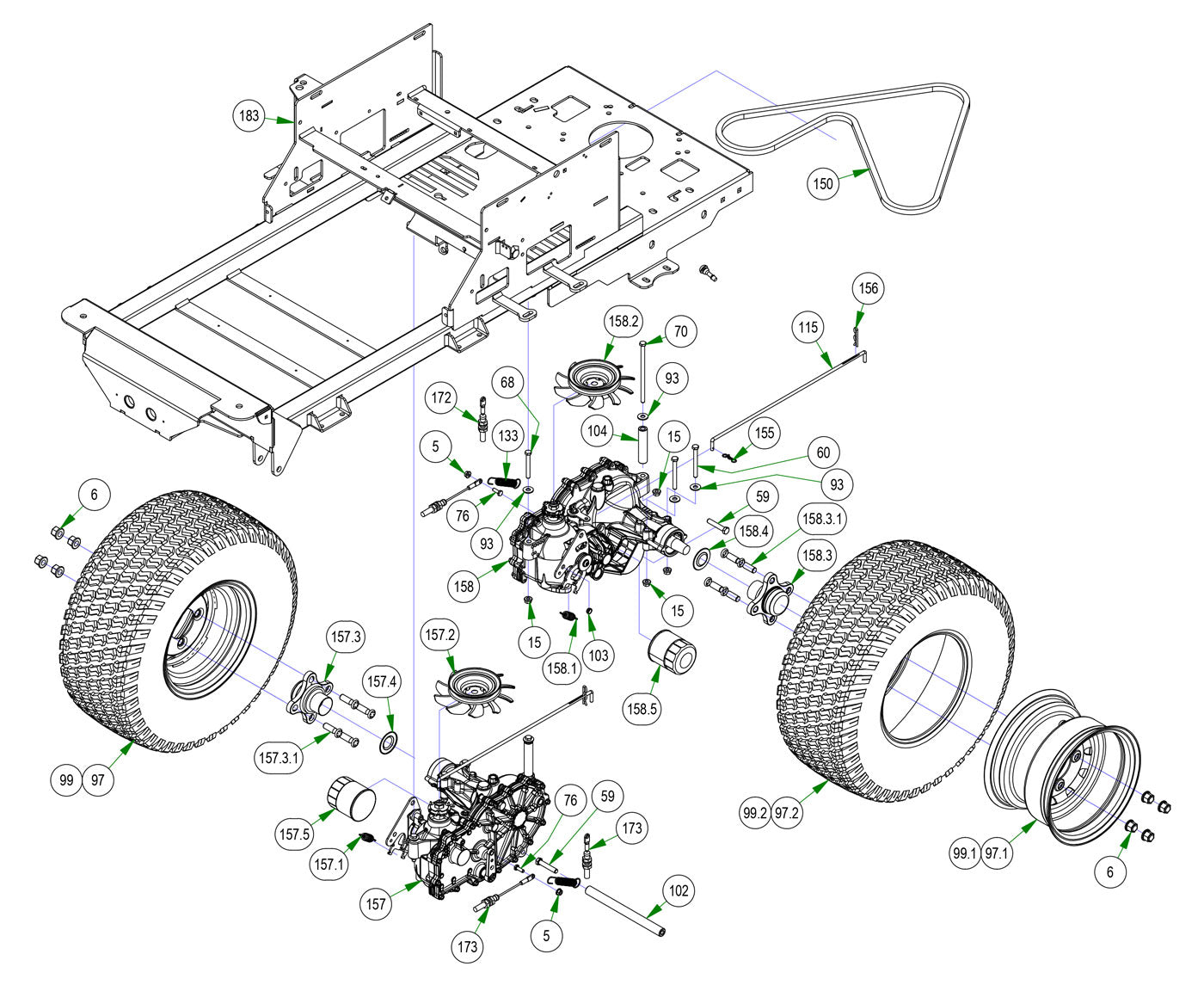

Transaxle
Parts Index
- 5 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 6 Acorn Lug Nut (Qty 8)
- 15 5/16-18 Nylon Flange Nut (Qty 8)
- 59 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)
- 60 5/16-18 X 3 GR 5 Hex Bolt Zinc (Qty 4)
- 68 5/16 x 2 1/2 Bolt (Qty 2)
- 70 5/16-18 X 6 GR 5 Hex Bolt Zinc (Qty 2)
- 76 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 93 5/16 USS Flat Washer Zinc (Qty 8)
- 97 2017 ZT Black Assembly 22x11-10 (Qty 2)
- 97.1 2017 ZT Black Wheel (Qty 1)
- 97.2 2014 ZT Tire Only 22x11-10 (Qty 1)
- 99 2017 ZT Black Assembly 22x10-10 (Qty 2)
- 99.1 2017 48 ZT 10" Black Wheel (Qty 1)
- 99.2 2017 22x10-10 Tire for the 48" ZT (Qty 1)
- 102 2017 Transaxle Spacer-ZT (Qty 1)
- 103 Drive Arm Transaxle Spacer (Qty 2)
- 104 2017 Transaxle Spacer (Qty 2)
- 115 Neutral Rod (Qty 2)
- 133 Brake Return Spring (Qty 2)
- 150 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 155 Bow Pin (Qty 2)
- 156 Neutral Rod Clip (Qty 2)
- 157 2021 RH 3100 Transaxle (Qty 1)
- 157.1 Gold Transaxle Spring (Qty 1)
- 157.2 2021 ZT/Maverick Transaxle Fan/Pulley Kit (Qty 1)
- 157.3 ZT Transaxle Wheel Hub (Qty 1)
- 157.3.1 Transaxle Wheel Studs/ Drum Brake Studs (Qty 4)
- 157.4 2021 ZT/Maverick Transaxle Seal Kit (ZT-2800) (Qty 1)
- 157.5 ZT Hydraulic Filter (Qty 1)
- 158 2021 LH 3100 Transaxle (Qty 1)
- 158.1 Gold Transaxle Spring (Qty 1)
- 158.2 2021 ZT/Maverick Transaxle Fan/Pulley Kit (Qty 1)
- 158.3 ZT Transaxle Wheel Hub (Qty 1)
- 158.3.1 Transaxle Wheel Studs/ Drum Brake Studs (Qty 4)
- 158.4 2021 ZT/Maverick Transaxle Seal Kit (ZT-2800) (Qty 1)
- 158.5 ZT Hydraulic Filter (Qty 1)
- 172 2021 Load Balanced Brake Cable 1 (Qty 1)
- 173 2021 Load Balanced Brake Cable 2 (Qty 1)
-
5#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
6#013-3000-00
Acorn Lug Nut
Qty Used: 8Regular price $2.99 USDRegular priceUnit price per
-
15#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
59#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
60#018-4701-00
5/16-18 X 3 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
68#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
70#018-5355-00
5/16-18 X 6 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $2.19 USDRegular priceUnit price per
-
76#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
93#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
97#022-2015-00
2017 ZT Black Assembly 22x11-10
Qty Used: 2Regular price $290.99 USDRegular priceUnit price per
-
97.1#022-2015-50
2017 ZT Black Wheel
Qty Used: 1Regular price $104.99 USDRegular priceUnit price per
-
97.2#022-2020-00
2014 ZT Tire Only 22x11-10
Qty Used: 1Regular price $159.99 USDRegular priceUnit price per
-
99#022-2018-00
2017 ZT Black Assembly 22x10-10
Qty Used: 2Regular price $290.99 USDRegular priceUnit price per
-
99.1#022-2019-17
2017 48 ZT 10" Black Wheel
Qty Used: 1Regular price $92.99 USDRegular priceUnit price per
-
99.2#022-2024-17
2017 22x10-10 Tire for the 48" ZT
Qty Used: 1Regular price $145.99 USDRegular priceUnit price per
-
102#025-0017-00
2017 Transaxle Spacer-ZT
Qty Used: 1Regular price $13.12 USDRegular priceUnit price per
-
103#025-0036-00
Drive Arm Transaxle Spacer
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
104#025-0070-00
2017 Transaxle Spacer
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
115#028-0070-00
Neutral Rod
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
133#034-1026-00
Brake Return Spring
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
150#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
-
156#044-2008-00
Neutral Rod Clip
Qty Used: 2Regular price $1.31 USDRegular priceUnit price per
-
157#050-2095-02
2021 RH 3100 Transaxle
Qty Used: 1Regular price $729.99 USDRegular priceUnit price per
-
157.1158.1#034-9080-00
Gold Transaxle Spring
Qty Used: 1Regular price $13.92 USDRegular priceUnit price per
-
157.2158.2#050-2070-00
2021 ZT/Maverick Transaxle Fan/Pulley Kit
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
157.3158.3#050-2076-00
ZT Transaxle Wheel Hub
Qty Used: 1Regular price $84.64 USDRegular priceUnit price per
-
157.3.1158.3.1#050-2012-00
Transaxle Wheel Studs/ Drum Brake Studs
Qty Used: 4Regular price $5.10 USDRegular priceUnit price per
-
157.4158.4#050-8010-00
2021 ZT/Maverick Transaxle Seal Kit (ZT-2800)
Qty Used: 1Regular price $109.46 USDRegular priceUnit price per
-
157.5158.5#063-1050-00
ZT Hydraulic Filter
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
158#050-2096-02
2021 LH 3100 Transaxle
Qty Used: 1Regular price $729.99 USDRegular priceUnit price per
-
172#064-3050-21
2021 Load Balanced Brake Cable 1
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
173#064-3051-21
2021 Load Balanced Brake Cable 2
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
