Kohler

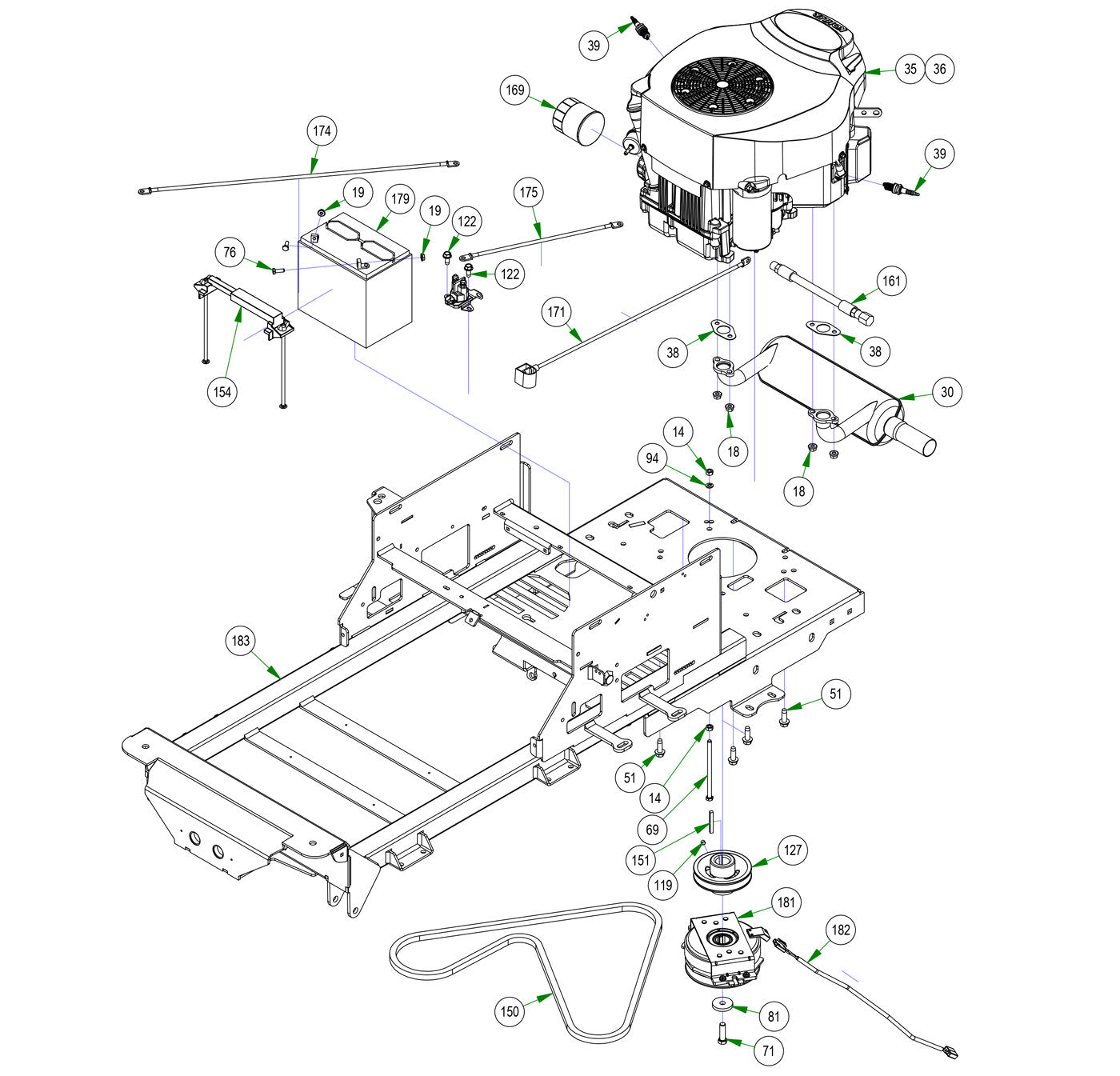

Parts Index
- 14 5/16-18 Hex Nuts Zinc (Qty 2)
- 18 M8 Nut fits the 015-9990-00/015-9991-00 (Qty 4)
- 19 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 30 2017 Kohler Exhaust MZ, AVEN, ZT, MAV, HD (Qty 1)
- 35 25hp Kohler-48" 2014 ZT (Qty 1)
- 36 26hp Kohler-2018 ZT-KT745-3088 (Qty 1)
- 38 Exhaust Gaskets for 27,30 hp (Qty 2)
- 39 Spark Plug-Kohler/Briggs (Qty 2)
- 51 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 69 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 71 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch (Qty 1)
- 76 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 81 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
- 94 5/16 Lock washer Zinc (Qty 1)
- 119 5/16-24 x 1/4 Set Screw (Qty 1)
- 122 5/16 x 3/4 Hex Washer Type F (Qty 2)
- 127 4 3/4 Motor Pulley (Qty 1)
- 150 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 151 1/4 X 2 Square Key Stock (Qty 1)
- 154 Battery Hold Down (Plastic) (Qty 1)
- 161 Kohler Oil Drain Hose (Qty 1)
- 169 25 HP Kohler Oil Filter ZT/MZ (Qty 1)
- 170 Universal Inline Fuel Filter (Qty 1)
- 171 24 inch Black Cable - MZ/ZT (Qty 1)
- 174 24 Red Battery Cable (Qty 1)
- 175 14" Red Battery Cable (Qty 1)
- 179 Battery - All models except Renegade and Revolt (Qty 1)
- 181 Clutch For 1-1/8" Shaft (Qty 1)
- 182 Clutch Pigtail (Qty 1)
- 212 Solenoid (752-1251-210HP) (Qty 1)
-
14#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
18#013-8240-00
M8 Nut fits the 015-9990-00/015-9991-00
Qty Used: 4Regular price $6.69 USDRegular priceUnit price per
-
19#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
30#015-0051-00
2017 Kohler Exhaust MZ/ZT/Mav/Compact Outlaw
Qty Used: 1Regular price $217.48 USDRegular priceUnit price per
-
35#015-2020-00
25hp Kohler-48" 2014 ZT
Qty Used: 1Regular price $1,999.00 USDRegular priceUnit price per
-
36#015-2026-00
26hp Kohler-2018 ZT-KT745-3088
Qty Used: 1Regular price $2,399.00 USDRegular priceUnit price per
-
38#015-2751-00
Exhaust Gaskets for 27,30 hp
Qty Used: 2Regular price $5.96 USDRegular priceUnit price per
-
39#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
51#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
69#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
71#018-5450-21
7/16-20 x 1.5\" Hex bolt GR 8 w/ Patch
Qty Used: 1Regular price $1.25 USDRegular priceUnit price per
-
76#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
81#019-0010-00
7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
Qty Used: 1Regular price $5.39 USDRegular priceUnit price per
-
94#019-8051-00
5/16 Lock washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
119#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
122#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
127#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
150#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
151#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
154#043-8929-00
Battery Hold Down (Plastic)
Qty Used: 1Regular price $16.35 USDRegular priceUnit price per
-
161#051-5401-00
Kohler Oil Drain Hose
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
169#063-5004-00
25 HP Kohler Oil Filter ZT/MZ
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
170#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
171#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
174#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
175#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
179#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
-
182#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
212#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
