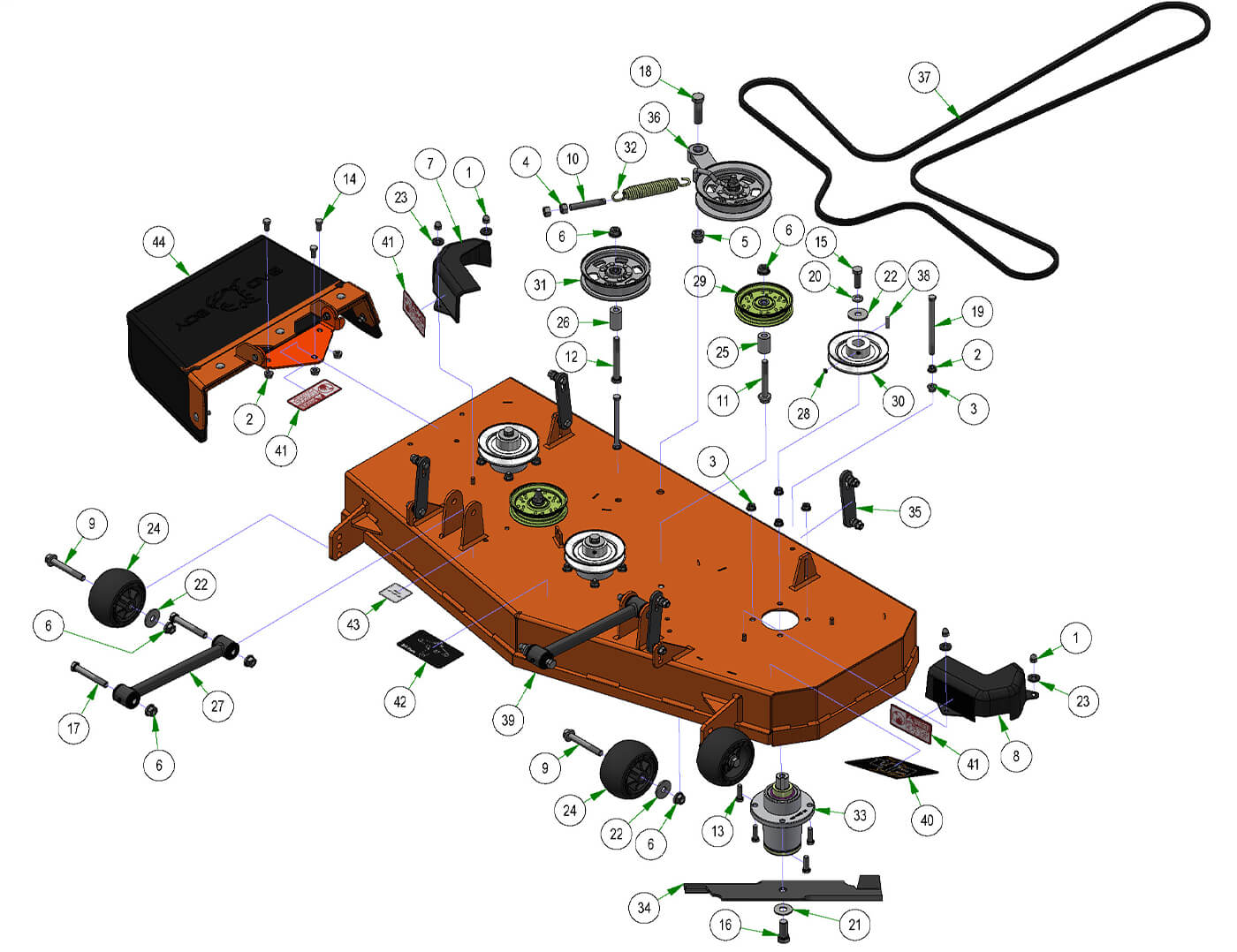

48" Deck
Parts Index
- 1 Acorn Nut-Pulley Cover (Qty 4)
- 8 3/8-16 Hex Flange Nuts Zinc w/ (Qty 5)
- 9 3/8 Nylock Flange Nut (Qty 14)
- 10 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 16 1/2-13 Nylon Insert Flange Nut (Qty 13)
- 24 Pulley Cover RH 42"/48" (Qty 1)
- 25 Pulley Cover LH 42"/48" (Qty 1)
- 43 Deck Wheel Bolt (Qty 4)
- 49 1/2 x 2 Carriage Bolt (Qty 1)
- 57 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 2)
- 61 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 1)
- 62 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 12)
- 65 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 3)
- 66 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 72 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 73 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 74 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 4)
- 75 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 2)
- 80 .517 Square Hole Round Washer (Qty 2)
- 83 1/2 Lockwasher Zinc (Qty 3)
- 86 5/8 Flat Washer (Qty 3)
- 88 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 89 1/2 Belleville Washer #K2000-G (Qty 7)
- 93 5/16 USS Flat Washer Zinc (Qty 12)
- 96 Deck Wheel (Qty 4)
- 106 .502 ID X 1.000 0D X 1.500 (Qty 2)
- 107 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 113 Hybrid Turnbuckle (Qty 2)
- 119 5/16-24 x 1/4 Set Screw (Qty 3)
- 128 4 3/4 Idler Pulley - ABFI-76 (Qty 2)
- 129 5" Spindle Deck Pulley - DB-80 (Qty 3)
- 132 5 3/4 Idler Pulley-Capitol (Qty 1)
- 134 2015 Deck Idler Spring (Qty 1)
- 139 Spindle-Aluminum (Qty 3)
- 141 48" ZT/Mav/Compact Outlaw Blade (Qty 3)
- 143 MZ/ZT Deck Hanger Assembly (Qty 4)
- 146 2017 54"/48" Deck Idler Assembly (Qty 1)
- 147 48" MZ/ZT/Mav/Compact Outlaw Deck Belt (Qty 1)
- 152 1/4 x 1 Square Key (Qty 3)
- 165 2017 48" ZT Deck (Qty 1)
- 201 2018 48" Deck Decal (Qty 1)
- 204 Danger Decal-Spindle/Discharge (Qty 3)
- 207 Deck Belt Route Decal (Qty 1)
- 213 2013 48" ZT/Chute Assembly (Qty 1)
-
1#013-0004-00
Acorn Nut-Pulley Cover
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
8#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 5Regular price $1.49 USDRegular priceUnit price per
-
9#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 14Regular price $1.49 USDRegular priceUnit price per
-
10#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
16#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 13Regular price $1.39 USDRegular priceUnit price per
-
24#014-4025-00
Pulley Cover RH
Qty Used: 1Regular price $16.69 USDRegular priceUnit price per
-
25#014-4026-00
Pulley Cover LH 42\"/48\"
Qty Used: 1Regular price $16.69 USDRegular priceUnit price per
-
43#018-0010-00
Deck Wheel Bolt - 2011 Outlaw
Qty Used: 4Regular price $5.89 USDRegular priceUnit price per
-
49#018-1050-00
1/2 x 2 Carriage Bolt
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
57#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
61#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
62#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
65#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
66#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
72#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
73#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
74#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
75#018-7060-00
3/8-16 x 5 1/2 Hex Bolt - Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
80#019-0007-00
.517 Square Hole Round Washer
Qty Used: 2Regular price $1.09 USDRegular priceUnit price per
-
83#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
86#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
88#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
89#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 7Regular price $4.69 USDRegular priceUnit price per
-
93#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
96#022-1000-00
Deck Wheel
Qty Used: 4Regular price $15.99 USDRegular priceUnit price per
-
106#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
107#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
113#028-0004-22
Hybrid Turnbuckle/Deck Locator
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
119#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 3Regular price $1.59 USDRegular priceUnit price per
-
128#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 2Regular price $29.18 USDRegular priceUnit price per
-
129#033-6003-00
5" Spindle Deck Pulley - DB-80
Qty Used: 3Regular price $39.79 USDRegular priceUnit price per
-
132#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
134#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
139#037-6015-50
Spindle-Aluminum
Qty Used: 3Regular price $199.99 USDRegular priceUnit price per
-
141#038-5350-00
48" ZT/Mav/Compact Outlaw Blade with Fusion
Qty Used: 3Regular price $21.16 USDRegular priceUnit price per
-
143#039-2127-17
MZ/ZT Deck Hanger Assembly
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
146#039-6945-18
2017 54"/48" Deck Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
147#041-1470-00
48" MZ/ZT/Mav/Compact Outlaw Deck Belt
Qty Used: 1Regular price $81.67 USDRegular priceUnit price per
-
152#042-6030-00
1/4 x 1 Square Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
165#060-4817-00
2017 48" ZT Deck
Qty Used: 1Regular price $659.99 USDRegular priceUnit price per
-
201#091-0903-18
2018 48" Deck Decal
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
204#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 3Regular price $2.91 USDRegular priceUnit price per
-
207#091-3309-00
Deck Belt Route Decal
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
213#210-6005-48
2013 48" ZT/Chute Assembly
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
