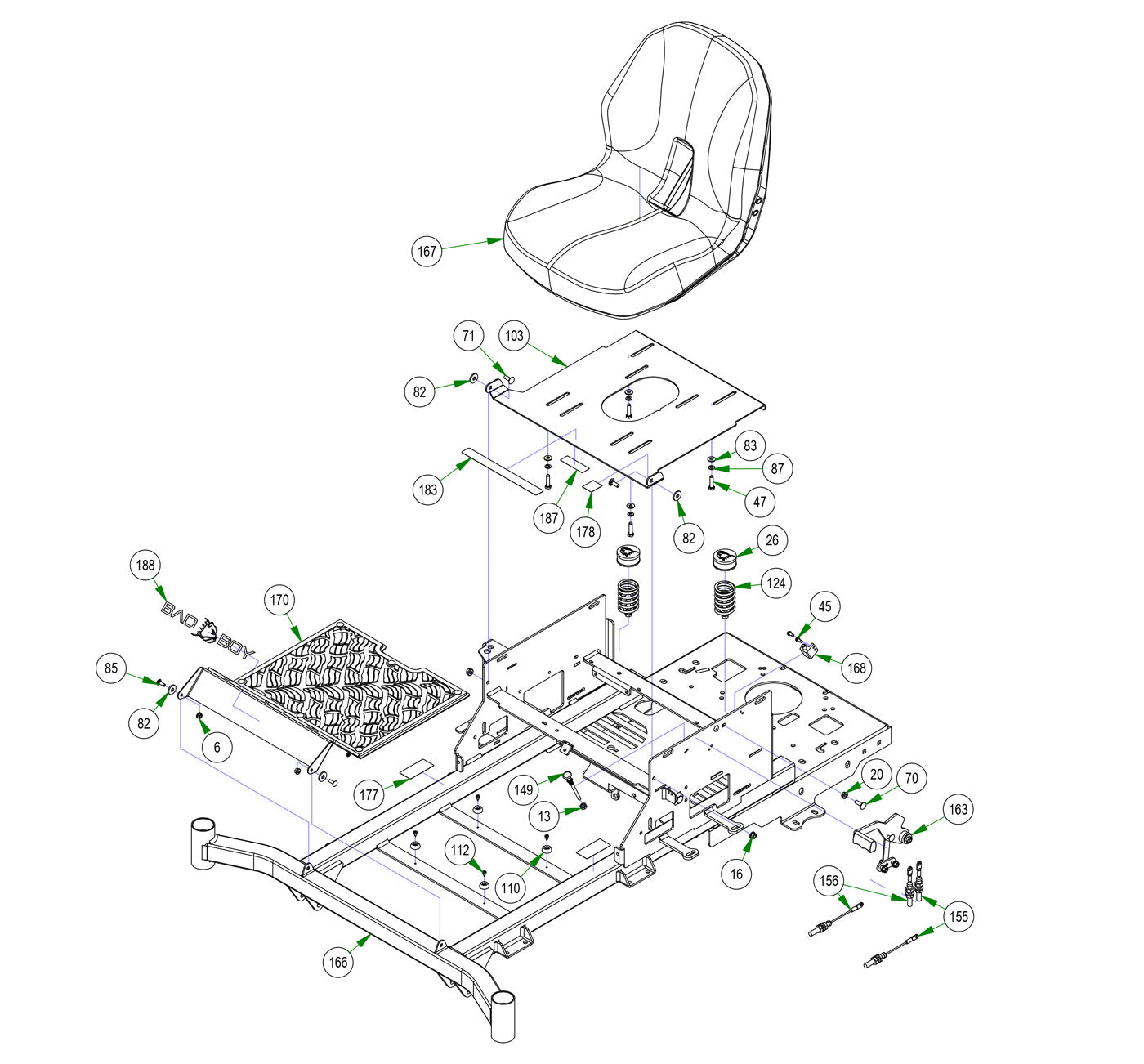

Upper Frame
Parts Index
- 6 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 13 3/8-24 Hex Nut Zinc (Qty 1)
- 16 5/16-18 Nylon Flange Nut (Qty 2)
- 20 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 26 Seat Spring Cap Cover (Qty 2)
- 45 12-24 x 1/2 HWH Bolt (Qty 2)
- 47 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 4)
- 70 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 71 5/16 x 7/8 Carriage Bolt (Qty 2)
- 82 .360 ID Plastic Washer (Qty 4)
- 83 1/4 USS Flat Washer Zinc (Qty 4)
- 85 1/4 x 3/4 Carriage Bolt (Qty 2)
- 87 5/16 Lock washer Zinc (Qty 4)
- 103 2023 Magnum, Rambler, Avenger Seat Plate--Orange (Qty 1)
- 110 Button Bumper (Qty 4)
- 112 10 X 1/2 Pan Phil a T/S Zinc (Qty 4)
- 124 2017 MZ/ZT Seat Spring Assembly (Qty 2)
- 149 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 155 2021 Load Balanced Brake Cable 1 (Qty 1)
- 156 2021 Load Balanced Brake Cable 2 (Qty 1)
- 163 Brake Handle Assembly For HD Down (Qty 1)
- 167 2022 Avenger Seat (Qty 1)
- 167.1 OBSOLETE USE 071-5065-07 (Qty 1)
- 167.2 Bad Boy SK130 Avenger Cover for 071-2100-22 (Qty 1)
- 168 Safety Switch (Qty 1)
- 177 2018 LH/RH Steering Control Decal Roll (Qty 1)
- 178 MZ, ZT, Aven, Mav, HD Brake Decal (Qty 1)
- 183 Long Seat Plate Warning Decal (Qty 1)
- 187 NOT FOR SALE IN CALIFORNIA (Qty 1)
- 188 Flying Bulldog Front Bumper Decal (Qty 1)
-
6#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
13#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
16#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
20#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
26#014-8047-00
Seat Spring Cap Cover
Qty Used: 2Regular price $8.12 USDRegular priceUnit price per
-
45#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
47#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
70#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
71#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
82#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
83#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
85#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
87#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
103#026-2022-00
2023 Magnum, Rambler, Avenger Seat Plate--Orange
Qty Used: 1Regular price $89.99 USDRegular priceUnit price per
-
110#029-4010-00
Button Bumper
Qty Used: 4Regular price $1.31 USDRegular priceUnit price per
-
112#030-3050-00
10 X 1/2 Pan Phil a T/S Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
124#034-8045-03
2017 MZ/ZT Seat Spring Assembly
Qty Used: 2Regular price $29.99 USDRegular priceUnit price per
-
149#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
155#064-3050-21
2021 Load Balanced Brake Cable 1
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
156#064-3051-21
2021 Load Balanced Brake Cable 2
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
163#069-1051-21
Load Balanced Brake Handle Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
167#071-2100-22
2022 Avenger Seat
Qty Used: 1Regular price $529.99 USDRegular priceUnit price per
-
167.1#071-1004-00
OBSOLETE USE 071-5065-07
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
167.2#071-2108-00
Bad Boy SK130 Avenger Cover for 071-2100-22
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
168#077-8073-00
Safety Switch
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
177#091-0214-00
2018 LH/RH Steering Control Decal Roll
Qty Used: 1Regular price $8.49 USDRegular priceUnit price per
-
178#091-0339-18
2018 MZ/Magnum/ZT/MAV/Comp Out Brake Decal
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
183#091-3150-00
Outlaw Warning Decal
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
187#091-4062-00
NOT FOR SALE IN CALIFORNIA
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
188#091-4063-00
Flying Bulldog Front Bumper Decal
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
