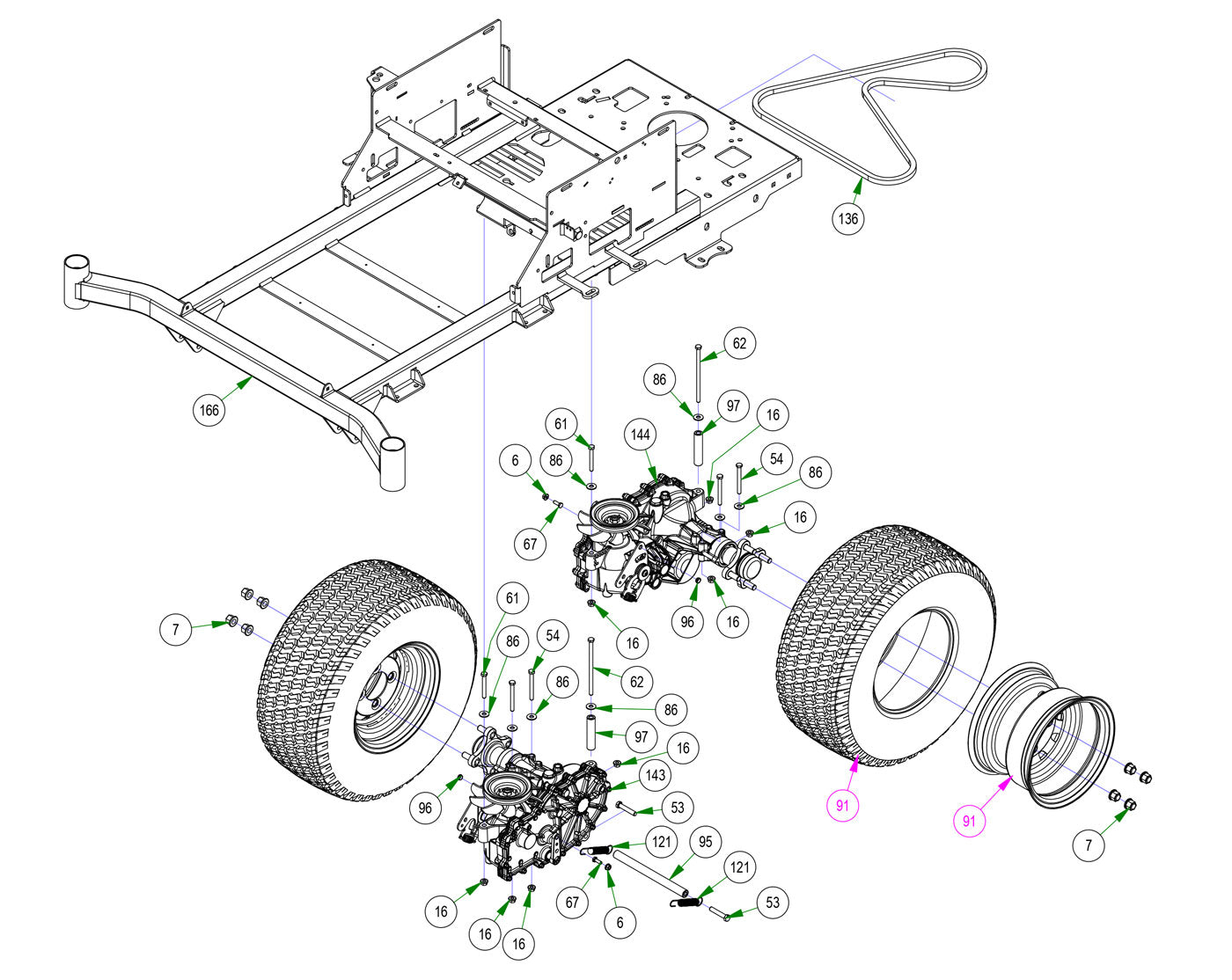

Transaxles
Parts Index
- 6 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 7 Acorn Lug Nut (Qty 8)
- 16 5/16-18 Nylon Flange Nut (Qty 8)
- 53 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)
- 54 5/16-18 X 3 GR 5 Hex Bolt Zinc (Qty 4)
- 61 5/16 x 2 1/2 Bolt (Qty 2)
- 62 5/16-18 X 6 GR 5 Hex Bolt Zinc (Qty 2)
- 67 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 86 5/16 USS Flat Washer Zinc (Qty 8)
- 91 2017 ZT Black Assembly 22x11-10 (Qty 2)
- 95 2017 Transaxle Spacer-ZT (Qty 2)
- 96 Drive Arm Transaxle Spacer (Qty 2)
- 97 2017 Transaxle Spacer (Qty 2)
- 121 Brake Return Spring (Qty 2)
- 136 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 143 2021 RH 2800 Transaxle (Qty 1)
- 144 2021 LH 2800 Transaxle (Qty 1)
-
6#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
7#013-3000-00
Acorn Lug Nut
Qty Used: 8Regular price $2.99 USDRegular priceUnit price per
-
16#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
53#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
54#018-4701-00
5/16-18 X 3 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
61#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
62#018-5355-00
5/16-18 X 6 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $2.19 USDRegular priceUnit price per
-
67#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
86#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
91#022-2015-00
2017 ZT Black Assembly 22x11-10
Qty Used: 2Regular price $290.99 USDRegular priceUnit price per
-
95#025-0017-00
2017 Transaxle Spacer-ZT
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
96#025-0036-00
Drive Arm Transaxle Spacer
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
97#025-0070-00
2017 Transaxle Spacer
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
121#034-1026-00
Brake Return Spring
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
136#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
143#050-5050-02
2021 RH 2800 Transaxle
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
-
144#050-5060-02
2021 LH 2800 Transaxle
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
