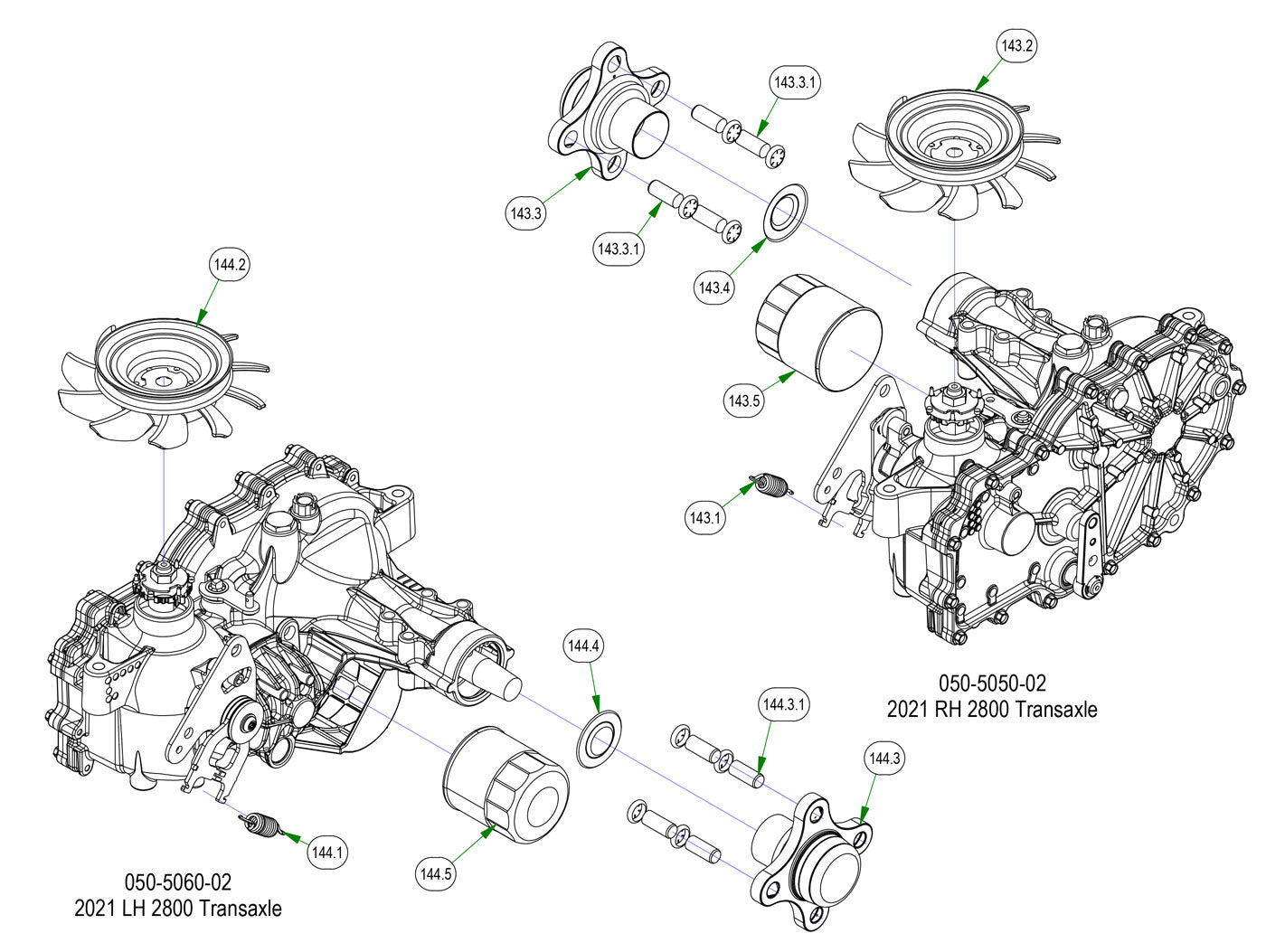

Transaxle Sub Assemblies

Parts Index
- 83 1/4 USS Flat Washer Zinc (Qty 4)
- 91 2017 ZT Black Assembly 22x11-10 (Qty 2)
- 143 2021 RH 2800 Transaxle (Qty 1)
- 143.1 Gold Transaxle Spring (Qty 1)
- 143.2 2021 ZT/Maverick Transaxle Fan/Pulley Kit (Qty 1)
- 143.3 ZT Transaxle Wheel Hub (Qty 1)
- 143.3.1 Transaxle Wheel Studs/ Drum Brake Studs (Qty 4)
- 143.4 2021 ZT/Maverick Transaxle Seal Kit (ZT-2800) (Qty 1)
- 143.5 ZT Hydraulic Filter (Qty 1)
- 144 2021 LH 2800 Transaxle (Qty 1)
- 144.1 Gold Transaxle Spring (Qty 1)
- 144.2 2021 ZT/Maverick Transaxle Fan/Pulley Kit (Qty 1)
- 144.3 ZT Transaxle Wheel Hub (Qty 1)
- 144.3.1 Transaxle Wheel Studs/ Drum Brake Studs (Qty 4)
- 144.4 2021 ZT/Maverick Transaxle Seal Kit (ZT-2800) (Qty 1)
- 144.5 ZT Hydraulic Filter (Qty 1)
